Bently Nevada 3300 XL 8mm Probe 330101-30-10-10-02-05 | Vibration Sensor

Product Introduction

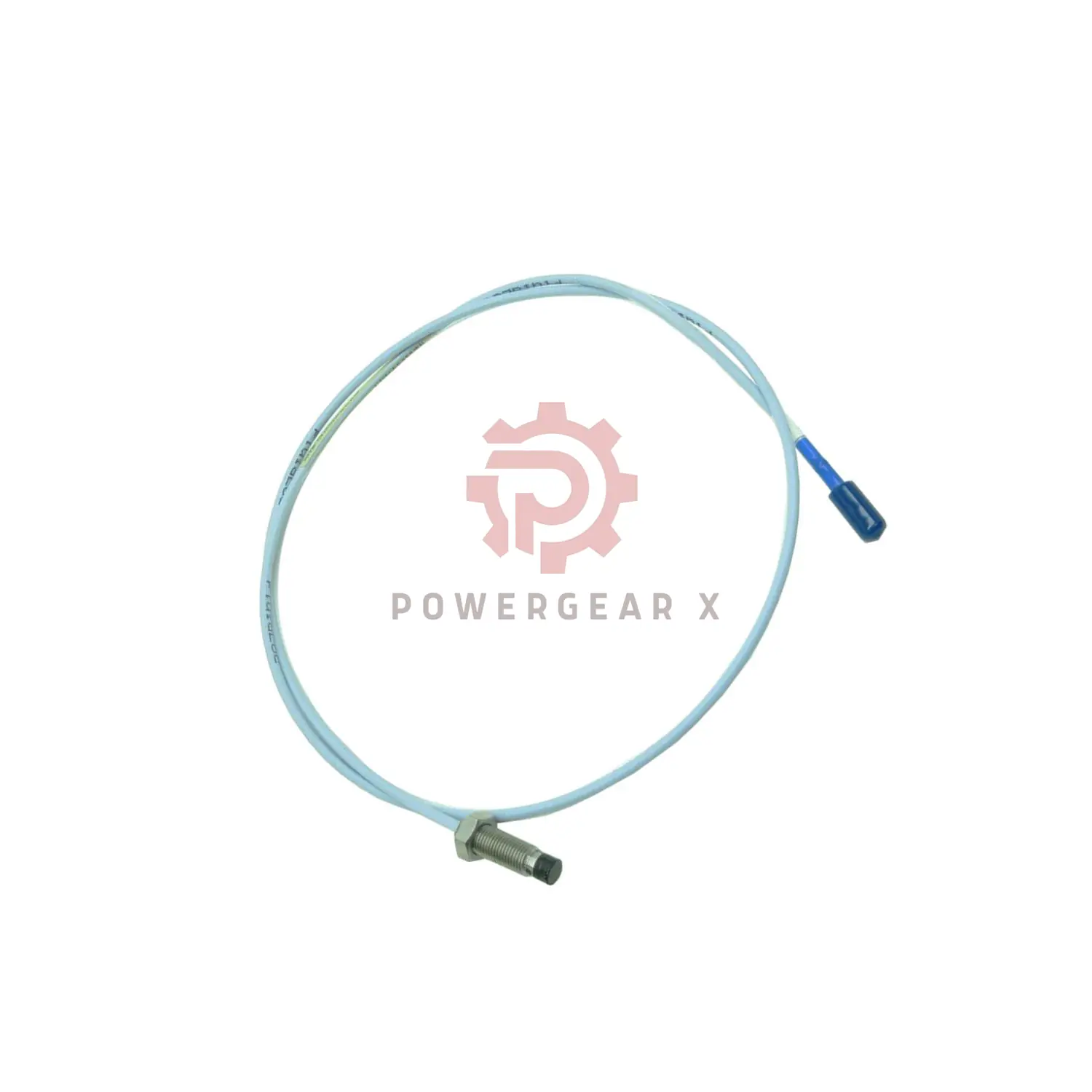

This is the 3300 XL 8mm Proximity Probe, Model 330101-30-10-10-02-05. It is a high-performance sensor from Bently Nevada. This 8mm probe offers superior durability for vibration and position measurement. It is perfect for protecting critical machinery like turbines and compressors.

Technical Specifications

• Brand & Core Model
  • Brand: Bently Nevada
  • Base Model: 3300 XL 8 mm Proximity Probe
  • Full Part Number: 330101-30–10–10–02–05
• Part Number Configuration Tree
  • 330101 – Base: 3300 XL 8 mm Probe, 3/8-24 UNF thread, no armor
  • 30 – Unthreaded Length: 3.0 inches
  • 10 – Case Length: 1.0 inch
  • 10 – Cable Length: 1.0 meter (3.3 feet)
  • 02 – Connector: Miniature Coaxial ClickLoc
  • 05 – Agency: Not Required (00 Option)
• Key Performance Data
  • Linear Range: 2.0 mm (80 mils)
  • Recommended Gap: 1.27 mm (50 mils) for -9 Vdc
  • Sensitivity (ISF): 7.87 V/mm (200 mV/mil) ±5%
  • Linearity (DSL): Better than ±0.025 mm (±1 mil)
  • Probe Resistance (1.0m): 7.59 Ω ± 0.50 Ω
• Environmental Limits
  • Operating Temperature: -52°C to +177°C (-62°F to +350°F)
  • Extended Temp Available: Tip to +218°C (+425°F)
  • Seal: Viton® O-ring for pressure differential
  • Humidity: <3% ASF change at 93% RH
  • Cable Pull Strength: 330 N (75 lbf) with CableLoc
• Installation & Compatibility
  • Mounting Torque: Recommended 11.2 N•m (100 in•lb)
  • Max Field Wiring: 305 meters (1000 ft), shielded cable
  • Compatibility: Works with Bently Nevada 3300 XL Proximitor systems
  • Optional FluidLoc: Prevents fluid migration inside cable
• Certifications & Support
  • Agency Approval: As configured (Option 00)
  • Warranty: 12 Months
  • Shipping: FedEx, UPS, DHL available

Typical Applications & Diagnostic Value

Use this probe for predictive maintenance on critical assets. It provides vital data for diagnosing machine health. Ideal for:

• Gas & Steam Turbines
• Centrifugal Compressors
• Large Pumps and Fans
• Electric Motors

It detects unbalance, misalignment, and bearing issues early. This enables reliable condition monitoring and prevents downtime.

Frequently Asked Questions (FAQ)

Selection & Ordering

• What does the “8mm” mean for me?

The 8mm body is thicker and more rugged. It better resists physical damage in tough plants.

• How do I read the part number suffixes?

Each hyphenated number is a configurable option. The tree structure above details what “30-10-10-02-05” means for this unit.

Installation & Use

• What is the correct installation gap?

Target -9 Vdc at the monitor. This equals about 1.27 mm (50 mils) between the probe tip and shaft.

• Can I cut or splice the probe cable?

No. This will change electrical characteristics. Always order the correct cable length. Use extension cables if needed.

Maintenance & Experience

• The probe was installed in a hot area. Any advice?

For ambient temperatures over 177°C, you need the Extended Temperature Range (ETR) probe option. Check your model.

• Signal seems unstable. What are common causes?

Check for loose connectors. Ensure the target surface is clean and conductive. Verify proper grounding of the system.

Purchasing Guide

Follow these steps to select the right probe:

1. Identify the required total length (Cable + Case).
2. Confirm your machine’s thread type and mounting hole depth.
3. Check the maximum ambient temperature at the installation point.
4. Decide if you need special options like FluidLoc for wet environments.
5. Match the connector type to your existing system.

Need help? Our experts can guide you to the exact model.
