Product details
Versatile Armored Probe for General Applications

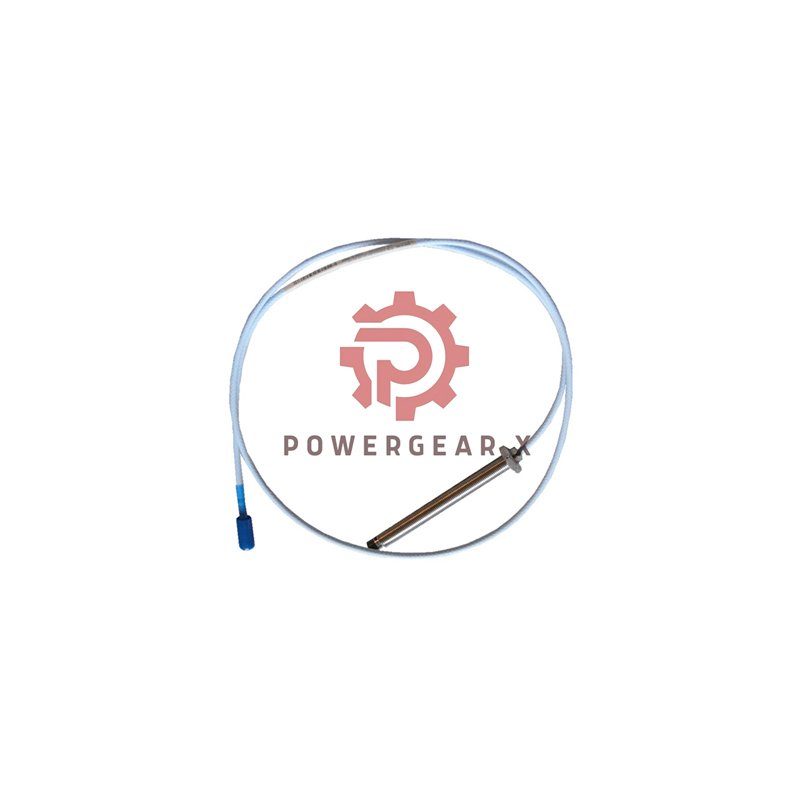

This Bently Nevada 3300 XL 8mm Proximity Probe is a reliable workhorse. Model 330102-00-40-10-02-00 features a 4.0-inch armored body and a standard 1-meter cable. It is fully threaded for secure mounting in 3/8-24 UNF holes. This sensor offers robust protection for vibration monitoring in typical industrial settings.
Part Number Breakdown
- 330102 – Armored 8mm Probe, 3/8-24 UNF
- 00 – Unthreaded: 0 in (Fully Threaded)
- 40 – Case Length: 4.0 in (102mm)
- 10 – Cable: 1.0 Meter
- 02 – Connector: ClickLoc
- 00 – Approvals: Standard
Key Technical Data
- Range: 2.0 mm linear.
- Gap: 1.27 mm.
- Temperature: -52°C to +177°C.
- Resistance (1m): 7.59 Ω.
- Thread: 3/8-24 UNF.
- Max Engagement: 0.563 in.
- Armor: Full-length protection.
Quick Installation
- Screw the 4.0-inch probe into the mounting hole.
- Limit thread engagement to 0.563 inch.
- The armor guards against impacts and abrasion.
- Connect the 1.0m cable to your proximitor.
- Use for pumps, motors, and fans.
FAQ
Why is 4.0 inches a popular probe length?
It is a versatile medium length. It fits a wide range of common industrial equipment without being too short or excessively long.
What is the main benefit of the armor?
The armor protects the sensitive probe cable from being crushed, cut, or damaged by vibration in harsh plant environments.
Can I use this probe in a hazardous area?
No. This model does not have special certifications (option ’00’). It is designed for standard, non-hazardous industrial locations only.
Is the 1.0m cable length sufficient?
Yes. One meter is the most common cable length. It provides enough reach for flexible routing to the monitoring equipment.
What are your shipping and warranty terms?
We offer a 12-month manufacturer’s warranty. Fast delivery is available via FedEx, UPS, and DHL express services.
Ordering Information
Select model 330102-00-40-10-02-00 for general-purpose, armored applications with imperial threads. The 4.0-inch length suits most needs.
Contact for pricing: sales@powergearx.com or WhatsApp +86 18030005825.
