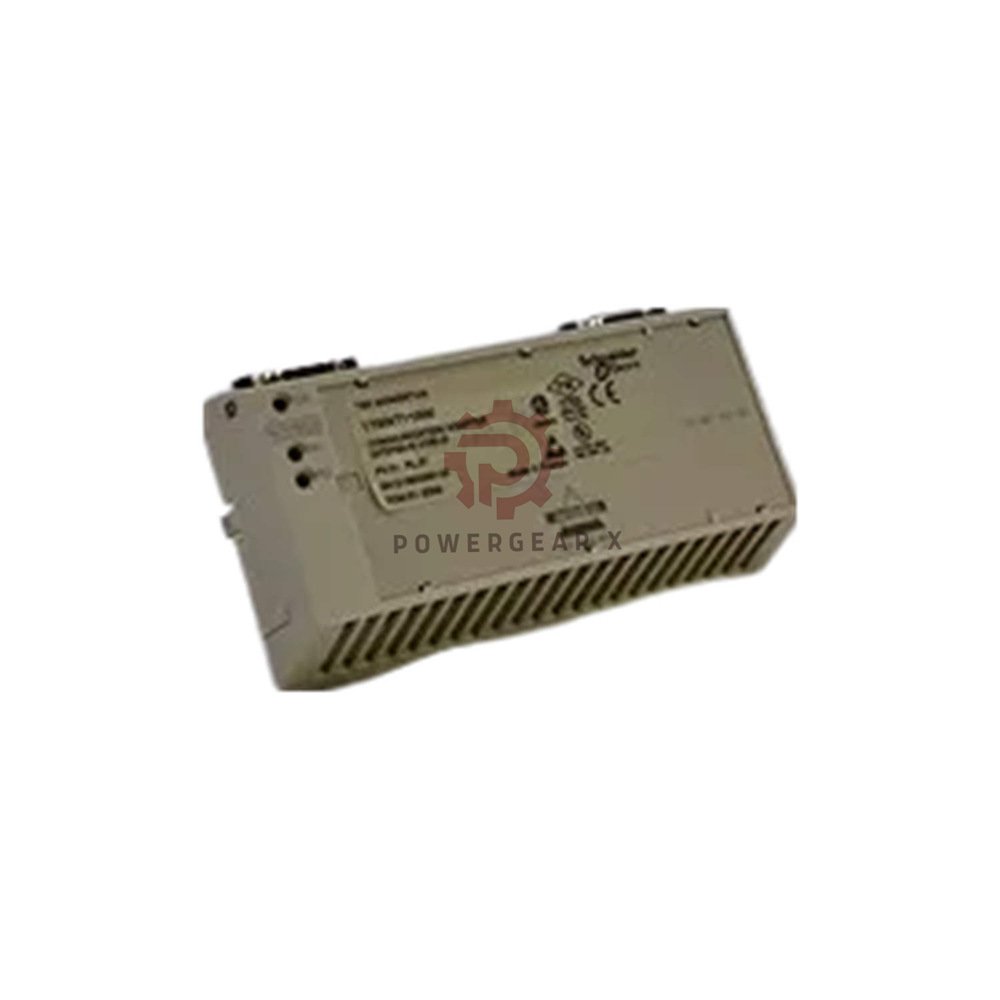

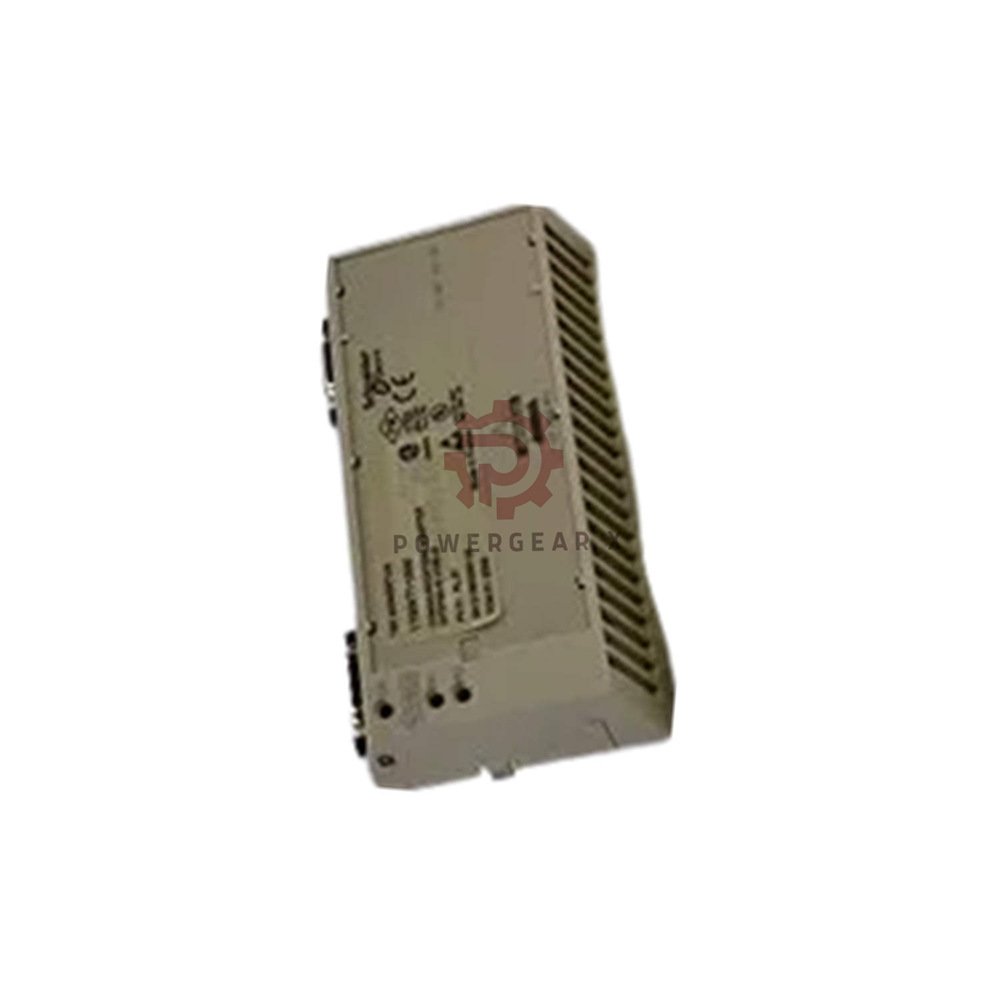

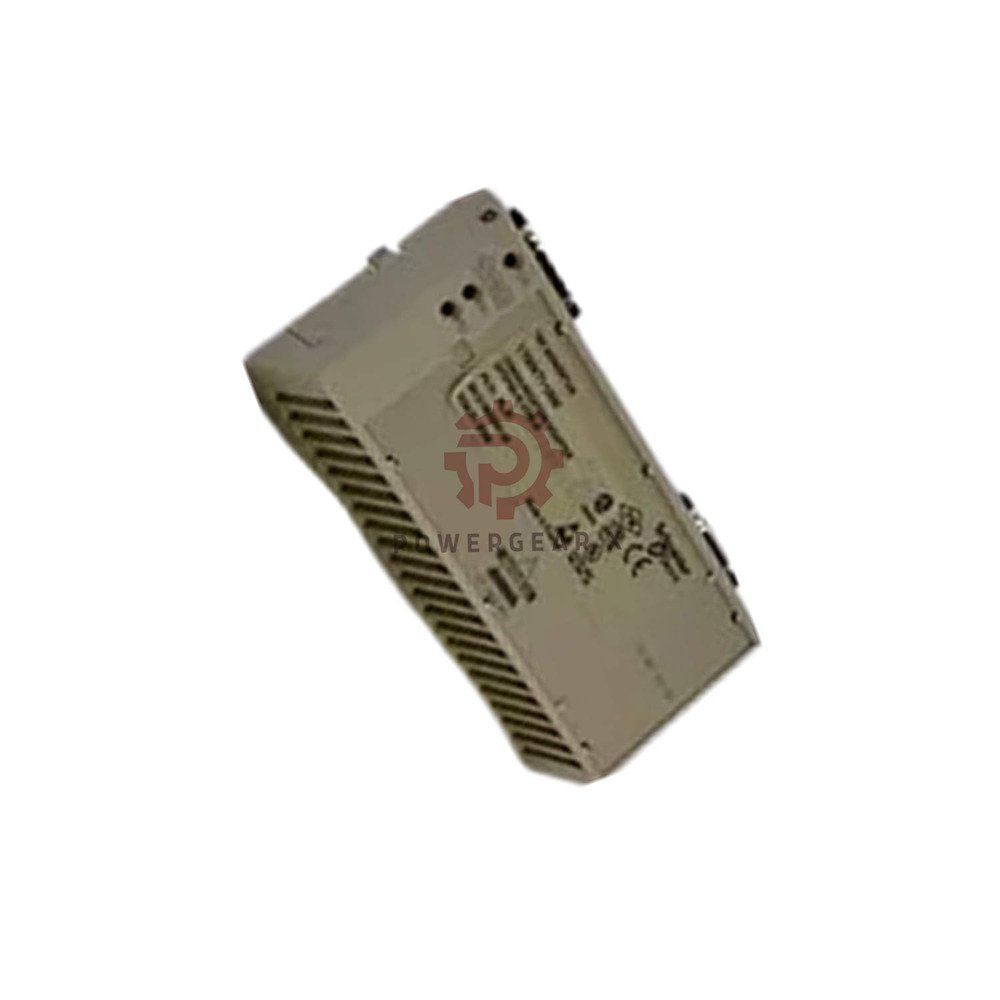

170INT11000C Interbus Communication Adaptor – Modicon Momentum

Schneider Electric | Modicon Momentum | Interbus adaptor with 500 kbit/s transmission, ring topology, and fail-safe operation. Lightweight, IP20-rated, and built for industrial reliability.

Description

The 170INT11000C connects devices via Interbus at 500 kbit/s over twisted-pair cables. It supports ring topology and up to 254 devices per segment. The maximum cable distance reaches 12,800 meters, ideal for large-scale automation. This adaptor operates in fail-safe mode, ensuring stable performance under stress. It resists electrostatic discharge up to 8 kV and electromagnetic fields up to 10 V/m. With an IP20 protection class and 5000 m operating altitude, it suits demanding industrial environments.

Technical Specifications

• Manufacturer: Schneider Electric
• Product Type: Interbus Communication Adaptor
• Product Line: Modicon Momentum
• Part Number: 170INT11000C
• Transmission Rate: 500 kbit/s
• Transmission Support: Twisted Pair
• Topology: Ring
• Devices per Segment: 0 to 254
• Max Cable Distance: 12,800 m
• Fail State: Fail Safe
• Protection Class: IP20
• ESD Resistance: 8 kV
• EM Field Resistance: 10 V/m
• Operating Altitude: 5000 m
• Net Weight: 0.07 kg (0.15 lb)
• Protective Coating: Humiseal 1A33 TC
• Marking: CE

Installation & Compatibility

• Mounting: Snap-on DIN rail, easy integration.
• Cable Type: Twisted pair, up to 12.8 km total.
• Compatibility: Interbus generation SUPI 2 protocol.
• Environment: IP20, conformal coated for humidity.

Maintenance & Debugging

• Diagnostic LEDs: Quick status check.
• Fail-safe design: Automatic error handling.
• No special tools: Simple screw terminal connections.

Expert Review – Manager’s Insight

“The 170INT11000C delivers rock‑solid Interbus connectivity for large factories. Its 500 kbit/s speed and 12,800 m range outperform many competitors. The fail‑safe feature reduces downtime, and the compact size fits any cabinet. I recommend this for greenfield projects or retrofits.”

Applications & Suitable Devices

• Large conveyors & material handling
• Automotive assembly lines
• Packaging machinery
• Process control systems
• Any Interbus network needing high device count

Frequently Asked Questions (FAQ)

What is the maximum cable distance?

12,800 meters between modules.

How many devices can I connect per segment?

Up to 254 devices.

Is it compatible with older Interbus systems?

Yes, supports Interbus SUPI 2 generation.

What happens if the network fails?

The adaptor enters fail‑safe state, maintaining stability.

Can I use it outdoors?

IP20 rating, so indoor use only. But it tolerates harsh industrial indoor environments.

Selection Guide – What to Consider

• Need long range? This adaptor covers 12.8 km.
• High device count? Supports 254 nodes per segment.
• Fast data? 500 kbit/s meets most real‑time needs.
• Environment: Works up to 5000 m altitude, 8 kV ESD.

Packaging & Delivery

• Package includes: 1 x 170INT11000C adaptor, user manual (digital).
• Warranty: 12 months from purchase date.
• Shipping: 12–24 hours dispatch via FedEx, UPS, or DHL.
• Returns: Not returnable (check policy).

Certifications

• CE marked
• Conformal coating Humiseal 1A33 TC
• IP20 protection

Ordering Information

• Category: US1PC3118206
• Discount Schedule: PC31
• GTIN: 3595863798814
