170XTS00501 Schneider Busbar | Modicon Momentum 2-Row Screw

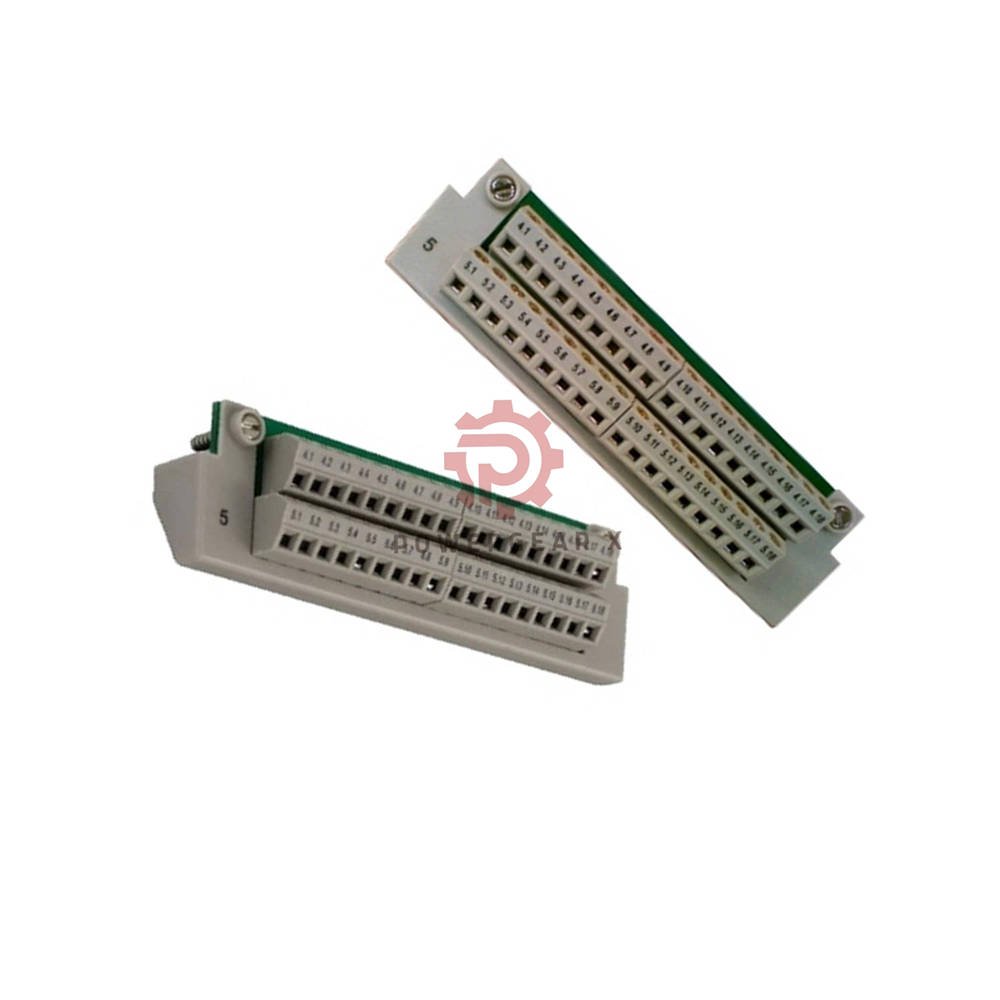

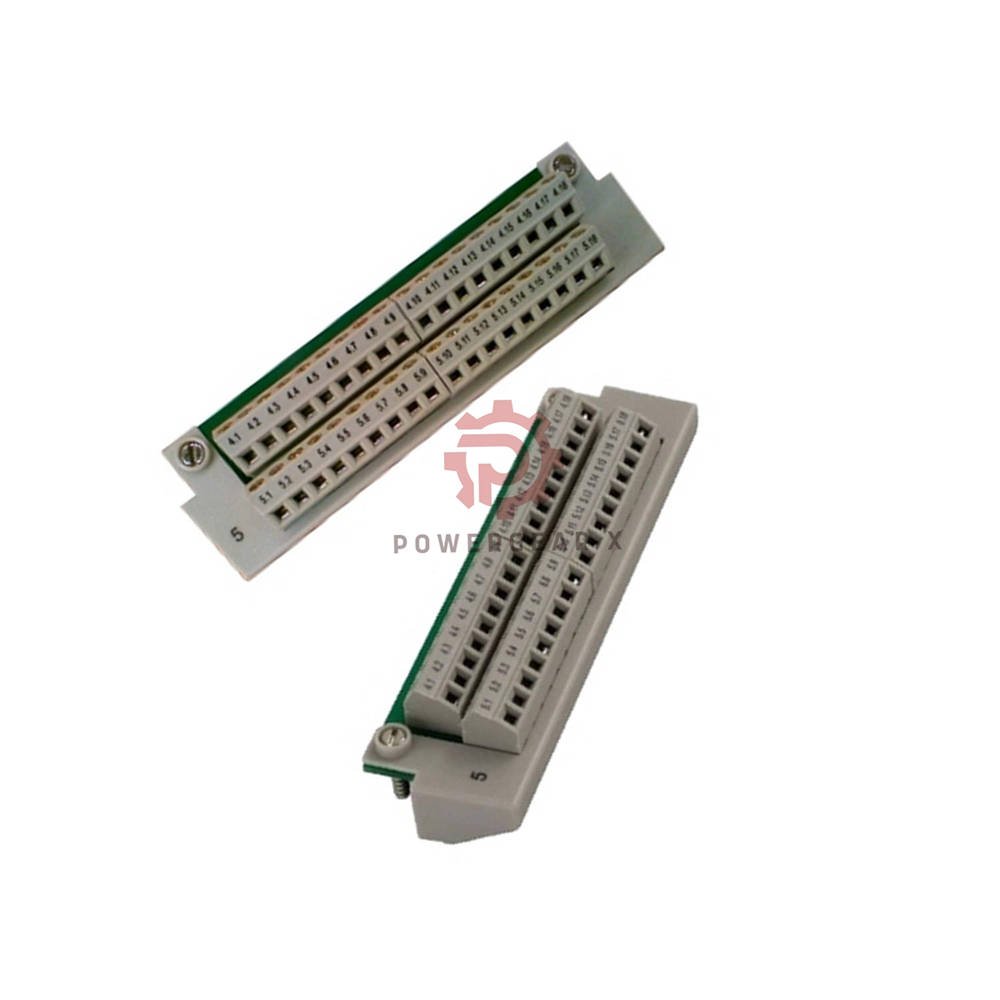

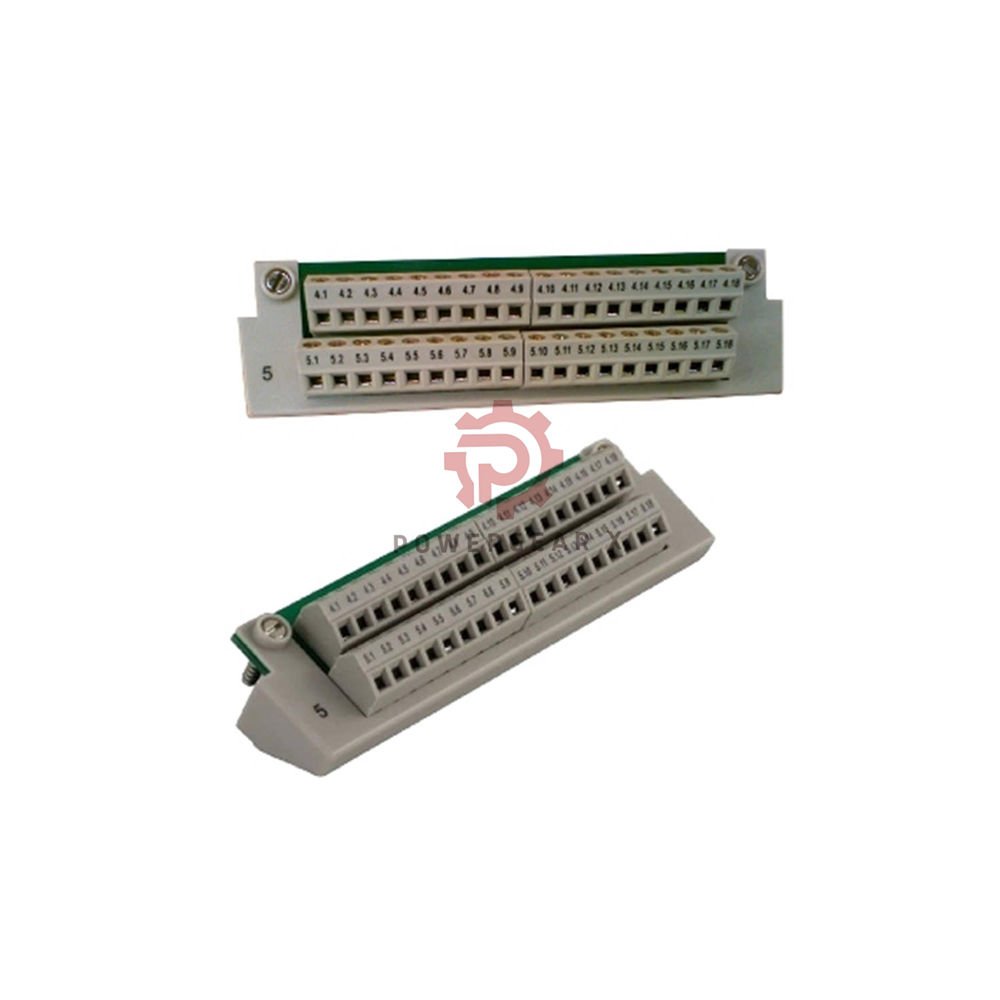

170XTS00501 – Schneider Electric Modicon Momentum Busbar

Brand: Schneider Electric | Model: 170XTS00501 | Series: Modicon Momentum | Type: Busbar Connection Accessory

2-row busbar for Modicon Momentum automation platform. Screw-type terminals, durable bus bar material. Provides common field device connection. For discrete and analog I/O bases.

Key Features

• 2-row design – supports two horizontal rows
• Screw terminals – reliable field connections
• Durable material – robust bus bar construction
• Lightweight – only 0.15 lbs (64 g)
• Versatile – works with discrete and analog I/O bases
• Protective distribution – serves as connector

Technical Specifications

• General
  • Manufacturer: Schneider Electric
  • Model: 170XTS00501
  • Series: Modicon Momentum
  • Type: Busbar connection accessory
  • EAN: 3595861147867
  • Weight: 0.064 kg
• Design
  • Rows: 2 horizontal
  • Material: Bus bar
  • Connections: Screw type terminals
• Environmental
  • Operating temp: 0…60 °C
  • Storage humidity: up to 80% (non-condensing)
  • Operating humidity: up to 80% (non-condensing)
  • Max altitude: 1000 m
• Application
  • Destination: Discrete and analog I/O bases
  • Function: Common connection for field devices
  • Role: Protective distribution connector

Installation & Commissioning

• Mounting: Snap onto I/O base – no tools needed.
• Wiring: Screw terminals – secure and reliable.
• Setup: Plug and play – no configuration required.

Compatibility & Applications

• Systems: Modicon Momentum automation platform.
• Modules: Discrete I/O bases, analog I/O bases.
• Use cases: Field device common connection, power distribution.

Package & Delivery

• Package: 1 busbar (5.1 x 1.9 x 1.1 in).
• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.

Expert Review

“Simple yet essential accessory. The 2-row busbar simplifies field wiring. Screw terminals ensure solid connections. Perfect for Momentum I/O base installations.”

Manager’s Insight

“Great for organizing field wiring. Use it with discrete and analog bases. Lightweight and durable. Saves time during installation.”

Application Scenarios

• Common power distribution for field devices
• Ground or neutral connection for I/O modules
• Protective distribution in control cabinets

Comparison with Similar Models

• 170XTS00501 – 2-row busbar, screw terminals.
• 170XTS00500 – 1-row busbar for smaller systems.
• 170XTS00401 – Spring clamp version.
• 170XTS00601 – 3-row busbar for larger setups.

FAQ

• What is this product?
  A 2-row busbar for Modicon Momentum.
• What does it connect to?
  Discrete and analog I/O bases.
• What type of terminals does it use?
  Screw type terminals.
• What is the weight?
  64 g (0.15 lbs).
• What is the temperature range?
  0 to 60 °C.
• Can it be used at high altitude?
  Yes – up to 1000 m.
• Is it compatible with other platforms?
  No – designed for Momentum only.
• How to choose between 1-row and 2-row?
  Choose 2-row for larger systems; 1-row for compact needs.

Selection Guide

• For 2-row field wiring: 170XTS00501.
• For compact 1-row needs: 170XTS00500.
• For spring clamp preference: 170XTS00401.
• For larger 3-row systems: 170XTS00601.
