Product details

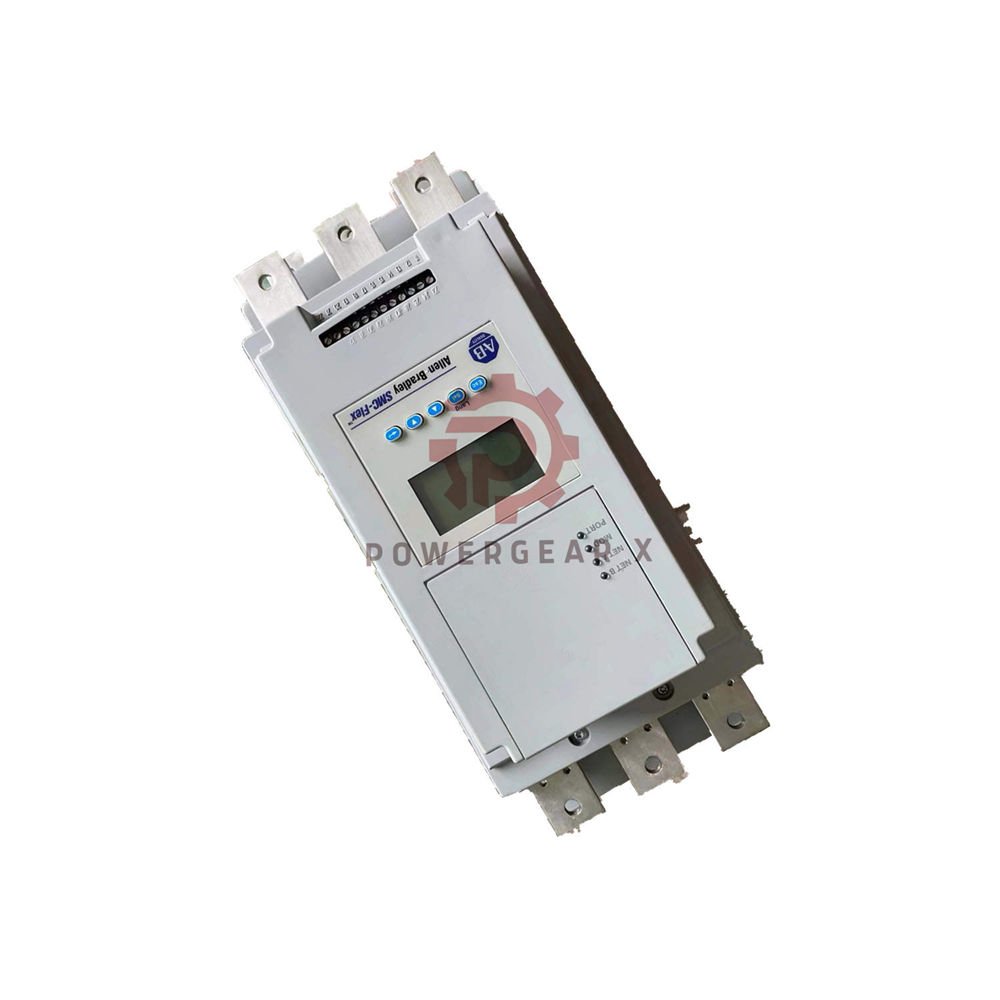

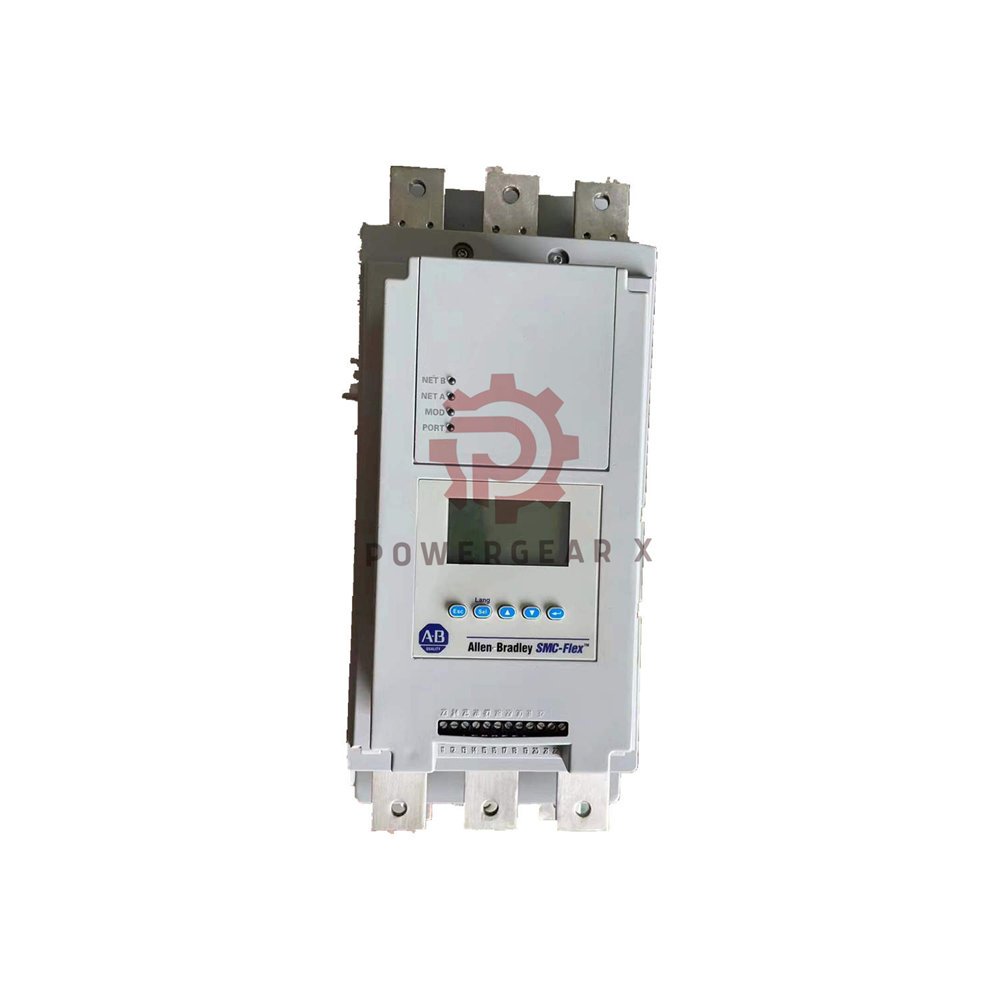

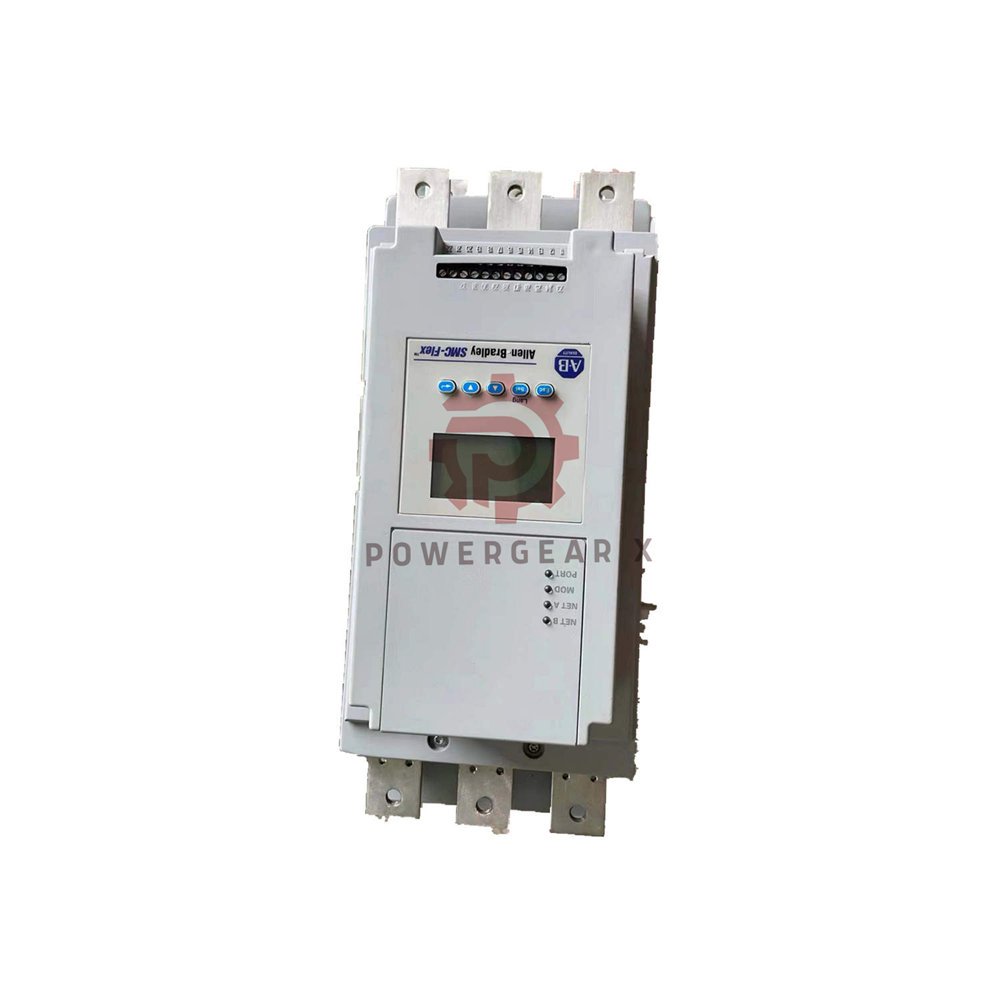

🔷 Allen-Bradley 150-F201NBDD – Smart Motor Controller
- 150-F201NBDD – Advanced motor control solution
- Brand: Allen-Bradley (Rockwell Automation)
- Type: Smart Motor Controller with braking
- Current: 201 A, Power: 150 HP at 460V AC
- Phase: Three phase, 50/60 Hz
⚡ Electrical Specifications
- Power ratings
- Output voltage: 460 V AC
- Supply voltage: 200-690 V AC (three phase)
- Current rating: 201 A continuous
- Motor power: 150 HP at 460V AC
- Frequency: 50/60 Hz compatible
- Control features
- Control voltage: 100-240 V AC
- Special function: Braking control included
- Controller type: Open (no enclosure)
📦 Physical & Environmental
- Protection rating
- IP rating: IP2X (finger safe)
- Enclosure: Open style for panel mounting
- Temperature limits
- Minimum operating: -5°C
- Maximum operating: 50°C
- Storage: Suitable for industrial environments
✅ Certifications & Standards
- Major approvals
- UL 508 – Industrial control equipment
- cULus Listed – Canada and US
- CCC – China Compulsory Certification
- EN/IEC 60947-1 – Low-voltage switchgear
- EN/IEC 60947-4-2 – AC semiconductor controllers
- CSA – Canadian Standards Association
- CE – European compliance
🔧 Typical Applications
- Conveyor systems: Soft start/stop with braking
- Pumps and fans: Reduce mechanical stress
- Cranes and hoists: Precise braking control
- Compressors: Smooth acceleration
- Industrial mixers: Controlled deceleration
⚙️ Key Features
- Braking control
- Built-in braking for quick stops
- Reduces mechanical wear
- Smart motor management
- Microprocessor-based control
- Diagnostic capabilities
- Wide voltage range
- 200-690V AC input flexibility
- 50/60 Hz auto-sensing
📦 Package, Warranty & Shipping
- In the box
- 1x Allen-Bradley 150-F201NBDD smart motor controller
- Installation manual (if available)
- Warranty
- 12 months from shipment date
- Covers manufacturing defects
- Shipping carriers
- FedEx / UPS / DHL Express worldwide
- Tracking provided within 24 hours
❓ Expert FAQ – Selection & Experience
- What motors can I use with 150-F201NBDD?
- Answer: It handles motors up to 150HP at 460V AC. Works with three-phase induction motors. Perfect for pumps, fans, conveyors.
- Does this controller include bypass contactors?
- Answer: The 150-F201NBDD is an open-type smart controller. Bypass contactors are typically external. Check your system requirements.
- What does the braking control feature do?
- Answer: It provides controlled deceleration and stopping. Useful for high-inertia loads like conveyors or centrifuges.
- Can I use this outdoors?
- Answer: IP2X rating means finger safe but not weatherproof. Install inside an appropriate enclosure for outdoor use.
- What is delivery time for this controller?
- Answer: We ship within 24 hours via FedEx, UPS, or DHL. Express delivery takes 3-5 business days worldwide.
- Is warranty extendable beyond 12 months?
- Answer: Yes, contact sales@powergearx.com for extended warranty options.
- Does it work with 690V supply directly?
- Answer: Supply voltage range is 200-690V AC. At 690V, current rating may differ. Check motor nameplate for compatibility.
