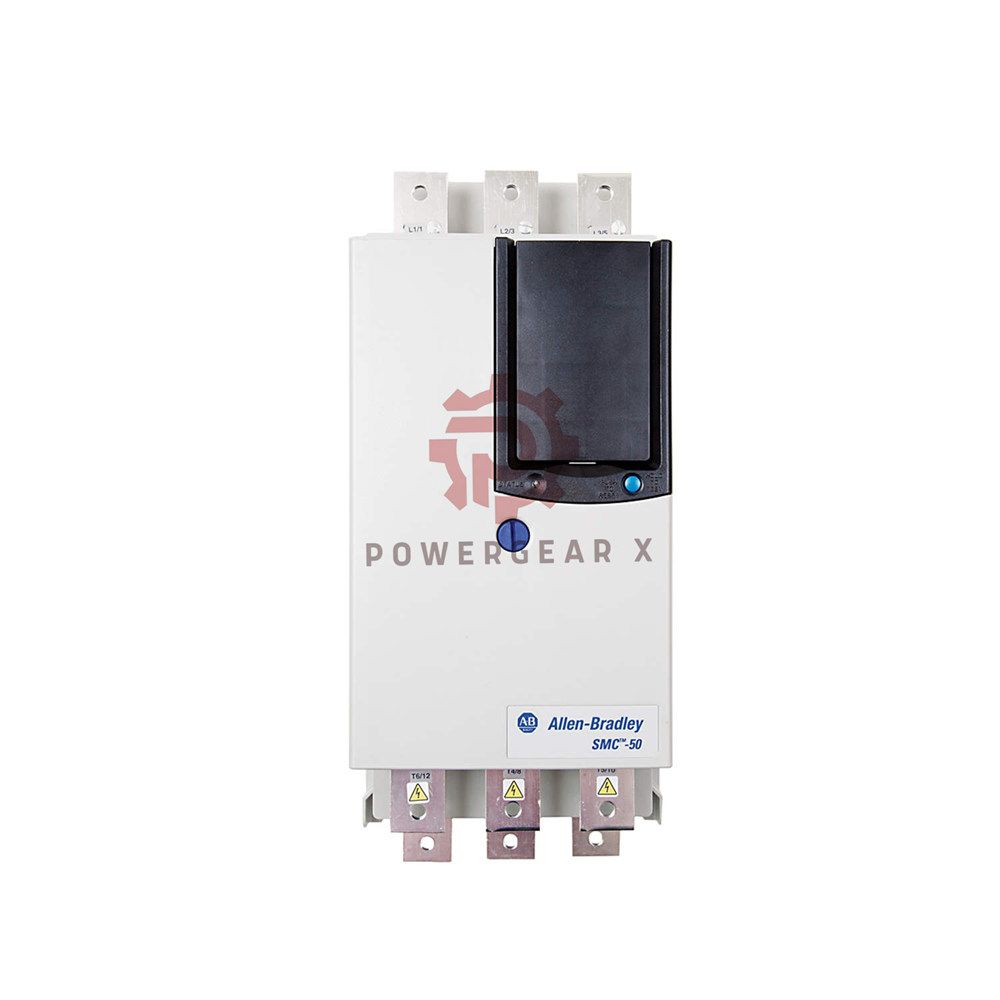

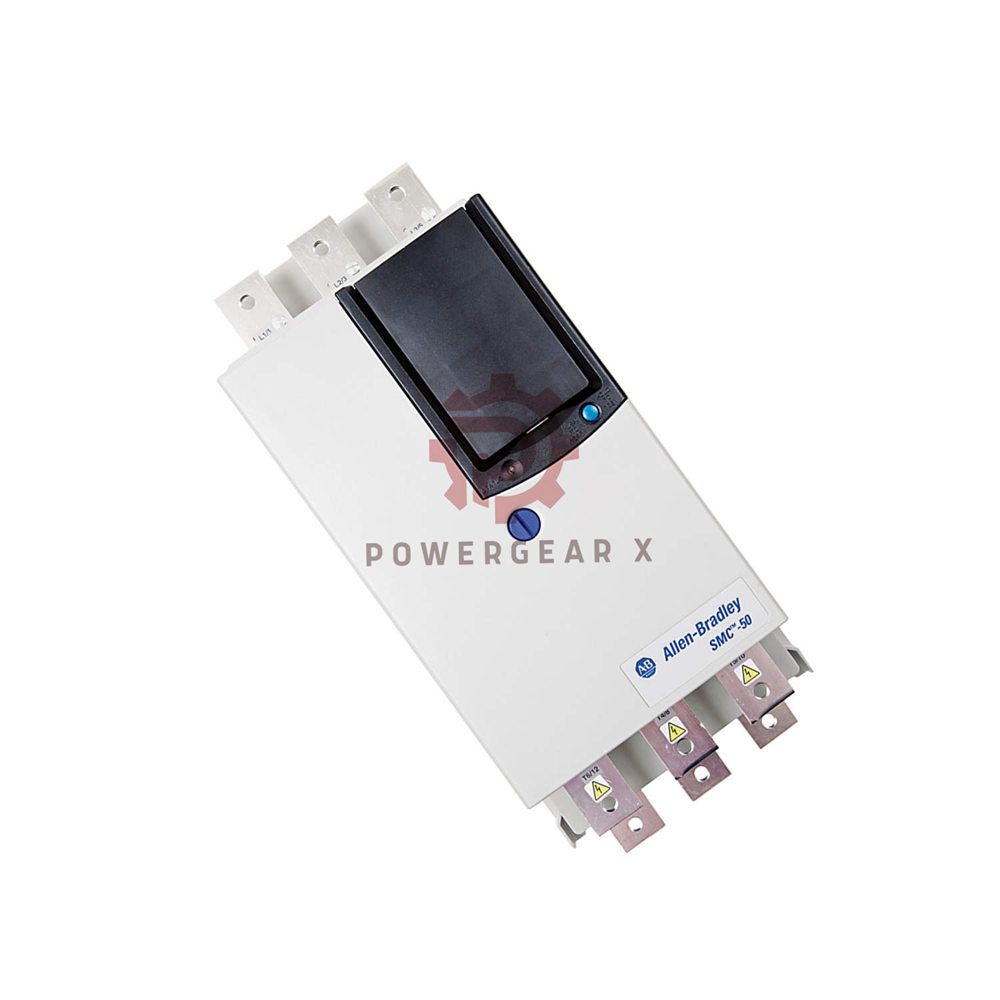

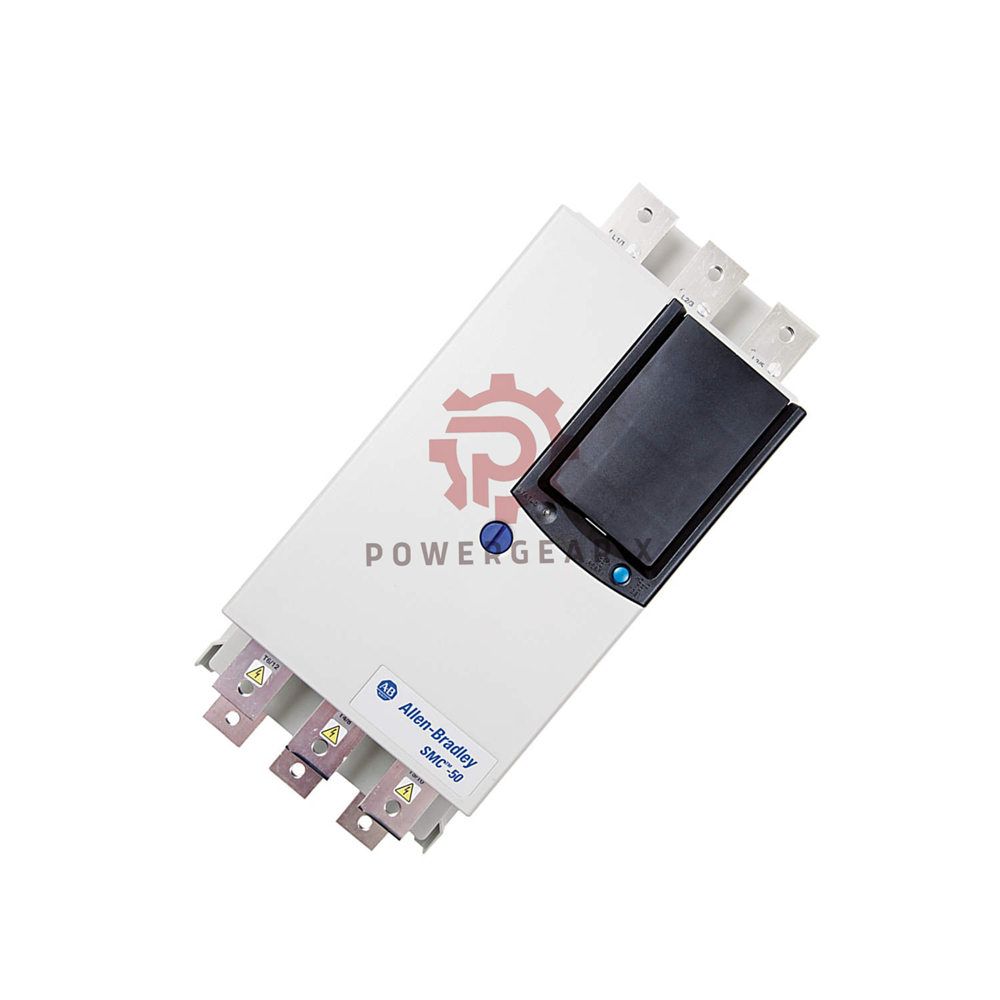

150-F625NBAB Allen-Bradley SMC Flex 625A 500Hp Pump Control Motor Controller

Allen-Bradley 150-F625NBAB – SMC Flex open smart motor controller

High‑power solid‑state motor control – 625 A, 500 Hp @ 460V AC. Bulletin 150 SMC Flex with pump control option. Open style, 200‑480V input, 230‑240V control. Ideal for soft starting large motors in industrial applications.

1. Key performance highlights

• 625 A rated current – handles 500 Hp @ 460V, suitable for large pumps, fans, compressors.
• Built‑in pump control – reduces water hammer, extends pump life.
• Wide input range – 200…480V AC, 3‑phase, 50/60 Hz – flexible for global use.
• Open enclosure – for panel mounting, easy integration into existing MCCs.
• Bulletin 150 series – proven Rockwell Automation technology.

2. Technical specifications – Allen-Bradley 150-F625NBAB

• Brand: Allen-Bradley · Model: 150-F625NBAB · Series: SMC Flex (Bulletin 150)
• ▸ Power ratings
  • Motor power & current
    • Rated current: 625 A
    • Motor power @460V: 500 Hp
    • Input line voltage: 200…480V AC, 3‑phase, 50/60 Hz
    • Control voltage: 230…240V AC (separate supply)
• ▸ Controller features
  • Bulletin 150 solid‑state controller
    • Enclosure type: Open (IP00, for panel mounting)
    • Control options: Pump control (standard on this model)
    • Soft start/stop: Adjustable ramp times, kickstart optional
• ▸ Environmental & mechanical
  • Operating conditions
    • Operating temperature: 0…50 °C (derating above 40 °C)
    • Storage temperature: –40…+85 °C
    • Humidity: 5…95% non‑condensing
  • Mounting
    • Style: Open chassis, panel mount with clearance for ventilation
    • Dimensions (approx): 12″ x 10″ x 8″ (HxWxD) – refer to manual

3. Installation & wiring guide

• Mount on back panel inside motor control center (MCC) or enclosure.
  • Use copper wires only, rated for 75 °C min – torque per manual.
  • Control voltage 230‑240V must be from isolated supply.
  • Pump control option requires external pressure/level sensor (not included).
  • Maintain 6″ clearance above/below for cooling.

4. Compatibility & integration

• Works with any 3‑phase induction motor up to 500 Hp @460V.
  • Compatible with PLC via discrete I/O or optional communication modules (DeviceNet, EtherNet/IP).
  • Pump control reduces surge – ideal for wastewater, irrigation, HVAC.
  • Can be used with bypass contactor for continuous run after start.

5. Commissioning & maintenance tips

• LED status indicators: Power, Start, Trip, Pump mode.
  • Use built‑in diagnostics via HIM (human interface module) or software.
  • Parameter backup recommended before commissioning.
  • If overheat trip occurs, check fan operation and ventilation.

6. Typical applications

• Large centrifugal pumps – water treatment, oil pipelines.
  • High‑inertia fans – cement plants, mining ventilation.
  • Compressors – refrigeration, air supply systems.
  • Conveyors – soft start reduces belt stress.

7. Packaging & logistics

• Included: 150-F625NBAB controller, manual, mounting hardware.
  • Warranty: 12 months against defects in materials and workmanship.
  • Shipping partners: FedEx, UPS, DHL – freight shipping (heavy item).
  • HS code: 853710 (control panels with electrical apparatus).

8. Frequently Asked Questions (FAQ) – expert insights

• Q: What is the advantage of pump control option?A: It provides smooth acceleration/deceleration to prevent pressure surges (water hammer) – extends pump and pipe life.
• Q: Can this controller be used for soft stopping only?A: Yes – you can configure it for soft start only, soft stop only, or both. Pump mode includes tailored stop.
• Q: Do I need external overload protection?A: Built‑in electronic overload is standard – adjustable class 10/20/30. No separate overload relay needed.
• Q: What happens if control voltage is lost during operation?A: The controller will trip and motor coasts to stop. Auto‑restart can be enabled if needed.
• Q: Is this model suitable for 690V motors?A: No – input voltage max is 480V. For 690V, use 150‑F… with higher voltage rating.

9. Selection guide – SMC Flex family

• 150-F625NBAB (this model) – 625A, 500Hp @460V, pump control, open style.
  • 150-F250NBD – 250A, 200Hp, general purpose, no pump option.
  • 150-F1080NBD – 1080A, 900Hp for very large motors.
  • Need NEMA 12 enclosure? Order 150‑F625NBAB with enclosure kit.
