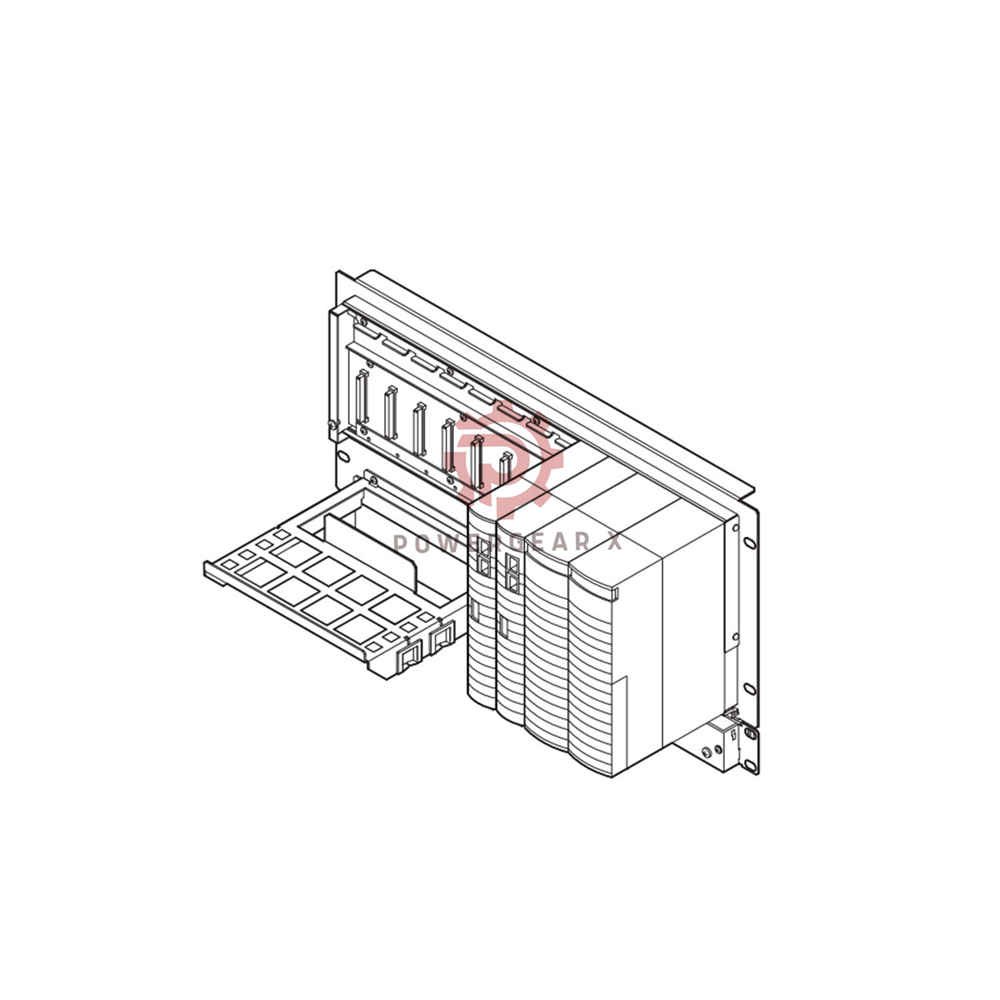

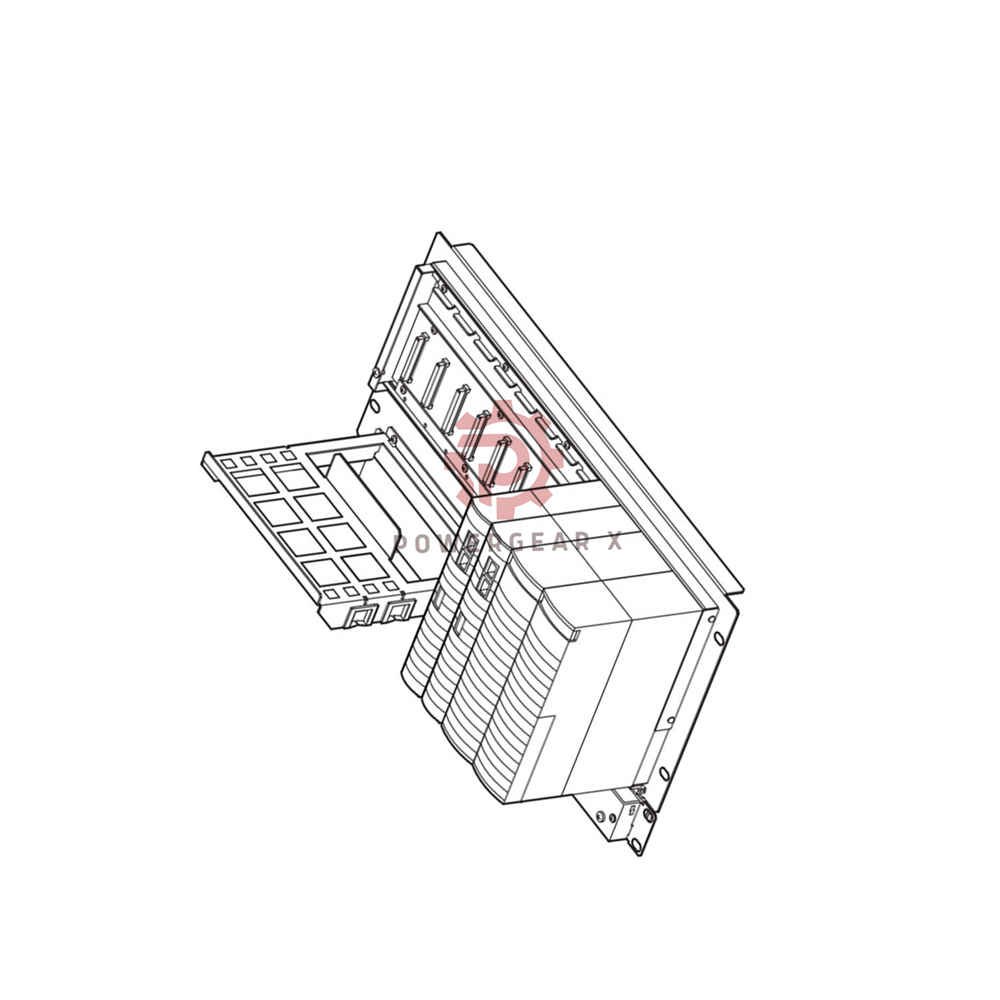

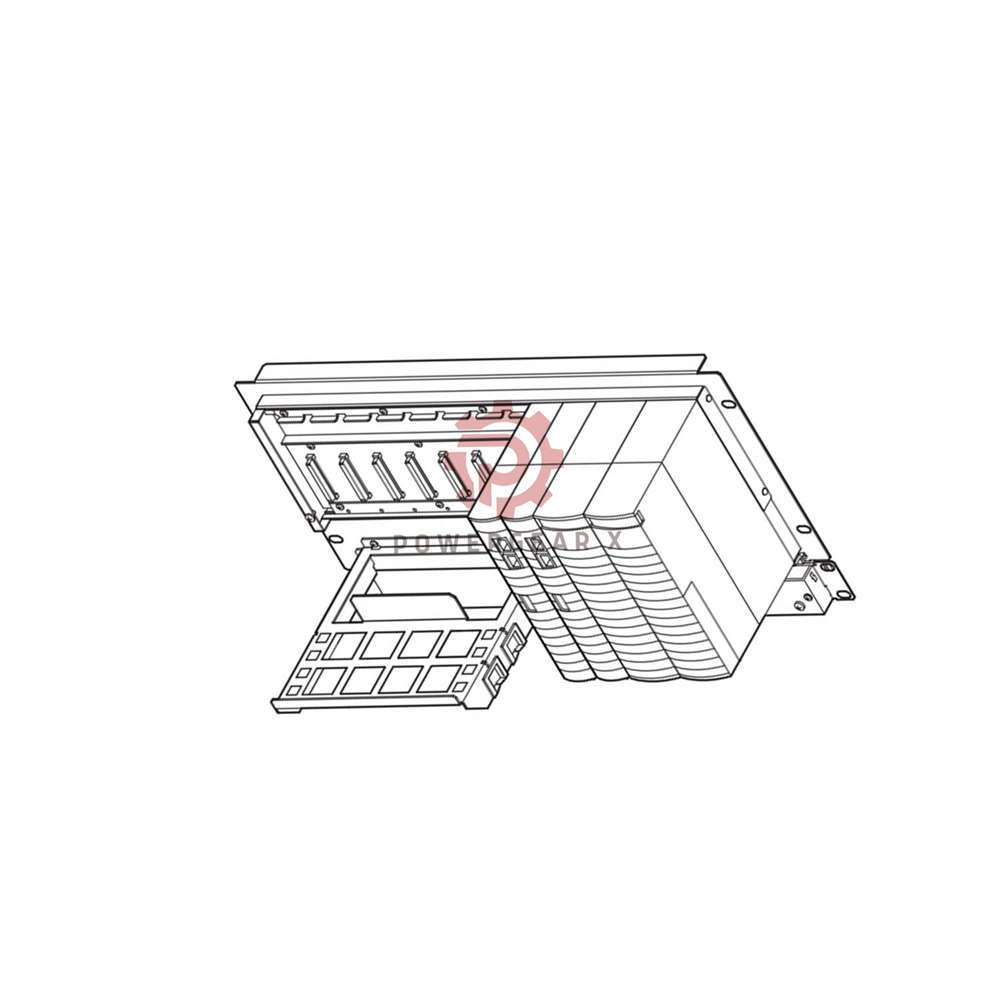

Yokogawa SSC60D-S2512 Safety Controller – Dual Processor Rack

SSC60D-S2512 – Safety Control Unit

Brand: Yokogawa | Model: SSC60D-S2512 | Type: Rack-Mountable Safety Controller

This safety control unit provides dual-redundant power and processor modules. It supports Vnet/IP and ESB bus interfaces. It is designed for critical process safety applications.

Key Features

• Dual-redundant power – two power supply modules included
• Redundant processors – two S2CP471 or SCP461 modules
• Vnet/IP interface – 100 Mbps, dual-redundant
• ESB bus – dual-redundant for I/O expansion
• Memory protection – flash + NVRAM for data safety

Technical Specifications

• Power supply – 100-120 V AC (model suffix 1)
• Redundancy – dual power + dual processor
• Processor modules – 2 x S2CP471 or SCP461
• Power modules – 2 x SPW481/482/484
• I/O capacity – up to 8 modules per unit, 110 per SCS
• Communication – Vnet/IP (100 Mbps) + ESB bus
• Cable – UTP CAT5e or higher, RJ45
• Max distance – 100 m to Layer 2 switch
• Temperature range – -20 to 40 °C (standard)
• Weight – approx. 8.5 kg
• Mounting – rack with 8 M5 screws
• Power consumption – 200 VA (100-120 V model)

Module Configuration

• Power modules – SPW481, SPW482, or SPW484 (2 units)
• Processor modules – S2CP471 or SCP461 (2 units, identical)
• Fan unit – optional for high-temp environments (>40 °C)
• Memory – flash for program, NVRAM for operation data

Communication Interfaces

• Vnet/IP – dual-redundant, 100 Mbps full duplex
• ESB bus – dual-redundant for I/O modules
• Connector – RJ45 (UTP CAT5e or higher)
• Max distance – 100 m to network switch

Standards & Certifications

• ISA Standard G3 – compliant (suffix S)
• Temperature – standard type -20 to 40 °C
• Protection – no explosion protection (suffix 5)
• Power supply – 100-120 V AC (suffix 1)

Manager’s Insight

“The SSC60D-S2512 offers true redundancy for safety-critical processes. Dual power and processors ensure high availability. The Vnet/IP interface integrates easily with Yokogawa DCS. A reliable foundation for safety instrumented systems.”

Expert Review

“We have deployed this unit in several refinery applications. The redundant design eliminates single points of failure. Configuration is straightforward via the engineering tool. Memory protection keeps data safe during power loss.”

Applications

• Emergency shutdown systems (ESD)
• Burner management systems
• Process safety in oil & gas
• Chemical plant protection
• Power generation safety
• Critical infrastructure control

Comparison Models

• SSC60D-S2512 – 100-120V, standard (this model)
• SSC60D-S2522 – 220-240V version
• SSC60D-S2542 – 24V DC version
• SSC60D-F2512 – fan-cooled for high temp

FAQ

• How many I/O modules can I connect?
  Up to 8 modules per unit, or 110 per SCS with SEC402.
• What happens if one power supply fails?
  The second power supply takes over automatically (dual-redundant).
• Do I need a fan unit?
  Only if ambient temperature exceeds 40 °C.
• Can I mix processor models?
  No, both must be identical (both S2CP471 or both SCP461).
• Is the software license included?
  No, suffix 2 means without Safety Control Function License.

Buying Guide

• Power supply – choose voltage (100-120V, 220-240V, or 24V DC).
• Temperature – select -F model if ambient >40 °C.
• License – verify if you need Safety Control Function License.
• Redundancy – dual processors require 2 identical modules.
• Spare – keep a spare processor module for emergency.

Warranty & Shipping

• Warranty – 12 months against defects.
• Shipping – dispatched within 12-24 hours.
• Carriers – FedEx, UPS, DHL with tracking.
