Yokogawa AAV141-S50 16-Channel Analog Input | 1-5V 10ms Module

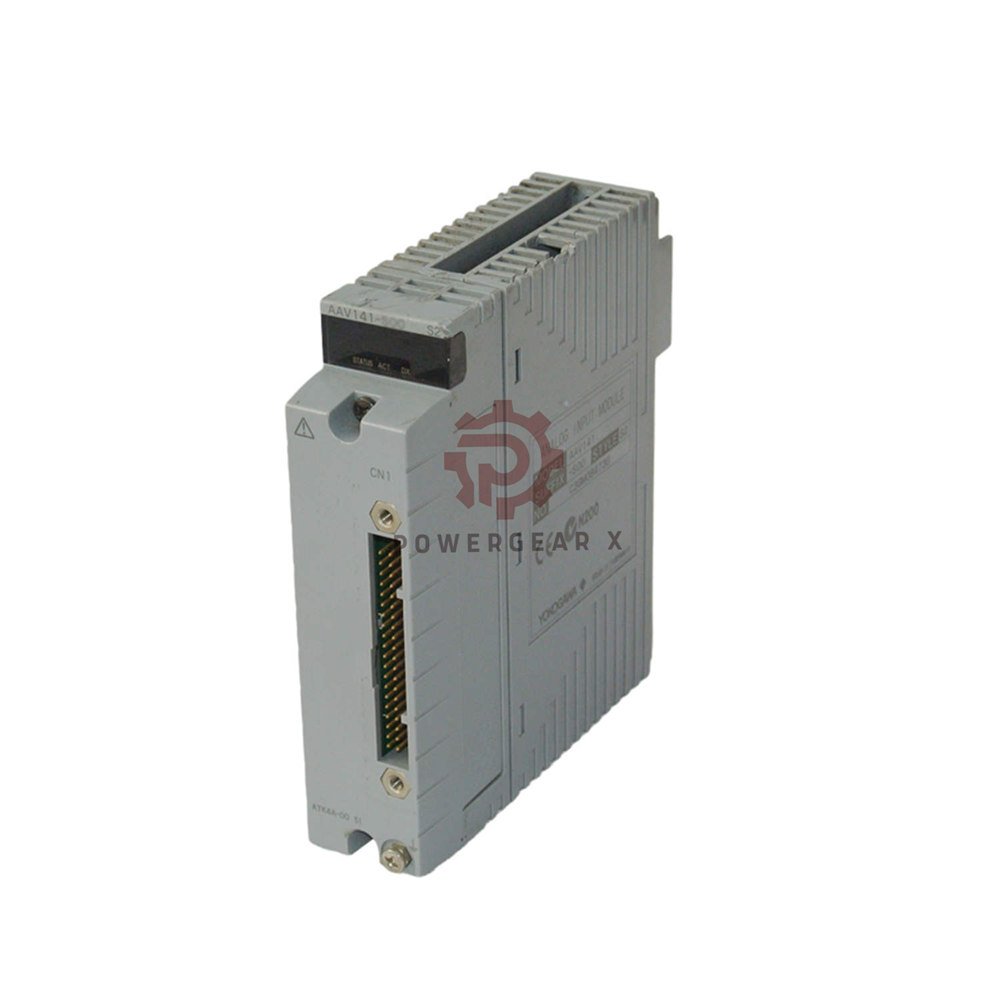

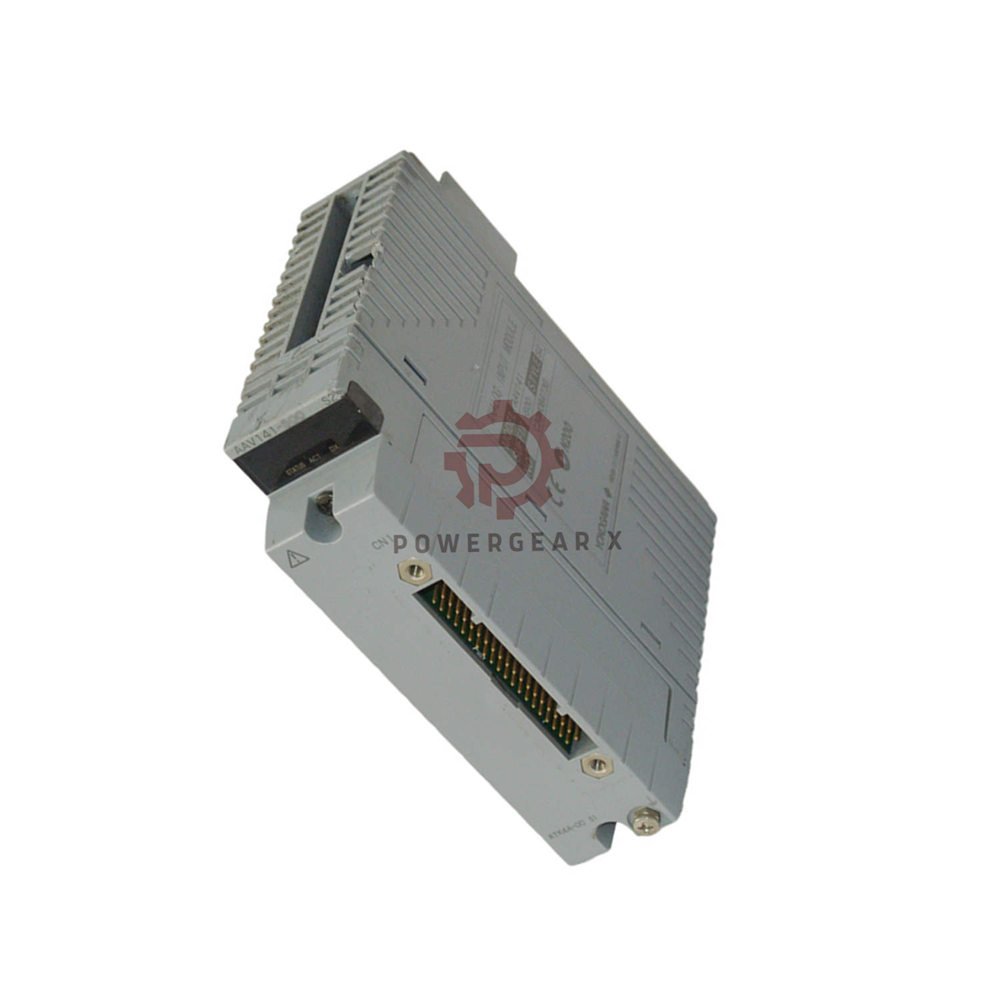

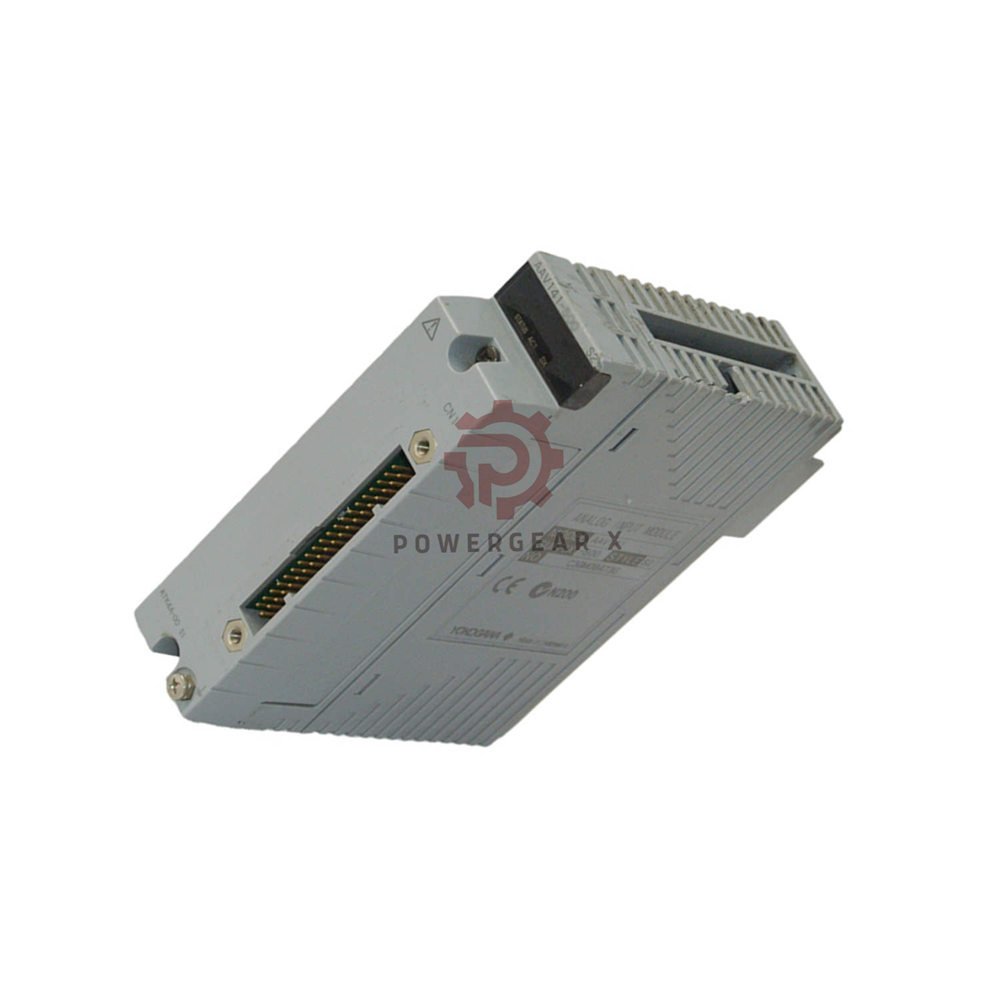

AAV141-S50 – Yokogawa Analog Input Module

Brand: Yokogawa | Model: AAV141-S50 | Type: Analog Input Module

16-channel non-isolated differential input module. Accepts 1-5 V DC signals. High accuracy (±4 mV), fast update (10 ms). For industrial control systems.

Key Features

• 16 analog inputs – non-isolated, differential
• Signal range – 1 to 5 V DC
• High accuracy – ±4 mV
• Fast update – 10 ms data refresh
• Low power – 350 mA at 5 V DC
• Flexible connection – pressure clamp, KS cable, MIL connector

Technical Specifications

• Inputs
  • Channels: 16 (differential)
  • Signal: 1…5 V DC
  • Common mode voltage: ≤ ±1 V
  • Allowable input voltage: ±7.5 V
• Performance
  • Accuracy: ±4 mV
  • Data update: 10 ms
  • Step response: 100 ms
  • Temp drift: ±4 mV / 10°C
• Input Resistance
  • Power ON: ≥1 MΩ
  • Power OFF: ≥340 kΩ
• Power & Environment
  • Current: 350 mA (5 V DC)
  • Weight: 0.2 kg
  • HART communication: Not available

Installation & Commissioning

• Mounting: DIN rail or rack – fits Yokogawa systems.
• Wiring: Pressure clamp, KS cable, or MIL connector.
• Configuration: Auto-detected by Yokogawa DCS or PLC.
• Maintenance: No calibration needed – uses factory settings.

Compatibility & Applications

• Systems: Yokogawa CENTUM VP, ProSafe-RS, and Stardom.
• Signals: Transmitters, sensors, and process instruments.
• Use cases: Pressure, temperature, flow monitoring.

Certifications & Standards

• Yokogawa quality standard (factory calibrated)
• CE, UL, CSA (refer to Yokogawa documentation)
• RoHS compliant

Package & Delivery

• Package: 1 unit, 0.2 kg.
• Warranty: 12 months.
• Shipping: FedEx, UPS, DHL – dispatched within 12-24 hours.

Expert Review

“Reliable 16-channel input module. The 10 ms update speed suits fast processes. Drift is low (±4 mV/10°C). Use it for precise 1-5 V signal acquisition.”

Manager’s Insight

“Great value for Yokogawa systems. The non-isolated design saves space but keep common mode voltage under ±1 V. Easy to wire with pressure clamps.”

Application Scenarios

• Process monitoring with 1-5 V transmitters
• Data acquisition in DCS systems
• Replacement for older AAV141 modules
• Integration with CENTUM VP and ProSafe-RS

Comparison with Similar Models

• AAV141-S50 – 16 channels, 1-5 V, non-isolated.
• AAV142-S50 – 16 channels, 4-20 mA, isolated.
• AAV143-S50 – 8 channels, thermocouple input.
• AAV144-S50 – 8 channels, RTD input.

FAQ

• What signal range does it accept?
  1 to 5 V DC.
• How many channels?
  16 differential inputs.
• Is it isolated?
  No, non-isolated (differential).
• What is the update time?
  10 ms.
• Does it support HART?
  No, HART is not available.
• Can I use it with 4-20 mA sensors?
  Only with external resistors (250 Ω for 1-5 V).
• What cable types are compatible?
  Pressure clamp, KS cable, or MIL connector.
• How to choose between AAV141 and AAV142?
  Choose AAV141 for 1-5 V signals; choose AAV142 for 4-20 mA.

Selection Guide

• For 1-5 V signals, 16 channels: AAV141-S50.
• For 4-20 mA signals, isolated: AAV142-S50.
• For thermocouple inputs: AAV143-S50.
• For RTD inputs: AAV144-S50.
