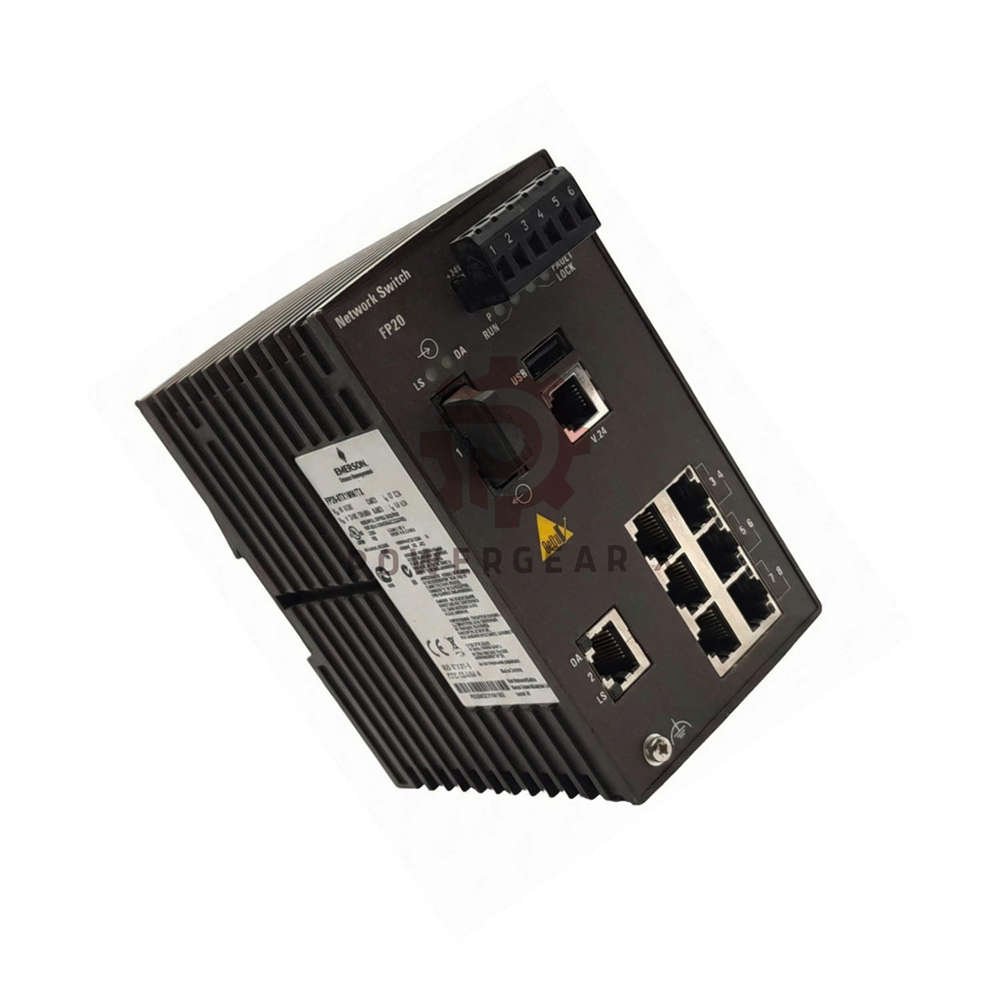

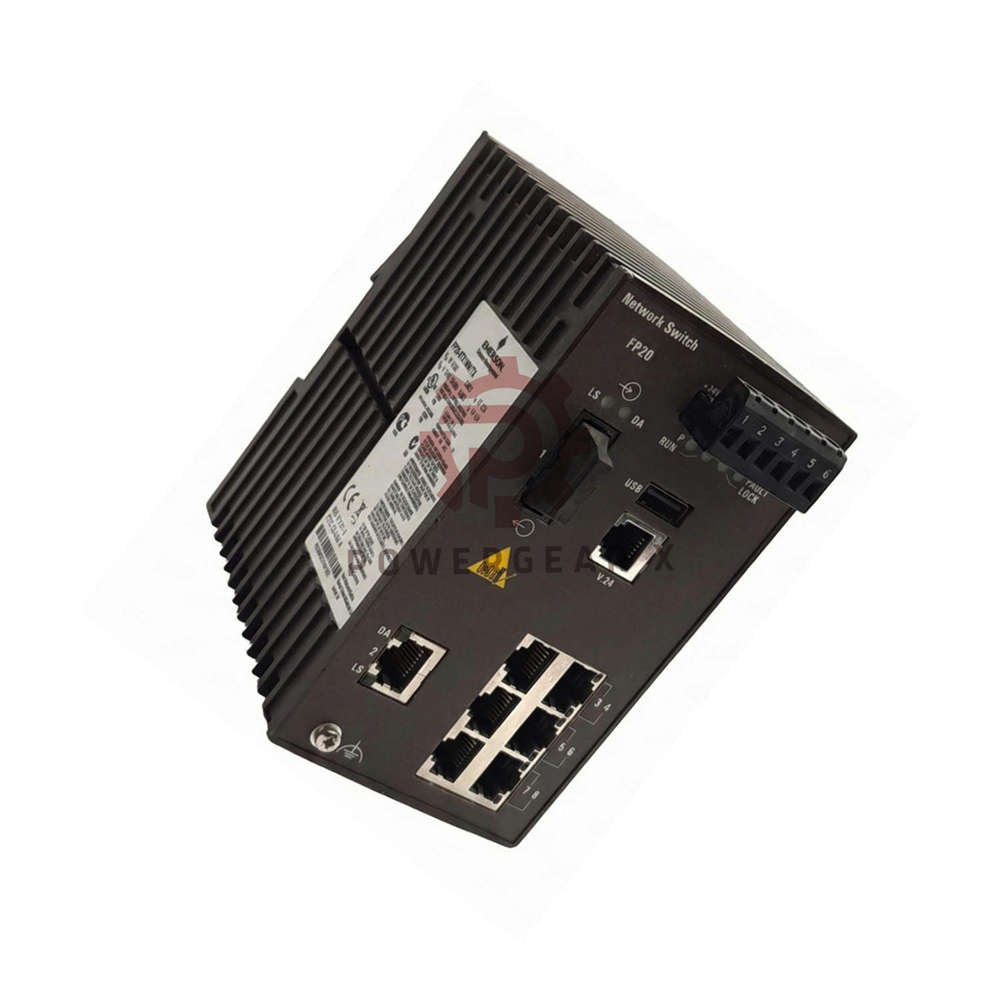

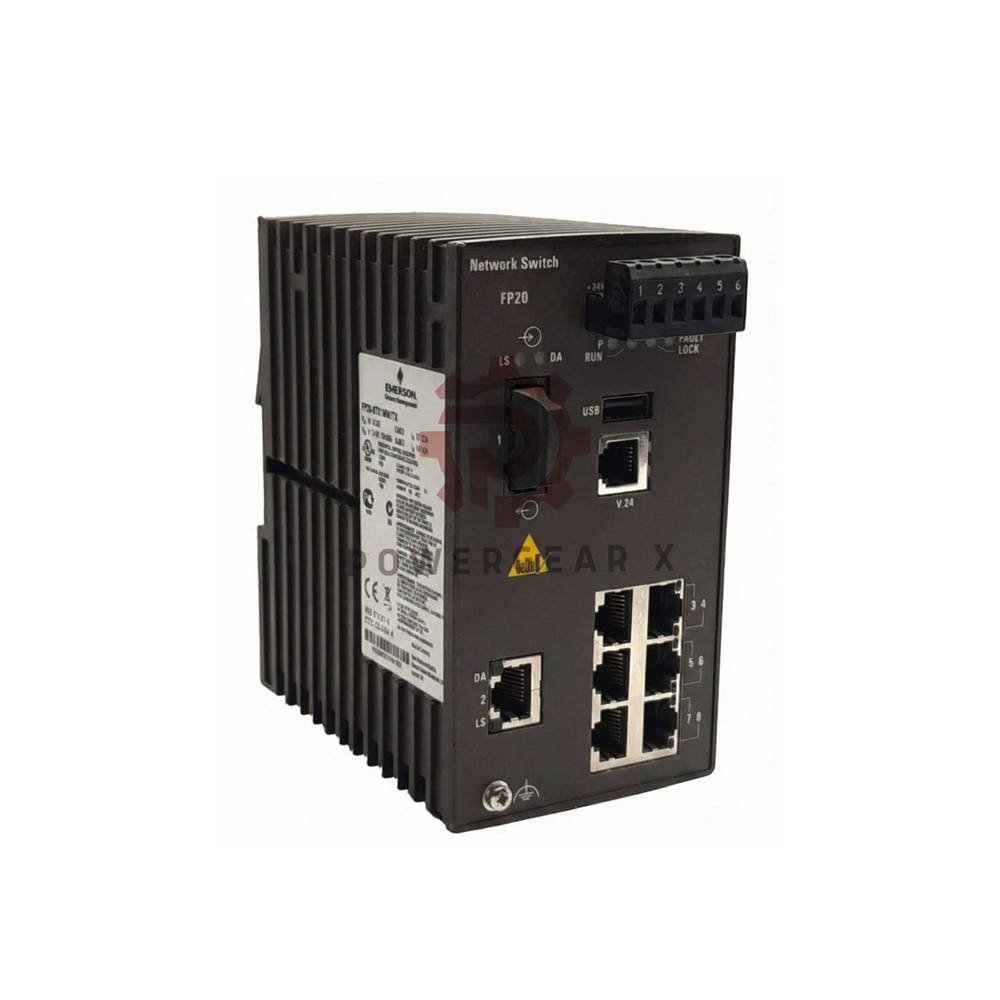

DeltaV VE6041F06C1 Industrial Smart Switch Overview
- The DeltaV VE6041F06C1 provides high-performance connectivity for demanding process automation environments.
- This Smart Switch ensures seamless data flow between controllers and workstations.
- It integrates FP20-6TX2SM technology to bridge copper and long-distance fiber networks.
- Engineers trust this module for its rugged build and deterministic communication capabilities.
- The unit minimizes latency while maximizing network uptime in critical infrastructure.
- Contact our team at sales@powergearx.com for immediate technical support.
Core Technical Specifications
- Brand: DeltaV (Emerson)
- Model Number: VE6041F06C1
- Module Type: Managed Smart Ethernet Switch
- Total Port Count: 10 High-Speed Ports
- Copper Interface: 8 x 10/100BASE-TX RJ45 Ports
- Fiber Interface: 2 x 100BASE-FX Single-Mode SC Uplink Ports
- Power Input: 24 V DC Nominal
- Current Draw: 321mA at rated voltage
- Thermal Dissipation: 26.3 Btu/h (8W Power Consumption)
- Protection Rating: IP20 Industrial Enclosure
- Operating Limits: -40°C to 70°C Temperature Range
- Humidity Resilience: 5% to 95% Non-condensing
- Interference Immunity: Enhanced EMC/RFI Shielding
- Data Resolution: 10/100 Mbps Auto-negotiation
Installation and Maintenance Guidance
- Mount the VE6041F06C1 on standard DIN rails for stability.
- Ensure 20mm clearance for optimal airflow and cooling.
- Connect the unit to a redundant 24V DC power supply.
- Internal diagnostics provide real-time port status via LED indicators.
- Regularly inspect SC fiber connectors for dust or debris.
- The plug-and-play design simplifies field replacement and hardware upgrades.
System Compatibility and Applications
- Fully compatible with DeltaV M-Series and S-Series Controllers.
- Supports PROFINET, Modbus TCP, and Ethernet/IP protocols.
- Ideal for Oil & Gas, Chemical, and Power Generation facilities.
- Extends network reach using Single-Mode Fiber up to 20km.
- Integrates perfectly with HMI workstations and safety instrumented systems.
- For configuration help, WhatsApp us at +86 18030005825.
Shipping and Service Terms
- Dispatch Time: Fast 24-48 Hour Shipping worldwide.
- Logistics Partners: Reliable delivery via FedEx, UPS, and DHL.
- Warranty: Comprehensive 12-Month Quality Guarantee included.
- Package Contents: 1 x VE6041F06C1 Switch, Installation Certificate.
- Inquiries: Direct email to sales@powergearx.com for pricing.
Frequently Asked Questions (FAQ)
- How does the VE6041F06C1 handle network loops?
- The smart firmware manages spanning tree protocols to prevent broadcast storms.
- Is this switch suitable for outdoor cabinets?
- Yes, provided the cabinet maintains the IP20 rating and temperature specs.
- What fiber cable type should I use for the SC ports?
- You must use 9/125µm Single-Mode fiber for the FP20-6TX2SM uplinks.
- Can I mix different DeltaV switch models in one ring?
- Yes, this model supports standard IEEE 802.3 industrial networking protocols.
Buyer Selection Guide
- Verify your distance requirements before choosing Single-Mode over Multi-Mode options.
- Check the total power budget of your 24V DC bus.
- Ensure your controller firmware supports the VE6041F06C1 hardware revision.
Powergear X Automation Insight
- The VE6041F06C1 represents a vital backbone component for modern DCS architectures.
- Its ability to combine local copper clusters with fiber uplinks reduces hardware footprint.
- Engineering teams appreciate the low heat output which increases cabinet component lifespan.
Powergear X Automation Review
- Our field tests confirm that the DeltaV VE6041F06C1 maintains high throughput under heavy EMI loads.
- The SC fiber ports provide exceptionally clean signal transmission for remote I/O nodes.
- It remains a top-tier choice for reliable plant-wide communication.
