Product Overview

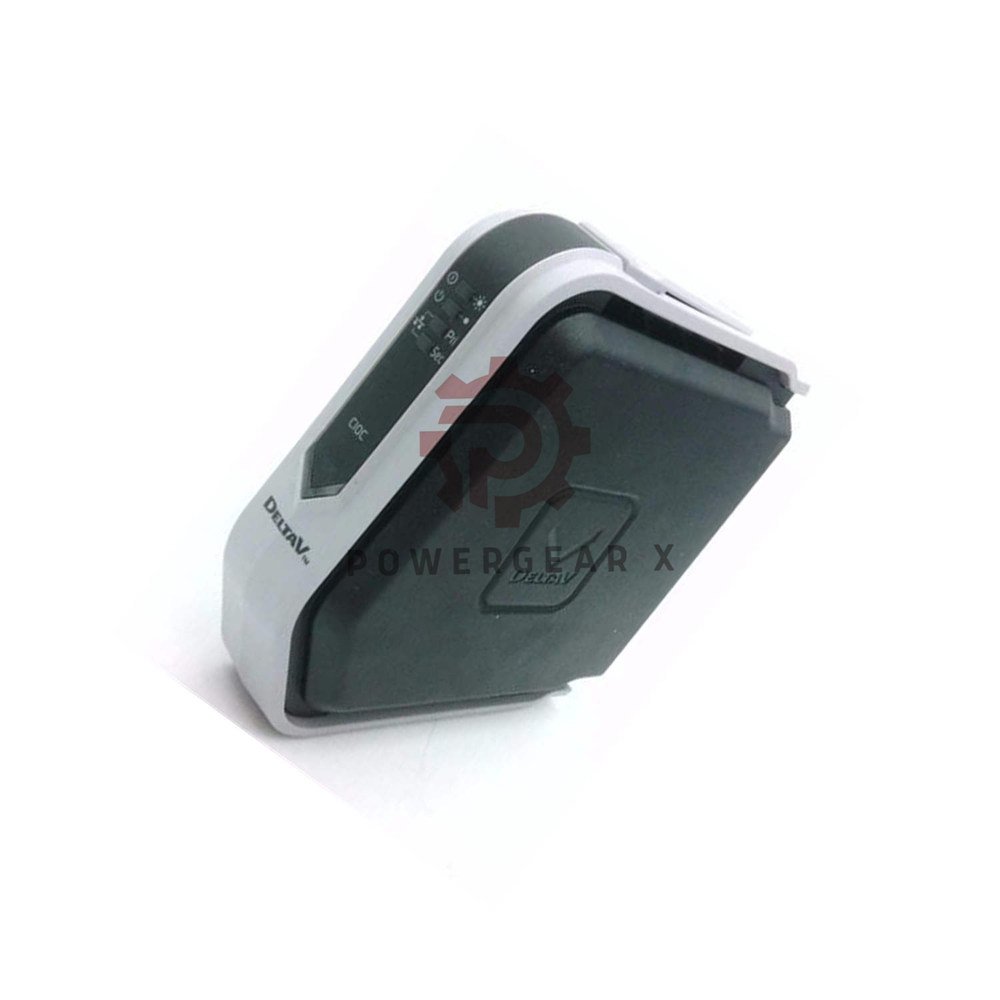

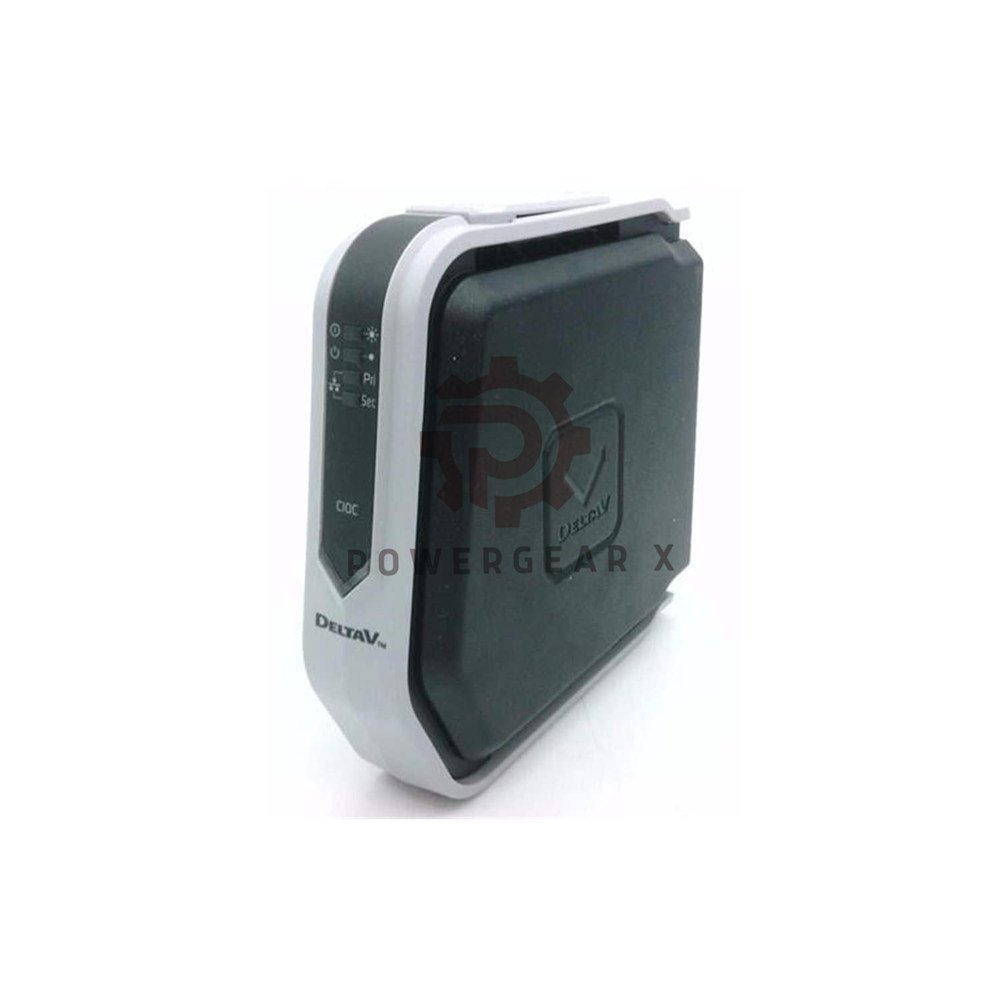

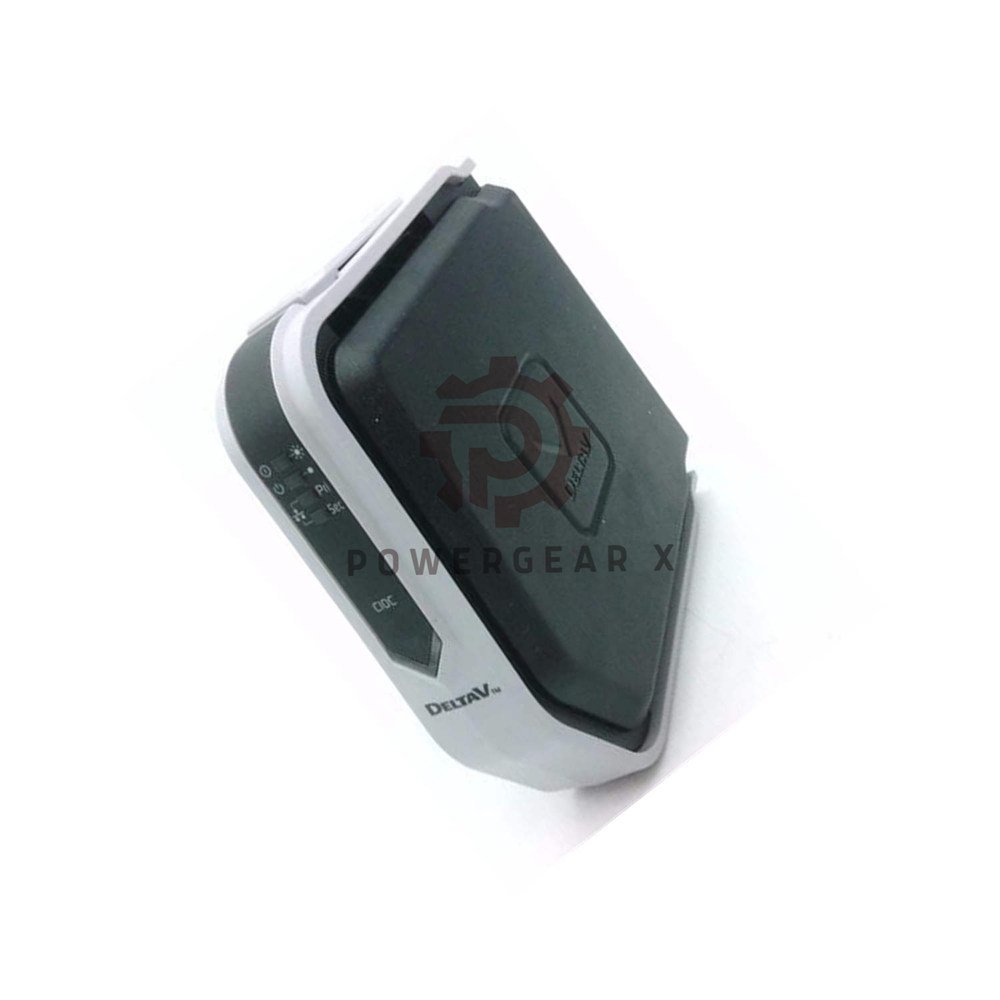

- The Emerson DeltaV KL2101X1-BA1 is a high-performance Dry Contact CHARM designed for Electronic Marshalling.
- This I/O CARD converts discrete field signals into digital data for the DeltaV system.
- It eliminates the need for complex cross-wiring in control cabinets.
- The module features a compact design for high-density installations.
- It thrives in Hazardous Atmosphere locations including Class I Division 2.
- For technical support, contact sales@powergearx.com or WhatsApp: +86 18030005825.
Technical Specifications
- Brand: Emerson DeltaV
- Model: KL2101X1-BA1
- Module Type: Dry Contact CHARM
- Bus Power: 32mA at 26.4 VDC
- Field Circuit: 10mA at 24 VDC
- Input Power: 24 VDC at 2 A
- Output Power: 6.3 VDC at 3.25 A
- Temperature Range: -40 °C to +70 °C
- Environmental Resistance: ISA-S71.04–1985 Class G3
- Shock Rating: 10g ½ Sinewave for 11msec
- Vibration Resistance: 0.7g from 13.2 to 150Hz
- Humidity: 5 to 95% Non-Condensing
Hazardous Area Certifications
- ATEX Rating: II 3G Ex ec IIC Gc
- ATEX Certificate: FM19ATEX0173U
- IECEx Certificate: IECEx FMG 19.0019U
- UKCA Certificate: FM21UKEX0017U
- US/Canada Standards: CL. I Div. 2 GP. A,B,C,D
- Zone Rating: CL. I Zone 2 AEx/Ex ec IIC Gc
- FM Approval: FM17CA0145U / FM17US0286U
Installation and Diagnostics
- Mounting: Snap-in design for CHARM I/O carriers.
- Hot-Swappable: Replace modules without powering down the system.
- Field Wiring: Supports direct connection to dry contact switches.
- Diagnostic Ability: Built-in LEDs indicate channel status and faults.
- Maintenance: Tool-free replacement simplifies long-term field service.
Shipping and Service
- Dispatch Time: 24-48 Hours Fast Shipping
- Courier Partners: Worldwide delivery via FedEx, UPS, and DHL.
- Warranty: Includes a comprehensive 12-Month Warranty.
- Package List: One KL2101X1-BA1 module in anti-static packaging.
Typical Applications
- Offshore oil platforms and refineries.
- Chemical processing and pharmaceutical plants.
- Distributed control for power generation.
- Remote I/O stations in harsh environments.
Powergear X Automation’s Insight
- The KL2101X1-BA1 optimizes field-to-control room connectivity.
- Its G3 coating ensures longevity in sulfur-rich environments.
- Engineers select this module for its superior electrical isolation.
- It integrates perfectly with Emerson DeltaV S-series and M-series hardware.
FAQ
What is the primary benefit of using a Dry Contact CHARM?
- It provides per-channel characterization and eliminates traditional marshalling panels.
Can this module operate in freezing conditions?
- Yes, the KL2101X1-BA1 operates down to -40 °C.
Does the price include global express shipping?
- Shipping costs vary by location but we offer discounted DHL/UPS rates.
Selection Guide
- Verify your field switch type is a true dry contact.
- Ensure your CHARM terminal block matches the baseplate requirements.
- Always check the hazardous zone rating against your site map.
- For volume discounts, email sales@powergearx.com.
