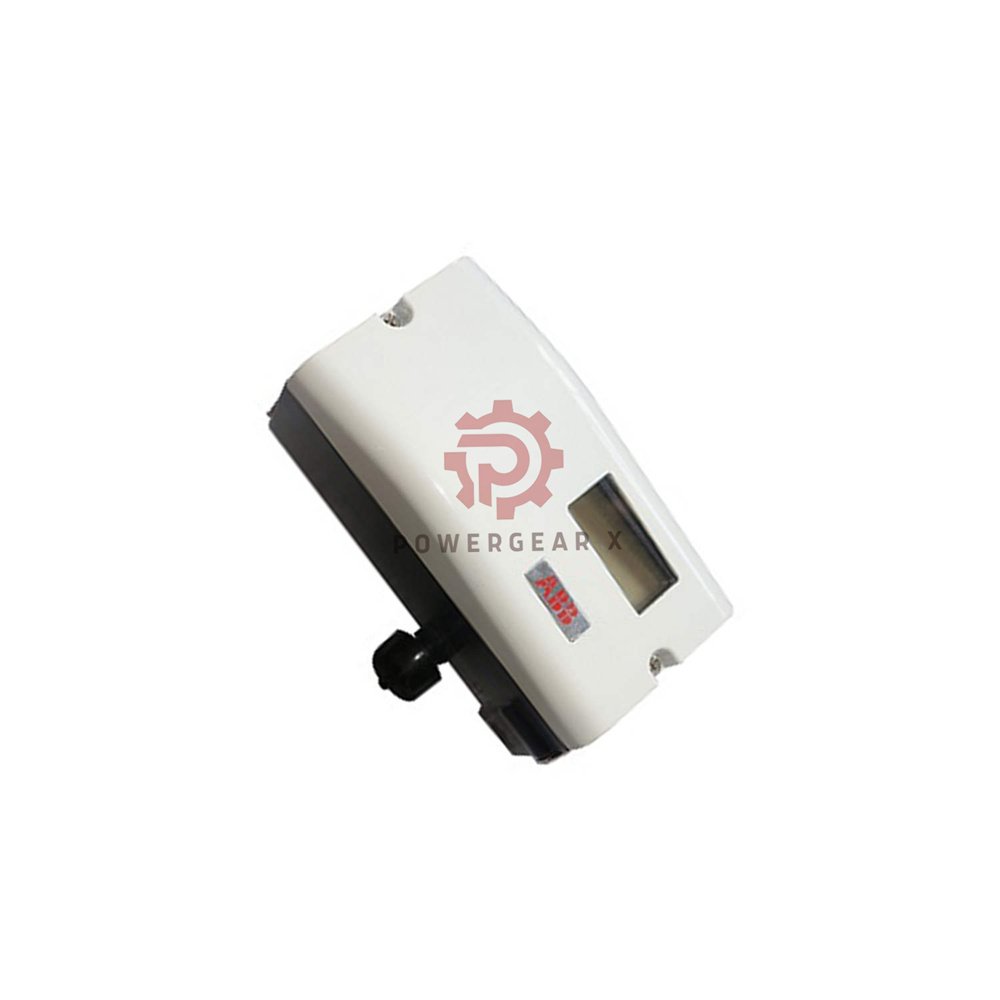

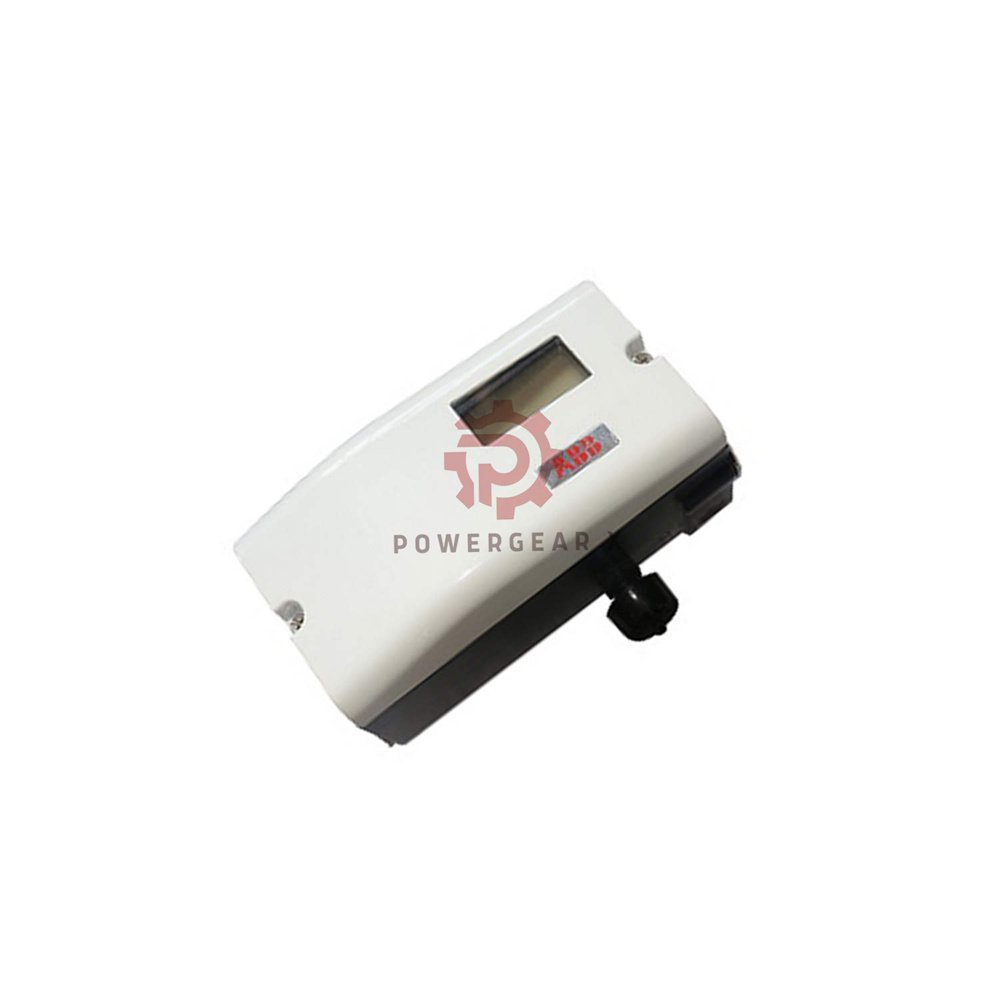

V18348-10111310110 ABB TZIDC-200 Positioner | Flameproof HART

Product Overview

• V18348-10111310110 – ABB TZIDC-200 intelligent digital positioner.
• Flameproof enclosure (ATEX Ex d II C T4/T5/T6 Gb).
• Software-configurable with HART communication.
• Local operator panel with graphic display.
• Single-acting, fail-safe output.
• Analog position feedback 4‑20 mA (two‑wire).

Key Technical Data (Tree View)

• General specs
  • Model: TZIDC‑200 Digital Positioner V18348
  • Part number: V18348‑10111310110
  • Brand: ABB
  • Condition: New & original factory packing
  • Warranty: 12 months
• Housing & mounting
  • Case: aluminium, varnished
  • Mounting: linear (DIN/IEC/NAMUR) or rotary (VDI/VDE)
  • Operator panel integrated in cover
• Connections
  • Cable: 1/2‑14 NPT thread
  • Air pipe: 1/4‑18 NPT thread
• Electrical data
  • Signal range: 4‑20 mA (minimum 3.2 mA)
  • Action: direct or reverse
  • Characteristic: linear, equal % (1:25, 1:50, 25:1, 50:1) or user‑configurable (20 points)
  • Travel limit: 0‑100% (minimum 20%)
  • Shut‑off function per end position
  • Travel time prolongation per direction
• Adjustment & control
  • Automatic parameter adjustment
  • Adaptive or manual control
  • Tolerance band: 0.3% (factory)
  • Dead band: 0.1% (factory)
  • Actuator spring action selectable
  • Zero position adjustable
• Options
  • Analog feedback module (4‑20 mA, two‑wire) – included
  • Digital position feedback – not included (0)
  • Digital input: programmable functions (hold, move, lock, etc.)
  • Digital output: collective alarm

Installation & Commissioning

• Mounting
  • Use mounting kit for linear or rotary actuators.
  • Ensure flameproof enclosure is sealed properly.
  • Torque connections as per manual.
• Configuration
  • Local operator panel or HART communication.
  • Automatic adjustment routine – one‑touch setup.
  • Parameter groups: operating, adjustment, monitoring, diagnosis, maintenance.
• Maintenance
  • Diagnosis parameters for predictive maintenance.
  • Event log for troubleshooting.

Compatibility & Certifications

• Certifications
  • ATEX Ex d II C T4/T5/T6 Gb (flameproof).
  • HART communication protocol.
• Actuator compatibility
  • Linear actuators acc. DIN/IEC/NAMUR.
  • Rotary actuators acc. VDI/VDE.
  • Single‑acting fail‑safe actuators.

Package & Logistics

• Unit in factory packing with manual.
• Shipping: 12‑24 hours dispatch via FedEx, UPS, or DHL.
• Warranty: 12 months from purchase date.

Expert Review – Manager’s Insight

• “TZIDC‑200 offers unmatched precision with automatic tuning and 20‑point curves.”
• “Flameproof enclosure makes it safe for hazardous areas – Ex d II C T6.”
• “HART and local display give you full control – no special tools needed.”
• “Adaptive control reduces wear on valves, extending service life.”

Applications & Suitable Equipment

• Valves: linear and rotary control valves.
• Actuators: single‑acting, spring‑return.
• Industries: oil & gas, chemical, power, water/wastewater.
• Environments: hazardous areas (Zone 1, 2, 21, 22).
• Processes: flow, pressure, temperature, level control.

Frequently Asked Questions (FAQ)

• Q: What is the minimum signal range for split‑range operation?A: Minimum 3.2 mA (20% of 4‑20 mA). Recommended >8 mA (50%).
• Q: Can I use this positioner with a double‑acting actuator?A: This version is single‑acting fail‑safe. For double‑acting, order different output option.
• Q: How do I set the characteristic curve?A: Choose linear, equal % (1:25/1:50/25:1/50:1), or create custom with 20 reference points.
• Q: What happens if the 24 V DC digital input signal is lost?A: The selected function (hold, move to 0/100%, lock, etc.) activates when voltage drops below 10 V.
• Q: What is the factory warranty period?A: 12 months from purchase. We offer 12‑24 hour dispatch via FedEx, UPS, or DHL.
• Expert tip: Use automatic adjustment first, then fine‑tune dead band (0.1‑0.5%) for optimal stability.
• Selection guide: Choose V18348‑10111310110 for single‑acting, flameproof, HART, and analog feedback. For digital feedback or other options, check other variants.

Compare with Similar Models

• V18345-10111310110 – TZIDC‑200 without flameproof enclosure.
• V18348-20111310110 – same but with digital position feedback module.
• V18348-10111320110 – with Profibus PA communication instead of HART.
