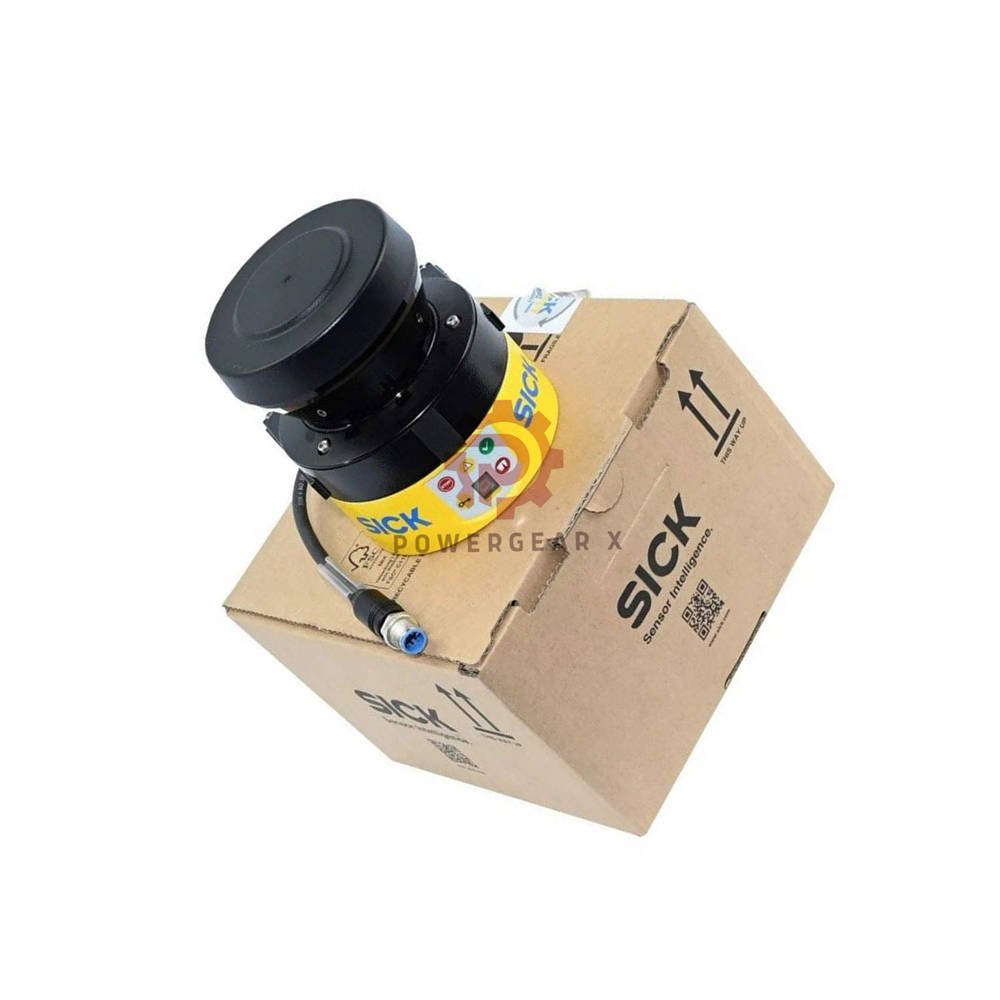

Name: S32B-3011EA SICK S300 Mini Remote Safety Laser Scanner
SKU: S32B-3011EA
Price: 234.00 USD
Availability: InStock

Product details

Product Introduction

The SICK S32B-3011EA is a remote safety laser scanner from the S300 Mini family. It is designed for indoor use and operates exclusively within an EFI system network. This device works with a Flexi Soft safety controller and additional S300 or S3000 scanners. It delivers reliable protection and warning fields for industrial automation.

Key Features

Protective field range: 3 m
Warning field range: 8 m (at 15 % reflectivity)
Measuring range: up to 30 m (19 m with specific connector)
Scanning angle: 270°
Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution: 0.5°
Response time: 80 ms
Multiple sampling: 2 to 16, configurable
Protective field supplement: 100 mm
Housing: Aluminum die cast, IP65 rated

Technical Specifications

Brand: SICK Sensors
Model: S32B-3011EA
Part Number: 1056431
Sub-family: S300 Mini Remote
Application: Indoor
Field sets: Triple field sets, 16 field sets, 48 fields, 32 monitoring cases
Monitoring case switching: Yes
Static & dynamic protective field switching: Yes
Contour as reference: Yes
Safe communication: EFI (SICK device communication)
Connection: Cable, 250 mm, male M12, 7-pin
Operating voltage: 24 V (range 16.8 to 30 V)
Output: 2 PNP semiconductors, short-circuit protected
Dimensions (W x H x D): 102 mm x 116 mm x 105 mm
Weight: 0.8 kg (without cables)
Housing color: RAL 1021 (yellow) and RAL 9005 (black)
Optics cover: Polycarbonate with scratch-resistant coating
IP rating: IP65

Installation & Setup

Mounting: Use the provided M12 connector for fast wiring.
Network: Connect within an EFI system with Flexi Soft controller.
Configuration: Set field sets, resolution, and monitoring cases via software.
Automatic reset delay: 2 s to 60 s, configurable.

Compatibility

Works with SICK Flexi Soft safety controllers.
Compatible with additional S300 or S3000 scanners.
Supports EFI safe device communication.

Certifications & Standards

CE certified, UL listed.
Meets ISO 13849-1 and IEC 61496 requirements.

Package Contents

1 x SICK S32B-3011EA scanner
1 x M12 male connector cable (250 mm)
Quick start guide

Warranty & Shipping

Warranty: 12 months against manufacturing defects.
Shipping: 12-24 hours dispatch via FedEx, UPS, or DHL.

Expert Review

“The S300 Mini Remote offers a perfect balance of range and flexibility. Its 270° scanning angle and configurable resolution make it ideal for complex machine guarding. The EFI integration ensures seamless communication with Flexi Soft controllers.”

Manager’s Insight

“For production lines requiring quick reconfiguration, this scanner’s 16 field sets and dynamic switching reduce downtime. The robust aluminum housing and IP65 rating guarantee long-term reliability in harsh indoor environments.”

Recommended Applications

Robotic work cells
Packaging machinery
Automated guided vehicles (AGVs)
Conveyor systems
Material handling equipment

Frequently Asked Questions

What is the maximum protective field range?
The protective field range is 3 m, while the warning field reaches 8 m at 15 % reflectivity.
Can I use this scanner without a Flexi Soft controller?
No, it requires a Flexi Soft safety controller and EFI network.
What is the response time?
Response time is 80 ms, ensuring fast reaction to hazards.
How do I configure the field sets?
Use SICK’s configuration software to set up to 16 field sets and 32 monitoring cases.
Is the scanner suitable for outdoor use?
No, it is designed for indoor applications only (IP65).
What is the angular resolution?
0.5° provides high precision for small object detection.
Does it support dynamic protective field switching?
Yes, both static and dynamic switching are supported.
