Product details

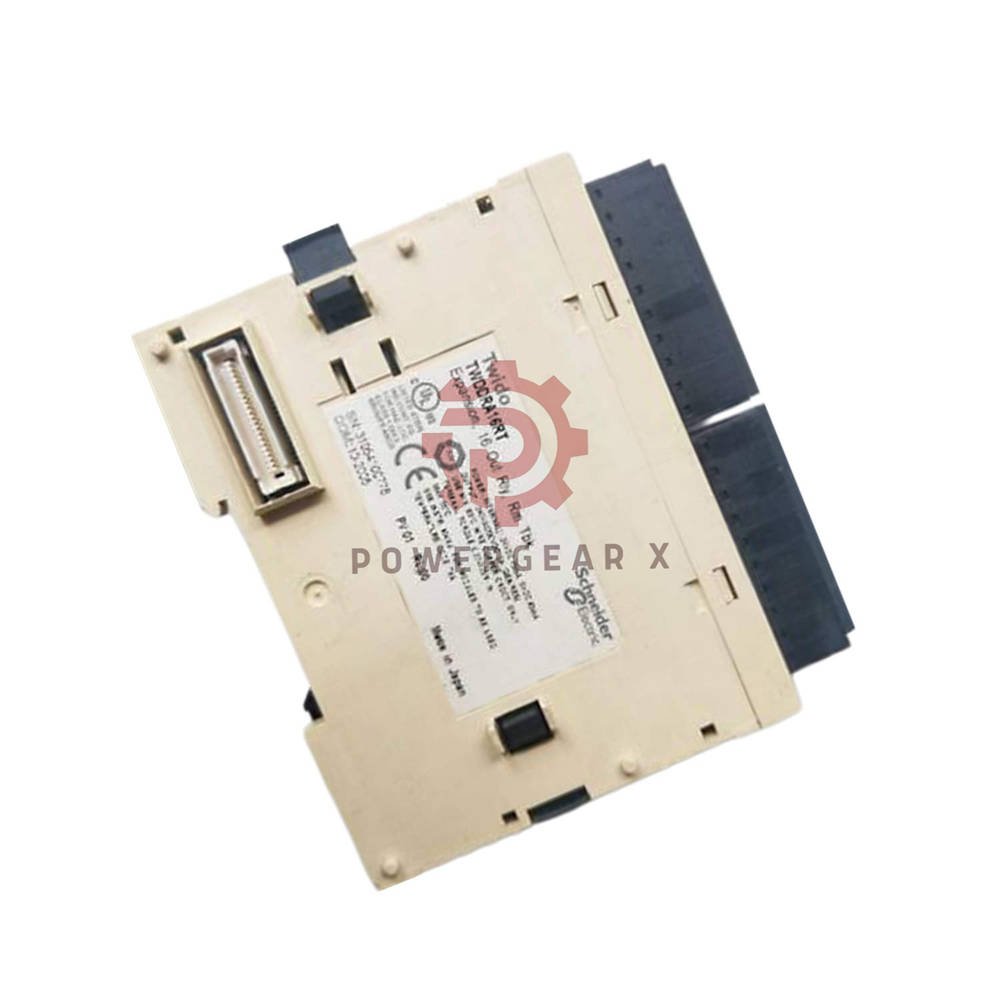

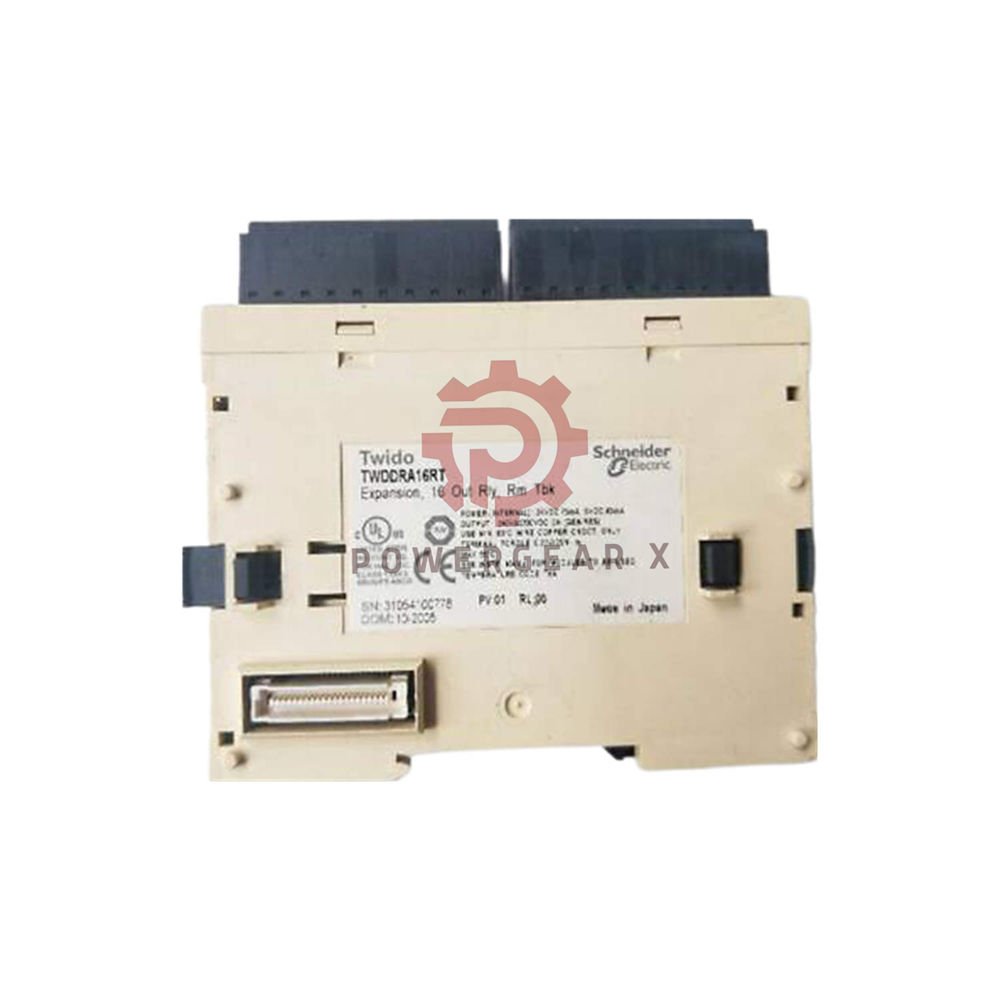

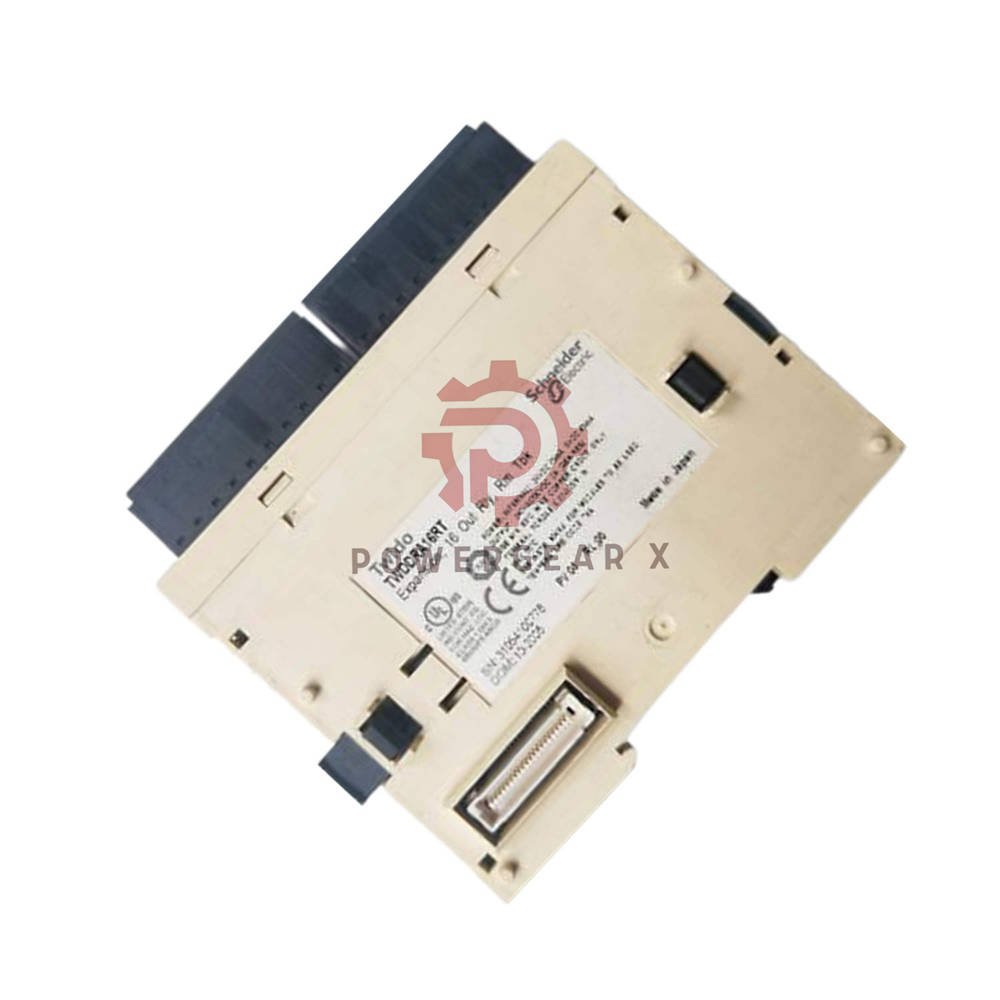

TWDDRA16RT – Twido Discrete Output Module
The TWDDRA16RT is a 16-channel relay output module from Schneider Electric’s Twido series.
It delivers reliable switching for industrial automation. Each channel supports 2A and the module has 2 common points.
Built for PLC systems, it ensures robust performance in harsh environments.
CE, UL, CSA certified
IP20 protection
0 to 55 °C operating
Technical Specifications
- ▸
Brand & Model: Schneider Electric / TWDDRA16RT - ▸
Series: Twido – Discrete Output Module - ▸
Outputs: 16 relay outputs (Form A / NO) - ▸
Current per channel: 2 A (resistive) - ▸
Common current: 8 A per common (2 commons) - ▸
Response time: ≤ 7 ms - ▸
Contact resistance: ≤ 40000 µΩ - ▸
Isolation (channel to logic): 1500 Vrms / 1 min - ▸
Current consumption: 45 mA at 5V (ON), 5 mA at 5V (OFF); 75 mA at 24V (ON) - ▸
Operating temp: 0 to 55 °C | Storage: -25 to 70 °C - ▸
Environmental: IP20, pollution degree 2, vibration resistant - ▸
Immunity: ESD, burst, surge per IEC 61000-4 - ▸
Connection: Removable screw terminal block (2 common groups: 0 to 7 / 8 to 15) - ▸
Weight: 0.145 kg - ▸
Certifications: CE, UL, CSA – marked on product
Installation & Maintenance
- ▸
Mounting: Snap onto DIN rail (35 mm). Keep ventilation clear. - ▸
Wiring: Use stranded or solid wire 0.2 to 2.5 mm². Torque 0.5 Nm. - ▸
Debug & maintenance: LED indicators for each channel. Easy swap relays. - ▸
Compatibility: Works with Twido PLC bases (TWDLC…). Also supports Modbus via CPU.
Package & Delivery
- ▸
Box includes: TWDDRA16RT module, screw terminal block, user manual (digital). - ▸
Warranty: 12 months against defects. - ▸
Shipping: Dispatched within 12 to 24 hours via FedEx, UPS, or DHL.
Expert Review
“The TWDDRA16RT offers a balanced mix of channel density and relay robustness. With 16 outputs and 2A per channel,
it handles small motors, solenoids, and indicators well. The 7 ms response time suits most logic controls.
For maintenance, the removable terminal block and clear labeling reduce downtime. A solid choice for OEM panels.”
— Senior Automation Engineer
Manager’s Insight
“For project managers, this module reduces inventory complexity. Its UL/CSA/CE approvals simplify global compliance.
The 2 common points allow flexible load grouping. With 12-month warranty and rapid shipping, it lowers total cost of ownership.”
Applications
- ▸
Industrial PLC control – conveyor, packaging, sorting machines - ▸
HVAC and building automation – damper, valve, fan control - ▸
Lighting and signal towers – on/off switching with relay isolation - ▸
Test equipment and small machinery – relay actuation for safety interlocks
Frequently Asked Questions
Q: Can I use this module with a third-party PLC?
A: Yes, it works as a standard relay output card. Check voltage compatibility (5V/24V logic).
Q: What is the max switching frequency?
A: Relay outputs are rated for 10 Hz max. For high-speed, use transistor outputs.
Q: Does it support both AC and DC loads?
A: Yes, relay contacts are agnostic – up to 2A at 24VDC or 250VAC (resistive).
Q: How to choose between 16 relay vs 16 transistor?
A: Relays handle higher current and isolation. Transistors are faster and longer life for DC.
Q: Is there a LED for each output?
A: Yes, 16 green LEDs indicate ON/OFF status – helpful for troubleshooting.
Q: What spare parts should I keep?
A: Keep spare terminal blocks and a replacement module. Relays are not field-replaceable.
Selection Guide
- ▸
Choose TWDDRA16RT if you need 16 relay outputs with high isolation. - ▸
For mixed loads (AC/DC) and moderate speed, relays outperform solid-state. - ▸
Use with Twido base for seamless integration. Check common grouping (0-7 / 8-15). - ▸
If your application uses over 2A, consider interposing relays or contactors.
