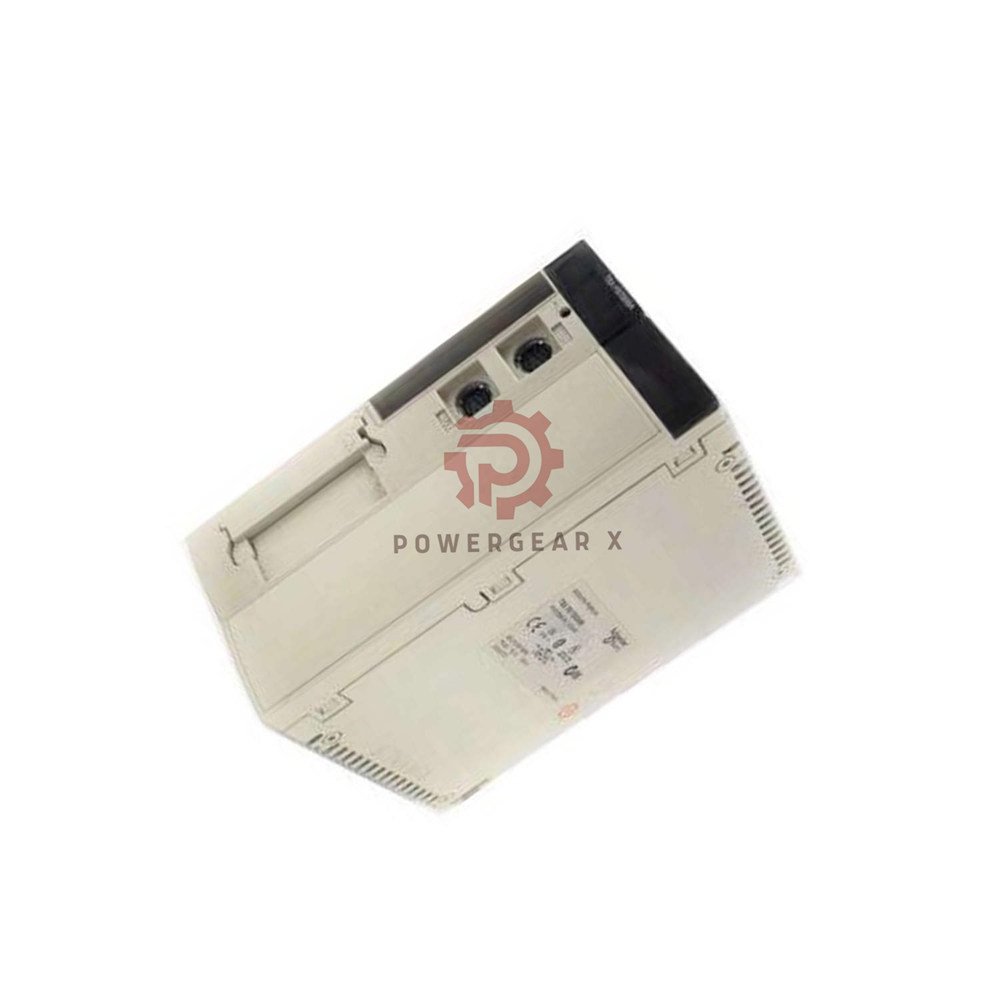

TSXP57253M PL7 Processor | Modicon Premium Double-Format CPU 820mA

Product Overview

• TSXP57253M – Double-format PL7 processor from Modicon Premium Automation platform.
• Runs PL7 Junior/Pro software. Handles up to 1024 discrete I/O and 80 analogue I/O.
• Supports Fipio manager (127 agents) and multiple fieldbus options (CANopen, AS-Interface).
• Current consumption: 820 mA at 5 V DC. Weight: 0.56 kg. Double slot format.
• CE marked and certified for hazardous locations (CSA Class I, Div 2, Groups A–D).

Key Technical Data

• Processor & Memory
  • Internal RAM: 64 Kwords program/data (without PCMCIA).
  • PCMCIA card: 160 Kwords program, 2688 Kwords additional data.
  • Max object areas: 30.5 %MWi internal words, 32 %KWi constants, 8132 %Mi internal bits.
• Performance
  • Boolean execution: 0.19 µs (no card), 0.21 µs (with card).
  • Word/fixed-point: 0.25 µs (no card), 0.42 µs (with card).
  • Floating point: 2.6 µs (both cases).
  • Throughput: 4.76 Kinst/ms (100% Boolean, no card) – up to 3.57 Kinst/ms mixed.
• I/O & Racks
  • Supports 16 racks (4/6/8 slots) or 8 racks (12 slots).
  • Total slots: 64, 96, or 128 depending on configuration.
  • Discrete I/O capacity: 1024; Analogue: 80; Process control: 10–30 loops.
• Communication
  • Non-isolated serial link (mini DIN, 19.2 kbit/s).
  • Fipio manager (SUB-D 9) + up to 1 network module, 4 AS-Interface, 1 CANopen.

Installation & Environment

• Mounting: Double-width format, fits Premium racks. Ambient temp 0…60 °C.
• Protection: IP20, pollution degree 2, protective treatment TC.
• Altitude: 0–2000 m. Humidity: 10–95% (operation, non-condensing).
• Storage temp: –25…70 °C, humidity 5–95% (non-condensing).

Diagnostics & Maintenance

• LED indicators: RUN (green), FIP (red), I/O (red), ERR (red), TER (yellow).
• System overhead: 0.35 ms (fast task), 1.2 ms (master task).
• Easy fault diagnosis via front panel LEDs – reduces downtime.

Compatibility & Fieldbus

• Compatible with Modicon Premium I/O modules and PL7 software suite.
• Supports Fipio, CANopen, AS-Interface, and Ethernet network modules.
• Works with up to 16 racks – flexible for distributed control.

Certifications & Standards

• UL 508, CSA C22.2 No. 213 (Class I Div 2 Groups A, B, C, D).
• IEC 61131-2, GL, RINA, DNV, LR, ABS, BV, RMRS.
• Compliant with 73/23/EEC, 89/336/EEC, 92/31/EEC, 93/68/EEC.

Package & Delivery

• Package 1: 1 unit, dimensions 9.5 x 18.0 x 26.0 cm, weight 662 g.
• Warranty: 12 months from purchase date.
• Shipping: 12–24 hours dispatch via FedEx, UPS, or DHL.

Expert Review – Manager’s Insight

• “The TSXP57253M balances speed and I/O density for mid‑size automation.”
• “Its dual‑memory architecture ensures program integrity even during expansions.”
• “We recommend this processor for packaging, material handling, and simple process control.”
• “The 0.19 µs Boolean speed outperforms many peers in the same price range.”

Applicable Devices & Scenarios

• Machines: Conveyors, palletizers, labelling machines, small presses.
• Processes: Temperature/pressure loops, batch mixing, level control.
• Systems: Premium PLC racks with up to 128 I/O modules.
• Ideal for factory automation, water treatment, and light industrial plants.

Frequently Asked Questions (FAQ)

• Q: What is the maximum number of I/O points?
  • A: 1024 discrete and 80 analogue I/O points.
• Q: Can I use this processor with CANopen?
  • A: Yes, but you cannot use a fieldbus module at the same time.
• Q: Is the PCMCIA card included?
  • A: No, it is sold separately – choose capacity based on program size.
• Q: What is the difference between fast and master tasks?
  • A: Fast task overhead is 0.35 ms; master task overhead is 1.2 ms.
• Q: Which communication protocols are supported?
  • A: Fipio, CANopen, AS-Interface, and Ethernet (via network module).
• Q: Is it suitable for harsh environments?
  • A: Yes, operates 0–60 °C and is certified for Class I Div 2 hazardous areas.
• Q: How many racks can I connect?
  • A: Up to 16 racks (4/6/8 slots) or 8 racks (12 slots).

Selection Guide – Expert Tips

• Choose the PCMCIA card if your program exceeds 64 Kwords.
• For pure Boolean applications, the no‑card version gives 4.76 Kinst/ms.
• Use the Fipio port for high‑speed distributed I/O – up to 127 agents.
• If you need floating‑point maths, both card and non‑card versions run at 2.6 µs.
• For process control with 10–30 loops, this processor is a cost‑effective fit.
