490-00105 Technical Engineering Profile

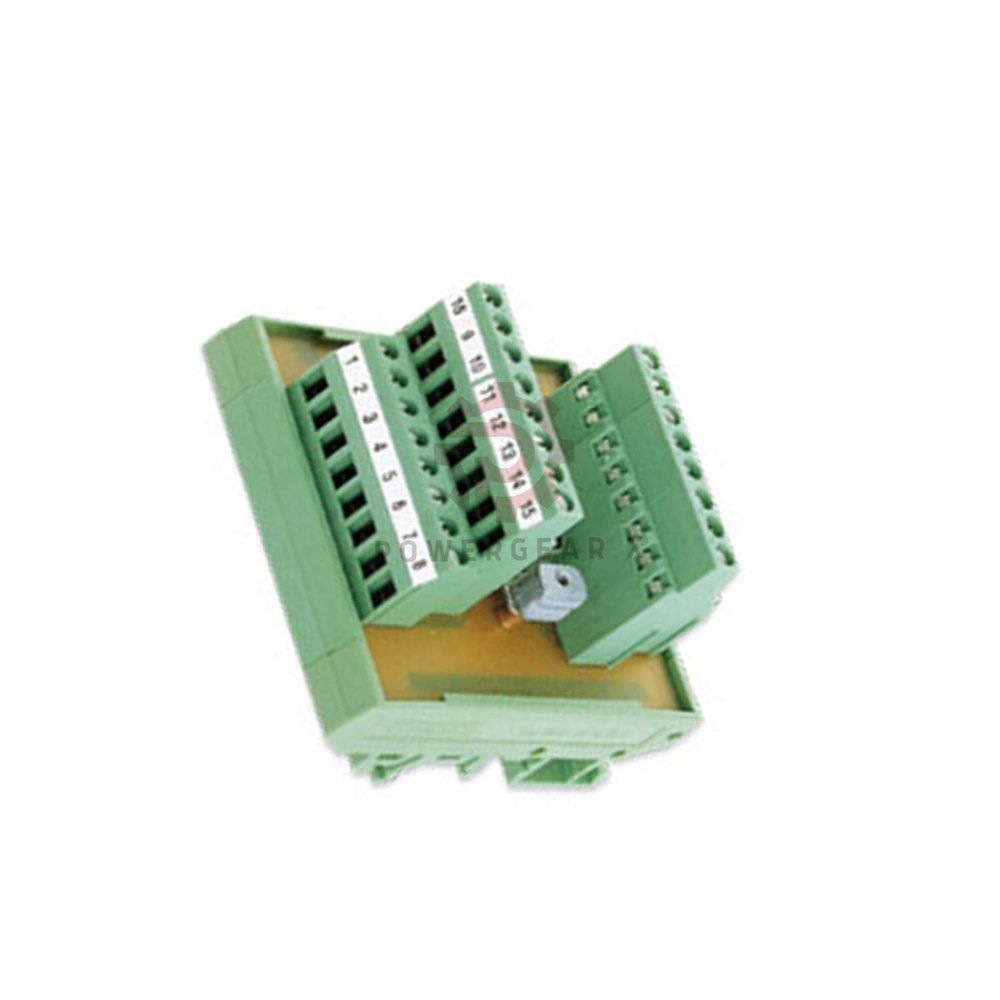

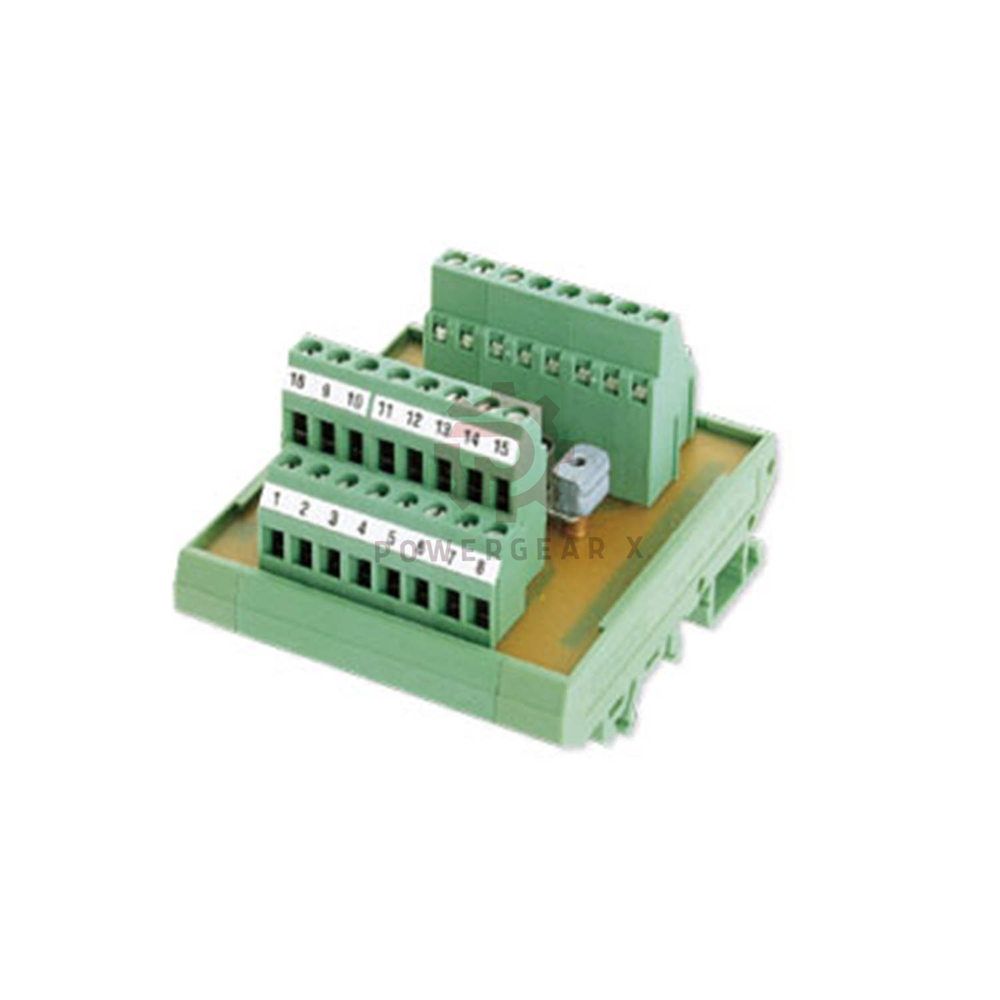

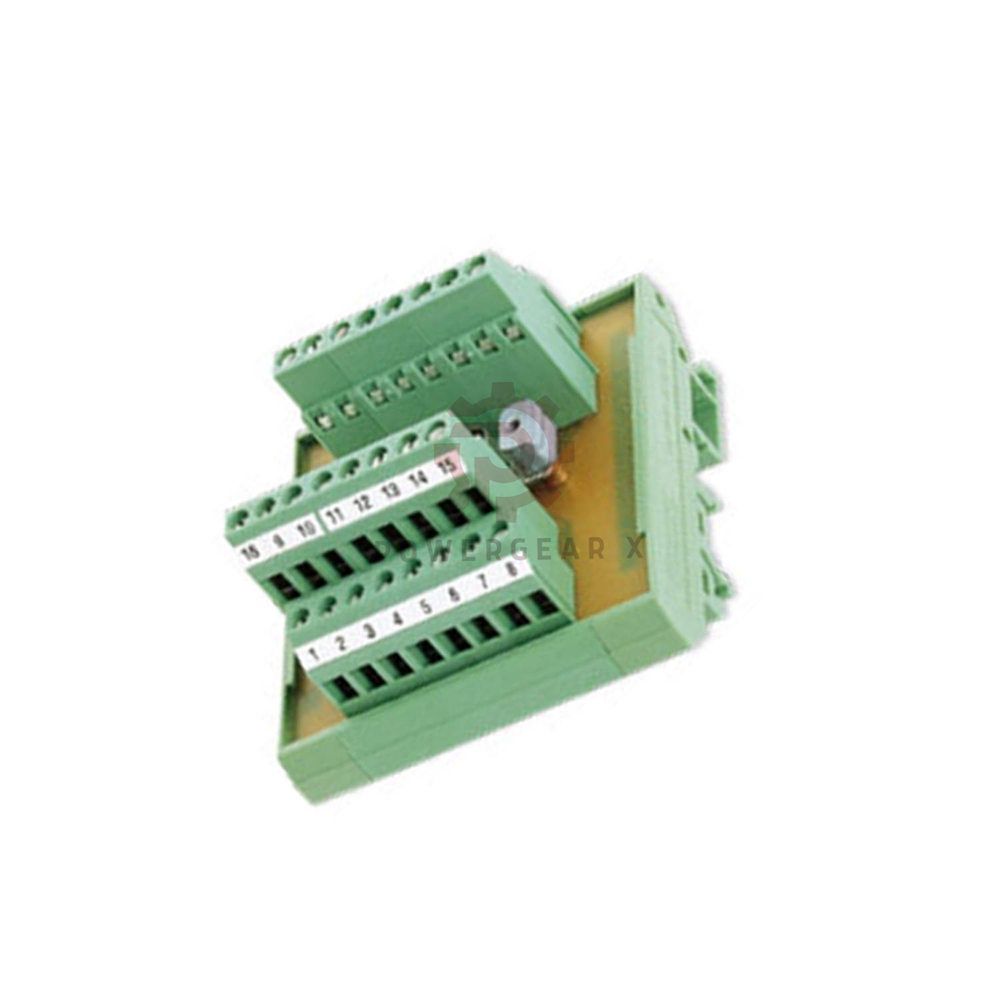

The 490-00105 (Switch Cabinet Module PT-15/2) functions as the critical hardware bridge between TR Electronic encoders and their respective programming terminals. This DIN-rail mounted interface facilitates the seamless reconfiguration of linear and rotary encoders via a 15-pole SUB-D socket. The architecture utilizes dual 16-pole terminal blocks to maintain signal continuity between the controller and the sensing device. The 490-00105 ensures that power distribution (11-27 V DC) and data transmission remain electrically isolated and properly shielded within industrial cabinets.
Critical Technical Specifications
- Article Number: 490-00105
- Module Type: PT-15/2 Programming Switch Cabinet Module.
- Mounting Compatibility: Standard EN-mounting rails (35mm DIN rail).
- Operating Voltage (US): 11-27 V DC stabilized input.
- Interface Port: 15-pole SUB-D socket for PT-100 connection.
- Wiring Terminals: Two 16-pole screw blocks for incoming/extending lines.
- Data Integrity: Dedicated Terminal 16 for system shielding and EMC protection.
- Switching Output: Integrated PT switch output specifically for TA-Mini devices.
- Signal Constraint: Pins 3 and 4 restricted to ≤ 5V when utilizing PC adapters.
- Thermal Protection: Passive cooling design for enclosed cabinet environments.
Recommended Equipment Compatibility
- TR Electronic PT-100-N Handheld Programmers.
- PC-based programming adapters for TR linear scales.
- Rotary absolute encoders with PT-compatible interfaces.
- TA-Mini switching systems requiring external trigger outputs.
- Centralized industrial control cabinets using standard EN-rails.
Professional FAQ & Buyer Guide
How do I prevent signal interference when using a PC adapter with the 490-00105?
Always ensure the shield at Terminal 16 is bonded to the common ground and keep the Data +/- signals (Pins 3 and 4) within the 5V logic threshold.
Can the unused pins on the terminal block be utilized for other signals?
Yes, pins 5, 6, 8, 9, 10, 11, 12, and 13 are internally disconnected, making them available for routing secondary encoder signals or auxiliary power.
What is the primary function of the 15-pole SUB-D socket?
The socket acts as the temporary plug-in point for the PT-100 programmer, allowing the module to pass programming data directly to the encoder while the system is powered.
Is the 490-00105 compatible with 24V DC logic systems?
The module accepts a broad supply range of 11-27 V DC, making it perfectly suited for standard 24V industrial power supplies.
What is the procurement process for international customers?
We offer a 12-month quality warranty on every 490-00105. Orders are processed for dispatch within 12-48 hours via FedEx, UPS, or DHL. For official quotes, please contact us at sales@powergearx.com.
