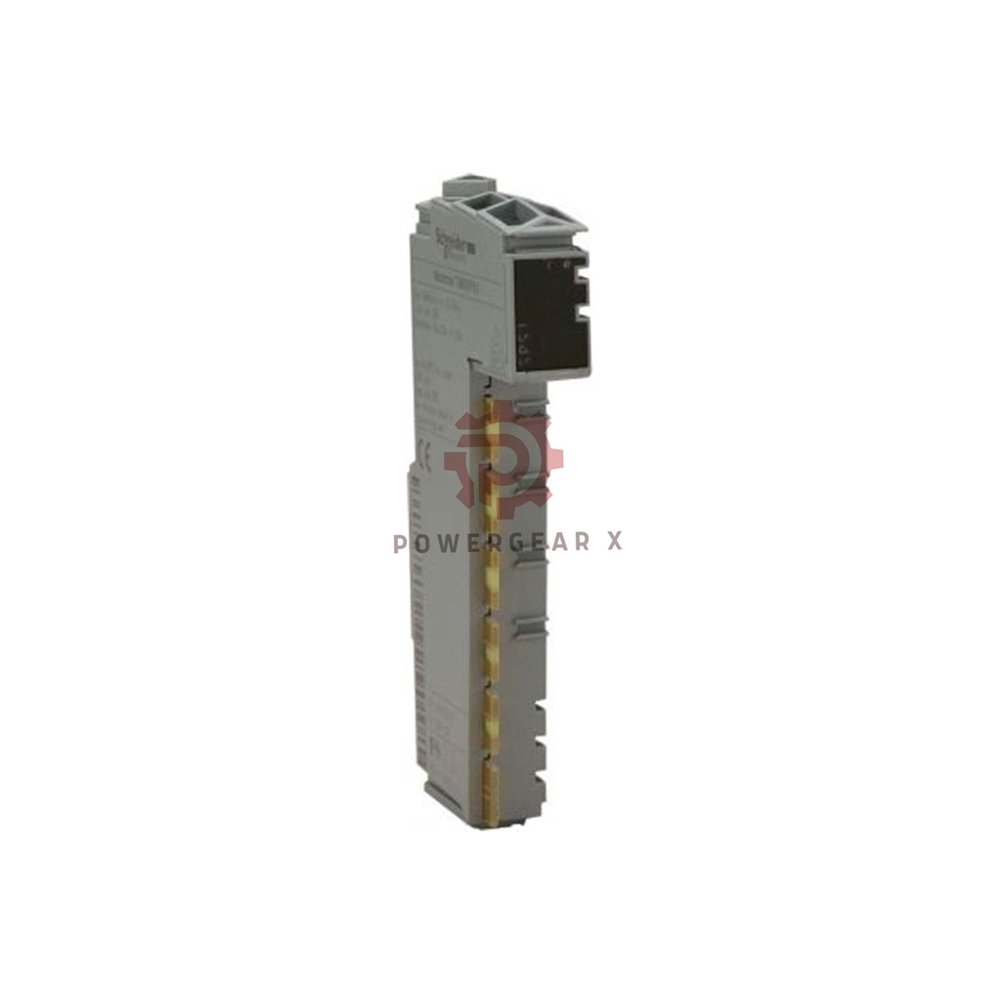

TM5SPS1 Power Module – Modicon TM5, 24V DC, 10A | Schneider

Product at a Glance

• TM5SPS1 – power distribution module for Modicon TM5
• Supplies 24 V DC to I/O modules
• Rated voltage: 24 V DC
• Supplies up to 10 A for I/O power segment
• Low power loss – only 0.8 W
• Grey housing, compact design
• CE marked, UL/cULus, CSA, GOST-R approved
• Operating temp: -10…55 °C (horizontal)
• IP20 protection (by system)

Technical Specifications

• Brand – Schneider Electric
• Model – TM5SPS1
• Series – Modicon TM5
• Type – Power distribution module
• Input voltage – 24 V DC
• Output current – 10 A (I/O power segment)
• Power dissipation – 0.8 W
• Current consumption – ≤ 25 mA at 24 V DC
• Protection – external fuse (10 A) for short‑circuit
• Compatibility – Modicon M258 & LMC058 controllers
• Mounting – DIN rail (horizontal or vertical)
• Colour – Grey
• Weight – 36 g (single unit)
• Dimensions – 10.6 × 6.0 × 2.0 cm

Installation & Setup

• Mount – snap onto DIN rail; horizontal or vertical
• Wiring – use 24 V DC supply from power supply module
• Fuse – install a 10 A external fuse for short‑circuit protection
• Cable – use shielded cables for noise immunity
• Grounding – connect earth terminal to reduce interference

Maintenance & Diagnostics

• LED indicator – built‑in status LED (green for power OK)
• No moving parts – maintenance‑free operation
• Cleaning – use dry cloth; avoid liquids
• Fuse replacement – external fuse can be changed without disassembly

Compatibility

• Controllers – Modicon M258 and LMC058 series
• I/O modules – all TM5 digital and analog I/O modules
• Power supply – works with any 24 V DC SELV power source
• Software – SoMachine or EcoStruxure Machine Expert

Certifications & Standards

• UL 508 – industrial control equipment
• CSA C22.2 No. 142 & 213
• CE – European conformity
• GOST‑R – Russian approval
• C‑Tick – Australian EMC compliance
• EMC – EN/IEC 61000‑4‑2/-3/-4/-5/-6; CISPR 11

Package Contents

• 1× TM5SPS1 power distribution module
• 1× quick start guide
• Warranty card

Warranty & Delivery

• 12‑month warranty – covers defects in material and workmanship
• 12‑24 hour dispatch – orders ship within one business day
• Carriers – FedEx, UPS, DHL (tracking number provided)
• Free technical support via email or phone

Expert Review

• Simple and reliable – just what you need for power distribution
• Compact size – saves space in the control cabinet
• Good EMC immunity – works well in noisy industrial environments
• Wide temperature range – -10…55 °C without derating

Manager’s Insight

• Ideal for – small to medium machines with TM5 I/O
• Cost‑effective – distributes power without extra wiring effort
• Easy to integrate – plug‑and‑play with Modicon controllers
• Global compliance – UL, CSA, CE, GOST‑R – no trade barriers

Typical Applications

• Packaging machines
• Conveyor systems
• Material handling equipment
• Small assembly lines
• HVAC control panels

Frequently Asked Questions

• What is the TM5SPS1 used for?
• It distributes 24 V DC power to TM5 I/O modules in a Modicon system.
• Do I need an external fuse?
• Yes. Use a 10 A external fuse for short‑circuit protection.
• Can I mount it vertically?
• Yes. Operating temp then is -10…50 °C (derating applies above 50 °C).
• Is it compatible with M241 or M251 controllers?
• No. It is designed for M258 and LMC058 only.
• How do I check if the module is working?
• Look at the green LED – it lights up when power is OK.
• What is the maximum current it can supply?
• 10 A for the I/O power segment. Do not exceed this limit.
• Does it require programming?
• No. It is a passive distribution module – no software configuration needed.

Selection Guide

• System size – if you have many I/O modules, you may need additional power distribution units.
• Current budget – add up the current consumption of all I/O modules; total must stay below 10 A.
• Environment – for vertical mounting, ensure ambient temp ≤50 °C.
• Safety – always use a 10 A external fuse to protect the module and wiring.
• Spare part – keep one on hand for quick replacement to reduce downtime.

Comparison with Similar Models

• TM5SPS0 – basic power distribution (no fuse holder, lower current)
• TM5SPS1 – 10 A with external fuse (this model)
• TM5SPS2 – with internal fuse and diagnostic LED
• TM5SPS3 – includes surge suppression
