Name: TM5SDO6T Schneider Modicon TM5 6-Channel Digital Output Module
SKU: TM5SDO6T
Price: 234.00 USD
Availability: InStock

Product details

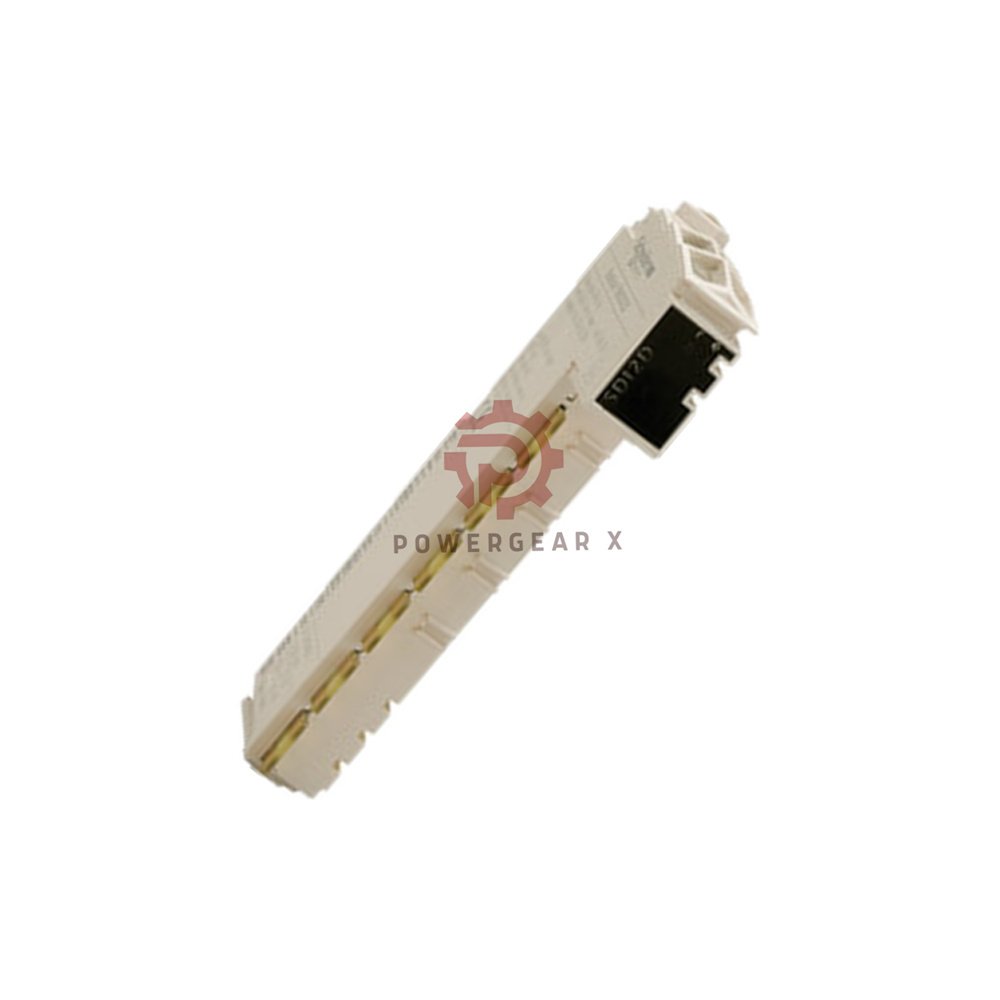

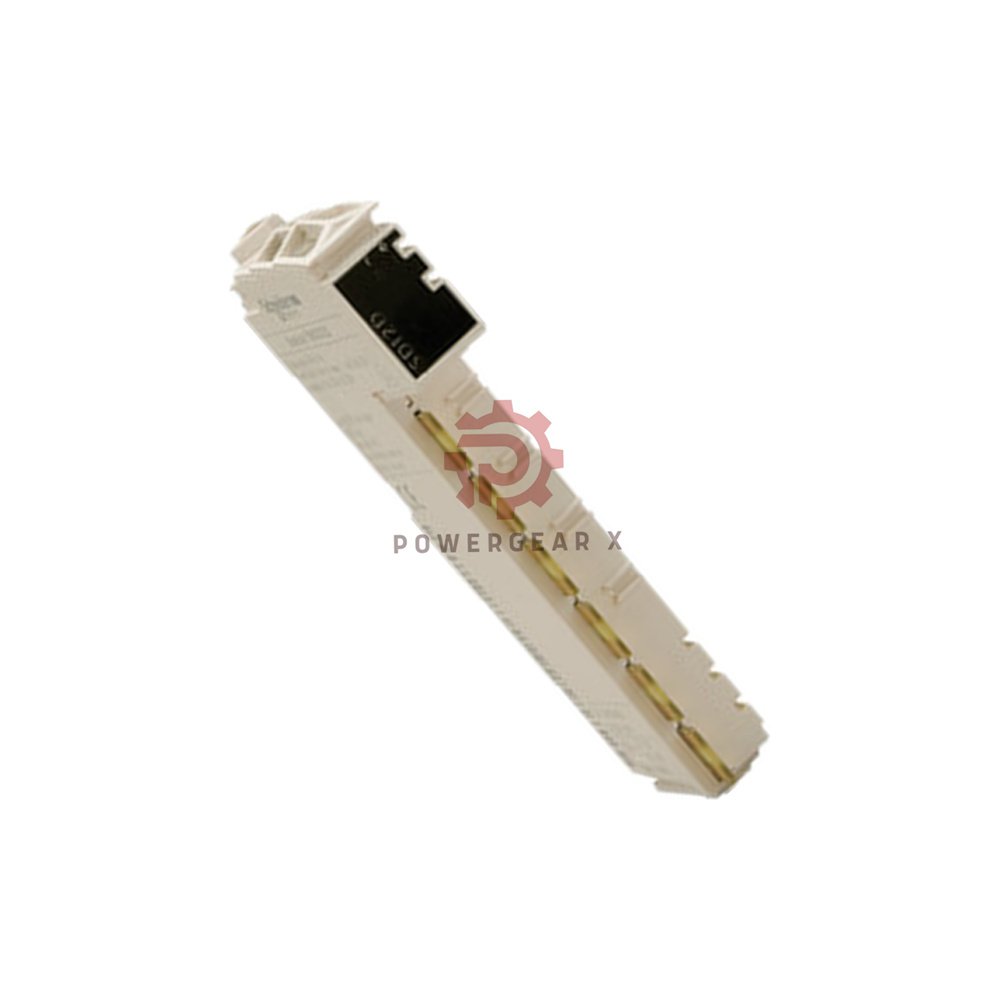

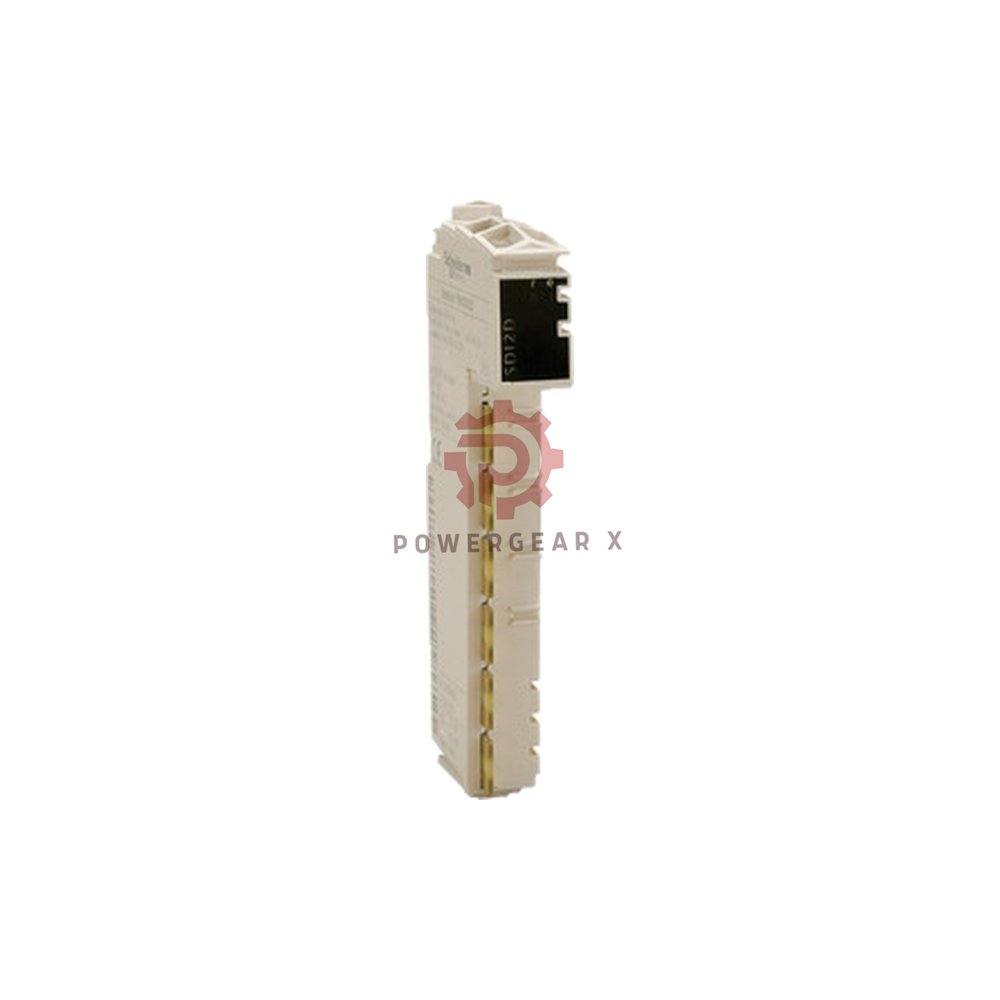

TM5SDO6T Schneider Electric Modicon TM5 Digital Output Module – 6 Channels, 24 Vdc Transistor

TM5SDO6T is a digital output module from the Schneider Electric Modicon TM5 series. It gives you 6 transistor outputs in a very slim slice. Each channel switches 24 Vdc at up to 0.5 A. The source logic output drives relays, valves, and lamps. It responds in 300 µs. Built-in protection covers short circuits, overloads, and reverse polarity. This module keeps panels small and wiring simple. It works with Modicon motion and logic controllers.

Why Choose TM5SDO6T

Fast switching: 300 µs response, 500 Hz resistive load.
Strong drive: 0.5 A per channel, 3 A per group.
High peak current: 12 A output peak.
Built-in safety: Short circuit, overload, and reverse polarity protection.
Clear status: 1 green LED, 1 red LED, 6 yellow LEDs.
Low leakage: Only 5 µA when off.
Space saving: Just 0.025 kg.

Technical Data

Brand: Schneider Electric
Model: TM5SDO6T
Series: Modicon TM5
Module type: Digital output, transistor
Outputs: 6
Output logic: Source
Output voltage: 24 Vdc
Voltage limits: 20.4 to 28.8 V
Current per channel: 0.5 A
Max current per group: 3 A
Output peak current: 12 A
Switching frequency: 500 Hz resistive load
Response time: 300 µs off to on, 300 µs on to off
Max leakage current: 5 µA when off
Protection: Short circuit, overload, reverse polarity
Isolation: 500 Vrms channel to bus; no channel-to-channel isolation
Max voltage drop: Below 0.3 V at 500 mA output; below 2 V at 500 mA sensor supply
Max sensor supply current: 500 mA
Power consumption: 36 mA at 5 Vdc bus; 30 mA at 24 Vdc I/O
Max dissipated power: 1.2 W
Local signaling: 1 green LED power; 1 red LED power; 6 yellow LEDs output state
Electrical connection: 2 wires
Marking: CE
Weight: 0.025 kg
Color: White
Operating temperature: -10 to 55 °C horizontal without derating; -10 to 60 °C horizontal with derating; -10 to 50 °C vertical
Storage temperature: -40 to 70 °C
Relative humidity: 5 to 95 % non-condensing
IP rating: IP20 per IEC 61131-2
Pollution degree: 2 per IEC 60664
Operating altitude: 0 to 2000 m
Storage altitude: 0 to 3000 m
Vibration: 1 gn at 8.4 to 150 Hz on DIN rail; 3.5 mm at 5 to 8.4 Hz on DIN rail
Mechanical shock: 15 gn for 11 ms
EMC immunity: 4 kV contact and 8 kV air per EN/IEC 61000-4-2; 1 V/m 2 to 2.7 GHz and 10 V/m 80 to 2000 MHz per EN/IEC 61000-4-3; 1 kV I/O and shielded cable, 2 kV power cable per EN/IEC 61000-4-4; 0.5 kV differential and 1 kV common mode per EN/IEC 61000-4-5; conducted RF per EN/IEC 61000-4-6; emissions per CISPR 11

Installation Guide

Mount on a TM5 bus base.
Use horizontal mounting for full temperature range.
Derate if mounted vertically or above 55 °C.
Wire outputs with 2-wire connection.
Keep load current below 0.5 A per channel.
Keep group current below 3 A.
Check all LEDs after power-up.
Protect the cabinet to IP20 level.

Commissioning and Maintenance

Test each output with a small load first.
Watch yellow LEDs for channel state.
Use the red LED to spot power faults.
Check for short circuits during startup.
Keep spare slices for fast swaps.
Clean only with dry tools.
Do not open the housing.
Replace only with the same model.

Compatibility

Modicon LMC058
Modicon M258
PacDrive LMC Pro
PacDrive LMC Pro 2
PacDrive LMC Eco
Modicon TM5 distributed I/O platform

Best Fit Equipment and Applications

Motion control panels with PacDrive LMC.
Modicon M258 and LMC058 machine builds.
Valve, relay, and lamp control.
Packaging and material handling lines.
Compact cabinets with limited space.
Fast switching tasks up to 500 Hz.

Expert Review

The TM5SDO6T is a small module with real drive power. The 0.5 A per channel and 12 A peak handle tough loads. The 300 µs response is very fast. Protection features reduce wiring risk. The white color helps in mixed panels. No channel-to-channel isolation is normal here. For TM5 users, this is a solid output slice.

Manager’s Insight

Stock this part for PacDrive LMC and Modicon M258 projects. It moves fast in retrofit work. Buyers like the slim size and strong current. Pair it with TM5 input modules for a full slice. Keep one spare for urgent repairs. The 18-month warranty adds buyer confidence.

Certification and Compliance

UL 508
CSA C22.2 No 213
CSA C22.2 No 142
IEC 61131-2
CULus, CSA, C-Tick, GOST-R
Green Premium product
REACh and RoHS UE declarations
No toxic heavy metals, no mercury, no PVC

Packaging List

1 × TM5SDO6T digital output module
Factory packaging: 2.000 cm high, 6.000 cm wide, 10.600 cm long
Package weight: 38.000 g
Carton S02: 97 units, 15.000 cm high, 30.000 cm wide, 40.000 cm long
Carton weight: 3.980 kg

Warranty and Shipping

12-month warranty against manufacturing defects.
12–24 hour dispatch for ready stock.
FedEx, UPS, and DHL express options.
Tracking number shared after shipment.
Contact us for bulk or urgent orders.

FAQ

Q: Can this module drive a small relay coil?

A: Yes. The 0.5 A per channel and 12 A peak current can drive many relay coils. Check the coil current first.

Q: What happens if I mount it vertically?

A: The upper temperature limit drops to 50 °C. Use derating above that point.

Q: Why is the leakage current so low?

A: Low leakage stops small loads from staying on. This helps when the output is off.

Q: Can I mix this output slice with input slices?

A: Yes. The TM5 bus accepts both input and output slices in one rack.

Q: What should I check before buying?

A: Confirm your controller, load current, voltage, and panel space. Match source logic with your wiring. Count your outputs and leave spare channels. Ask about the 12-month warranty. Choose FedEx, UPS, or DHL if you need fast delivery. Order during stock hours for 12–24 hour dispatch.
