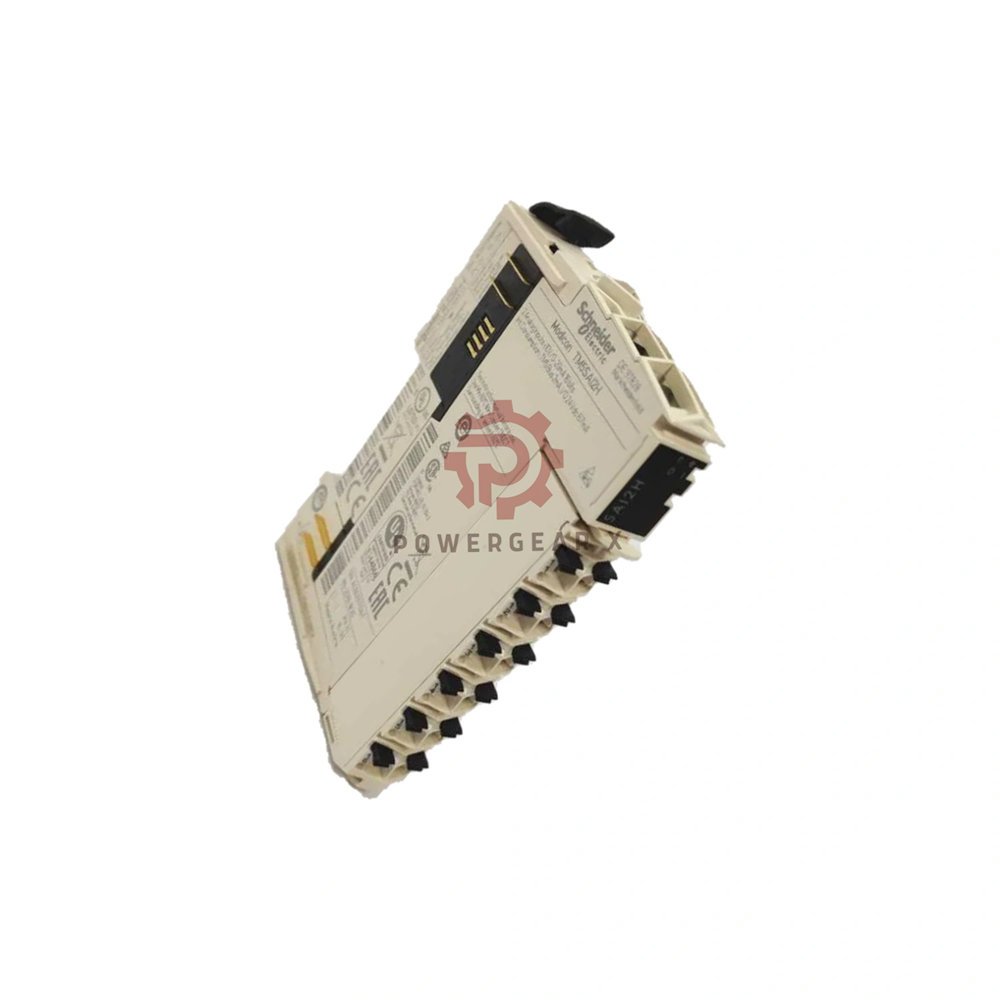

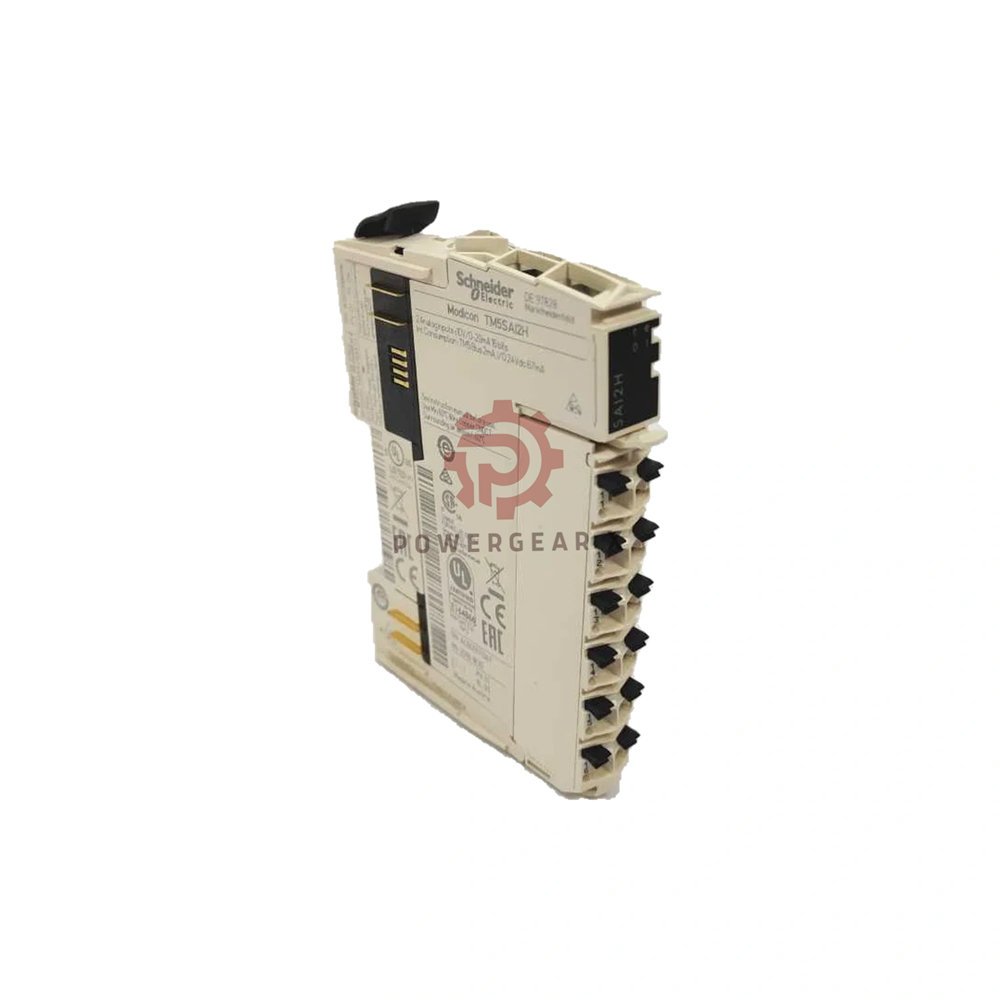

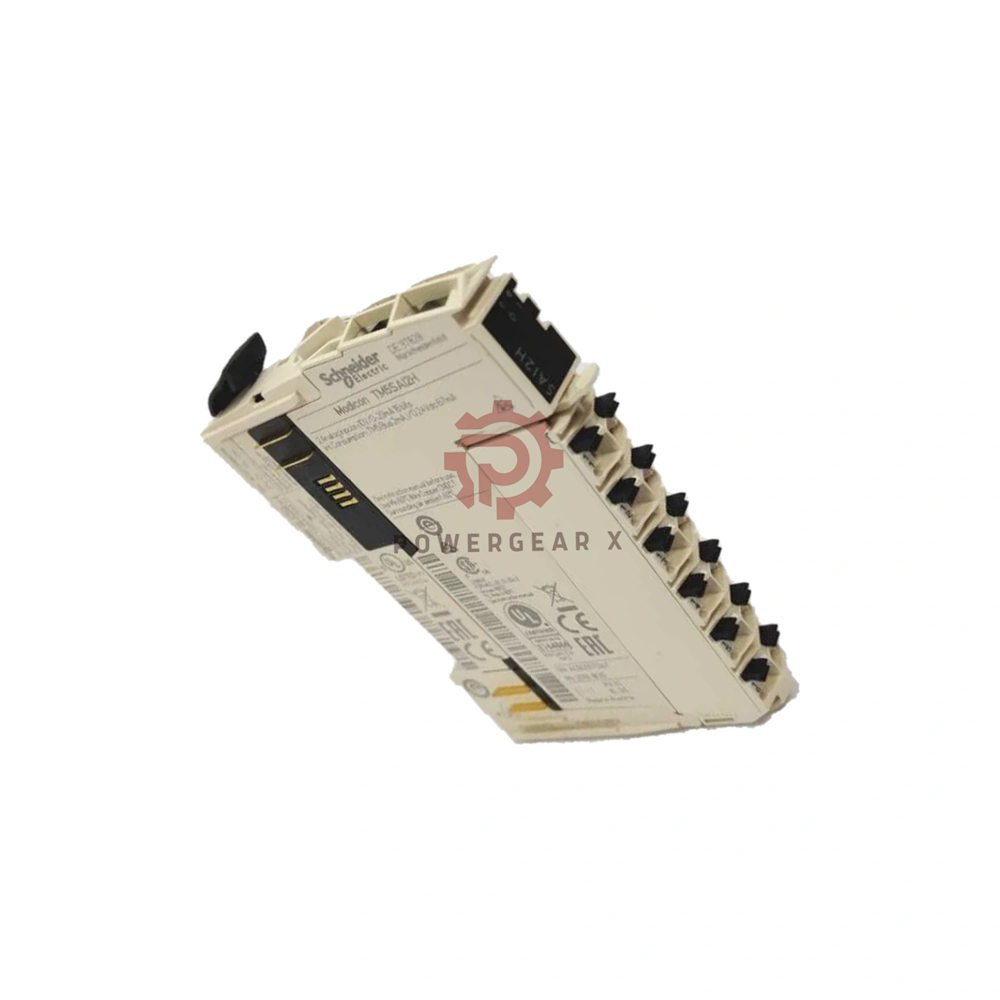

TM5SAI2H Schneider Modicon TM5 Analog Input Module – 2 Channels, ±10 V / 0 to 20 mA, 16 Bit

TM5SAI2H is an analog input module from the Modicon TM5 range. Moreover, it gives you 2 input channels. In addition, it reads voltage and current signals. Therefore, it fits many sensor types. Furthermore, it offers 16-bit resolution. As a result, it captures small signal changes. Besides, it is white and very light at 0.025 kg.

Core Product Data

• Brand: Schneider Electric
• Model: TM5SAI2H
• Series: Modicon TM5
• Type: Analog input module
• Analog inputs: 2
• Color: White
• Marking: CE
• Weight: 0.025 kg

Input Types and Resolution

• Current input: 0 to 20 mA, differential
• Voltage input: ±10 V, differential
• Resolution: 15 bit + sign for ±10 V; 15 bit for 0 to 20 mA
• Measurement resolution: 305 µV for ±10 V; 610 nA for 0 to 20 mA
• Input impedance: ≥ 20 mOhm for voltage
• Load impedance: ≤ 400 Ohm for current
• Sampling time: 50 µs

Accuracy Data

• Measurement error: < 0.08 % of full scale at 25 °C for both ±10 V and 0 to 20 mA
• Temperature coefficient: 0.01 %FS/°C
• Non-linearity: < 0.01 %FS for voltage; < 0.015 %FS for current
• Common mode rejection: > 70 dB

Compatibility

• Modicon LMC058 motion controller
• Modicon M258 logic controller

Power and Wiring

• Supply: Internal
• Rated supply voltage: 24 V DC, -15 to +20 %
• Current use: 2 mA at 5 V DC bus; 50 mA at 24 V DC input/output
• Power dissipation: ≤ 1.21 W
• Cable type: Shielded cable
• Isolation: No insulation between channels; 500 Vrms AC between channel and bus

Local Signaling

• 1 green LED for power supply
• 1 red LED for power supply
• 2 green LEDs for input status

Environment and Standards

• Standards: CSA C22.2 No 142; IEC 61131-2; UL 508; CSA C22.2 No 213
• Certifications: CSA, C-Tick, cULus, GOST-R
• Operating temp: 0 to 55 °C horizontal without derating; 0 to 60 °C horizontal with derating; 0 to 50 °C vertical
• Storage temp: -25 to 70 °C
• Humidity: 5 to 95 % without condensation
• IP degree: IP20 per IEC 61131-2
• Pollution degree: 2 per IEC 60664
• Operating altitude: 0 to 2000 m
• Storage altitude: 0 to 3000 m
• Vibration: 1 gn at 8.4 to 150 Hz on DIN rail; 3.5 mm at 5 to 8.4 Hz on DIN rail
• Shock: 15 gn for 11 ms
• ESD: 4 kV contact; 8 kV air (EN/IEC 61000-4-2)
• EM fields: 1 V/m 2 to 2.7 GHz; 10 V/m 80 to 2000 MHz (EN/IEC 61000-4-3)
• Fast transients: 1 kV I/O; 1 kV shielded cable; 2 kV power lines (EN/IEC 61000-4-4)
• Surge: 0.5 kV differential; 1 kV common mode (EN/IEC 61000-4-5)
• Conducted disturbances: EN/IEC 61000-4-6
• Emissions: CISPR 11

Sustainability

• Green Premium: Yes
• RoHS: Compliant since 1039
• REACh: No SVHC above limits
• Environmental profile: Available
• End of life manual: Available
• Contractual warranty: 18 months

Expert Review

The TM5SAI2H is a precise analog input module. It reads both voltage and current signals. Moreover, the 16-bit resolution catches small changes. The 50 µs sampling time suits fast loops. In addition, the error rate is very low at 0.08 %. However, the channels share no isolation. Therefore, keep noisy signals apart. For M258 and LMC058 systems, this module is a strong pick.

Manager’s Insight

We sell the TM5SAI2H to machine builders using Modicon M258 and LMC058 controllers. It is a clean way to add analog sensing. The wiring is simple with shielded cable. Moreover, stock is stable. We ship in 12 to 24 hours. Therefore, projects keep moving. For TM5 users, this module is a safe buy.

Best Fit Equipment and Applications

• Pressure and flow monitoring
• Temperature loops with transmitters
• Position feedback systems
• Load cell signal reading
• Process control panels
• Machines using Modicon M258 or LMC058
• Apps needing ±10 V or 0 to 20 mA inputs

FAQ

Q: What signal types does the TM5SAI2H accept?
A: It reads ±10 V and 0 to 20 mA. Moreover, both are differential inputs. Therefore, it handles many industrial sensors.

Q: How precise is this analog module?
A: The error is under 0.08 % of full scale at 25 °C. In addition, non-linearity is under 0.015 % for current. Therefore, it suits tight control loops.

Q: Which controllers pair with this module?
A: It works with Modicon LMC058 and M258. Furthermore, it belongs to the Modicon TM5 range.

Q: What cable should I use for wiring?
A: Use shielded cable. Consequently, you cut noise on weak analog signals. Keep the shield grounded at one end.

Q: What is the warranty and shipping time?
A: Schneider offers an 18-month warranty. Furthermore, we ship in 12 to 24 hours by FedEx, UPS, or DHL.

Q: How do I choose the right TM5 analog module?
A: First, list your signal types and channel count. Then check the resolution you need. Next, match the module to your controller. The TM5SAI2H fits 2-channel, ±10 V or 0 to 20 mA needs on M258 and LMC058.
