Product details

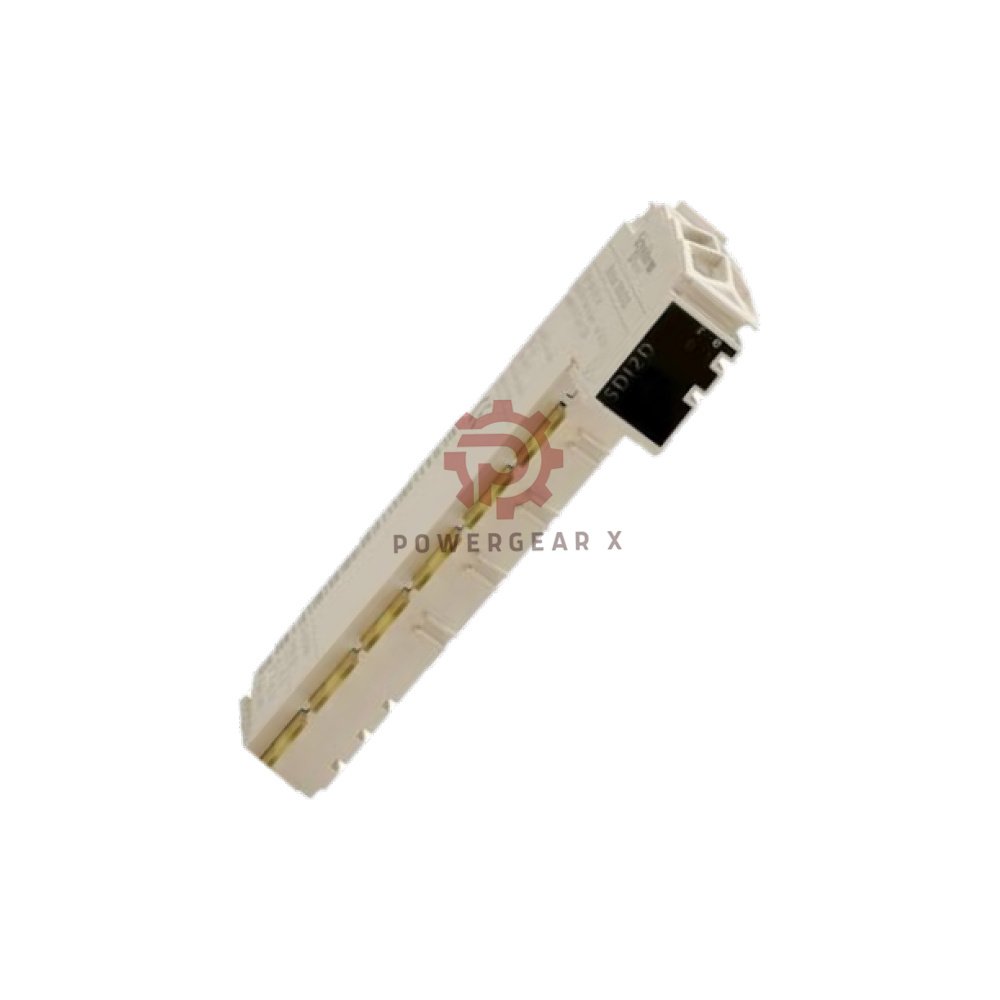

TM5SDI12D Schneider Modicon TM5 Digital Input Module
The TM5SDI12D is a 12-channel digital input module from the Schneider Electric Modicon TM5 series. It reads 24 Vdc sink signals for machine control. The module fits compact TM5 distributed I/O systems. It supports fast response and simple wiring. It suits OEM panels, conveyors, packaging lines, and factory automation. The design is active and widely used. It delivers reliable input sensing for Modicon M241, M251, M258, and LMC058 platforms.
Why This Module Stands Out
- Fast input response: Response time is ≤3 ms with a configurable filter.
- Compact size: Only 12.5 mm wide, saving valuable panel space.
- Clear diagnostics: ModuleOK, DcOk, and NetworkOk status support quick checks.
- Simple wiring: 1-wire connection lowers installation time.
- Stable power: Runs on 24 Vdc through the TM5 bus.
- Active lifecycle: Verified active as of 2026-09.
Technical Specifications
- Brand: Schneider Electric
- Model: TM5SDI12D
- Series: Modicon TM5
- Module type: Digital input, sink
- Channels: 12
- Signal type: 24 Vdc sink, Type 1 per IEC 61131-2
- Input range: 24 Vdc nominal, 19.2 to 28.8 Vdc
- Input current: 3.75 mA per channel at 24 Vdc
- Resolution: Not applicable
- Accuracy: Not applicable
- Isolation: No isolation between channels; 500 Vrms AC between channel and bus
- Diagnostics: ModuleOK, DcOk, NetworkOk
- Response time: ≤3 ms with configurable input filter
- Wiring: 1-wire connection
- Supply voltage: 24 Vdc via TM5 bus
- Power consumption: 1.93 W
- Bus current: 36 mA at 5 Vdc; 73 mA at 24 Vdc with all inputs on
- Operating temperature: 0 to +55 °C
- Storage temperature: -25 to +70 °C
- Protection rating: IP20
- Dimensions: 99 × 12.5 × 75 mm
- Weight: 0.025 kg
Installation Guide
- Mount the module on a TM5 bus base.
- Keep the panel clean and dry.
- Use 24 Vdc sink wiring for all inputs.
- Follow IEC 61131-2 Type 1 signal rules.
- Check ModuleOK, DcOk, and NetworkOk LEDs after power-up.
- Set the input filter to match your machine speed.
- Do not exceed 28.8 Vdc on any input.
Commissioning and Maintenance
- Commissioning is fast with 1-wire connections.
- LED diagnostics reduce troubleshooting time.
- No channel isolation means simple group wiring.
- IP20 rating suits cabinet use only.
- Routine checks include LED status and terminal tightness.
- Replace the module only after power is removed.
Compatibility
- Compatible platforms: Modicon M241, M251, M258, LMC058
- Platform family: Modicon TM5 distributed I/O
- Lifecycle: Active
- Last verified: 2026-09
Best Applications
- Machine control panels
- Conveyor and material handling lines
- Packaging and labeling equipment
- Factory automation cells
- Process skids with 24 Vdc sensors
- Modicon M241, M251, M258, and LMC058 systems
Expert Review
The TM5SDI12D is a smart pick for compact 24 Vdc input tasks. Its 12 channels fit many small to mid-size machines. The ≤3 ms response time helps with fast sensors. The 12.5 mm width saves DIN rail space. Diagnostics are clear and useful. The lack of channel isolation is normal for this class. For clean cabinet environments, this module is a strong, practical choice.
Manager’s Insight
This module sells well because it balances price, size, and speed. Buyers often pair it with Modicon M241 and M251 controllers. Stock it with TM5 bus bases and 24 Vdc sink sensors. Highlight the fast response and compact width in listings. Mention the active lifecycle to reduce buyer risk. Use clear compatibility notes to avoid returns.
FAQ
Q: What is the TM5SDI12D used for?
A: It reads 12 digital 24 Vdc sink signals in Modicon TM5 systems.
Q: Does it work with Modicon M241?
A: Yes. It supports M241, M251, M258, and LMC058 platforms.
Q: How fast is the input response?
A: The response time is ≤3 ms with a configurable filter.
Q: Is there isolation between channels?
A: No. Channels share no isolation, but 500 Vrms AC isolates channel and bus.
Q: What is the operating temperature range?
A: It runs from 0 to +55 °C.
Q: How many wires per input?
A: Each input uses a 1-wire connection.
Q: What diagnostics does it offer?
A: It provides ModuleOK, DcOk, and NetworkOk status.
Q: What is the power consumption?
A: It uses 1.93 W.
Q: Can I use it outside a cabinet?
A: No. The IP20 rating requires a protected cabinet.
Q: What should I check before buying?
A: Check your controller platform, signal type, and channel count.
Q: My machine runs fast. Will this module keep up?
A: Yes, for most fast sensor tasks. The ≤3 ms response time suits many lines. Set the filter to match your scan needs.
Q: I have mixed 24 Vdc devices. Any tips?
A: Keep all inputs sink type. Do not mix source and sink signals on one module. Check voltage stays within 19.2 to 28.8 Vdc.
Q: How do I pick the right TM5 input module?
A: Count your inputs first. Match the signal type and voltage. Check controller compatibility. Then confirm panel space and response needs.
Packaging and Warranty
- Packaging list: 1 × TM5SDI12D module
- Warranty: 12 months
- Dispatch: Ships in 12 to 24 hours
- Couriers: FedEx, UPS, DHL
- Support: sales@powergearx.com
- WhatsApp: +86 18030005825
Order Support
Need a quote or stock check? Email sales@powergearx.com. Chat on WhatsApp at +86 18030005825. We reply fast and ship worldwide.
