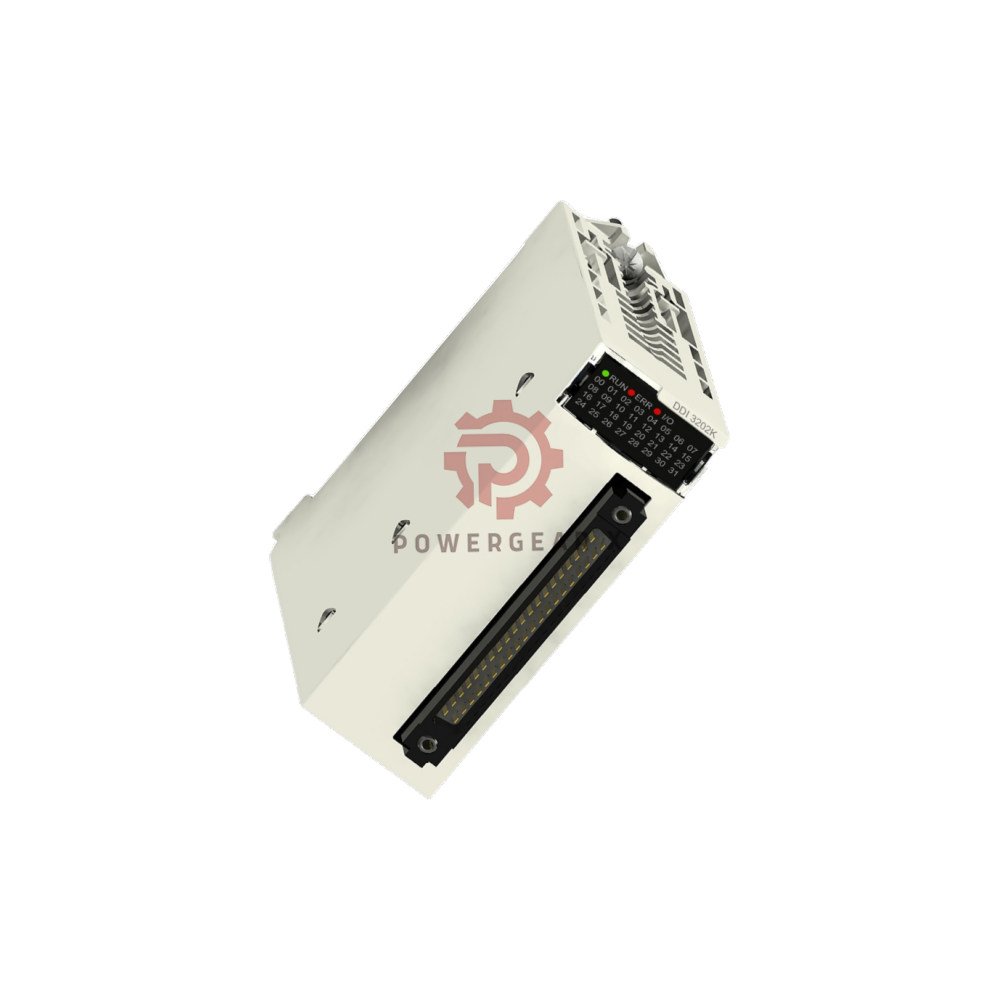

BMXDDI3202K Schneider Electric Modicon X80 Discrete Input Module – 32 Channels, 24V DC, High Density
BMXDDI3202K is a high density discrete input module from Schneider Electric. This unit belongs to the Modicon X80 series. Moreover, it brings 32 input channels into one compact body. It works with 24V DC positive logic signals. As a result, the design saves panel space and cuts wiring time. It suits both M340 and M580 controllers. In addition, that shared platform keeps spare parts simple. The module stays in active lifecycle status. Last verified in September 2026. For fast quotes, reach us at sales@powergearx.com or +86 18030005825.
Why This Module Stands Out
- 32 channels in a 28 mm width. Therefore, high density saves rack space.
- 24V DC positive logic. Consequently, it matches common sensors and switches.
- Group-to-group isolation. As a result, fault spread between groups is limited.
- Module status LED. Thus, fault finding on the floor gets faster.
- 40-pin terminal block. Meanwhile, one connector handles all 32 channels.
- Shared M340 and M580 platform. In short, one spare part covers two families.
Technical Specifications
- Brand: Schneider Electric
- Model: BMXDDI3202K
- Series: Modicon X80
- Module type: Discrete input module
- Channels: 32
- Signal type: Discrete input, positive logic
- Input range: 24V DC
- Resolution: Not applicable for discrete signals
- Accuracy: Not applicable for discrete signals
- Frequency response: Not applicable for static discrete input
- Sensitivity: Fixed threshold for 24V DC logic
- Linearity: Not applicable for discrete input
- Isolation: Group-to-group isolation
- Diagnostics: Module status LED
- Connection: 40-pin terminal block
- Supply voltage: 24V DC
- Power consumption: 4.1 W
- Bus current: 170 mA at 24V DC
- Operating temperature: 0°C to +60°C
- Storage temperature: -25°C to +70°C
- Relative humidity: 5% to 95%, non-condensing
- Protection rating: IP20
- Dimensions (H x W x D): 100 x 28 x 93 mm
- Weight: 0.16 kg
- Lifecycle: Active
- Last verified: 2026-09
Installation Guide
- First, mount the module on a Modicon X80 rack.
- Also, keep the rack powered off during wiring.
- Then, use the 40-pin terminal block for all 32 channels.
- Next, follow positive logic wiring for 24V DC signals.
- Besides that, respect group-to-group isolation boundaries.
- After power up, check the module status LED.
- Moreover, keep the panel within IP20 limits.
- Finally, allow air flow around the module.
Commissioning and Maintenance
- First, confirm each channel with a known 24V DC source.
- Then, label the 40-pin terminal block clearly.
- Also, log the LED status after first power up.
- In addition, inspect terminals during routine shutdowns.
- Therefore, replace the module only with the same model.
- Meanwhile, store spare units in a dry, cool place.
- For support, contact sales@powergearx.com.
Compatibility Notes
- To begin with, it works with Schneider Electric M340 controllers.
- It also works with Schneider Electric M580 controllers.
- Furthermore, it belongs to the Modicon X80 shared I/O platform.
- Besides that, it fits standard X80 racks and backplanes.
- As a result, it uses a 40-pin high density terminal block.
- However, check rack power budget before adding modules.
Certifications and Compliance
- Schneider Electric quality standards apply.
- CE marking is expected for this series.
- RoHS and REACH compliance are expected too.
- However, confirm local rules before installation.
- Also, ask our team for current documents.
Package Contents
- One BMXDDI3202K module
- One 40-pin terminal block
- Product documentation
- Protective packaging
Warranty and Shipping
- 12-month warranty on the module.
- 12 to 24 hour dispatch for stocked items.
- Shipping by FedEx, UPS, or DHL.
- Tracking number sent after dispatch.
- Order via sales@powergearx.com or +86 18030005825.
Expert Review
The BMXDDI3202K solves a common panel problem. Engineers need many inputs, yet space is tight. This module gives 32 channels in only 28 mm of width. Moreover, the 40-pin terminal block keeps wiring clean. Group-to-group isolation adds a layer of safety. The status LED helps during startup. In addition, the shared M340 and M580 platform is a real plus. One spare part covers two controller families. As a result, stock costs go down. However, the module does not offer per-channel diagnostics. Therefore, it suits standard discrete sensing better than fast fault finding. For most factory automation tasks, it remains a solid and proven choice.
Manager’s Insight
Buyers often ask for one input module that fits many projects. The BMXDDI3202K answers that need. It works across M340 and M580 systems. Also, it uses a common 40-pin terminal block. Moreover, it stays in active lifecycle. These points reduce long term support risk. Stock one model instead of several. Train staff on one wiring method. Keep a few spare units on the shelf. Consequently, this module gives high channel count without a high price. For system integrators, that means faster builds and fewer part numbers. Order now and we ship within 12 to 24 hours by FedEx, UPS, or DHL.
Best Fit Applications and Equipment
- Factory automation lines with many sensors
- Packaging machines and conveyor systems
- Water and wastewater control panels
- Building automation and pump stations
- M340 and M580 control cabinets
- Retrofit projects that need more inputs
- Panel builders who need dense I/O
- Process skids with 24V DC switches
FAQ
Q: What does the BMXDDI3202K do?
A: It reads 32 discrete 24V DC input signals. Then it sends that data to a Modicon M340 or M580 controller.
Q: How many channels does this module have?
A: It has 32 input channels in one unit.
Q: What signal type does it use?
A: It uses positive logic discrete input at 24V DC.
Q: Does it work with both M340 and M580?
A: Yes. Schneider Electric shares this I/O platform across both families.
Q: What connector does it need?
A: It needs a 40-pin high density terminal block.
Q: Does it have per-channel diagnostics?
A: No. It has a module status LED only.
Q: What is the operating temperature range?
A: It runs from 0°C to +60°C.
Q: What is the protection rating?
A: It has an IP20 rating for cabinet use.
Q: How fast can you ship it?
A: Stocked items ship in 12 to 24 hours by FedEx, UPS, or DHL.
Q: What warranty do you offer?
A: We offer a 12-month warranty on this module.
Q: How do I confirm a channel works?
A: Apply a known 24V DC signal. Then watch the controller input status.
Q: Can I mix this module with other X80 I/O?
A: Yes. It fits the same rack as other Modicon X80 modules.
Q: What should I check before buying?
A: Check your rack power budget, connector type, and controller family.
Q: Is this module still active?
A: Yes. It remains in active lifecycle status as of September 2026.
Q: Where can I get help?
A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
Buying Guide
- First, count your input points.
- Then, choose 32 channels if space is tight.
- Also, confirm your controller is M340 or M580.
- Next, check that your signals are 24V DC positive logic.
- Besides that, plan for a 40-pin terminal block.
- Moreover, review group isolation needs for your panel.
- In addition, keep one spare module for critical lines.
- Finally, ask us for a quote with your required quantity.
