TM221CE24R Modicon M221 Controller – 24 I/O Relay Ethernet AC

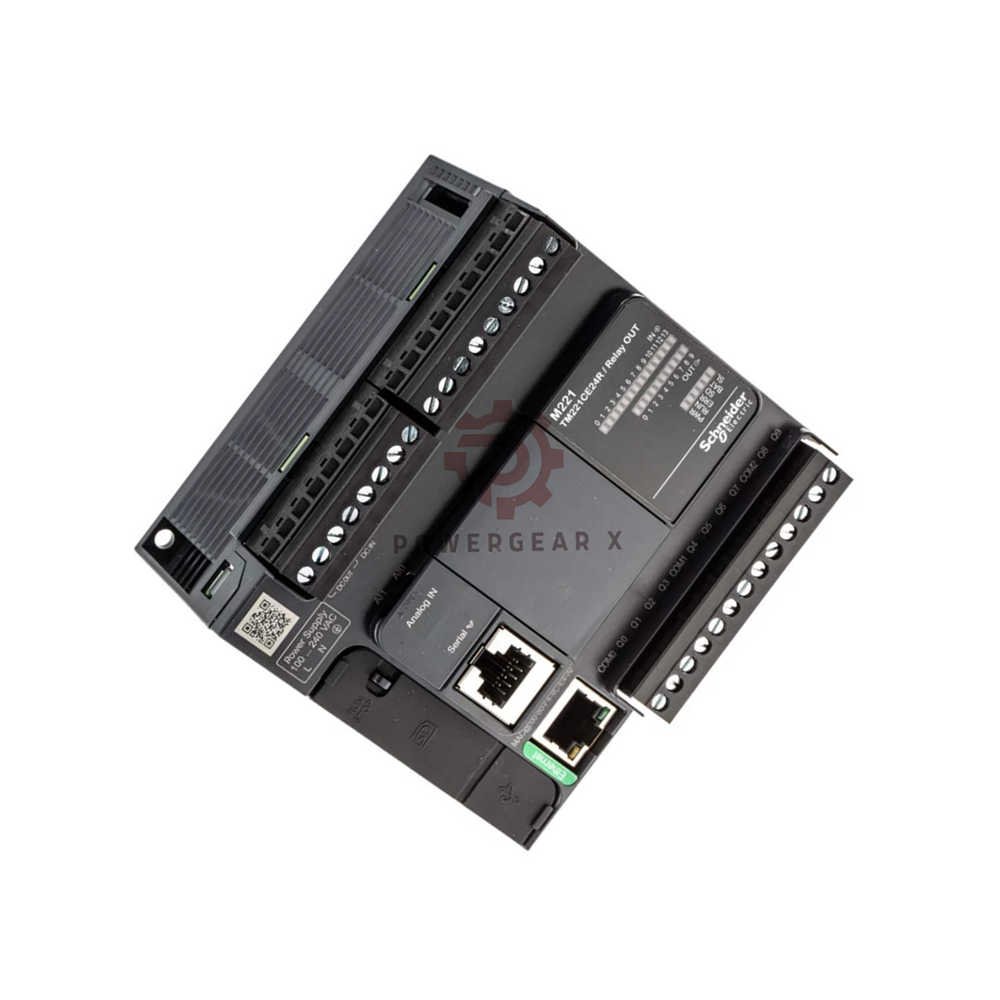

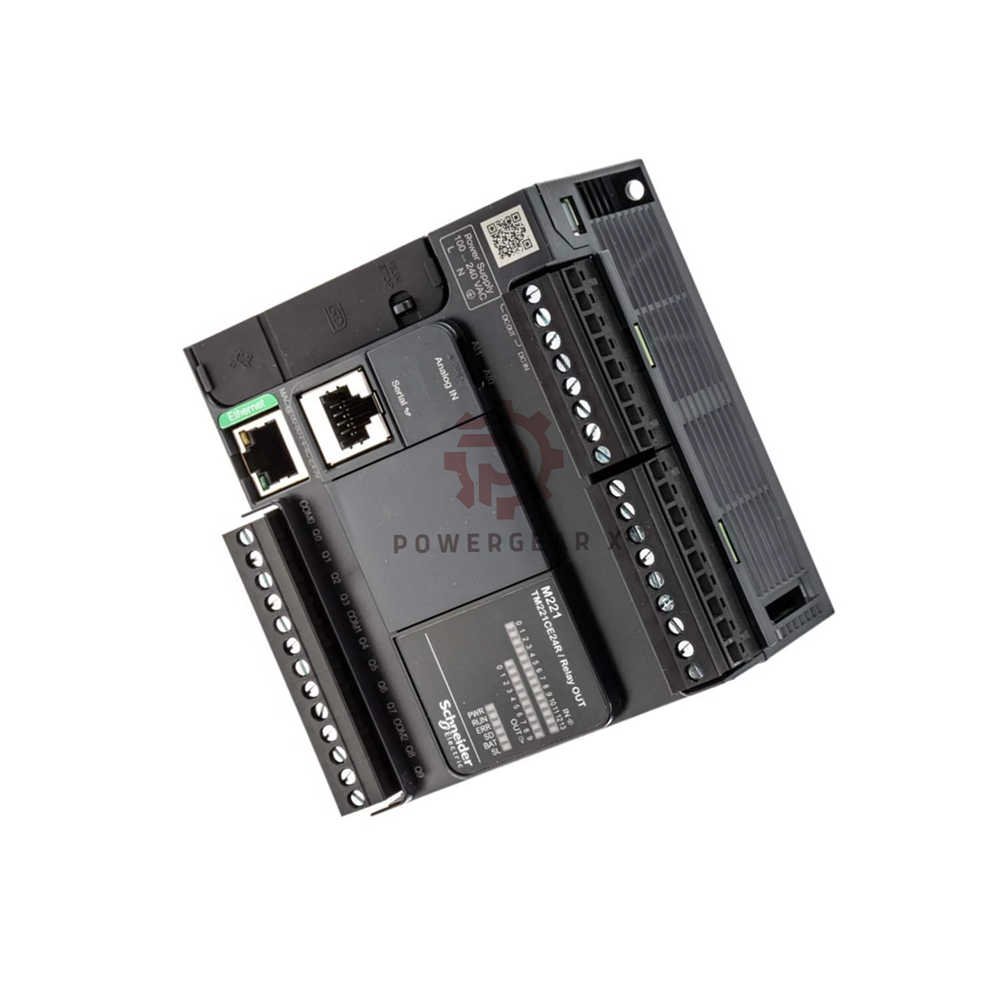

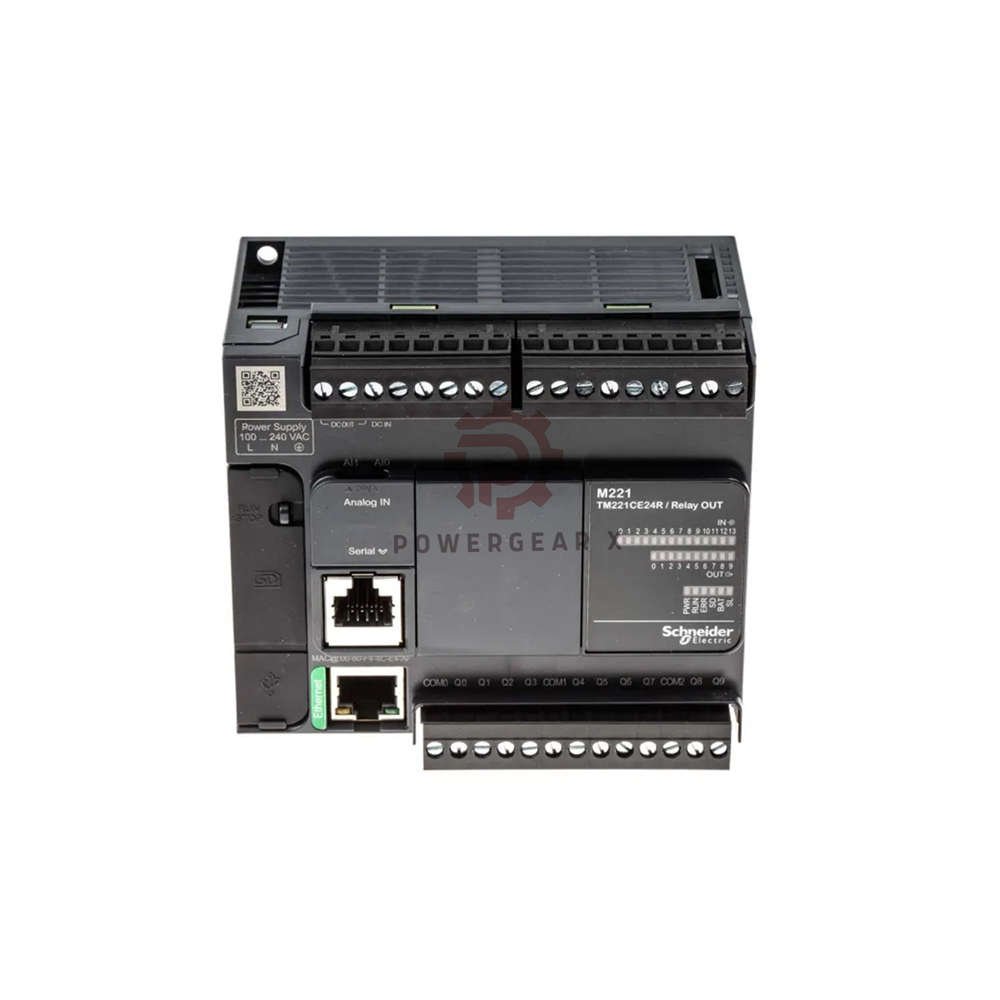

TM221CE24R – Modicon M221 Logic Controller

Ethernet, 24 I/O, relay outputs, 100…240V AC – compact & reliable for industrial control.

Technical Specifications

• Brand – Modicon (Schneider Electric)
• Model – TM221CE24R
• Series – Modicon M221
• Type – logic controller, 24 I/O relay, Ethernet
• Rated supply – 100…240V AC (85…264V limits), 50/60 Hz
• Inrush / consumption ≤40A / ≤58 VA (with max expansion)
• Temp range (operation) – -10…55°C (horizontal), -10…35°C (vertical)
• Storage temp – -25…70°C
• Humidity – 10…95% non-condensing
• Altitude – 0…2000 m (operation), 0…3000 m (storage)
• Discrete inputs – 14 (sink/source, 24V DC, Type 1)
• Analog inputs – 2 (0…10V, 10-bit, 10mV LSB, accuracy ±1% FS)
• Discrete outputs – 10 relay (NO, 5…250V AC / 5…125V DC, 2A)
• Output common current – COM0/1/2: 7A, 7A, 4A
• Response time – 5 µs (fast input), 100 µs (other inputs)
• Filtering – configurable 0 / 3 / 12 ms
• Execution speed – 0.3 ms / 1K inst (event/periodic), 0.2 µs Boolean
• Memory – 256 kB RAM + 256 kB flash backup, SD card (2 GB) optional
• Real-time clock – yes, drift ≤30 s/month at 25°C
• Immunity – ESD 4/8 kV, fast transients 1-2 kV, surge 0.5-2 kV, radiated 10 V/m
• Isolation – 2300V AC (supply/internal), 1500V (output/ground)
• IP degree – IP20 (with cover)
• Pollution degree – ≤2
• Expansion slots – ≤7 modules (relay or transistor)
• Ethernet – RJ45, 10/100BASE-TX, Modbus TCP, DHCP, Ethernet/IP adapter
• Serial link – RS232/RS485 (non-isolated), Modbus RTU/ASCII
• USB – mini B USB 2.0, programming interface
• Mounting – DIN rail (TH35-7.5/15) or panel with kit
• Size & weight – 110 x 70 x 70 mm (W x H x D), 0.395 kg
• Certifications – CE, CSA, cULus, LR, RCM, EAC, DNV-GL

Installation & Commissioning

• Mounting – DIN rail (TH35-7.5/15) or plate with included fixing kit. Keep ventilation clear.
• Wiring – Removable screw terminal blocks for inputs/outputs. Use shielded cable for fast inputs (≤10m).
• Debug & maintenance – USB mini B for programming; LED indicators for I/O, run, error, Ethernet link. Easy diagnostics.
• Compatibility – Modbus TCP, Ethernet/IP, SoMachine-Network. Works with M221 expansion modules.

Expert Review & Manager Insight

• Expert Review – “The TM221CE24R delivers robust relay switching with fast 5 µs response. Its Ethernet and dual serial ports simplify integration. Ideal for small to mid-size automation projects.”
• Manager’s Insight – “This controller reduces panel space and wiring. With 14 loops of PID and 100 kHz counting, it handles complex tasks reliably. A cost-effective choice for OEMs.”

Suitable Devices & Applications

• Devices – Conveyors, packaging machines, pumps, fans, HVAC, small robotic cells.
• Applications – Building automation, material handling, textile machinery, and process control.
• Ideal for – OEMs, panel builders, and system integrators requiring compact relay PLC with Ethernet.

FAQ – Experience & Selection Guide

• Q: Does TM221CE24R support high-speed counting?
  A: Yes. It has 4 fast inputs (HSC) up to 100 kHz, 32-bit counter. Use I0, I1, I6, I7 for fast response.
• Q: Can I expand I/O beyond the built-in 24 points?
  A: Yes. Connect up to 7 expansion modules (relay or transistor) via the bus.
• Q: What software do I need for programming?
  A: Use SoMachine or EcoStruxure Machine Expert – both support M221 series.
• Q: Is the relay output suitable for inductive loads?
  A: Yes. Electrical durability for AC-14/DC-13 is rated up to 300k cycles. Use external protection for high current.
• Q: How to choose between relay and transistor output?
  A: Relay outputs (like this model) handle AC/DC and high voltage; transistor outputs are faster but DC only. Select based on load type.
• Q: What is the backup battery life?
  A: BR2032 lithium battery provides 4 years typical, with 1 year data retention at 25°C after power loss.
• Q: Does it work in marine environments?
  A: Yes. Certified by DNV-GL, LR, and meets marine conducted immunity specs.
