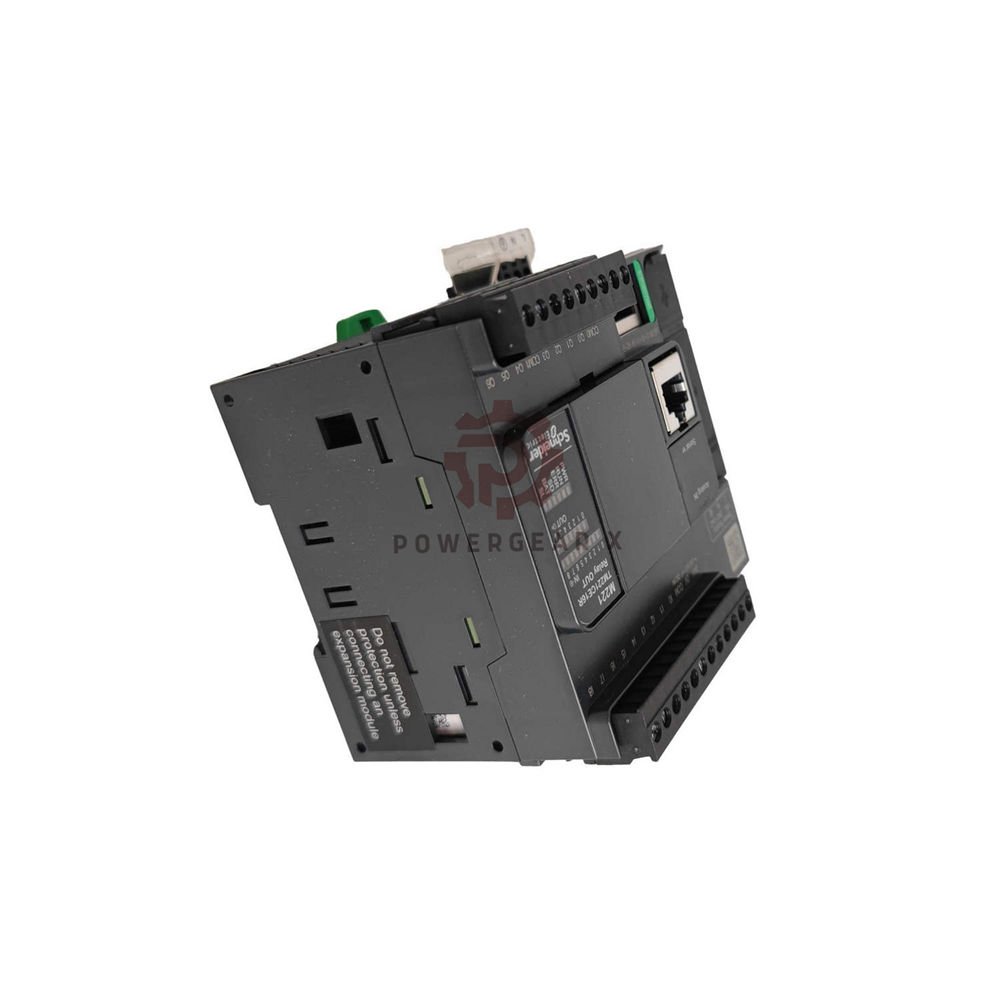

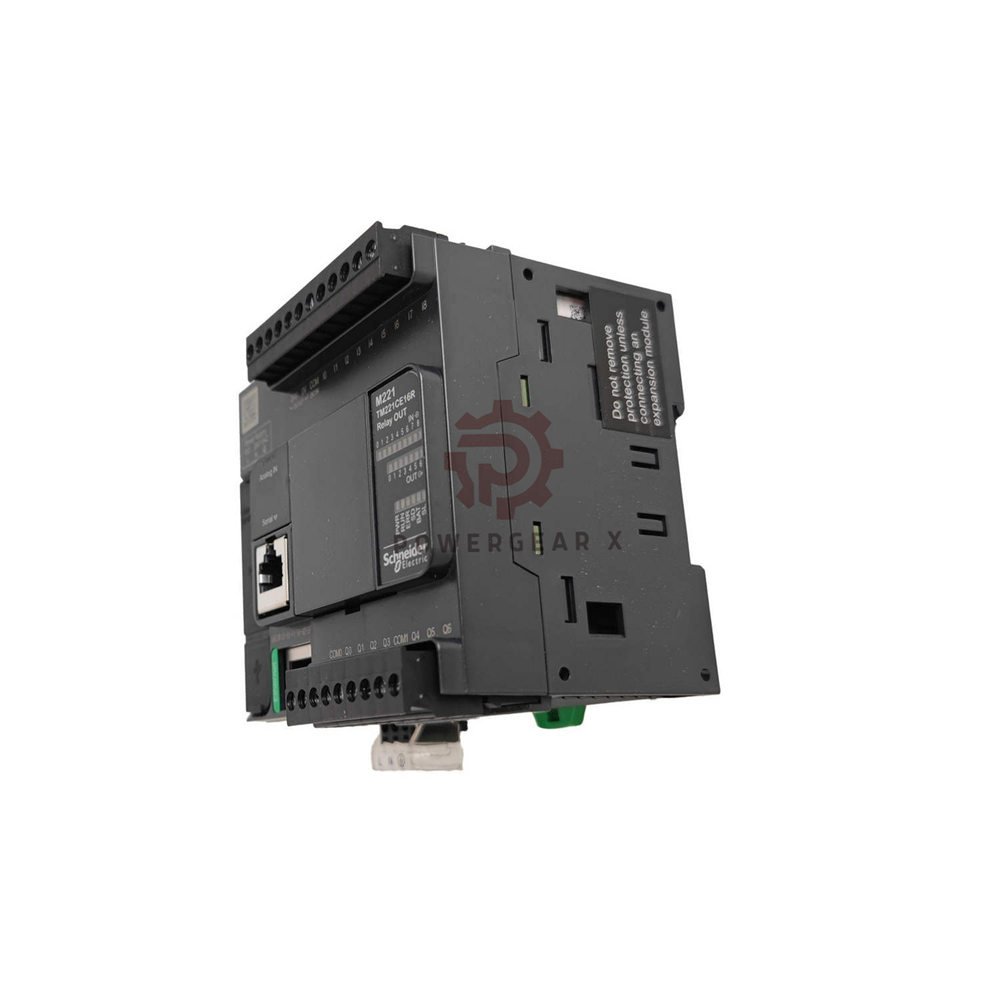

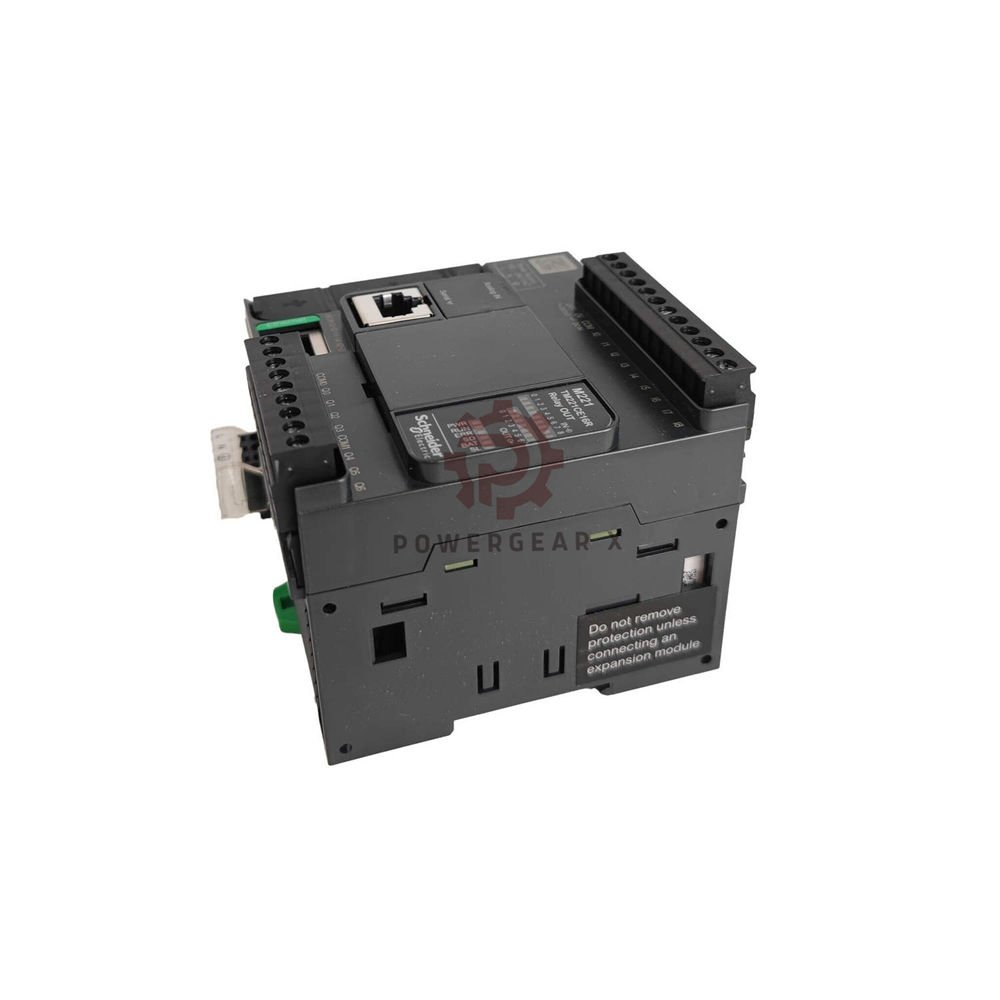

TM221CE16R Modicon M221 Controller, 16 I/O Relay Ethernet

Product Overview

• TM221CE16R – Modicon M221 logic controller
• 16 I/O relay, Ethernet embedded
• Compact and reliable for small automation systems
• Ideal for OEM, packaging, and simple machine control

Key Technical Data

• Brand: Schneider Electric
• Model: TM221CE16R
• Series: Modicon M221
• Type: Logic controller with relay outputs
• Rated supply: 100…240 V AC (85…264 V limits)
• Discrete inputs: 9 (IEC 61131-2 Type 1)
• Discrete outputs: 7 relays, 2 A each
• Analog inputs: 2 (0…10 V, 10-bit resolution)
• Max I/O expansion: 4 modules
• Output current: 2 A per channel
• Output voltage: 5…125 V DC / 5…250 V AC
• Fast inputs: 4 (100 kHz counting)
• Memory: 256 kB user app + data RAM
• Real-time clock: built-in, drift ≤30 s/month
• PID regulation: up to 14 loops

Measurement & Performance

• Analog resolution: 10 bits (10 mV per LSB)
• Conversion time: 1 ms/channel + 1 cycle
• Accuracy: ±1 % of full scale
• Input impedance: 3.4 kΩ (digital) / 100 kΩ (analog)
• Response time (output): 10 ms on/off
• Response time (fast input): 5 µs
• Filtering: 0 / 3 / 12 ms selectable

Environmental & Mechanical

• Operating temp: -10…55 °C (horizontal)
• Storage temp: -25…70 °C
• Humidity: 10…95 % non-condensing
• Altitude: 0…2000 m operation
• Protection: IP20 (with cover)
• Pollution degree: ≤2
• Vibration: 3.5 mm / 1 gn (rail or panel)
• Shock: 98 m/s² (11 ms half-sine)

Immunity & EMC

• ESD: 4 kV contact / 8 kV air (IEC 61000-4-2)
• RF field: 10 V/m (80 MHz…1 GHz)
• Fast transients: 2 kV (power / relay)
• Surge: 2 kV CM (AC power, relay)
• Conducted RF: 10 Vrms (0.15…80 MHz)
• Micro-breaks: 10 ms immunity
• Marine spec: LR, ABS, DNV-GL compliant

Installation & Mounting

• Mounting: DIN rail (TH35-15 / TH35-7.5) or panel
• Dimensions: 90 × 95 × 70 mm (H×W×D)
• Weight: 0.346 kg
• Wiring: Removable screw terminal blocks
• Cable distances: 30 m (digital I/O), 10 m (fast inputs)
• Insulation: 2300 V AC (output-logic), 500 V (input-logic)

Debug & Maintenance

• Programming port: Mini USB (480 Mbit/s)
• Ethernet port: 10/100BASE-TX (Modbus TCP, Ethernet/IP)
• Serial link: RS232/RS485 (Modbus RTU/ASCII)
• SD card slot: 2 GB optional (data backup)
• Battery backup: 1 year at 25 °C (BR2032)
• LED indicators: PWR, RUN, ERR, I/O, SD, BAT
• Software: SoMachine (free download)

Compatibility

• Expansion modules: Up to 4 (relay or transistor)
• Communication: Modbus TCP, Ethernet/IP, Modbus RTU
• Web server: Built-in for remote monitoring
• Third-party HMIs: Compatible via Ethernet
• I/O extension: TM2, TM3 series modules

Certifications

• Safety: IEC 60664-1, IEC 61010-2-201, IEC 61131-2
• Marine: DNV-GL, ABS, LR, IACS E10
• Regional: RCM, EAC, CSA, cULus
• CE mark: Yes

Package & Warranty

• Included: Controller, terminal blocks, quick guide
• Warranty: 12 months (manufacturer defect)
• Shipping: 12-24 hours dispatch
• Carriers: FedEx, UPS, DHL

Expert Review – Manager’s Insight

The M221 is a workhorse for small-scale automation. Its fast inputs (5 µs) handle precise counting, while the built-in PID saves external controllers. The Ethernet port simplifies integration with SCADA. For OEMs looking for a cost-effective, reliable controller, this is a top pick.

Typical Applications

• Packaging machines (capping, labelling)
• Conveyor systems (speed control)
• Small pumping stations
• HVAC damper control
• Test benches and data logging

FAQ – Frequent Questions

• Can I use this controller with a 24 V DC supply?

  No – it requires 100…240 V AC. Use a separate power supply for sensors.

• How many fast counters are available?

  Four inputs (I0, I1, I6, I7) support 100 kHz counting.

• Is the programming software free?

  Yes – SoMachine Basic is free and includes all features.

• Can I expand with digital I/O only?

  Yes – you can add up to 4 modules of mixed types.

• What is the relay life under heavy load?

  Mechanical durability >20 million cycles; electrical life varies with load (see table).

• Does it support remote access via internet?

  Yes – via Ethernet/IP or Modbus TCP with a VPN.

Selection Guide – Which M221 to Choose?

• TM221CE16R – relay outputs, 9 inputs, 2 analog (this model)
• TM221C16T – transistor outputs for fast switching
• TM221CE24R – more I/O if you need extra capacity
• For high-speed counting >100 kHz, consider the TM221C24T.
