TM0180-A08-B15-C19-D10-02 ProvibTech Probe – 8mm, 1.0m, ATEX

TM0180-A08-B15-C19-D10-02 – Standard 8mm Probe

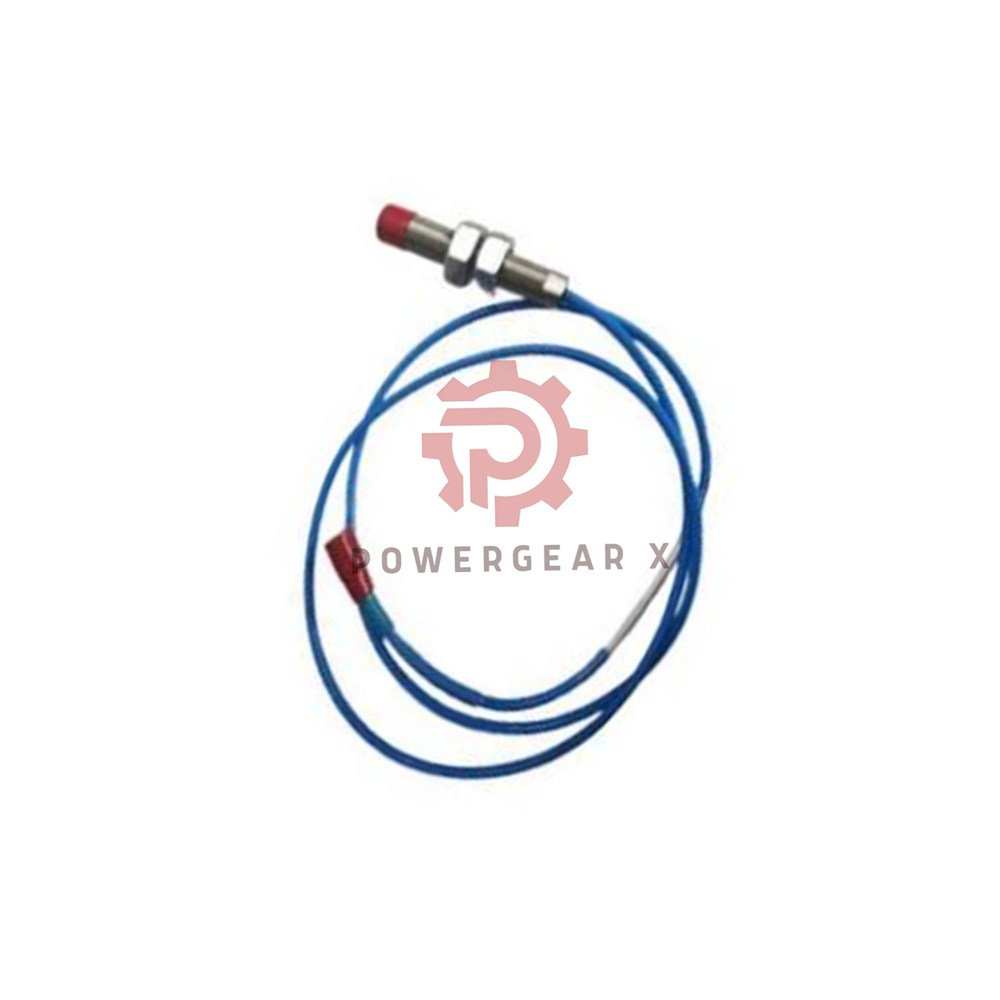

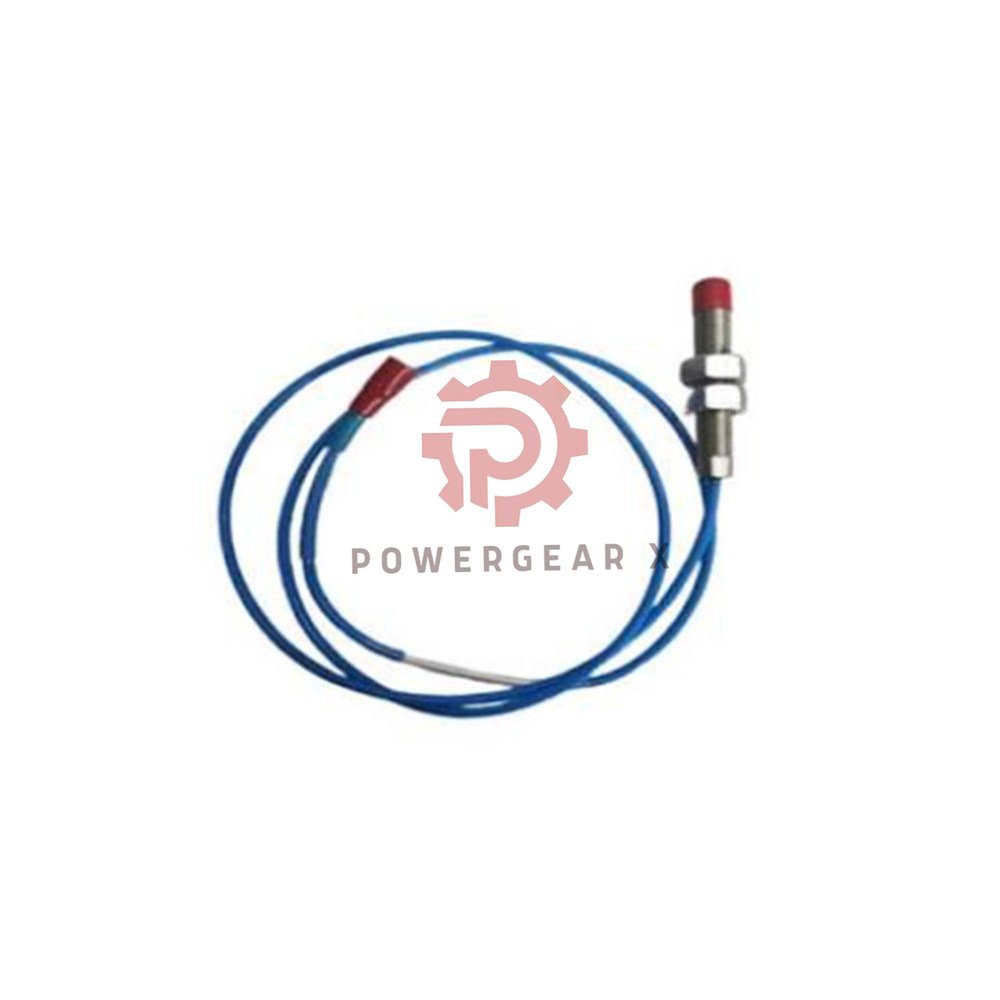

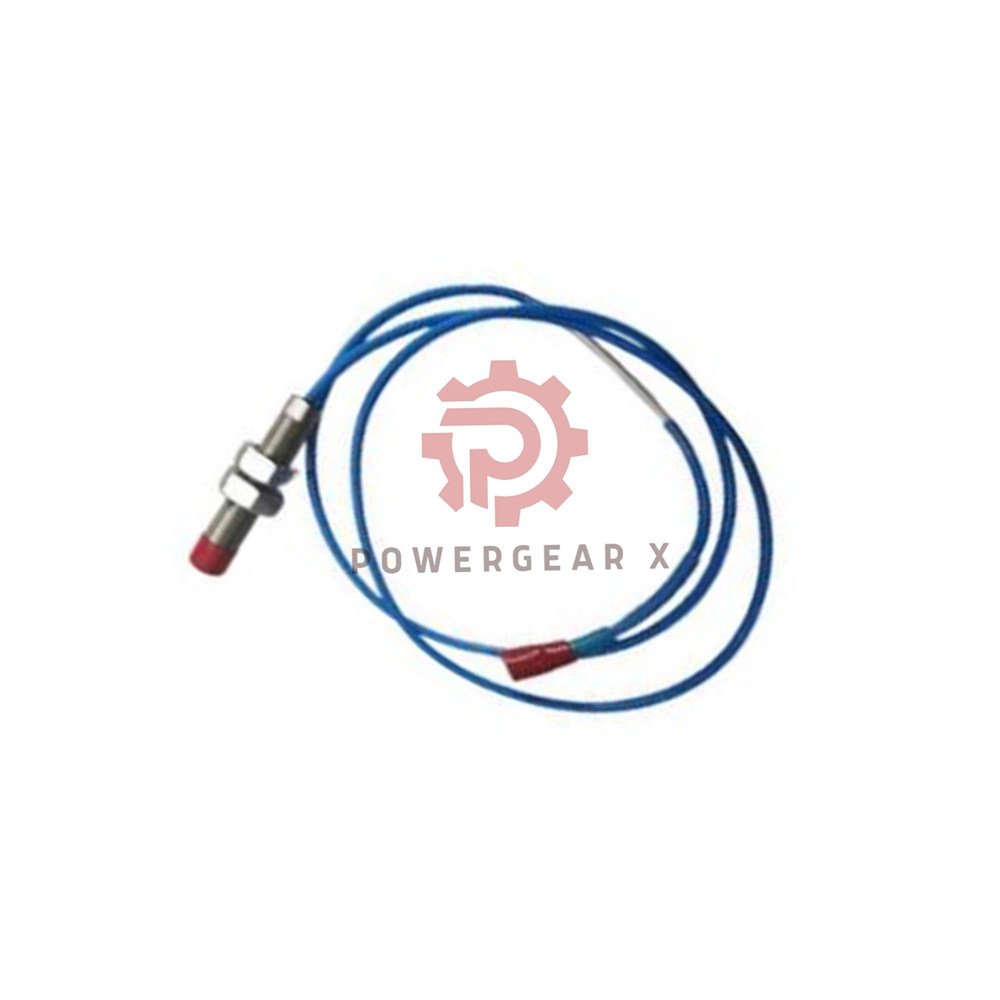

TM0180-A08-B15-C19-D10-02 is a standard 8mm probe from ProvibTech. It measures vibration and position in rotating machinery. This probe has a linear range of 2.0 mm with 7.87 mV/µm sensitivity. It operates in harsh environments with rugged cable protection. The unit has multiple hazardous area approvals.

Key Features

• Linear range: 2.0 mm (80 mils) from 0.25 mm
• Sensitivity: 7.87 mV/µm (200 mV/mil)
• Frequency response: 0-10.0 KHz (±3dB)
• Linearity: ±0.0254 mm (typical)
• Rugged cable jacket – resists tearing and corrosion
• Protective rubber boot – covers connectors
• Hazardous area approvals: ATEX, CSA, PCEC, GOST R

Technical Specifications

• Brand: ProvibTech
• Model: TM0180-A08-B15-C19-D10-02
• Type: Standard 8mm Probe
• Thread: M10×1 (without armor)

• Unthreaded length: 80 mm
• Case length: 150 mm
• Total length: 1.0 m
• Connector: Yes (included)
• Weight: 0.45 kg

• Linear range: 0.25-2.25 mm (10-90 mils)
• Sensitivity: 7.87 mV/µm (200 mV/mil)
• Frequency response: 0-10.0 KHz (±3dB)
• Linearity: ±0.0254 mm (±1.0 mil) system calibrated
• Minimum target: 15 mm diameter

• Power supply: -23 to -30 VDC
• Current: <12 mA
• Temperature sensitivity: ±0.3%/°C (typical)

• Probe temp (operation): -40…+177°C
• Driver temp (operation): -40…+80°C
• Storage temp (driver): -50…+100°C

• Approvals:
  • ATEX: II 1 G, EEx ia IIC T4
  • CSA: Class I, Div. 1, Groups A-D, T4
  • PCEC: Ex ia IIC T4
  • GOST R: 0ExiallCT4

Installation & Mounting

• Mounting: Screw into housing (M10×1 thread)
• Torque: Follow standard proximity probe guidelines
• Cable routing: Avoid sharp bends and heat sources
• Maintenance: Inspect cable and connector for damage

Manager’s Insight

This ProvibTech probe is a reliable choice for vibration monitoring. The rugged cable jacket prevents common failure modes. The wide temperature range suits most industrial applications. We recommend it for turbomachinery and critical assets. The 12-month warranty and fast shipping give you confidence.

Applications

• Steam turbines: vibration and position monitoring
• Compressors: shaft vibration and thrust position
• Pumps: bearing wear monitoring
• Fans and blowers: high-speed rotating equipment
• Motors: large AC/DC machines

Comparison with Similar Models

• TM0180-A08-B15-C19-D10-02 – 1.0m, M10, without armor
• TM0180-A08-B15-C19-D05-01 – 0.5m, different connector
• TM0180-A08-B15-C19-D10-01 – without connector
• TM0180-A08-B15-C19-D10-03 – with armor cable

Selection Guide

• Choose TM0180-A08-B15-C19-D10-02 if: you need a 1.0m 8mm probe with connector.
• Consider this probe for: vibration monitoring in hazardous areas.
• Avoid if: you need a 5.0m integrated probe or reverse mount.
• Best paired with: ProvibTech TM0393 housing (for hazardous areas).
• Warranty: 12 months from invoice date.

Shipping & Delivery

• Dispatch: 12-24 hours after order confirmation.
• Carriers: FedEx, UPS, DHL (tracking provided).
• Packaging: Anti-static bag in a protective box.

Frequently Asked Questions (FAQ)

• Q: What is the linear range of this probe?
• A: 0.25-2.25 mm (10-90 mils) from probe face.
• Q: What is the sensitivity?
• A: 7.87 mV/µm (200 mV/mil).
• Q: Does this probe have hazardous area approvals?
• A: Yes, ATEX, CSA, PCEC, and GOST R.
• Q: What is the cable length?
• A: 1.0 meter (including connector).
• Q: Can I use this with a reverse mount housing?
• A: Yes, but choose the reverse mount option when ordering.
