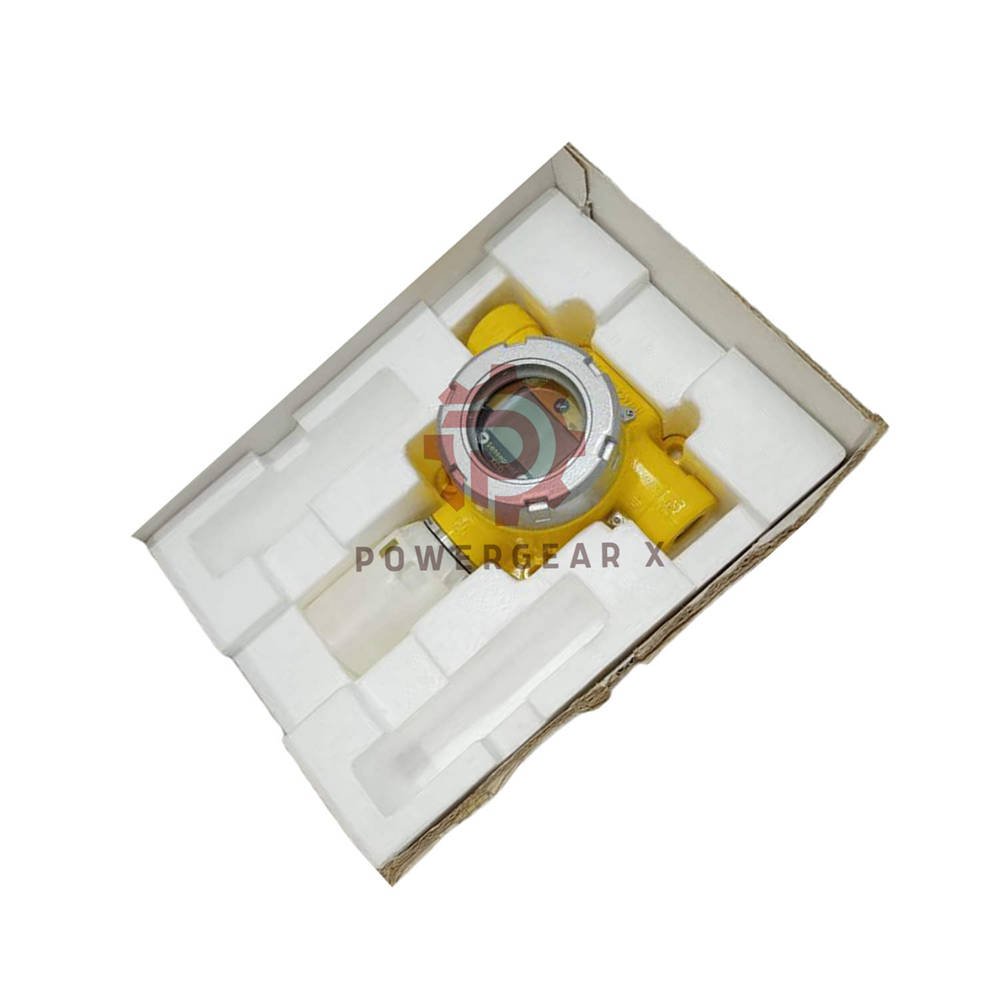

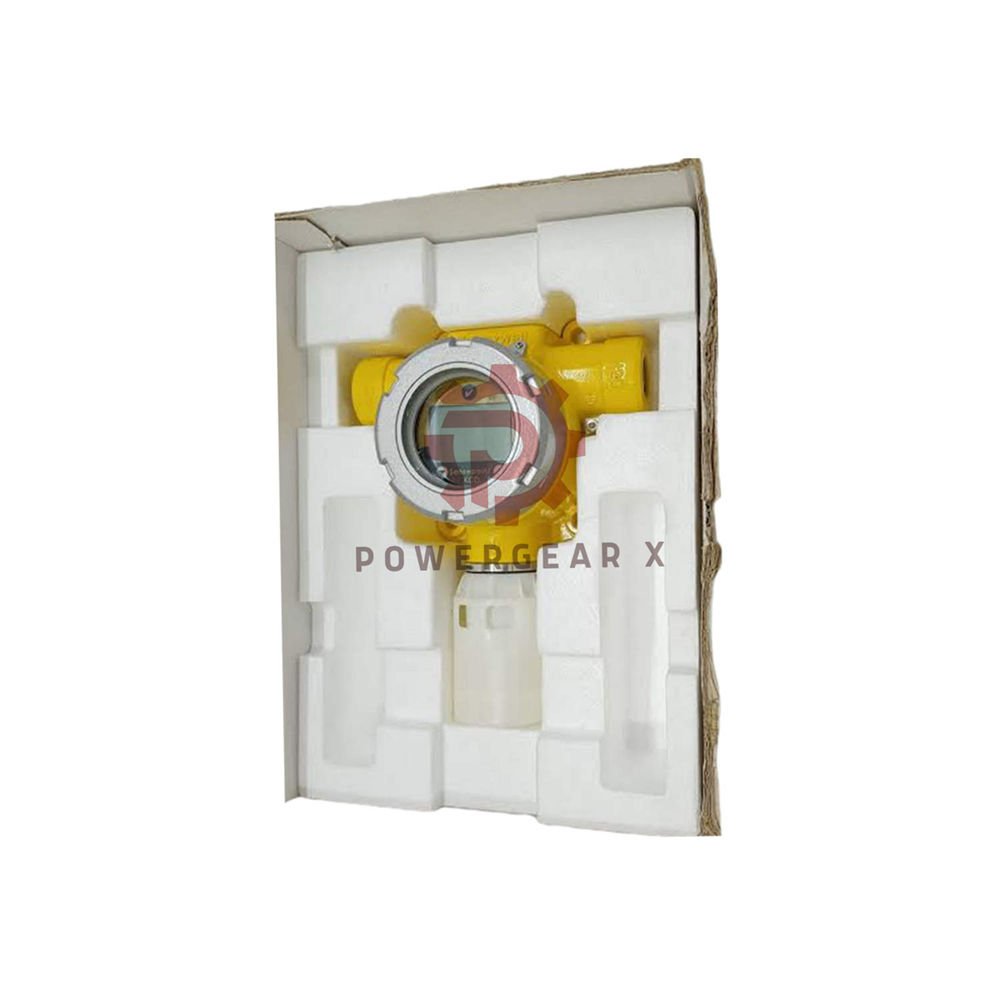

SPXCDALMO1 | Honeywell Sensepoint XCD Fixed Gas Detector
Reliable oxygen monitoring for hazardous areas. The Sensepoint XCD automatically recognizes sensor cartridges and delivers clear 4-20 mA signals. This industrial-grade detector combines ATEX/IECEx safety with easy configuration, making it a smart choice for plant safety.
Key Features at a Glance
- Oxygen Measurement: 0-25.0% v/v O₂ with automatic sensor recognition (mV, EC, or O₂ family).
- Output Signals: Normal 4-20 mA, fault < 1.0 mA, inhibit 2.0/17.4 mA, over-range 22.0 mA.
- Alarm Relays: Two independent alarm relays (lower and higher levels) and one fault relay – all de-energized, NO, non-latching.
- Inhibit & Timeout: Inhibit signal during setup (default 2.0 mA for O₂ or 17.4 mA); timeout disabled for operator control.
- Deadband: Built-in deadband prevents nuisance readings near zero.
Technical Specifications
- Brand: Honeywell
- Model: SPXCDALMO1
- Series: Sensepoint XCD
- Gas Type: Oxygen (O₂)
- Range: 25.0% v/v
- Enclosure: LM25 aluminium, M20 entry
- Certifications: ATEX, IECEx, KTL, PA, GB
- Output: 4-20 mA analogue + Modbus (ID:1, 19.2k, Even parity)
- Display: °C / °F user-selectable
- Environment: -40°C to +65°C, IP66/IP67
- Linear & Repeat: < ±2% FSD (typical)
- Response Time: T90 < 30 s (oxygen sensor)
- Resolution: 0.1% v/v
- EMC: IEC 61000-6-3, IEC 61000-6-2
- Supply: 16-32 VDC (nominal 24 VDC)
Installation & Mounting
- Wall or pole mounting with supplied bracket
- M20 cable entry (standard)
- Remote sensor capability up to 30 m
- Use weather protection cap for outdoor areas
Commissioning & Maintenance
- Automatic sensor recognition – plug and play
- One-person calibration via magnetic switches
- Password protection (default 0000 = disabled)
- Warning codes (W-01 to W-05) and fault codes (F-01 to F-13) for rapid diagnosis
- Simple zero and span adjustments
Compatibility & Integration
- Works with any standard 4-20 mA input system
- Modbus RTU for digital networks
- Relay outputs connect to PLC, DCS, or alarm panels
- Software configurable for toxic, flammable, or oxygen
What’s in the Box
- Sensepoint XCD transmitter (SPXCDALMO1)
- Oxygen sensor cartridge (pre-installed)
- Mounting bracket kit
- Quick start guide & CD manual
- Test certificate
Expert Review – Plant Manager’s Insight
“The Sensepoint XCD removes guesswork. Its auto-sensor recognition and clear fault/warning codes reduce downtime. We use it in chemical storage and boiler rooms – the deadband feature eliminates false alarms, and the Modbus integration fits our legacy PLCs perfectly.” – Site Reliability Engineer, 12+ years.
Typical Applications
- Chemical plants & refineries
- Wastewater treatment (oxygen deficiency)
- Confined space entry monitoring
- Pharmaceutical manufacturing
- Food & beverage cold storage
- Laboratory & research facilities
Frequently Asked Questions (FAQ)
- Which gases can this detector measure?
This model is for oxygen (O₂) only. Other Sensepoint XCD cartridges cover toxic and flammable gases.
- What does the fault relay do during a power loss?
The fault relay is energised normally and de-energises on fault, providing a fail-safe alarm.
- How do I clear a W-04 over-range warning?
Press the ✓ (tick) key after gas levels return to safe range.
- Is the sensor interchangeable in the field?
Yes. The transmitter auto-detects the new sensor type – no reconfiguration needed.
- What is the inhibit level for oxygen?
Default is 2.0 mA, but you can set it to 17.4 mA via the menu.
- Can I use this in a SIL-rated loop?
Yes, it meets SIL 2 (IEC 61508) when used with suitable safety systems.
- Why does the display show F-02?
Cell failure – replace the oxygen sensor cartridge.
- How to set the Modbus ID?
Navigate to Configuration > Modbus and adjust ID, baud, parity.
- Is a weather shield included?
Not standard, but available as an accessory for outdoor use.
- What is the warranty period?
12 months from date of purchase.
Selection Guide – Choosing Your Sensepoint XCD
- Gas type: This model is for Oxygen. For other gases, choose the appropriate cartridge.
- Enclosure: LM25 aluminium with M20 entry – ideal for most industrial sites.
- Output signal: Standard 4-20 mA; select Modbus if you need digital communication.
- Accessories: Add a calibration cap, remote sensor kit, or weather shield as needed.
- Environment: Check temperature and humidity; this unit works from -40 to +65 °C.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation
- Carriers: FedEx, UPS, DHL – express worldwide
- Weight: 5 kg per unit
