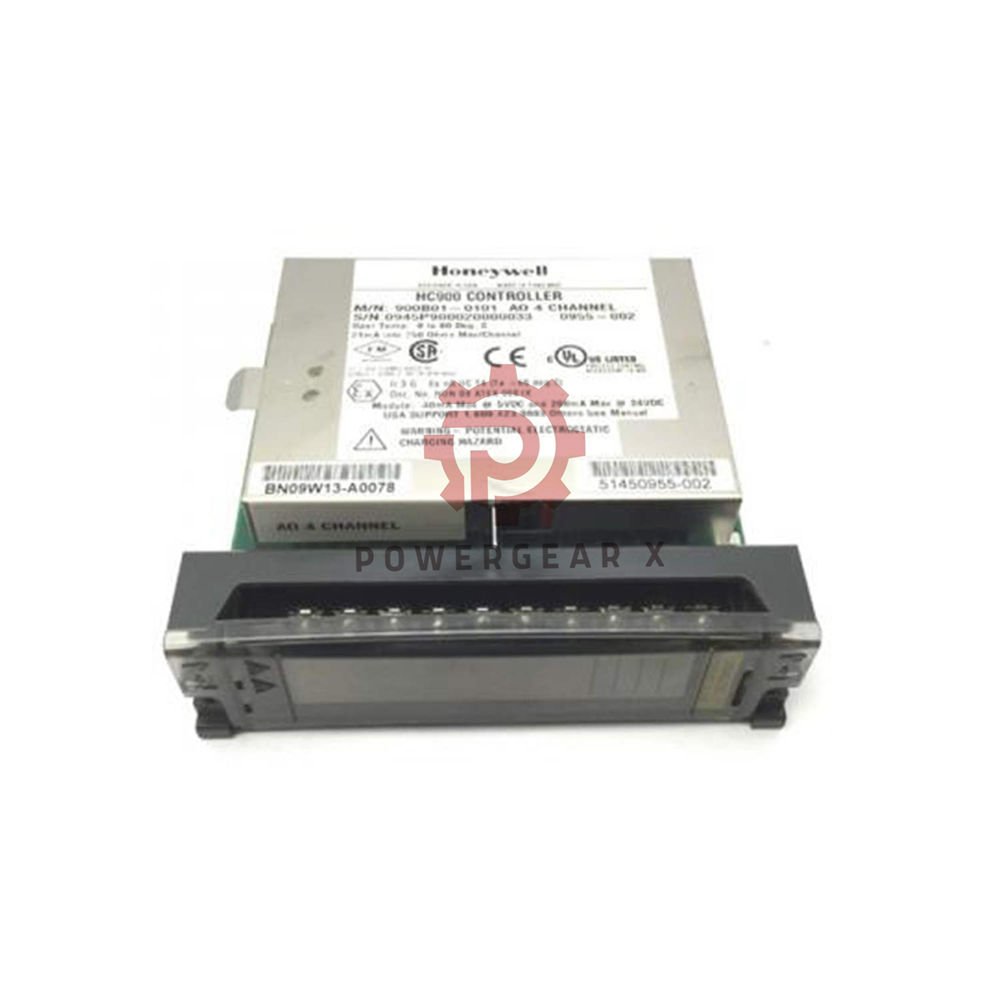

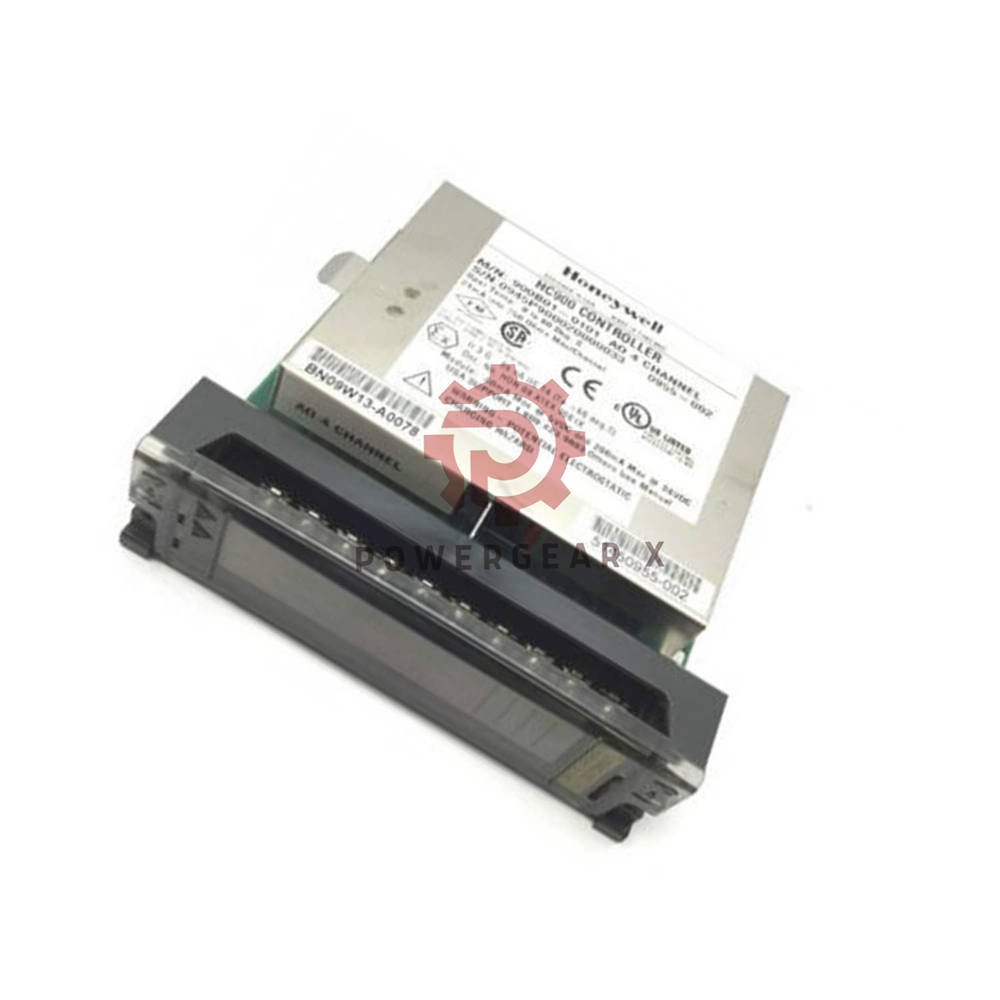

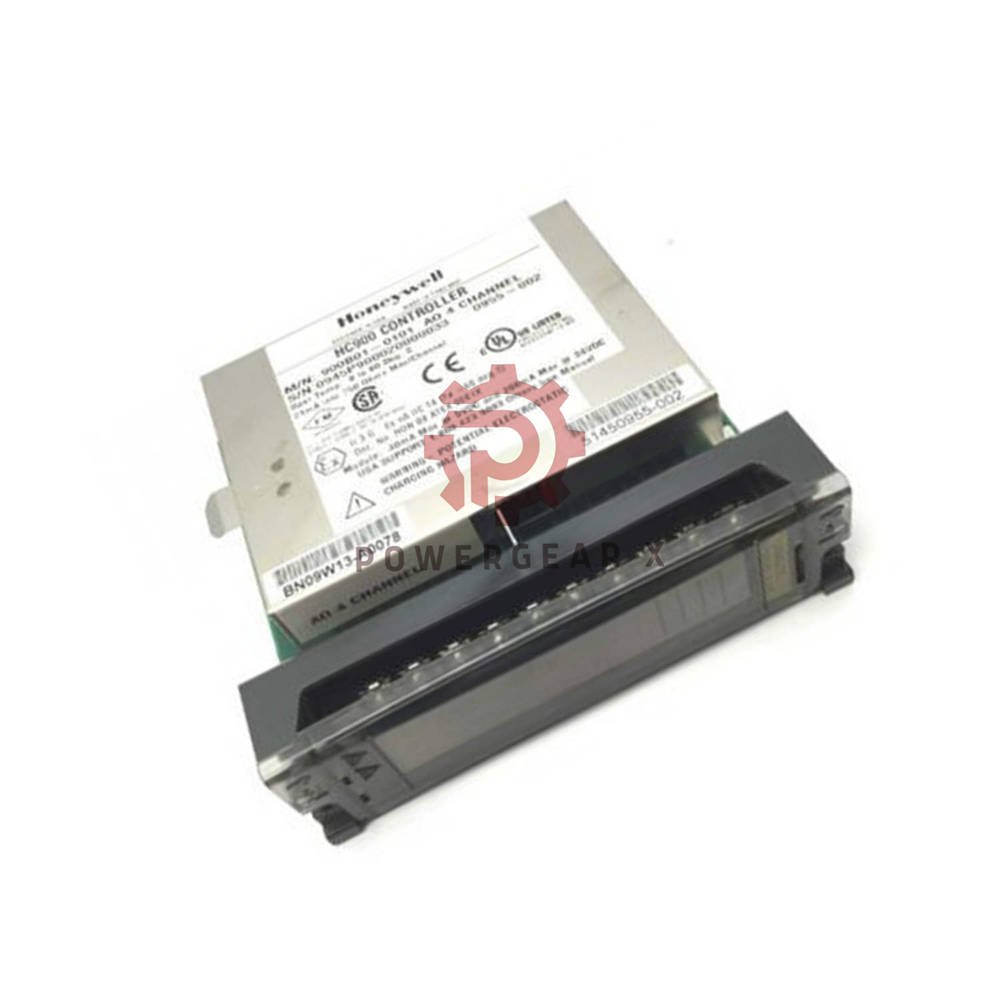

Honeywell 900B01-0101 4-Channel Analog Output Module HC900

Product Overview

• Honeywell 900B01-0101 is a 4-channel isolated analog output module.
• Part of the HC900 series for industrial control systems.
• Delivers 0 to 21.8 mA outputs, user-scalable per channel.
• Green blinking LED shows normal scanning; red LED indicates diagnostics.
• Failsafe values and rate-of-change limits ensure predictable operation.

Technical Data

• Brand: Honeywell
• Model: 900B01-0101
• Series: HC900
• Type: Analog Output Module, 4-channel isolated
• Output range: 0 to 21.8 mA (scalable per channel)
• Load resistance: 750 Ω max
• Isolation:
  • Channel-to-channel: 500 VDC
  • Logic-to-field: 600 VDC
• Accuracy: ±0.1% full scale (reference conditions)
• Resolution: 12-bit D/A
• Temperature range: 0 to 60 °C (ambient)
• Min. current sense: >3.5 mA per output
• Power supply:
  • 5 VDC: 40 mA max
  • 24 VDC: 200 mA max
• Diagnostics: Factory & field calibration, configuration, 24V supply monitoring
• Output verification: Feedback confirms current flow
• Rack capacity: 10 modules standard, 12 with derating

Installation & Compatibility

• Mounting: Standard HC900 rack. Max 10 modules per rack (12 with derating).
• Compatibility: Works with all HC900 controllers and I/O racks.
• Wiring: Use shielded cables for best noise immunity. Observe polarity.
• Environmental: 0 to 60 °C, 5% to 95% RH non-condensing.
• EMC: Meets industrial immunity standards for harsh environments.

Calibration, Maintenance & Diagnostics

• Calibration: Redundant factory calibration with bad-version rejection.
• Field calibration: Per-channel adjustment stored in non-volatile memory.
• Diagnostics: Monitors calibration, configuration, and 24V supply.
• Maintenance: No routine mechanical upkeep. Firmware not user-upgradeable.
• Troubleshooting: Red LED indicates module or channel fault; check wiring and supply.

Certifications & Compliance

• CE marked for EMC and LVD compliance.
• UL listed for industrial control equipment.
• RoHS compliant.
• Designed for pollution degree 2, overvoltage category II.

Package Contents & Warranty

• In the box: 900B01-0101 module, mounting hardware, and quick-start guide.
• Warranty: 12 months against manufacturing defects.
• Shipping: 12–24 hour dispatch via FedEx, UPS, or DHL.

Expert Review

• Manager’s Insight: Reliable and accurate for critical process loops. The 12-bit resolution and isolation make it a top choice.
• Application fit: Ideal for PLC/DCS systems needing precise analog control.
• Durability: Proven in chemical, oil & gas, and water treatment plants.
• Value: Honeywell quality with competitive pricing for HC900 upgrades.

Applications

• Process control (flow, pressure, temperature).
• Valve and actuator positioning.
• Variable speed drive control.
• Test and measurement rigs.

FAQ – Frequently Asked Questions

• What is the maximum load resistance?
  • 750 ohms. Exceeding this may reduce output accuracy.
• Can I calibrate each channel individually?
  • Yes. Field calibration is stored per channel in non-volatile memory.
• What does the red LED indicate?
  • Module or channel diagnostic fault. Check wiring, supply, and calibration.
• How many modules fit in one rack?
  • 10 standard; up to 12 with ambient temperature derating.
• Is the output isolated from logic?
  • Yes, 600 VDC isolation from logic, and 500 VDC between channels.
• What if communication to the controller is lost?
  • User-defined failsafe values ensure safe, predictable output.
• How fast are outputs updated?
  • Synchronous with control execution – real-time updates.
• Can I limit the rate of change?
  • Yes. A user-specified ramp limit can be applied per output.
• What wire gauge is recommended?
  • Use 0.5 – 1.5 mm² (20–16 AWG) stranded copper wire.
• Is this module suitable for safety-critical loops?
  • For SIL applications, consult Honeywell safety manuals.

Selection Guide – Which Output Module Do You Need?

• For standard 4–20 mA loops: 900B01-0101 is ideal, but check your load.
• For high-density applications: Use 4 channels per module, max 10 per rack.
• For extreme temperatures: Ensure ambient ≤60 °C or derate for 12 modules.
• Budget vs. performance: This module balances cost with 12-bit accuracy and isolation.
• Always verify: Power supply capacity (5V/40mA, 24V/200mA per module).
