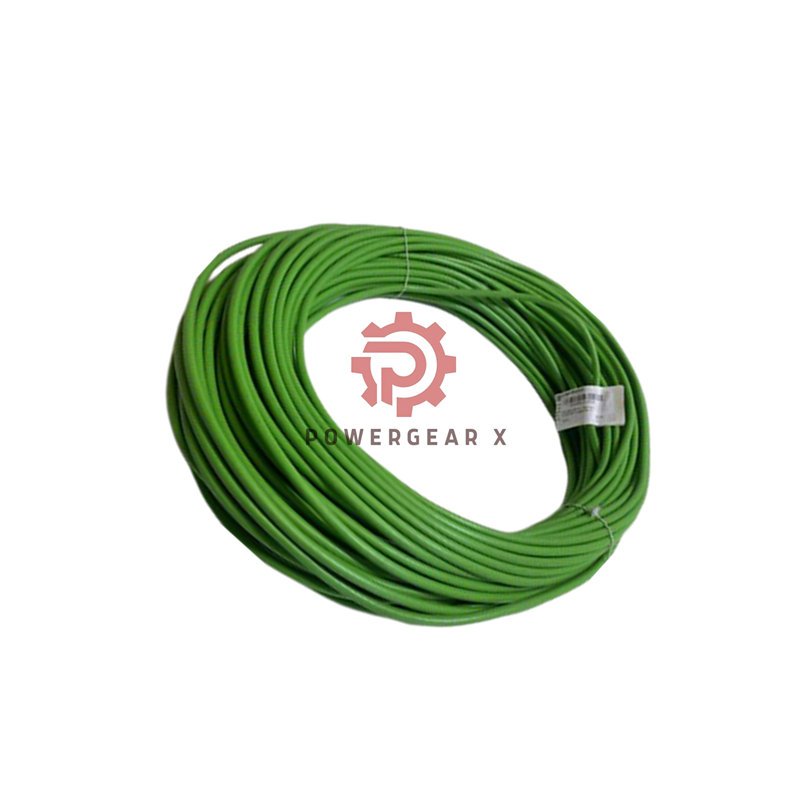

Siemens 6XV1850-0BN30 | Industrial Ethernet ITP Standard Cable 9/15 (30 m)
Author: Powergear X Automation
The Siemens 6XV1850-0BN30 ITP Standard Cable 9/15 is a preassembled industrial twisted pair cable for SIMATIC NET systems. Designed for high-speed data transmission and reliable connection between terminals and network components, this cable ensures long-term stability and easy installation.
Product Highlights
- Type: ITP Standard Cable 9/15 (preassembled)
- Length: 30 meters
- Connectors: 1×9-pin D-sub and 1×15-pin D-sub
- Color: Green sheath with white/blue and white/orange data wires
- Shielding: Aluminum-clad foil and copper braided overall shield
- Outer diameter: 9.2 mm ± 0.5 mm
- Bending radius: 30 mm (single), 45 mm (multiple)
- Operating voltage: 165 V RMS (max. 225 V)
Technical Data
- Damping ratio at 10 MHz: 0.057 dB/m
- Damping ratio at 100 MHz: 0.18 dB/m
- Damping ratio at 300 MHz: 0.31 dB/m
- Characteristic impedance: 100 Ω
- Loop resistance: 124 mΩ/m
- Insulation resistance: 5000 GΩ·m
- Core: 4 cores (AWG22, 0.64 mm)
- Material: PE insulation, PVC sheath
- Weight: 96 kg/km
Environmental & Mechanical Features
- Temperature range: -40°C to +70°C
- Flame resistant (IEC 60332-1)
- Oil-resistant per IEC 60811-2-1
- Grease resistance: Conditional
- Protection class: IP20
- Not halogen-free, silicon-free
Product Advantages
- Ready-to-use with preinstalled connectors
- Excellent noise and signal interference protection
- Reliable communication for ITP network terminals
- Strong mechanical durability for industrial settings
- Guaranteed consistent data transmission at high frequencies
Warranty & Delivery
- Warranty: 12 Months
- Shipping via FedEx, UPS, DHL worldwide
- Each cable tested and verified before delivery
Professional FAQs
- Q1: Is the Siemens 6XV1850-0BN30 compatible with all SIMATIC NET devices?
- A: Yes, it is specifically designed for SIMATIC NET ITP connections and supports standard industrial Ethernet networks.
- Q2: Can I use this cable outdoors?
- A: It is best suited for indoor industrial environments; while durable, it lacks UV protection for long-term outdoor use.
- Q3: What should I consider during installation?
- A: Avoid sharp bends and excessive pulling. Maintain at least the minimum bending radius for stable signal performance.
- Q4: Does the cable require termination resistors?
- A: The connectors are preassembled and tested, so no additional termination is needed for standard setups.
- Q5: How can I clean or maintain the cable?
- A: Wipe with a soft dry cloth. Avoid solvents or strong cleaning agents to protect the PVC sheath and shielding.
