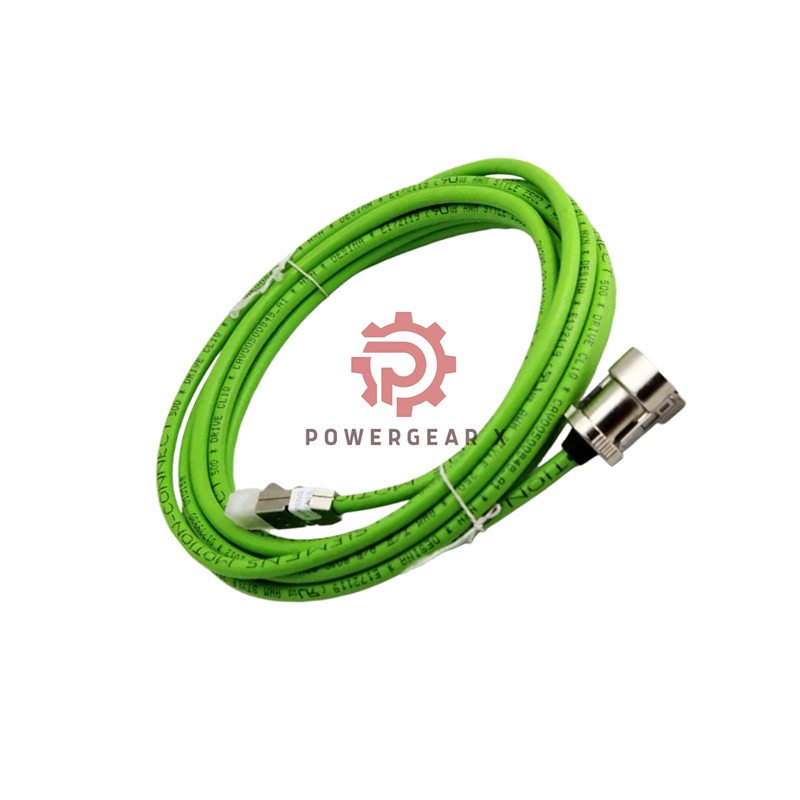

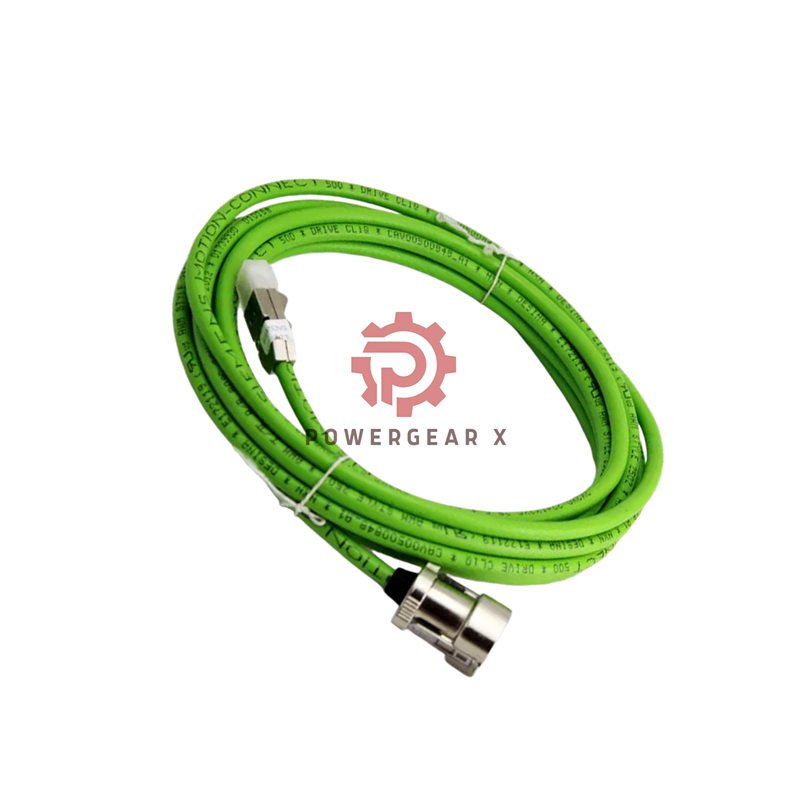

Siemens 6FX8002-2DC10-1FA0 | DRIVE-CLiQ Motion Connect 800Plus Signal Cable
The Siemens 6FX8002-2DC10-1FA0 signal cable connects DRIVE-CLiQ motor encoders and modules with precision.
Developed by Powergear X Automation, it ensures stable data transfer and long mechanical life under industrial motion demands.
Core Specifications
- Model: 6FX8002-2DC10-1FA0
- Type: DRIVE-CLiQ signal cable
- Length: 50 meters
- Max Cable Diameter: 7.1 mm
- Sheath Material: PUR, green (RAL 6018)
- Rated Voltage: 30V DC
- Test Voltage: 500V RMS (signal conductors)
- Design Standard: Motion Connect 800Plus
Mechanical & Electrical Data
- RJ45 plug (IP20 module side) / M17 plug (IP67 motor side)
- Bending radius fixed: 35 mm
- Bending radius moving: 75 mm
- 10 million bend cycles (tested)
- Max velocity: 300 m/min
- Max acceleration: 50 m/s²
- Max tensile load: 20 N/mm² (moving)
- Torsion rating: 30°/m
Temperature & Environment
- Fixed installation: –50°C to +80°C
- Moving operation: –20°C to +60°C
- Storage: –20°C to +80°C
- Oil resistant per EN 60811-2-1
- Flame resistance EN 60332-1
- Halogen-free, silicone-free insulation
Certifications & Compliance
- UL STYLE 2502 (USA)
- CSA N.210.2-M90 (Canada)
- Complies with IEC 60754-1, DIN VDE 0472-815
- RoHS compliant
Product Advantages
- High-flex design for continuous motion
- Excellent signal integrity under vibration
- Long life PUR sheath for harsh industrial use
- Plug-and-play installation with RJ45 connectors
- Supports precise encoder data transmission
Applications
- Motor and encoder connection in SINAMICS systems
- Automation lines and robotics
- Dynamic machine tools
- Servo and positioning drives
- Packaging and printing equipment
Warranty & Shipping
Professional FAQ
- Q: Can the 6FX8002-2DC10-1FA0 be used with SINAMICS S120 systems?
A: Yes, it is fully compatible with S120 DRIVE-CLiQ encoder interfaces. - Q: How long can the cable be extended?
A: The 800Plus version supports lengths up to 75 meters. - Q: What makes the PUR jacket suitable for industrial use?
A: It offers superior abrasion, oil, and flame resistance for harsh conditions. - Q: Is this cable suitable for moving chain applications?
A: Yes, it is rated for 10 million bend cycles under continuous motion. - Q: How should the cable be stored?
A: Store between –20°C and +80°C in a dry area, avoiding sharp bends or pressure.
