Product details
Product Introduction
- 6ES7350-1AH03-0AE0 replaces the discontinued 6ES7350-1AH02-0AE0.

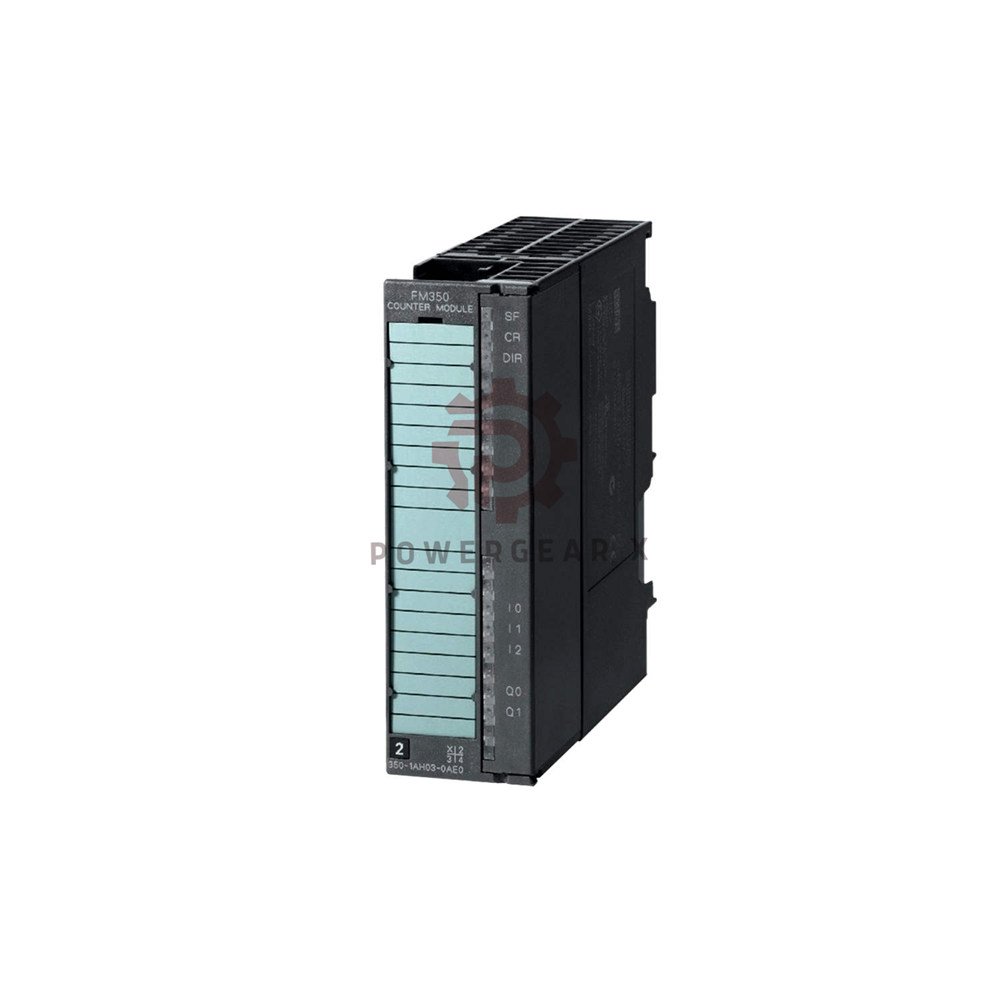

- This SIMATIC S7-300 FM 350-1 counter module works with 5V and 24V incremental encoders.
- It supports counting functions up to 500 kHz and includes isochronous mode.
- Perfect for high-speed positioning, length measurement, and velocity monitoring.
- Comes with a configuration package on CD for easy setup.
Technical Specifications
- Brand: Siemens
- Model: 6ES7350-1AH02-0AE0
- Series: SIMATIC S7-300
- Type: Counter Module FM 350-1
- Measurement Range: 0 to 500 kHz
- Frequency Response: Up to 500 kHz
- Sensitivity: 5V and 24V incremental encoders
- Linearity: High-precision counting
- Resolution: 32-bit counter
- Temperature Range: 0 °C to 60 °C
- Environmental Tolerance: IP20 protection
- Noise Immunity: Robust against electrical interference
Installation & Maintenance
- Easy mounting on S7-300 rail.
- Front connector for fast wiring.
- Diagnostic LEDs for quick troubleshooting.
- Configuration software included on CD.
- Firmware updates via SIMATIC Manager.
Compatibility
- Works with all S7-300 CPUs.
- Supports 5V and 24V incremental encoders.
- Isochronous mode for real-time applications.
- Compatible with STEP 7 V5.5 or later.
Certifications
- CE marked
- UL listed
- RoHS compliant (successor model)
- Manufactured in Germany
Package Contents
- FM 350-1 counter module
- Configuration package on CD
- Front connector
- User manual (digital)
Warranty & Shipping
- 12-month warranty against manufacturing defects.
- 12-24 hour dispatch from our warehouse.
- Express shipping via FedEx, UPS, or DHL.
Expert Review
- “Reliable and precise for high-speed counting.”
- “Easy integration with S7-300 systems.”
- “Diagnostic features save troubleshooting time.”
Manager’s Insight
- “Choose this for critical motion control tasks.”
- “Its isochronous mode ensures consistent data.”
- “Cost-effective upgrade from the previous version.”
Applications
- Positioning – for CNC and robotics.
- Length measurement – in cutting lines.
- Speed monitoring – for conveyor belts.
- Flow measurement – with encoder sensors.
Suitable Equipment
- S7-300 PLCs
- Incremental encoders (5V/24V)
- ET 200M distributed I/O
- HMI panels for data visualization
FAQ
- What is the maximum frequency? 500 kHz.
- Can I use a 24V encoder? Yes, it supports both 5V and 24V.
- Does it include software? Yes, configuration CD is included.
- Is it RoHS compliant? Yes, the successor model is.
- What is isochronous mode? It synchronizes counting with the bus cycle.
- How do I update firmware? Use SIMATIC Manager and the CD.
- Can I replace my old module directly? Yes, but check encoder wiring.
Selection Guide
- For high-speed applications, choose this 500 kHz model.
- For simple counting, the FM 350-1 is ideal.
- Consider isochronous mode if you need real-time sync.
- Check your encoder type (5V or 24V) before ordering.
- For multi-channel needs, look at FM 350-2.
