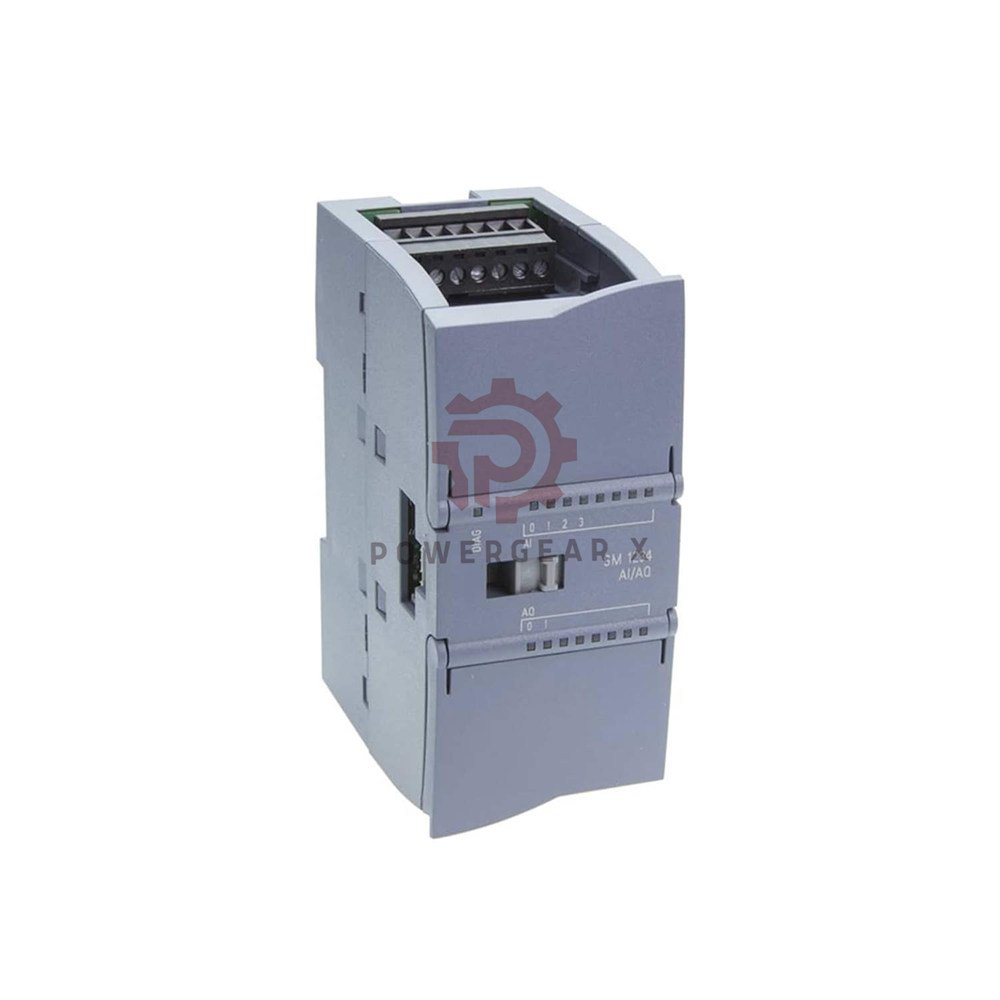

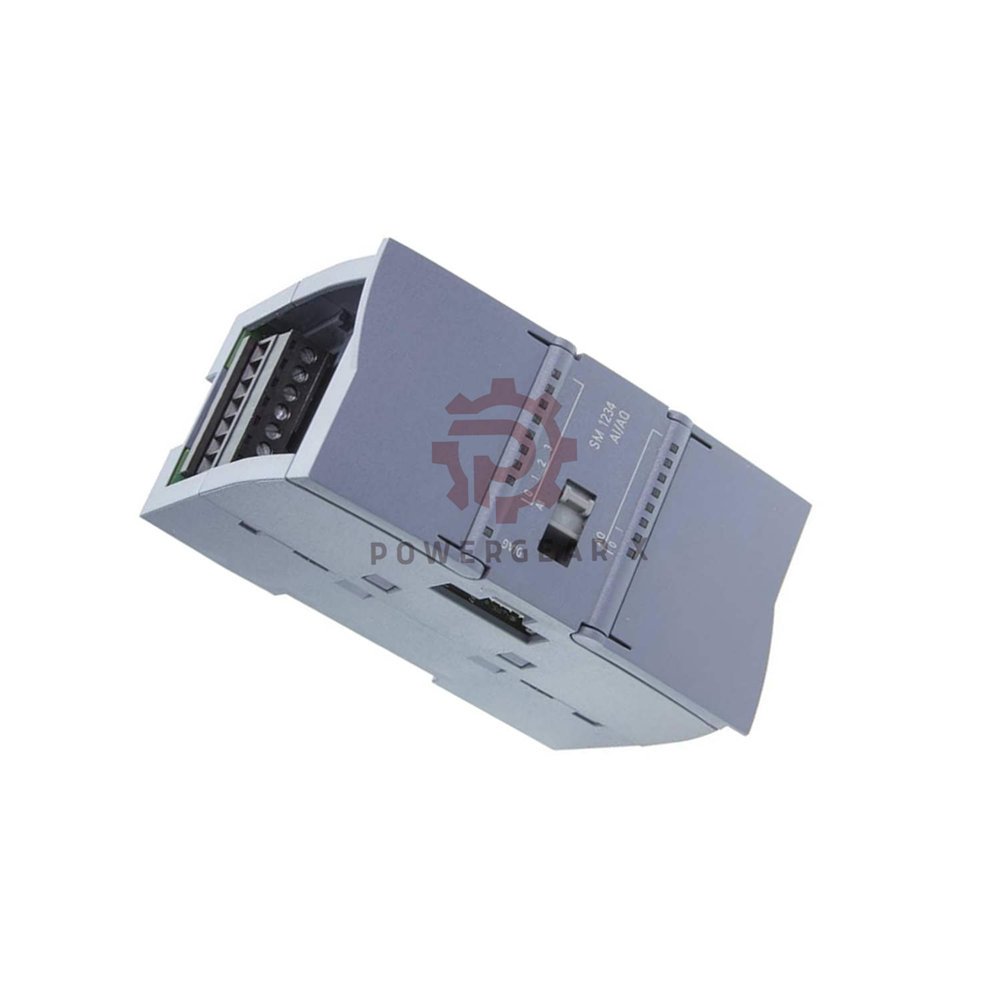

Siemens 6ES7234-4HE32-0XB0 Analog Expansion 4 Input 2 Output 14-bit Industrial

Product Overview

The 6ES7234-4HE32-0XB0 is a Siemens SIMATIC S7-1200 analog I/O module. It offers 4 analog inputs and 2 analog outputs. Inputs support voltage (±10V) or current (0/4-20mA). Outputs also support voltage or current signals. Resolution is up to 14 bits (voltage output) for precise measurement.

Core Features

• Type: SM 1234, AI 4×13-bit / AQ 2×14-bit
• Input Channels: 4 differential (voltage/current)
• Output Channels: 2 (voltage/current)
• Input Ranges: ±10V, ±5V, ±2.5V / 0-20mA, 4-20mA
• Output Ranges: -10V to +10V / 0-20mA / 4-20mA
• Resolution: 13-bit (input), 14-bit voltage / 13-bit current (output)
• Diagnostics: Wire-break, short-circuit, supply monitoring with alarms
• Protection: IP20

Technical Data (Tree Structure)

• Power Supply
  • Rated voltage: 24 V DC
  • Typical current draw: 60 mA
  • Backplane bus current: 80 mA (5V DC)
  • Typical power loss: 2 W
• Analog Inputs (4 channels)
  • Input type: Differential voltage or current
  • Destruction limit: 35V (voltage), 40mA (current)
  • Cycle time (all channels): max. 625 µs
  • Input impedance (voltage): ≥9 MΩ
  • Input impedance (current): 280 Ω
  • Resolution (with sign): 13-bit
  • Integration time: Adjustable
  • Interference suppression: 40dB @ 50/60 Hz
  • Smoothing: None / Low / Medium / High
• Analog Outputs (2 channels)
  • Output type: Voltage or current
  • Load impedance (voltage): ≥1000 Ω
  • Load impedance (current): ≤600 Ω
  • Resolution (with sign): 14-bit (voltage), 13-bit (current)
• Accuracy & Errors
  • Basic error (25°C): Input ±0.1%, Output ±0.3%
  • Temperature error (25-55°C): Input ±0.2%, Output ±0.6%
  • Common mode voltage: max. 12V
• Diagnostics & Alarms
  • Diagnostic alarm: Supported
  • Diagnostic functions: Supply monitoring, wire-break, short-circuit
  • Status LEDs: Input status, output status, maintenance
• Environmental Resistance
  • Operating temp: -20°C to +60°C (horizontal)
  • Vertical installation max: 50°C
  • Storage/transport: -40°C to +70°C
  • Humidity (25°C non-condensing): ≤95%
  • Protection: IP20
• Certifications
  • CE, CSA, UL, cULus, FM, RCM, KC
  • Marine approval: Yes
• Mechanical Dimensions
  • Width: 45 mm
  • Height: 100 mm
  • Depth: 75 mm
  • Weight: approx. 220 g

Installation & Wiring

• Requires S7-1200 series CPU
• Front connector needed (order separately)
• Shielded twisted-pair cable, max 100 m
• Voltage/current input selected via terminal wiring
• Output load must meet impedance requirements

Applications & Compatible Devices

• SIMATIC S7-1200 PLC expansion
• Process control: pressure, temperature, flow transmitters
• Factory automation: drive speed setpoints, position feedback
• Building automation: HVAC control
• Test and measurement equipment

Expert Review / Manager’s Insight

“The SM 1234 is one of the most flexible analog extension modules for the S7-1200. The 4-input/2-output configuration fits many mid-size applications. Its high resolution and programmable smoothing filters effectively suppress noise. Diagnostic functions (wire-break/short-circuit) greatly reduce troubleshooting time. For projects requiring multiple analog signals, this offers excellent value.”

Comparison with Similar Models

• 6ES7234-4HE32-0XB0 (this model): 4AI/2AO, 14/13-bit resolution, voltage/current, full diagnostics
• 6ES7234-4HD32-0XB0: 4AI/2AO, current input only (0/4-20mA)
• 6ES7231-4HD32-0XB0: 4AI, input only, no outputs
• 6ES7232-4HD32-0XB0: 2AO, output only, no inputs
• 6ES7234-4HE32-0XB1: Newer version with extended ranges

Selection Guide & Practical Tips

• Confirm input signal type: voltage (±10V) or current (4-20mA).
• For noisy environments, enable smoothing (Low/Medium/High).
• For current output, ensure load resistance ≤ 600Ω.
• For voltage output, load resistance must be ≥1000Ω.
• Diagnostics are enabled by default for wire-break and short-circuit.
• If ambient temp exceeds 50°C, mount horizontally with good airflow.

Professional FAQ

• Does it support thermocouple or RTD inputs?
  No. This module handles voltage and current only. Use dedicated modules for thermocouples.
• Can I mix voltage and current on inputs?
  Yes, each channel can be configured independently.
• How to set integration time?
  In TIA Portal software, adjust integration time in module configuration to suppress line frequency noise.
• Will short-circuit damage the output?
  No, the module has short-circuit diagnostics and protection. It will trigger an alarm but not fail.
• What does 80mA backplane current mean?
  This is the current drawn from the S7-1200 backplane. Ensure your CPU’s total load capacity is not exceeded.
• What is the warranty?
  12 months against manufacturing defects.
• Delivery time?
  In-stock orders ship within 12-24 hours via FedEx, UPS, or DHL.
