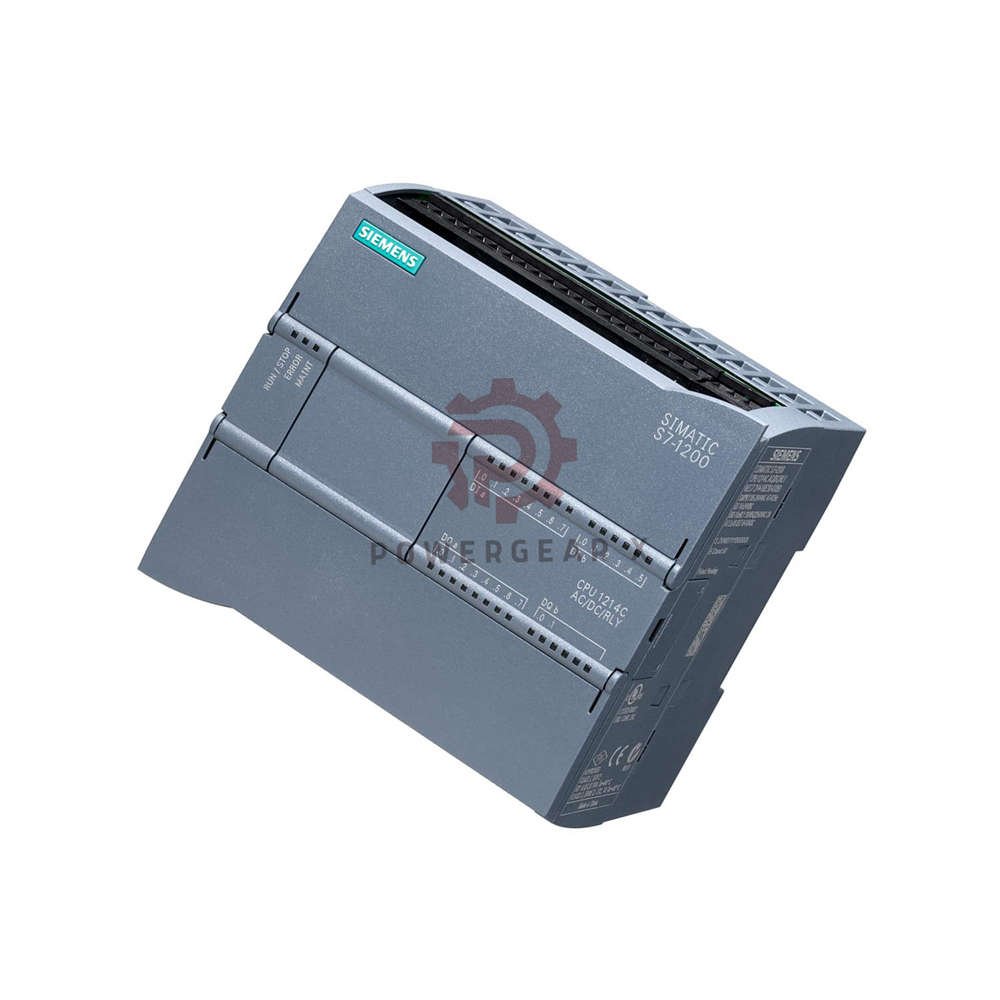

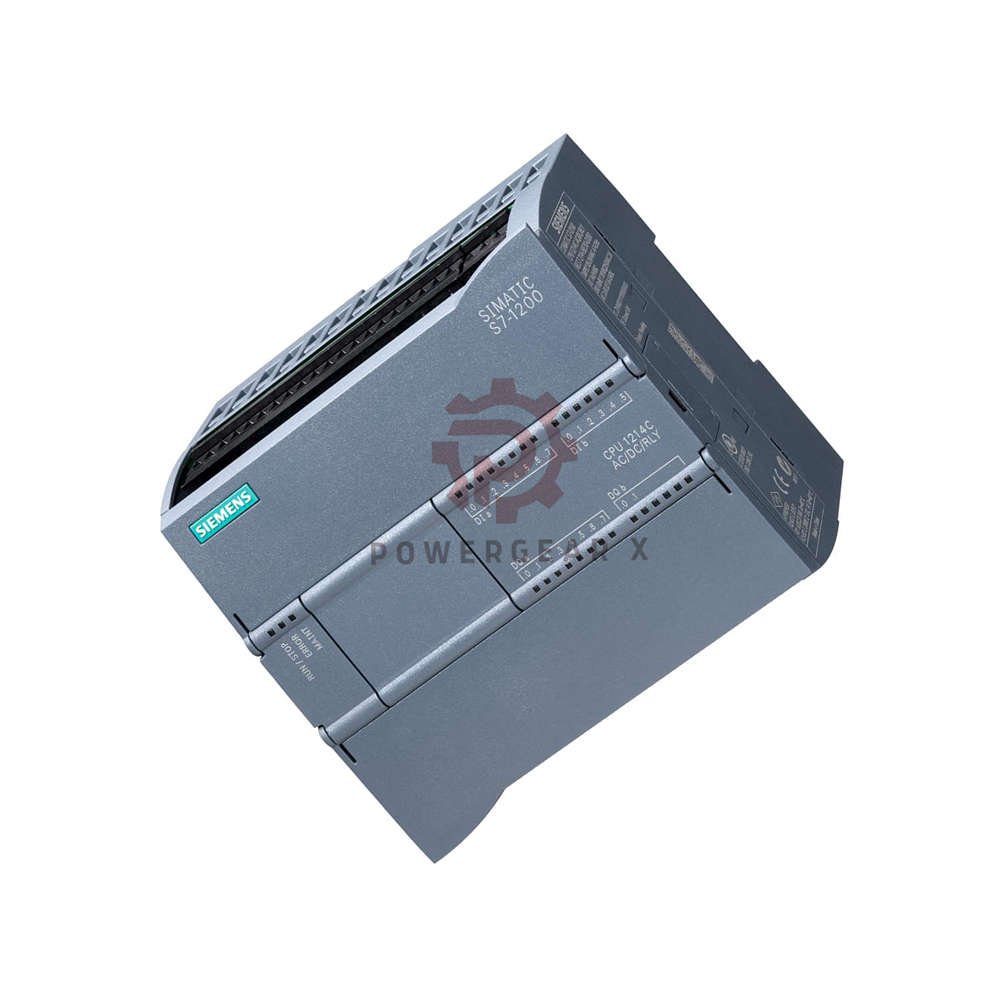

Siemens 6ES7214-1BG40-0XB0 S7-1200 CPU 1214C AC/DC/Relay

Product Overview

6ES7214-1BG40-0XB0 is a Siemens SIMATIC S7-1200 CPU. It is the CPU 1214C AC/DC/Relay model. This compact controller has onboard I/O. It includes 14 digital inputs, 10 relay outputs, and 2 analog inputs. It runs on 85-264 V AC power. The memory holds 150 KB for programs and data. Firmware version is V4.6.

Technical Specifications

• Brand: Siemens
• Model: 6ES7214-1BG40-0XB0
• Series: SIMATIC S7-1200
• Type: Compact CPU (AC/DC/Relay)
• Supply Voltage: 85 … 264 V AC (47-63 Hz)
• Current Consumption (rated): 100 mA (120 V) / 50 mA (240 V)
• Inrush Current (max.): 20 A at 264 V
• Power Loss (typ.): 14 W
• Work Memory: 150 KB
• Load Memory (integrated): 4 MB
• Memory Card (optional): SIMATIC Memory Card
• Backup: Maintenance-free, battery not required
• Digital Inputs: 14 (24 V DC)
• Digital Outputs: 10 (Relay, 2 A each)
• Analog Inputs: 2 (0-10 V DC, 10-bit)
• Processing Time (Bit): 0.08 µs per instruction
• Processing Time (Word): 1.7 µs per instruction
• Floating Point: 2.3 µs per instruction

Communication & Interfaces

• PROFINET: 1x RJ45 port (10/100 Mbit/s)
• PROFIBUS: Via CM modules (master/slave)
• OPC UA: Server built-in (license required)
• MODBUS: Supported
• Web Server: Yes, with user-defined websites
• Number of Connections: Up to 64 total
• HMI Connections: 12 reserved / 18 max
• S7 Communication: Server and client
• Open IE: TCP/IP, ISO-on-TCP, UDP

Integrated Functions

• High-Speed Counters: 6 (up to 100 kHz)
• Frequency Measurement: Yes
• Positioning: Up to 8 axes (with pulse interface)
• PID Controller: Built-in
• Alarm Inputs: 4
• Forcing: Yes (inputs, outputs, memory)
• Trace Function: 2 traces, 512 KB each

Environmental & Approvals

• Operating Temp: -20 … 60 °C (horizontal)
• Storage Temp: -40 … 70 °C
• Humidity: 95 % non-condensing
• Protection Class: IP20
• Vibration: 2 g (wall) / 1 g (DIN rail)
• Shock: 15 g, 11 ms
• UL, cULus, FM, KC, Marine: Approved
• CE, RCM: Yes
• RoHS: Compliant

Expert Review

This CPU offers great value for small to mid-size automation. The relay outputs handle 2 A loads directly. Onboard analog inputs save space and cost. The 150 KB memory is enough for complex logic. PROFINET and OPC UA enable modern IIoT connectivity. A reliable choice for new projects.

Manager’s Insight

For plant managers, this unit reduces panel space. The wide AC supply works globally. It supports up to 8 signal modules for expansion. The 6 high-speed counters handle fast motion tasks. With 12-month warranty and quick shipping, it is a safe investment.

Applications & Compatible Devices

• Small conveyor systems and packaging machines.
• HVAC control and building automation.
• Pump and fan control with relay outputs.
• Data acquisition with analog sensors (0-10 V).
• Remote I/O via PROFINET or PROFIBUS.
• Works with Siemens HMI panels and SCADA.

Comparison with Similar Models

• 6ES7214-1AG40-0XB0 – DC/DC/DC version (24 V supply, transistor outputs).
• 6ES7214-1BG40-0XB0 – AC/DC/Relay (this model).
• 6ES7215-1BG40-0XB0 – More I/O and memory for larger tasks.

FAQ – Professional Questions

• Can I use this CPU without a memory card?
• Yes, the integrated 4 MB load memory is enough for most programs.
• How do I connect analog sensors?
• Use the 2 analog inputs (0-10 V) with shielded cables up to 100 m.
• What happens if power fails?
• The CPU retains data without a battery. Retentive memory is 14 KB.
• Can I control servo drives?
• Yes, use pulse outputs via SB 1222 for up to 4 axes.
• What is the warranty and shipping?
• 12 months warranty. We ship within 12-24 hours via FedEx, UPS, or DHL.

Selection Guide

• Choose this model if you have AC power and relay loads.
• For DC power and transistor outputs, select the DC/DC/DC version.
• Check if you need more than 16 I/O modules – this CPU supports up to 8.
• If you need PROFIsafe, consider a fail-safe CPU.
• For OPC UA, remember to purchase the “Basic” license.
• Order a SIMATIC Memory Card for large data logging or firmware updates.
