Product details
Advanced Automation Controller

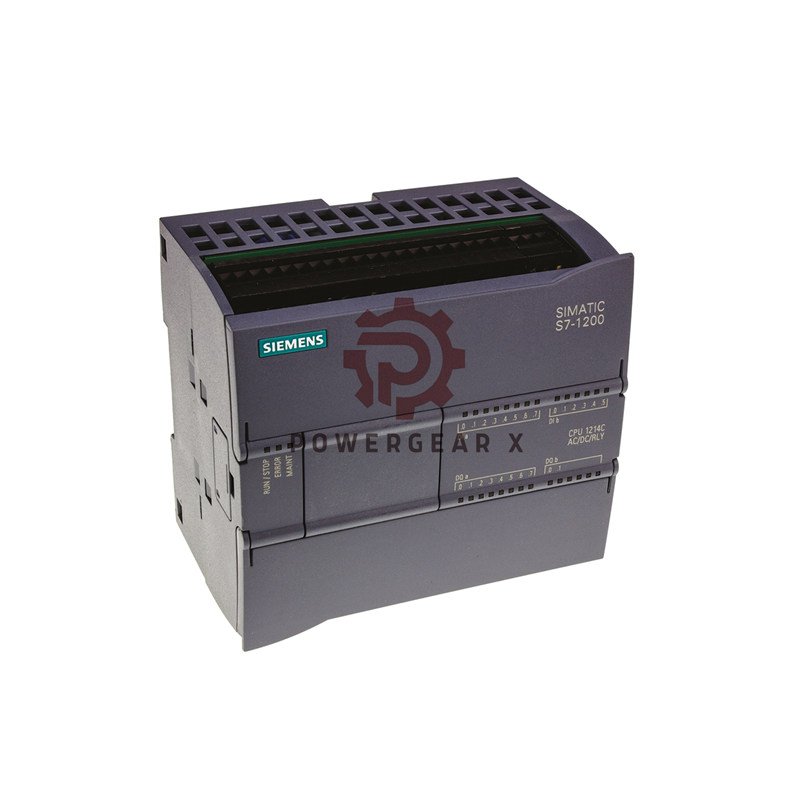

The Siemens 6ES7214-1BG31-0XB0 CPU 1214C delivers powerful control capabilities for industrial applications. This compact unit features extensive I/O options and robust communication protocols. It provides reliable performance with flexible expansion options.
Core Technical Specifications
- Brand: Siemens
- Product Family: SIMATIC S7-1200
- Model: 6ES7214-1BG31-0XB0
- CPU Type: 1214C AC/DC/Relay
- Digital Inputs: 14 points, 24V DC
- Digital Outputs: 10 relay outputs, 2A capacity
- Analog Inputs: 2 channels, 0-10V range
- Program Memory: 75 KB work memory
- Load Memory: 4 MB integrated storage
- Power Supply: 85-264V AC, 47-63 Hz
- Operating Temperature: -20°C to 60°C
- Dimensions: 110 x 100 x 75 mm
- Weight: 455 grams
Performance Highlights
- Fast processing: 0.085 µs for bit operations
- Six high-speed counters up to 100 kHz
- Integrated PROFINET communication port
- Support for eight signal modules expansion
- Maintenance-free operation, no battery needed
- Real-time clock with 480-hour backup
- Web server functionality for remote access
- PID controller for process applications
Power & Electrical Characteristics
- Wide voltage range: 85-264V AC
- Frequency range: 47-63 Hz
- Current consumption: 50 mA at 240V AC
- Inrush current: 20 A maximum
- Power loss: 14 W typical
- Backplane current: 1600 mA at 5V DC
- Encoder supply: 20.4-28.8V DC
Communication & Connectivity
- PROFINET IO Controller functionality
- TCP/IP, ISO-on-TCP, UDP protocols
- MODBUS communication support
- Integrated web server capability
- AS-Interface compatibility
- PROFIBUS support available
- User-defined web pages
Environmental Specifications
- IP20 protection rating
- Operating altitude: Up to 2000 meters
- Vibration resistance: 2g for wall mounting
- Shock resistance: 15g peak value
- Humidity: 95% maximum non-condensing
- Air pressure: 795-1080 hPa operation
- Multiple international certifications
Expansion Capabilities
- Three communication modules maximum
- One signal board supported
- Eight signal modules expansion
- 1024 byte I/O address area
- Adjustable process image size
- Flexible module configuration
Shipping & Warranty
- Product weight: 455 grams
- Package dimensions: Standard industrial packaging
- 12-month manufacturer warranty
- Global shipping via FedEx, UPS, DHL
- Stock availability: Immediate dispatch
- Professional technical support included
Expert Support Available
- Contact email: sales@powergearx.com
- Phone support: +86 18030005825
- Technical consultation available
- Application guidance provided
- Quick response guaranteed
Professional Questions & Answers
- What is the maximum number of signal modules supported?
This CPU supports up to eight signal modules for extensive I/O expansion.
- What programming software is required?
STEP 7 V11 SP2 or higher is needed for programming this controller.
- Can this CPU operate in harsh industrial environments?
Yes, it operates from -20°C to 60°C and withstands vibration up to 2g.
- What communication protocols are native?
It supports PROFINET, TCP/IP, MODBUS, and multiple industrial protocols.
- How many high-speed counters are available?
Six inputs support high-speed counting up to 100 kHz frequency.
