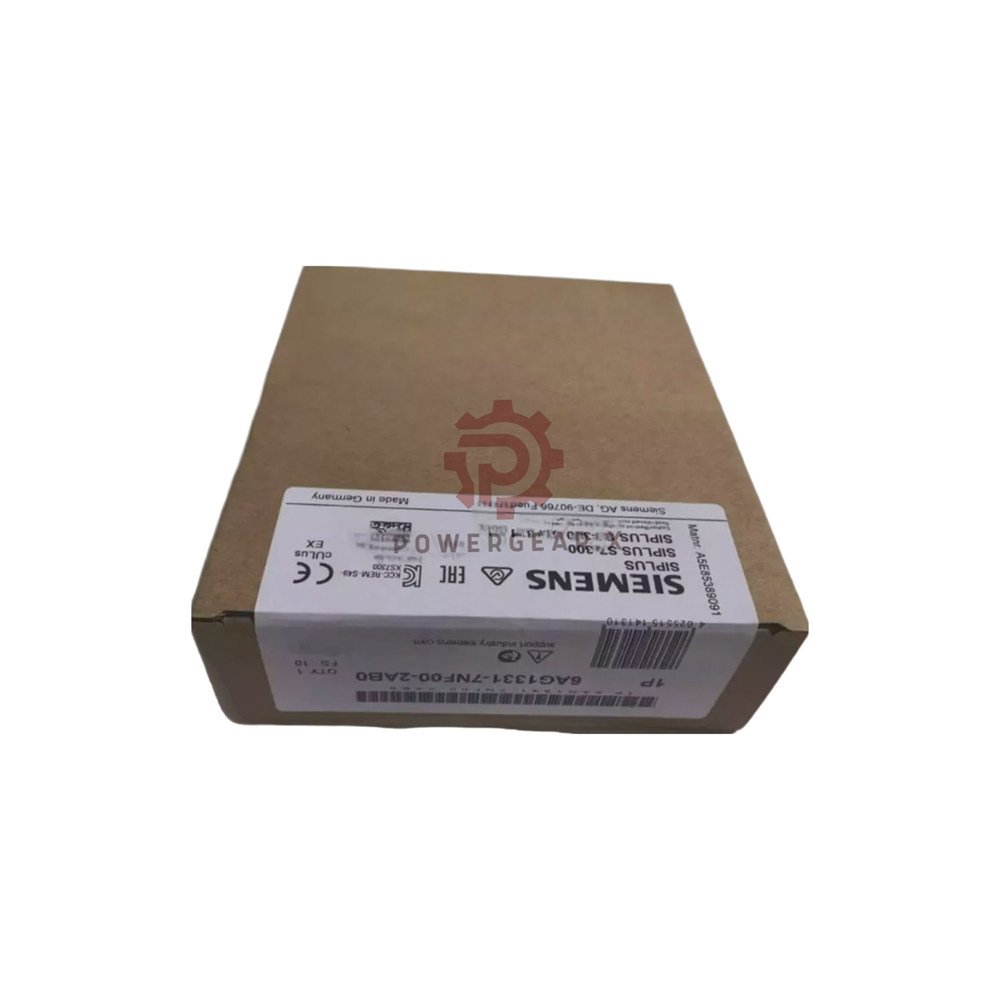

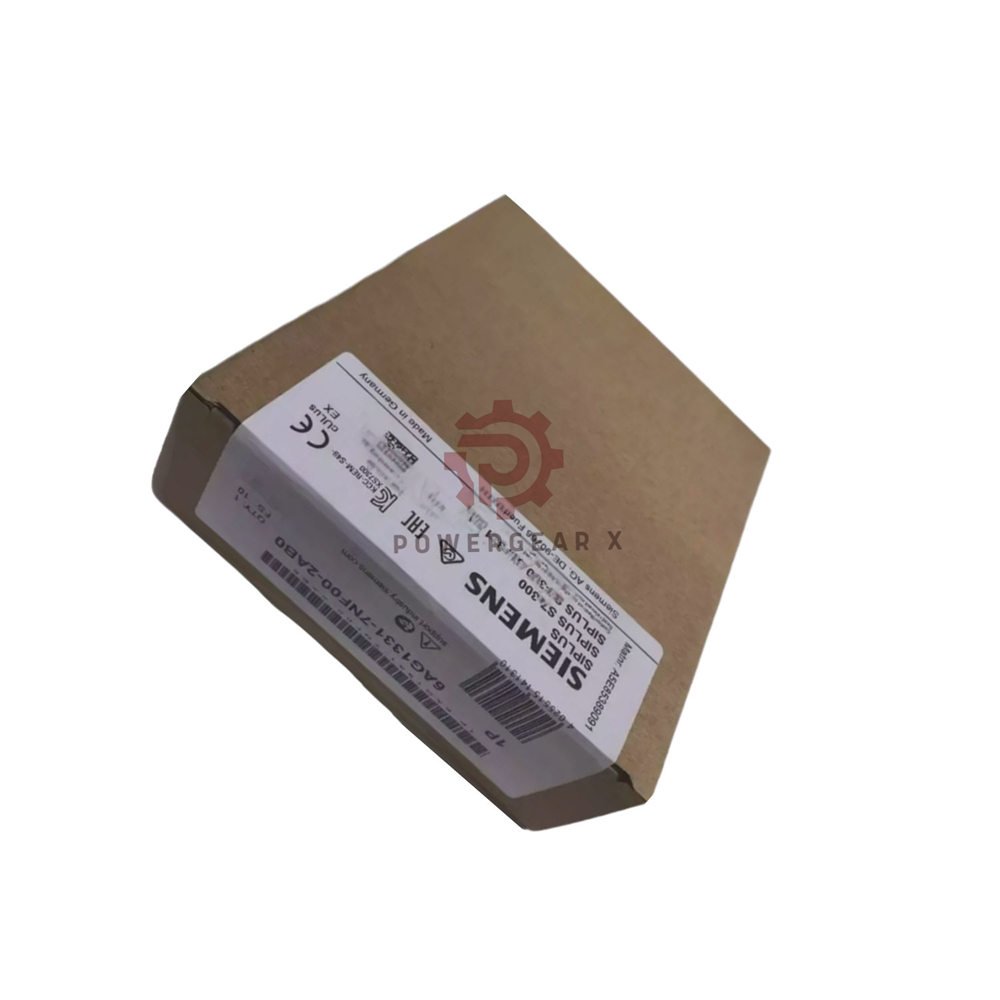

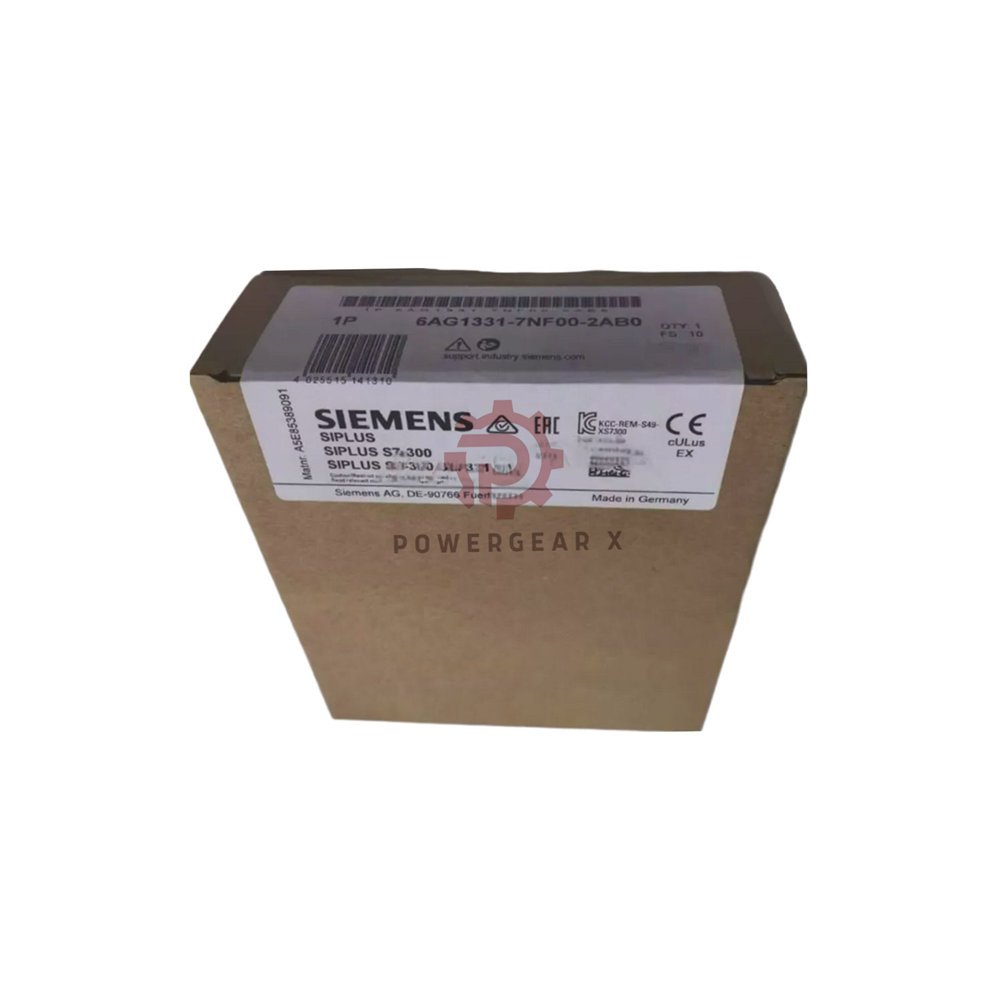

Siemens 6AG1331-7NF00-2AB0 SIPLUS S7-300 Analog Input Module – 8 AI, Isolated, Conformal Coated

Product Overview

• 6AG1331-7NF00-2AB0 is an analog input module from Siemens.
• Part of the SIPLUS S7-300 SM 331 series with conformal coating.
• Has 8 isolated analog inputs for voltage and current signals.
• Supports ranges: ±5/10V, 1-5V, ±20mA, 0/4-20mA.
• Resolution up to 16 bits for precise measurements.
• Operates from -25 °C to +70 °C for extreme environments.
• Based on 6ES7331-7NF00-0AB0 with enhanced coating.

Technical Specifications

• Manufacturer: Siemens
• Model: 6AG1331-7NF00-2AB0
• Series: SIPLUS S7-300 SM 331
• Type: Analog Input Module (8 AI)
• Input Voltage Ranges: ±5V, ±10V, 1-5V
• Input Current Ranges: 0-20mA, ±20mA, 4-20mA
• Input Resistance (Voltage): 2 MΩ
• Input Resistance (Current): 250 Ω
• Resolution: 16 bits (with overrange)
• Integration Time: 10/16.67/20/100 ms (selectable)
• Interference Suppression: 400/60/50/10 Hz
• Max. Cable Length: 200 m (shielded)
• Power Loss: 0.6 W typ.
• Backplane Current: 130 mA max.
• Dimensions (WxHxD): 40 x 125 x 117 mm
• Weight: approx. 272 g

Installation & Wiring

• Uses a 40-pin front connector for wiring.
• Supports 2-wire and 4-wire current transmitters.
• External supply needed for 2-wire transmitters.
• Channels are isolated in groups of 2 for safety.

Commissioning & Maintenance

• Configure with Siemens STEP 7 software.
• Diagnostic alarms and limit alarms are parameterizable.
• Group error LED (SF) helps troubleshooting.
• Read diagnostic info easily via software.

Compatibility

• Works with S7-300 PLC systems.
• Compatible with Siemens ET 200M distributed I/O.
• Fits standard 40-pin connector terminals.

Environmental Certifications

• CE, UL, RCM, KC, EAC approved.
• Railway compliant: EN 50155 (T1, Category 1, Class A/B).
• Resistant to chemically active substances (Class 3C4).
• Protected against sand, dust, salt spray (Class 3S4).
• Operates up to 5000 m altitude with derating.
• Humidity tolerance: 100% with condensation (non-operational).

Package Contents

• 1 x 6AG1331-7NF00-2AB0 Analog Input Module
• Plug covers for unused interfaces
• Front connector sold separately

Warranty & Shipping

• 12-month warranty against defects.
• 24-hour dispatch on weekdays.
• Shipped via FedEx, UPS, or DHL with tracking.

Expert Review – Manager’s Insight

• “This module is ideal for harsh environments like chemical plants.”
• “Conformal coating protects against moisture and dust.”
• “Flexible input ranges make it suitable for many sensors.”
• “We recommend it for process automation and railway applications.”

Applications & Suitable Devices

• Process industries – measure pressure, temperature, flow.
• Railway systems – EN 50155 rated for rolling stock.
• Water treatment – monitor level and quality.
• Works with Siemens S7-300, ET 200M, and PCS 7 systems.

Frequently Asked Questions (FAQ)

• How many analog inputs does this module have?
  8 isolated inputs for voltage or current signals.
• Can it connect to thermocouples or RTDs?
  No, only voltage and current signals are supported.
• What is the max cable length for sensors?
  Up to 200 meters when using shielded cable.
• Is this module suitable for outdoor use?
  Yes, with conformal coating and wide temperature range (-25…+70 °C).
• Does it support diagnostics?
  Yes, diagnostic and limit alarms are configurable.

Selection Guide – Experienced Advice

• Choose this for applications with condensation or chemicals.
• For standard environments, use 6ES7331-7NF00-0AB0 (non-coated).
• Match input range to your sensor output (voltage or current).
• Use shielded cables to reduce electrical noise.

Compare with Similar Models

• 6ES7331-7NF00-0AB0 – standard version without coating.
• 6AG1331-7KF02-2AB0 – 8 AI with different ranges.
• 6ES7331-7PF01-0AB0 – 8 AI for thermocouples and RTDs.
