6SL3060-4AJ20-0AA0 Siemens DRIVE-CLiQ Cable – 2.8m for S120 Drives

6SL3060-4AJ20-0AA0 – Siemens DRIVE-CLiQ Signal Cable, 2.8m

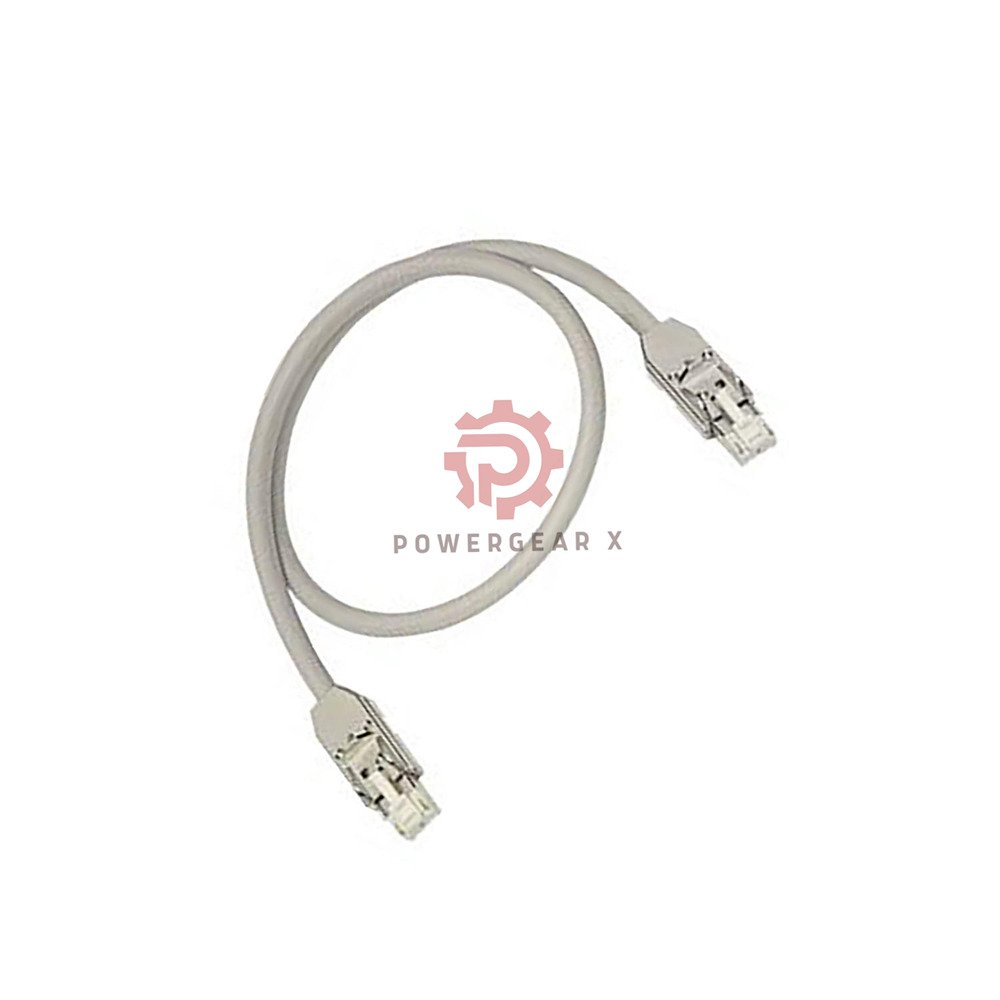

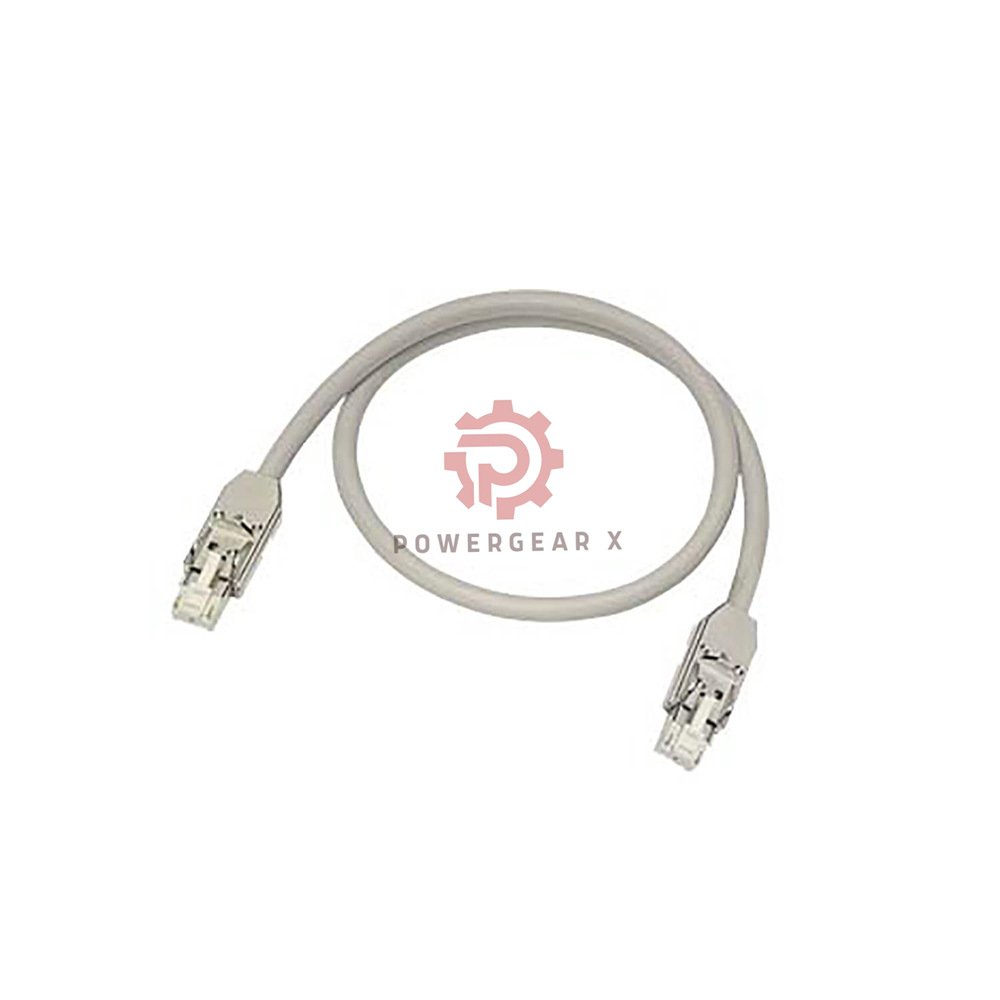

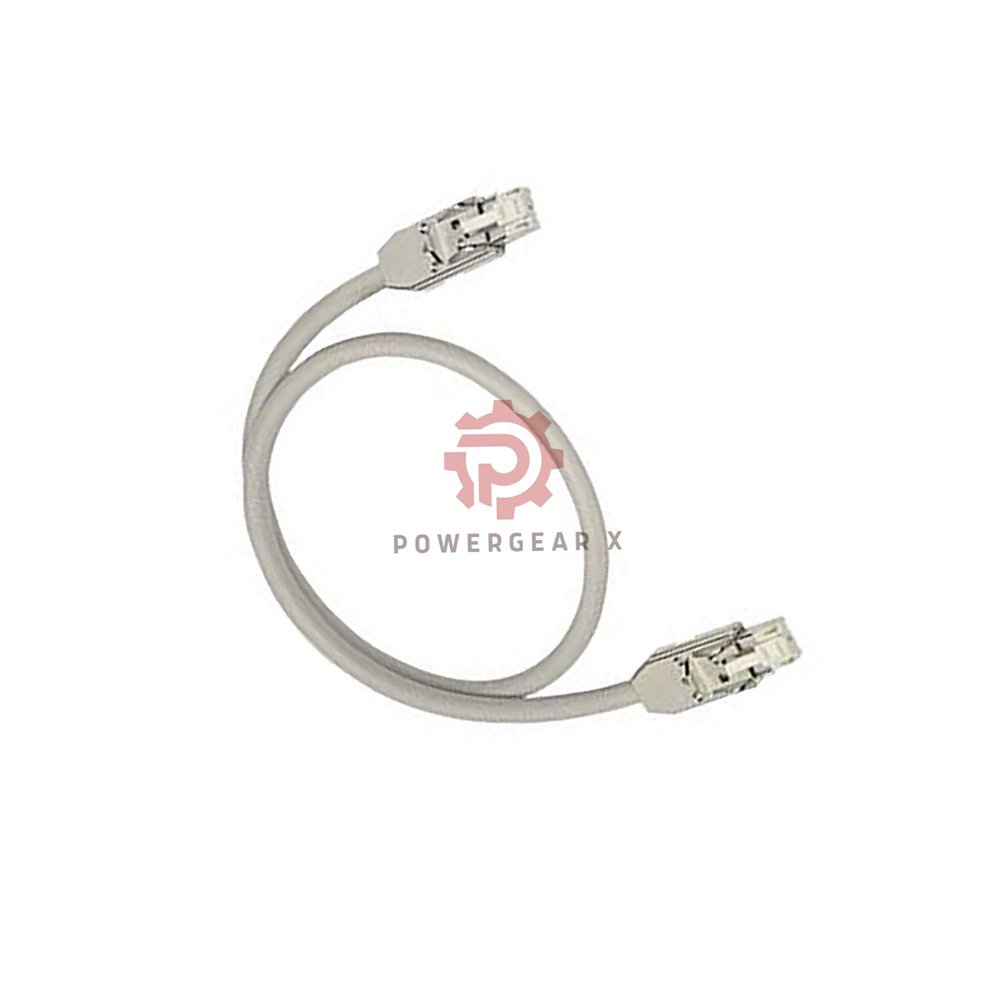

This RJ45 to RJ45 signal cable connects drives in the SINAMICS S120 system.
It is part of the DRIVE-CLiQ series with straight connectors on both ends.
The 2.8 meter length offers flexibility for panel layouts.

Key Features

• Brand: Siemens – trusted industrial automation leader.
• Model: 6SL3060-4AJ20-0AA0
• Series: DRIVE-CLiQ – designed for SINAMICS S120.
• Length: 2.8 m – ideal for medium-distance connections.
• Connectors: RJ45 to RJ45, straight on both ends.
• Protection: IP20/IP20 – suitable for control cabinet use.

Technical Specifications

• Cable length: 2.8 meters (9.19 ft)
• End 1 connector: RJ45, straight angle
• End 2 connector: RJ45, straight angle
• Shielding: Fully shielded for noise immunity
• Operating temperature: -40 °C to +85 °C
• Color: Blue (standard DRIVE-CLiQ color)
• Part number: 6SL30604AJ200AA0
• UPC: 662643066944

Installation Guide

• Check compatibility: Ensure both devices have DRIVE-CLiQ ports.
• Route carefully: Keep cable away from high-voltage lines.
• Insert firmly: Push RJ45 plug until it clicks securely.
• Avoid bending: Maintain minimum bend radius of 50 mm.
• Test connection: Verify LED status on drive after power-up.

Compatible Devices & Applications

• SINAMICS S120 drives: CU320-2, CU310-2 control units.
• Line modules: Smart, Active, and Basic Line Modules.
• Motor modules: Single and double-axis modules.
• Terminal boards: TB30, TB31, and other DRIVE-CLiQ peripherals.
• Applications: Machine tools, conveyors, packaging lines, and robotics.

Certifications & Quality

• CE mark: Conforms to European standards.
• UL listed: Recognized for safety in North America.
• RoHS compliant: Free from restricted substances.
• ISO 9001: Manufactured under quality management.

Package Contents

• 1 x 6SL3060-4AJ20-0AA0 signal cable
• Length: 2.8 m pre-assembled with RJ45 plugs
• No additional accessories needed

Warranty & Shipping

• Warranty: 12 months against defects.
• Dispatch: 12–24 hours from order confirmation.
• Carriers: FedEx, UPS, DHL – express delivery worldwide.
• Return: Please check compatibility before ordering.

Expert Review – Drive Systems Specialist

“This cable is the backbone of any S120 system.
I’ve installed hundreds of these – they are reliable and durable.
The 2.8 m length is perfect for most cabinet layouts.
Straight connectors make routing simple and neat.
For new builds or replacements, this cable is my first choice.”

Manager’s Insight – Maintenance Team Lead

“We standardize on Siemens cables to avoid communication errors.
This 2.8 m DRIVE-CLiQ cable never gives us trouble.
It’s easy to stock, easy to install, and lasts for years.
With 12-month warranty and fast shipping, we keep spares ready.”

Frequently Asked Questions (FAQ)

• Can I use this cable with older Siemens drives?
• Only drives with DRIVE-CLiQ ports – check your model first.
• What is the maximum cable length for DRIVE-CLiQ?
• Maximum is 100 m, but 2.8 m is typical for cabinet connections.
• Is this cable shielded against EMI?
• Yes – fully shielded to protect against electrical noise.
• Can I cut and re-terminate this cable?
• Not recommended – use proper pre-made cables for reliability.
• Does it work with SINAMICS G120 drives?
• No – G120 uses different communication interfaces.

Selection Guide – Choose the Right Cable

• For short connections (≤1 m): Choose 6SL3060-4AJ10-0AA0.
• For standard cabinets (2.8 m): This model is ideal.
• For long runs (≥5 m): Consider 6SL3060-4AJ50-0AA0.
• For angled connectors: Check 6SL3060-4AJ… series with angled plugs.
• For harsh environments: Use IP67 rated cables (separate series).

Contact Information

• Email: sales@powergearx.com
• WhatsApp: +86 18030005825
• Reach us for bulk orders or technical questions.

Compare with Similar Models

• 6SL3060-4AJ10-0AA0 – 1.0 m DRIVE-CLiQ cable
• 6SL3060-4AJ50-0AA0 – 5.0 m DRIVE-CLiQ cable
• 6SL3060-4AJ20-0AB0 – 2.8 m with angled connector
