Product details
Product Introduction

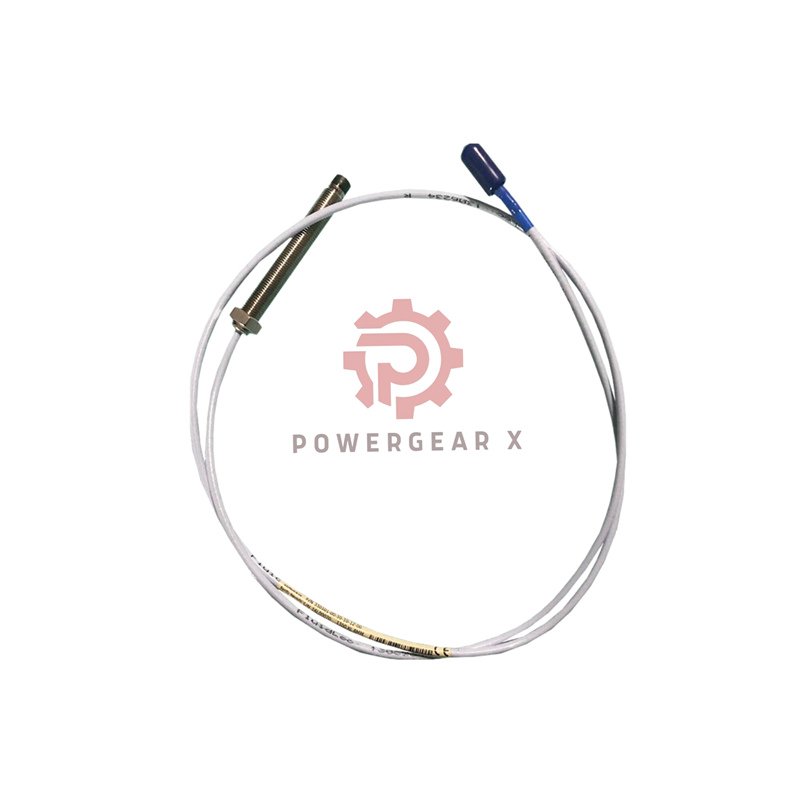

Meet the Bently Nevada 330702-00-30-10-11-00. This is a 1-meter 11mm vibration probe. It has a longer 3-inch case and tough FluidLoc cable. Perfect for compact or wet installation spots without needing hazardous area approval.
Model Configuration Details
- Basic Product Info
- Brand: Bently Nevada
- Complete Part #: 330702-00-30-10-11-00
- Product Family: 3300 XL 11 mm Probes
- Origin: Made in U.S.A.
- Part Number Explained: -00-30-10-11-00
- 00: Unthreaded Shank = 0.0 inch
- 30: Case Length = 3.0 inches (Longer Body)
- 10: Cable Length = 1.0 meter (Short Cable)
- 11: Connector & Cable = ClickLoc with Protector, FluidLoc
- 00: Safety Certs = Not Required (For Standard Areas)
- Critical Specifications
- Mounting Thread: 1/2-20 UNF
- Thread Engagement: Max 0.750 inch
- Installation Torque: 15.2 N•m (133 in-lb)
- Temperature Range: -51°C to +177°C
- Electrical Resistance (1m): 5.9 Ω ± 0.5
- Cable Type: 75Ω Triaxial, FluidLoc (FEP)
- Cable Bend: Minimum 25.4mm (1-inch) radius
- Tip Material: Durable PPS
- Housing: Robust 304 Stainless Steel
- Connector: Hand-tighten only
Design Advantage
The 3.0-inch case (Option 30) provides more mounting flexibility in deeper holes. The 1m FluidLoc cable (Options 10 & 11) is perfect for direct connection to a nearby junction box in harsh environments.
Professional FAQs
When should I choose the 3.0-inch case length (Option 30)?
Choose the 330702-00-30-10-11-00 when mounting in a deep hole or when extra thread engagement is needed for structural rigidity in high-vibration applications.
What is the benefit of a 1-meter cable (Option 10)?
A 1-meter cable is simple and cost-effective. It’s ideal when the probe connects directly to a nearby conduit or junction box, minimizing loose cable.
Does the FluidLoc cable make this probe waterproof?
FluidLoc cable is highly resistant to oils, chemicals, and moisture. It is suitable for wet locations, but the probe connector itself is not submersible.
Why is the electrical resistance lower for this 1-meter probe?
Resistance increases with cable length. The shorter 1m cable in the 330702-00-30-10-11-00 naturally has lower resistance (5.9Ω), which the monitoring system is designed to accommodate.
Can I use this model in a food processing plant?
The 304 stainless steel case is suitable. However, for direct food contact or high-pressure washdown areas, please consult the manufacturer for specific material compatibility checks.
Ordering & Support Info
- Item: Bently Nevada 330702-00-30-10-11-00
- Quality Assurance: Backed by a standard 12-month warranty.
- Shipping Options: Fast delivery available via FedEx, UPS, and DHL.
- Application Tip: Ideal for OEMs or retrofits where a short, rugged cable is needed.
