Product details

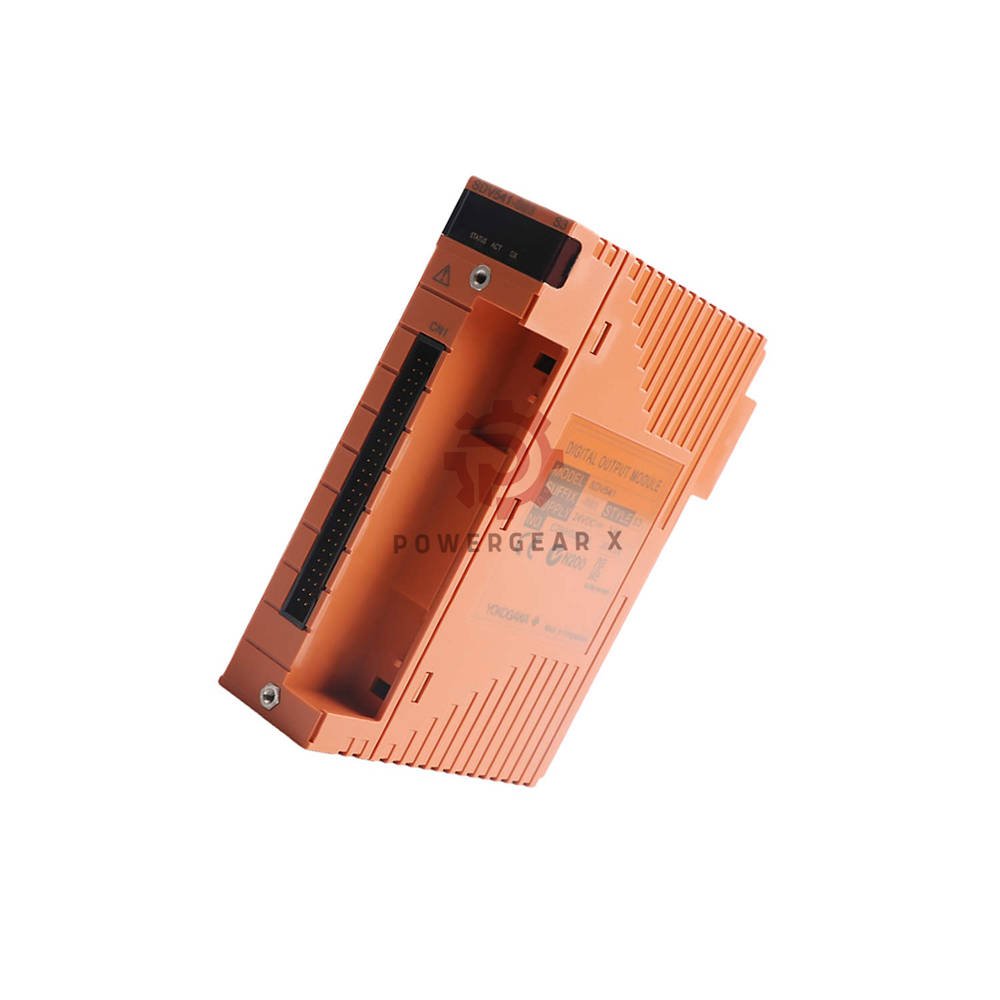

SDV541-S63/PRP – Digital Output Module
SDV541-S63/PRP is a 16-channel digital output module from Yokogawa. It provides 24 V DC sourcing outputs with module isolation. This module fits industrial control systems that need reliable switching. It supports pressure clamp, MIL cable, or dedicated signal cable connections.
Key Features
- 16 isolated outputs – 24 V DC, current source
- High current capacity: 0.2 A per channel (3.2 A total)
- Fast response: 30 ms maximum
- Robust isolation: 2 kV AC withstand voltage
- Wide temperature range: -20 to 70 °C (with G3 option)
- False insertion prevention: /PRP option pin
Technical Specifications
- Brand: Yokogawa
- Model: SDV541-S63/PRP
- Series: SDV541
- Type: Digital Output Module, 16-channel, module isolation
- Output voltage: 24 V DC
- Voltage drop: ≤1 V at rated load
- External supply: 24 V DC +20%/-10%, 3.4 A minimum
- Maximum load current: 0.2 A per channel (3.2 A total)
- Minimum load current: 35 mA
- Load resistance: 120…685 Ω
- Output format: Current source
- Leakage current: ≤1.6 mA (OFF state)
- Response time: ≤30 ms
- Withstand voltage: 2 kV AC (output to system) for 1 minute
- Current consumption: ≤300 mA (5 V DC), ≤150 mA (24 V DC)
- Weight: 0.29 kg (clamp/MIL), 0.31 kg (with adapter)
- Temperature range: -20…70 °C (with G3 option)
- Environmental tolerance: ISA Standard G3 (corrosion resistance)
- Isolation: Module isolation between channels
- Connection types: Pressure clamp, MIL cable, or dedicated cable (AKB331, AKB651)
Installation & Mounting
- Mounting: Rack or panel (standard Yokogawa system)
- Wiring: Use pressure clamp, MIL, or AKB-series cables
- Orientation: Vertical or horizontal (no restriction)
- Maintenance: No regular calibration needed
- False insertion prevention: /PRP pin ensures correct orientation
Commissioning & Maintenance
- Setup: Configure via Yokogawa DCS or PLC software
- Diagnostics: LED indicators per channel (if available)
- Maintenance: Visual inspection and terminal tightening
- Spare parts: Order replacement cables or terminal blocks
Manager’s Insight
This Yokogawa output module offers excellent isolation and current handling. The /PRP option prevents costly wiring errors. The G3 option protects against corrosive environments. We recommend it for critical process control applications. Its 12-month warranty and fast shipping make it a safe choice.
Applications
- Process control: valves, actuators, heaters
- Power plants: relay drives, solenoid controls
- Water treatment: pump starters, agitators
- Chemical plants: corrosive environments (G3 option)
- Factory automation: conveyor systems, packaging lines
Comparison with Similar Models
- SDV541-S63/PRP – 16 outputs, isolated, G3, /PRP
- SDV531 – 16 outputs, non-isolated, lower cost
- SDV541-S53 – same but without /PRP pin
- SDV541-S63 – without G3 option
Selection Guide
- Choose SDV541-S63/PRP if: you need isolated outputs with false-insertion protection.
- Consider this module for: systems requiring high surge immunity.
- Avoid if: you need low-side switching (this is a source type).
- Best paired with: Yokogawa Centum VP or ProSafe-RS.
- Warranty: 12 months from invoice date.
Shipping & Delivery
- Dispatch: 12-24 hours after order confirmation.
- Carriers: FedEx, UPS, DHL (tracking provided).
- Packaging: Anti-static bag, foam-lined box.
Frequently Asked Questions (FAQ)
- Q: What is the /PRP option?
- A: It adds a mechanical prevention pin to avoid false insertion into the rack.
- Q: Can I use this module with non-Yokogawa systems?
- A: Yes, if the system supports 24 V DC sourcing outputs.
- Q: What cable types are compatible?
- A: Pressure clamp, MIL cable, or AKB331/AKB651 dedicated cables.
- Q: Does it support hot swapping?
- A: Check your rack specification; most Yokogawa racks support it.
- Q: How do I clean the module in a corrosive environment?
- A: Use dry cloth; the G3 option provides extra protection.
