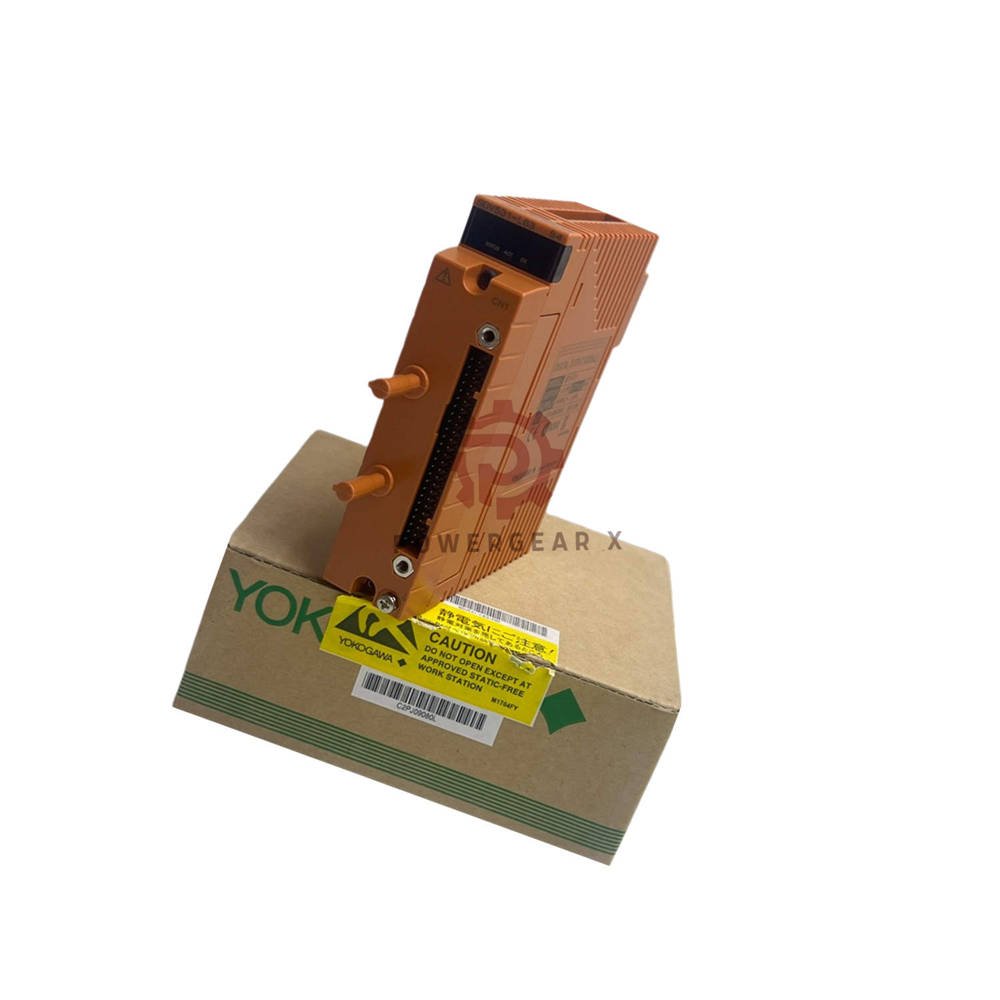

SDV531-L63 Yokogawa Digital Output Module – 8-Channel 24V DC

Product Overview

• SDV531-L63 – digital output module by Yokogawa.
  • Outputs ON/OFF signals to field devices.
  • Supports dual‑redundant configuration for high reliability.
  • Built‑in wiring diagnostic function – no extra parts needed.
• Part of the SDV531 series, long‑distance type (-L).
• Includes signal cable interface adapter (-6) and ISA G3 protection (-3).

Key Technical Data

• Output Specifications
  • Channels: 8 (module isolated).
  • Output voltage: 24 V DC.
  • Voltage drop: ≤1 V.
  • Output format: current source.
• Load & Current
  • Max load current: 0.6 A per channel (4.8 A total).
  • Min load current: 35 mA.
  • Load resistance: 40 Ω … 685 Ω.
  • Leakage current (OFF state): ≤1.6 mA.
• External Power Supply
  • Rating: 24 V DC, min 5 A.
  • Range: 24 V DC +20 % / –10 %.
• Response & Isolation
  • Output response time: ≤30 ms.
  • Withstand voltage: 2000 V AC (signal to system) for 1 min.
  • 8 input lines collectively connected (negative side).
• Power Consumption
  • 5 V DC: ≤280 mA.
  • 24 V DC: ≤140 mA.

Environmental & Mechanical

• Temperature & Protection
  • Operating temp: –20 °C … 70 °C (with ISA G3 option).
  • Conformal coating for G3 corrosive environments.
• Weight
  • With MIL/pressure clamp: approx. 0.28 kg.
  • With signal cable adapter: approx. 0.34 kg.
• External Connection Options
  • Pressure clamp terminal.
  • MIL cable.
  • Dedicated signal cable (AKB331, AKB651).

Installation & Maintenance

• Mount on DIN rail or panel (standard).
• Use shielded cables for long‑distance runs (-L type).
• Diagnostic LEDs show channel status and faults.
• No special tools required for wiring or replacement.

Compatibility

• Works with all Yokogawa DCS and PLC systems.
• Supports dual‑redundant configurations for critical loops.
• Compatible with 24 V DC field devices (solenoids, relays, indicators).

Certifications

• ISA Standard G3 (corrosion resistance).
• CE, RoHS, and UL recognized.
• EMC: EN/IEC 61000‑6‑2, EN/IEC 61000‑6‑4.

Package Contents

• 1 × SDV531-L63 module.
• Signal cable interface adapter (included).
• Quick start guide.
• Warranty card (12 months).

Shipping & Delivery

• Dispatch within 12‑24 hours.
• Carriers: FedEx, UPS, or DHL (tracking provided).

Expert Review

• Manager’s Insight: “A robust and reliable output module. The built‑in diagnostics save time during commissioning. The long‑distance type works well in large plants. We recommend it for safety‑critical and corrosive environments.”

Applications

• ON/OFF control of valves and actuators.
• Status signalling in DCS/PLC systems.
• Motor starters and relay panels.
• Chemical, oil & gas, and water treatment plants.

Comparison with Similar Models

• SDV531-L63 vs SDV531-S63 (standard distance, no adapter).
• vs SDV541 (16‑channel, non‑isolated).
• vs SDV531-L13 (no G3 protection).
• For full comparison, visit our model selection page.

FAQ – Frequently Asked Questions

• What is the maximum load current per channel?

  0.6 A per channel, 4.8 A total for all 8 channels.

• Can I use this module in a redundant setup?

  Yes, it supports dual‑redundant configuration for high availability.

• What does the -L suffix mean?

  It stands for “long‑distance” – suitable for cables up to several hundred metres.

• Do I need external wiring diagnostics?

  No, the module has built‑in diagnostics – no extra components needed.

• Is the module compatible with 12 V DC loads?

  No, it is designed for 24 V DC systems only.

• What is the warranty period?

  12 months from the date of shipment.

• Which shipping carriers do you use?

  FedEx, UPS, and DHL – you can choose at checkout.

• Can I get technical support for wiring?

  Yes, our team provides free support via email or phone.

Selection Guide

• For long cable runs → choose the -L (long‑distance) version.
• For corrosive environments → choose the -3 (G3 coating) option.
• Need more channels? Look at the SDV541 (16‑channel).
• Always verify your load current and resistance within the specified range.
