Product details

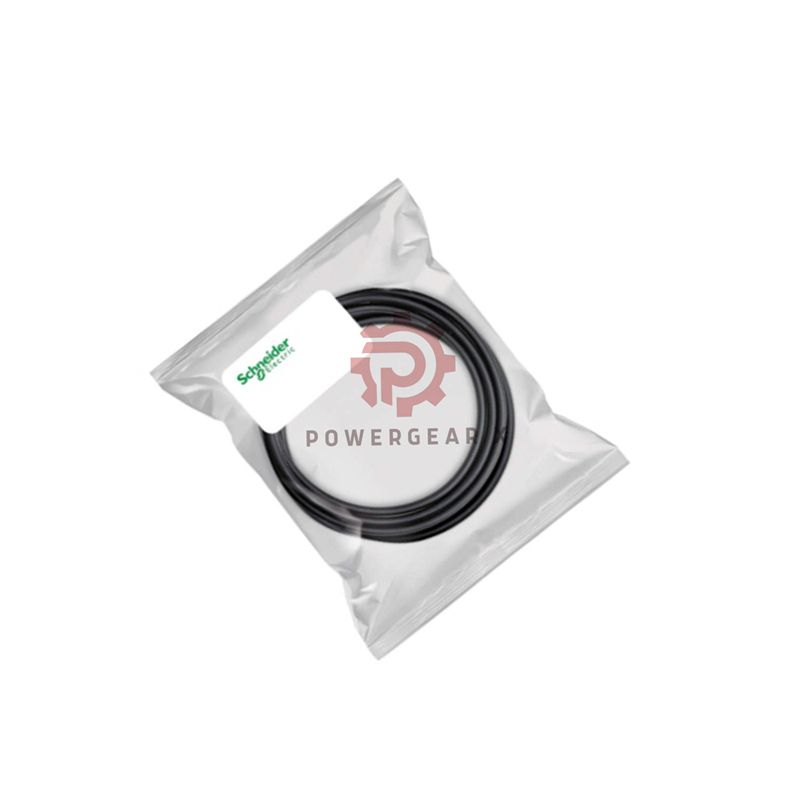

ABFS16H200 Modicon Quantum Connecting Cable
The ABFS16H200 is built for clean signal transfer.
It supports stable Analog I/O links.
The cable fits Modicon Quantum systems.
Product Identity
- Brand: Schneider Electric
- Series: Modicon Quantum
- Model: ABFS16H200
- Type: Connecting cable
- Author: Powergear X Automation
Signal and Cable Design
- Designed for Analog I/O signals
- Sixteen internal conductors
- Low noise signal transfer
- Shielded cable construction
Electrical Characteristics
- Rated current up to 2 A
- Rated voltage up to 250 V
- Stable performance under load
- AWG 22 wire size
Connector and Length Details
- Connector type HE-16
- Connector pitch 5 mm
- Cable length 2 meters
- Plug-and-play mounting
Environmental Capability
- Operating range from -20 to 60 °C
- Humidity tolerance up to 95%
- Non-condensing environments supported
- PVC insulation for durability
Compliance and Reliability
- RoHS compliant design
- Industrial-grade insulation
- Long service life
- Stable in control cabinets
Key Product Benefits
- Fast installation
- Clean wiring layout
- Reliable analog transmission
- Compatible with Quantum modules
Warranty and Shipping
- Warranty coverage: 12 months
- Shipping by FedEx
- Shipping by UPS
- Shipping by DHL
Professional FAQ
- Is this cable suitable for analog sensors?
- Yes. It supports stable analog signal paths.
- Can it be used in humid cabinets?
- Yes. It tolerates high humidity without condensation.
- Does shielding reduce signal noise?
- Yes. Shielding improves signal quality.
- Is special tooling needed for installation?
- No. The design supports quick plug-in use.
- How do I choose the correct cable length?
- Measure routing distance and add service slack.
