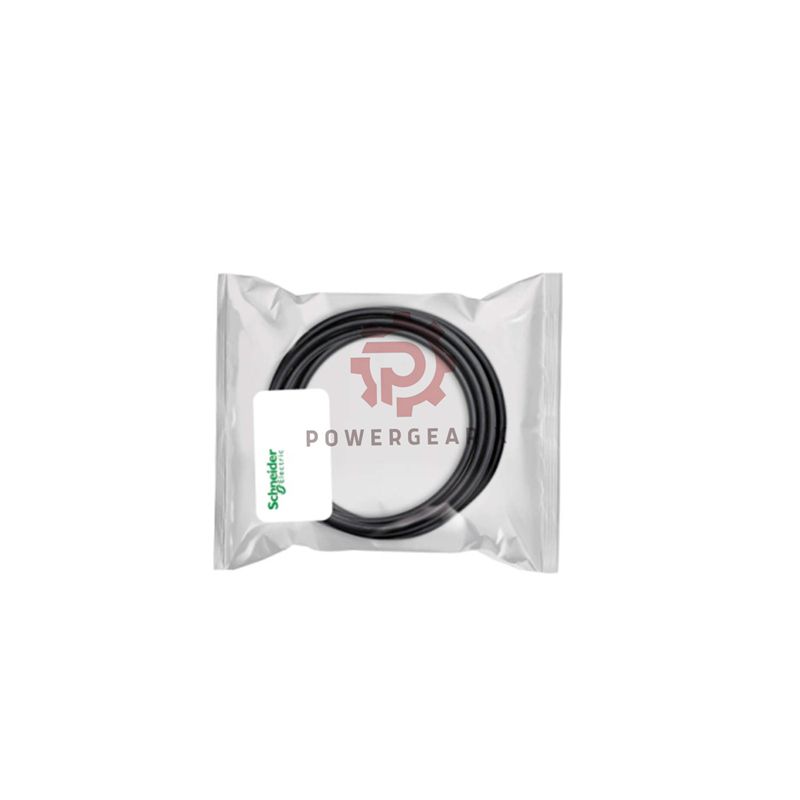

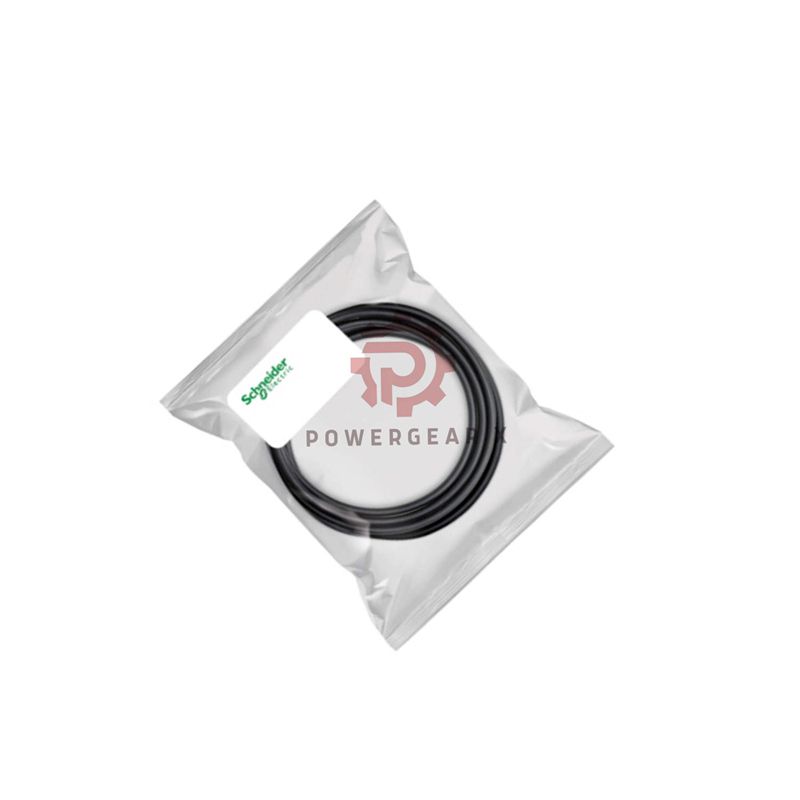

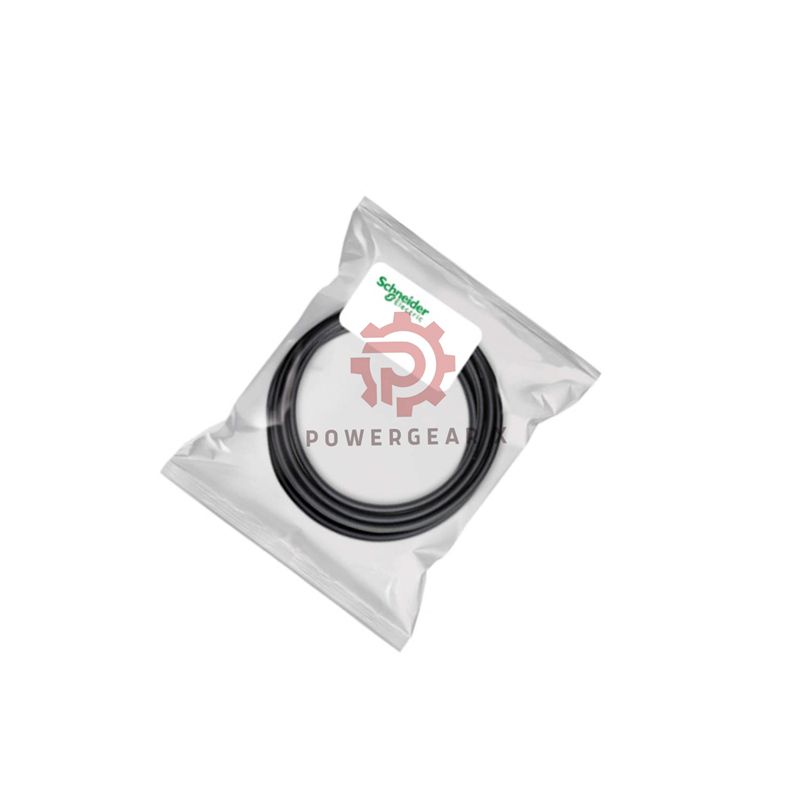

Schneider Electric ABFM04S201 Cable Connector
Powergear X Automation introduces the Schneider Electric ABFM04S201. This cabled connector is designed for Modicon Quantum PLC systems. It provides reliable analog signal output connections. The 6.6-foot cable offers flexible installation options. This connector ensures stable signal transmission in industrial environments.
Technical Specifications & Details
- Brand & Model: Schneider Electric ABFM04S201
- Product Line: Modicon Quantum Connection Accessories
- Product Type: Cabled Connector for Analog Output
- Compatible Module: 140ACO02000 Analog Output Module
- Number of Channels: 4 independent analog output channels
- Cable Length: 6.6 feet (2 meters)
- Connector Type: SUB-D 25-pin connector
- Wire Gauge: AWG 24 (0.22 mm² wire section)
- Current Rating: 1 Ampere maximum per channel
- Voltage Rating: 250 Volts maximum
- Operating Temperature: -20°C to +60°C (-4°F to 140°F)
- Insulation Material: PVC for durability and protection
- Cable Type: Multi-conductor shielded cable
- Number of Ways: 25 ways for complete connectivity
- Product Weight: 0.99 lbs (0.45 kg)
Key Features & Benefits
- Pre-Made Cable: Saves installation time with ready-to-use 6.6ft cable.
- Multi-Channel Support: Handles 4 analog outputs simultaneously.
- Industrial Grade: PVC insulation withstands harsh environments.
- Wide Temperature Range: Operates in both cold and hot conditions.
- Secure Connection: SUB-D connector ensures reliable contact.
- Perfect Compatibility: Designed specifically for Modicon Quantum PLCs.
Package Contents & Support
- One Schneider Electric ABFM04S201 cabled connector.
- Product documentation and compatibility guide.
- Warranty: 12-month manufacturer warranty included.
- Shipping: Worldwide delivery via FedEx, UPS, or DHL.
- Contact our team: sales@powergearx.com
- Call for assistance: +86 18030005825
Expert FAQ & Buying Guide
What PLC module is this cable connector compatible with?
- The ABFM04S201 is designed specifically for the Schneider Electric 140ACO02000 analog output module in Modicon Quantum systems.
Can I cut and splice this cable to make it shorter?
- We do not recommend modifying the cable. Cutting may affect signal integrity and void the warranty. Use the standard 6.6ft length as provided.
Is this cable shielded against electrical noise?
- Yes, it uses a multi-conductor shielded cable design. This helps protect analog signals from electromagnetic interference in industrial settings.
What type of signals can I transmit with this cable?
- It is designed for analog output signals, typically 4-20mA or 0-10V DC signals from the Quantum PLC to field devices.
Do I need any special tools to install this connector?
- No special tools are required. The SUB-D connector simply plugs into the compatible module. Ensure proper alignment before connecting.
