Product details
Precision Analog Input Module for Temperature Control

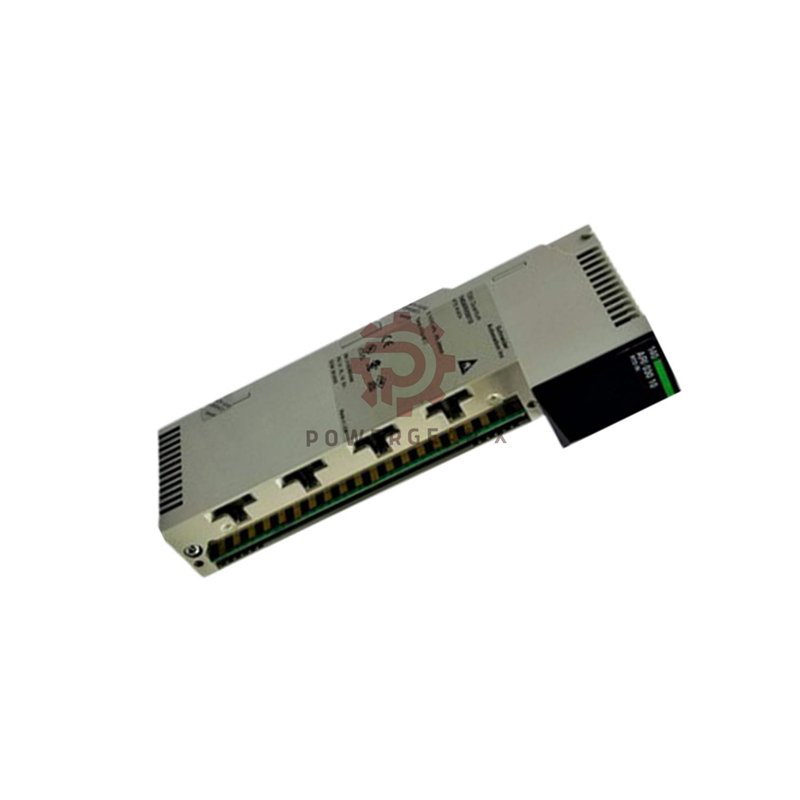

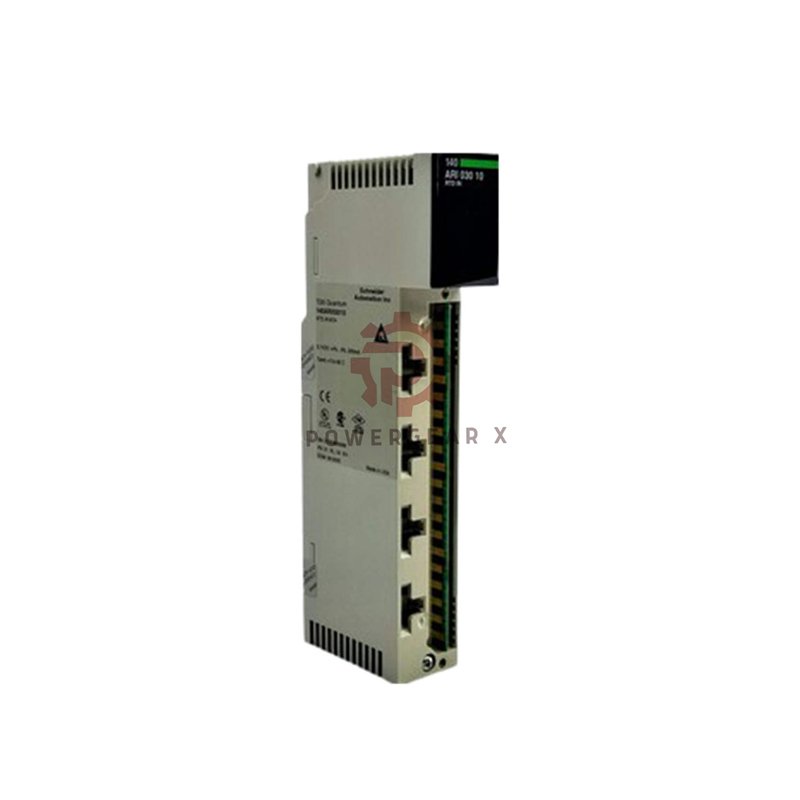

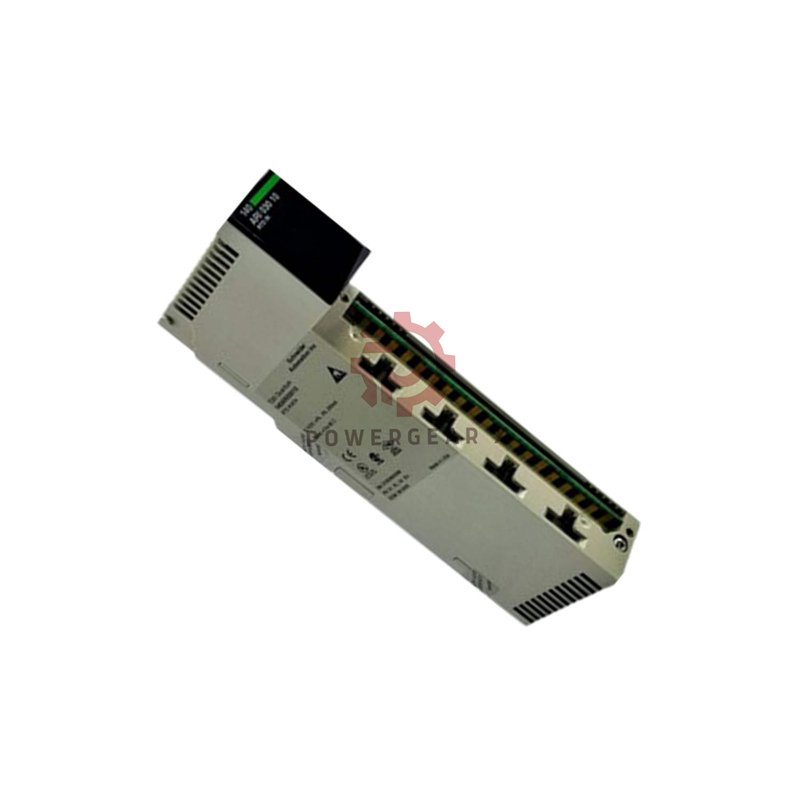

This is the Schneider Electric 140ARI03010C analog input module. It is for the Modicon Quantum series. The module reads temperature signals precisely. It has eight separate input channels. The 140ARI03010C is reliable for process monitoring.
Technical Specifications
- Brand & Model: Schneider Electric 140ARI03010C
- Product Line: Modicon Quantum Input Module
- Input Type: 8 Channel Differential Analog
- Resolution: High 13-bit measurement precision
- Sensor Support: Pt100, Pt200, Pt500, Pt1000, Ni100
- Temperature Range: -200°C to +850°C wide span
- Accuracy: +/- 0.1°C typical error
- Update Time: 640ms to 1200ms fast reading
- Isolation: 1780V AC channel to bus protection
- Input Impedance: >= 10 MOhm high impedance
- Power Use: Low 1 Watt power dissipation
- Bus Current: 200 mA required current
- Operating Temp: 0°C to 60°C environment
- Storage Temp: -40°C to 85°C safe storage
- Altitude: Up to 5000 meters operation
- Weight: Light 0.3 kg module weight
- Certifications: UL508, CSA, FM, CE approved
- Warranty: 12 months quality guarantee
Key Features
- Eight independent differential input channels
- High 13-bit resolution for precise readings
- Supports multiple RTD temperature probes
- Fast update rate for real-time monitoring
- Excellent isolation for safety and accuracy
- Low power consumption saves energy
- LED indicators for each channel status
- Broken wire detection for maintenance
- Wide operating temperature range
- Compact and lightweight design
LED Status Indicators
- One green LED for bus communication
- One red LED for external fault alert
- Eight green LEDs show active channels
- Eight red LEDs indicate channel faults
- Easy visual system status checking
Shipping & Service
- One 140ARI03010C input module unit
- Complete installation documents
- All mounting hardware included
- Secure protective packaging
- Package size: 31.0×16.5×5.0 cm
- Fast FedEx, UPS, DHL delivery
- Online tracking number provided
- 12 month product warranty
Expert Questions & Answers
What sensors work with this module?
It works with Pt100, Pt200, Pt500, Pt1000, Ni100, Ni200 RTDs. These are common temperature probes.
How accurate are the temperature readings?
It has +/- 0.1°C typical accuracy. This is excellent for process control.
What is the update time for readings?
Update time is 640ms for 2/4 wire sensors. It is 1200ms for 3 wire sensors.
How many wires per sensor are needed?
It supports 2-wire, 3-wire, and 4-wire connections. This offers wiring flexibility.
What is broken wire detection?
The module detects if a sensor wire breaks. This alerts you to maintenance needs.
