Schneider BMXXCAUSBH045 Programming Cable 4.5 m Modicon X80

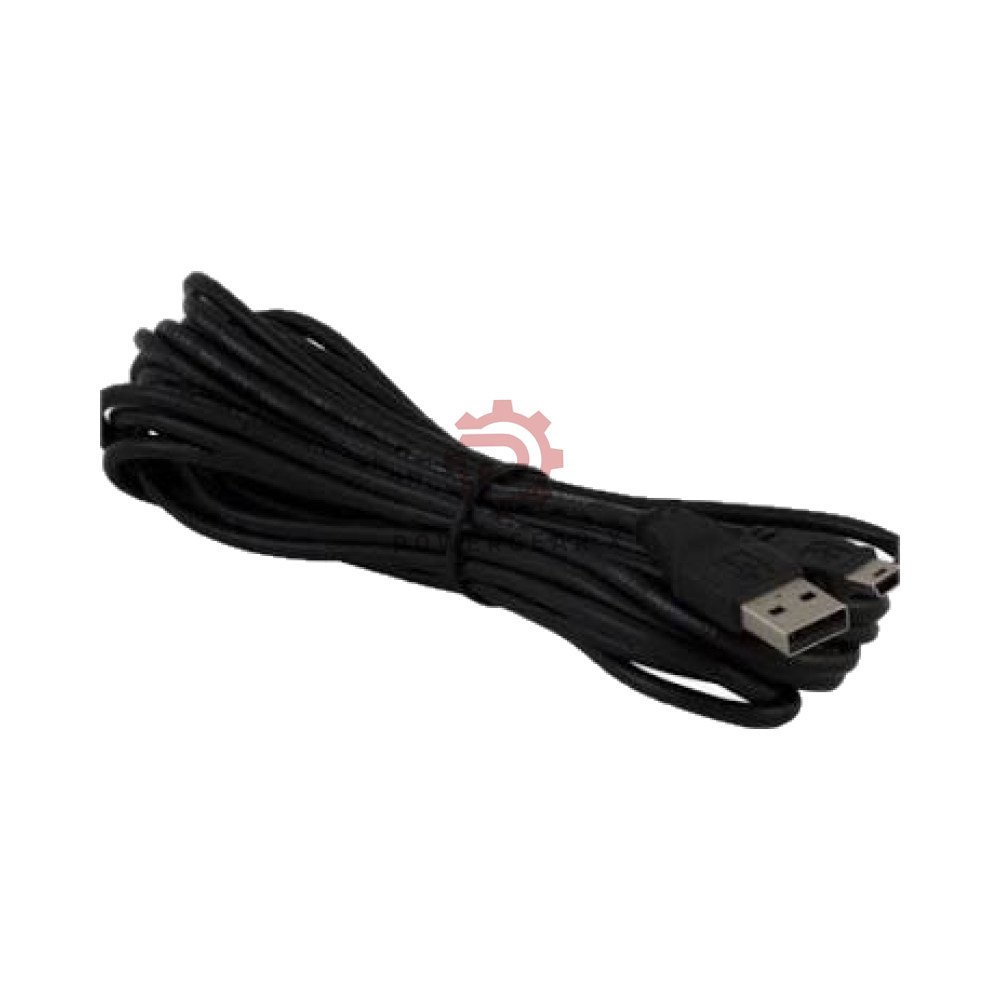

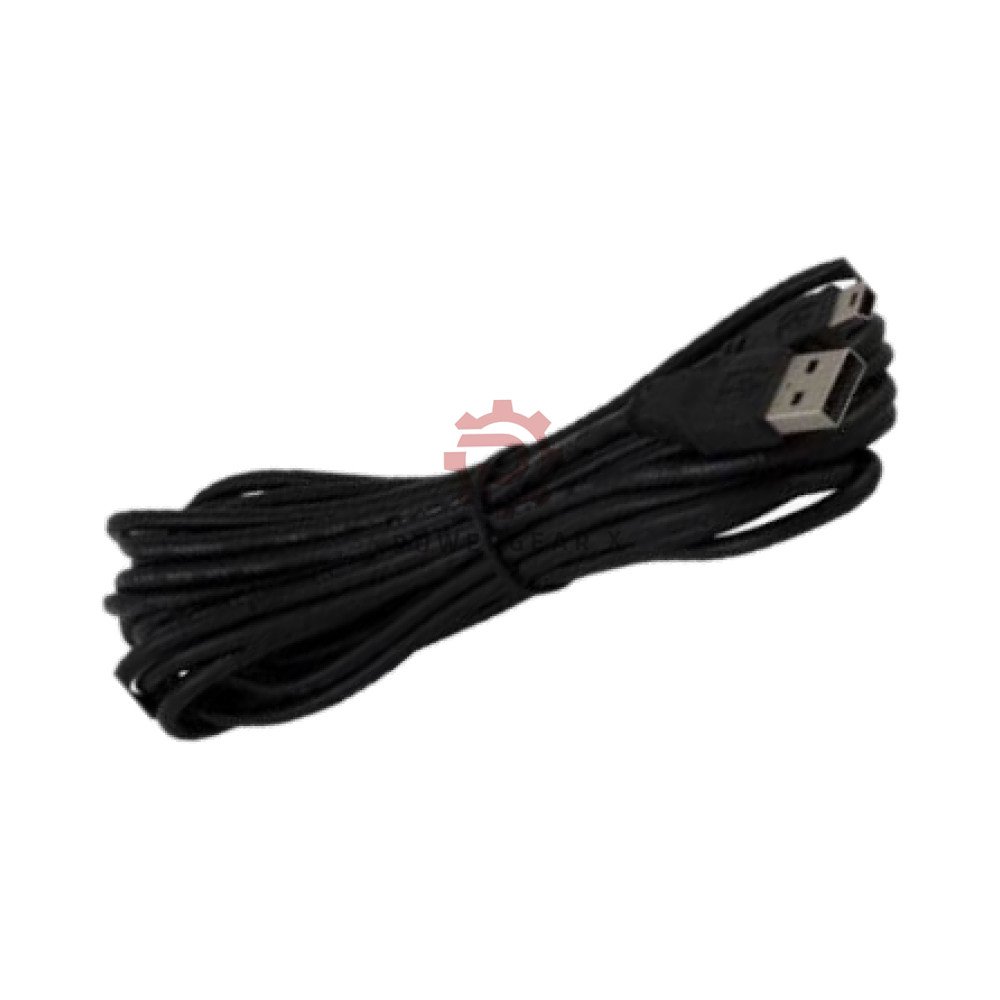

BMXXCAUSBH045 Modicon X80 USB Programming Cable for M340 and M580 CPUs

Need fast PC access to your Modicon controller? The BMXXCAUSBH045 cable links a computer to the Mini-B USB port on M340 and M580 CPUs. It supports programming, diagnostics, and commissioning. The 4.5 m length gives you room to work comfortably in the cabinet.

Why This Cable Matters

• Direct CPU connection: Plugs into the Mini-B USB port on M340 and M580 processors.
• PC friendly: Standard USB Type-A connector fits most laptops and desktop PCs.
• Extra reach: 4.5 m cable reduces the need to move your PC close to the rack.
• Active platform: Part of the shared Modicon X80 I/O platform for M340 and M580.
• Simple setup: No external power supply needed.

Technical Data

• Brand: Schneider Electric
• Model: BMXXCAUSBH045
• Series: Modicon X80
• Product type: USB programming cable
• Connector A: USB Type-A, connects to PC
• Connector B: Mini-B USB, connects to CPU
• Cable length: 4.5 m
• Function: PC to M340 or M580 CPU Mini-B USB port
• Use case: Programming, configuration, and diagnostics
• Lifecycle: Active
• Last verified: 2026-09
• Measurement range: Not applicable to this passive cable
• Frequency response: Not applicable
• Sensitivity: Not applicable
• Linearity: Not applicable
• Resolution: Not applicable
• Temperature range: Use in standard industrial control cabinet conditions
• Environmental tolerance: Keep away from moisture, oil, and extreme heat
• Noise immunity: Shielded construction supports stable data transfer in industrial settings

Installation Guide

• Power down the PLC rack before you connect the cable.
• Plug the USB Type-A end into your PC.
• Plug the Mini-B USB end into the CPU port.
• Check that both connectors sit firmly in place.
• Power up the rack and open your programming software.
• Select the correct COM port or USB driver in the software.

Setup and Maintenance Convenience

• Tool-free connection saves time during commissioning.
• Long cable lets you keep the PC outside the cabinet.
• Inspect the cable for cuts, bends, or loose connectors.
• Store the cable in a dry place when not in use.
• Replace the cable if data transfer becomes unstable.

Compatibility Notes

• Works with Schneider Electric Modicon M340 CPUs.
• Works with Schneider Electric Modicon M580 CPUs.
• Fits CPUs that have a Mini-B USB programming port.
• Belongs to the Modicon X80 shared I/O platform.
• Use with a PC that has a USB Type-A port.

Certifications and Standards

• Follows Schneider Electric quality and safety rules.
• Built for industrial automation environments.
• Meets standard USB data communication requirements.
• Contact us for specific certificate documents.

Packing List

• 1 x BMXXCAUSBH045 USB programming cable
• 1 x protective bag or box
• 1 x order confirmation or packing slip

Warranty and Shipping

• Warranty: 12 months
• Dispatch time: 12 to 24 hours after payment
• Couriers: FedEx, UPS, DHL
• Tracking: Sent as soon as the parcel leaves our warehouse
• Support: sales@powergearx.com or +86 18030005825

Expert Review

The BMXXCAUSBH045 is a practical choice for engineers who service M340 and M580 systems. It removes the hassle of short cables and unstable adapters. The 4.5 m length is a real benefit in large cabinets. The connectors are standard, so setup is quick. For routine programming and diagnostics, this cable does the job without fuss.

Manager’s Insight

Stock this cable with Modicon M340 and M580 CPU spares. It is a low-risk item that supports commissioning and maintenance. The active lifecycle status means it remains a valid part for current projects. Keep a few units on hand for urgent site needs.

Best Fits and Applications

• Modicon M340 PLC programming
• Modicon M580 PLC programming
• Factory automation cabinets
• Commissioning and startup work
• Diagnostics and troubleshooting
• Education and training labs
• System integration projects

FAQ

• Q: What is the BMXXCAUSBH045 used for?
  A: It connects a PC to the Mini-B USB port on M340 and M580 CPUs.
• Q: How long is the cable?
  A: It measures 4.5 m.
• Q: Does it need external power?
  A: No, it draws power from the USB port.
• Q: Which end goes to the PC?
  A: The USB Type-A end goes to the PC.
• Q: Which end goes to the CPU?
  A: The Mini-B USB end goes to the CPU.
• Q: Can I use it with other PLC brands?
  A: It is designed for Schneider Electric Modicon M340 and M580 CPUs.
• Q: What if my PC does not detect the cable?
  A: Install the correct USB driver and check the COM port setting.
• Q: How do I know the cable is faulty?
  A: Try another PC or cable. If the fault follows the cable, replace it.
• Q: Do you ship fast?
  A: Yes, we dispatch in 12 to 24 hours via FedEx, UPS, or DHL.
• Q: What is the warranty?
  A: It comes with a 12 month warranty.
• Q: How do I contact support?
  A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.

Buying Guide

• Check your CPU model before you order.
• Confirm the CPU has a Mini-B USB port.
• Measure the distance from your PC to the rack.
• Choose this 4.5 m cable for extra reach.
• Order a spare for critical sites.
• Contact us for bulk pricing or urgent requests.
