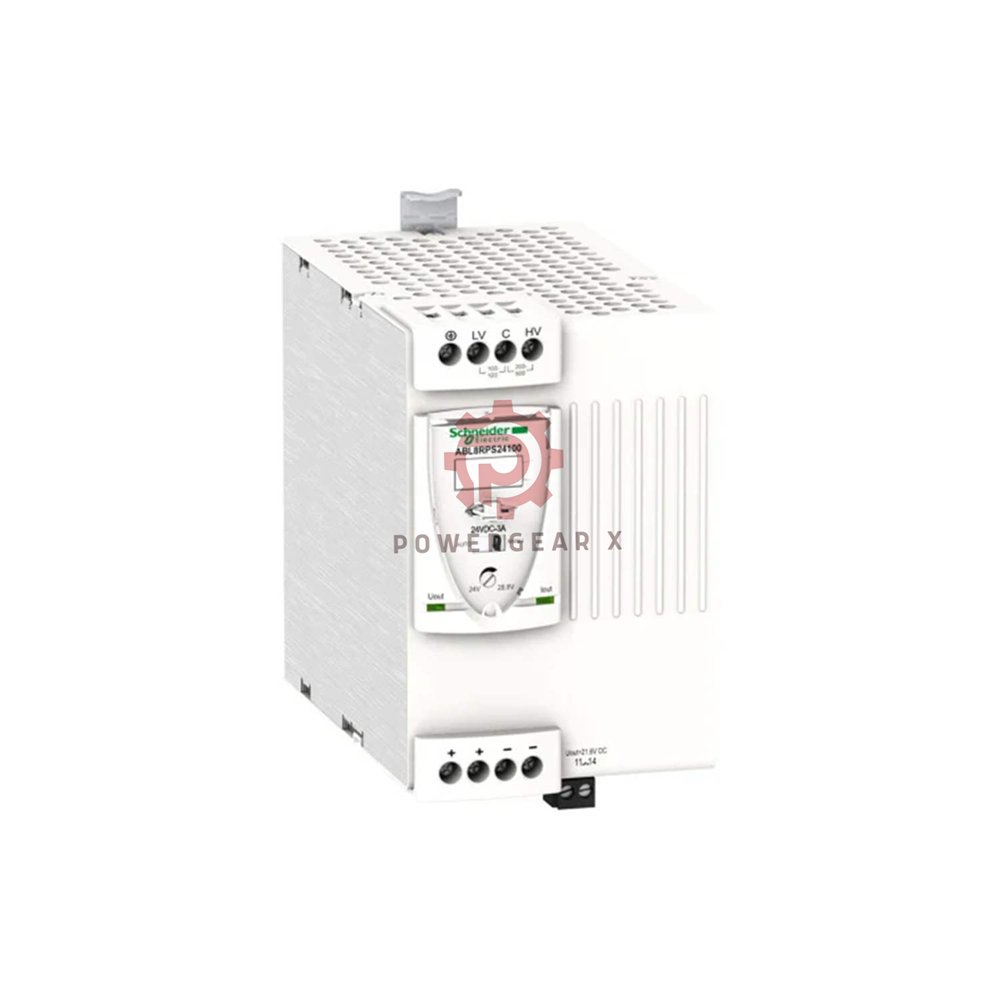

Schneider ABL8RPS24100 Modicon 240W Regulated Switch Mode Supply

ABL8RPS24100 Schneider Electric Modicon Universal Power Supply

The ABL8RPS24100 from Schneider Electric is a regulated switch mode power supply. It belongs to the Modicon Power Supply range. This unit turns AC input into stable 24 V DC output. It suits many industrial automation tasks. The module delivers up to 240 W and 10 A. It works well in control cabinets and machine panels.

Product Description

• Brand: Schneider Electric
• Model: ABL8RPS24100
• Series: Modicon Power Supply
• Type: Regulated switch mode power supply
• Function: Converts AC power to stable 24 V DC
• Best for: Industrial control, PLC systems, sensors, relays
• Design: Compact, DIN rail mountable, vertical operation
• Reliability: Built for continuous duty in factory environments

Technical Specifications

• Brand: Schneider Electric
• Model: ABL8RPS24100
• EAN: 3389119405621
• Product Line: Modicon
• Module Name: Universal Power Supply
• Power Supply Type: Regulated Switch Mode
• Nominal Input Voltage: 100 to 120 V AC single phase N-L1; 200 to 500 V AC phase to phase L1-L2
• Input Voltage Limits: 170 to 550 V AC; 85 to 132 V AC
• Power Rating: 240 Watt
• Output Voltage: 24 V DC
• Output Voltage Adjustment: 24 to 28.8 V adjustable
• Output Current: 10 A
• Permissible Temporary Current Boost: 1.5 x In for 4 s
• Inrush Current: 30 A
• Power Factor: 0.68 at 240 V AC; 0.69 at 120 V AC
• Efficiency: 87 percent at full load
• Power Dissipation: 31 W
• Anti-harmonic Filter: Low frequency harmonic currents
• Provided Equipment: Power factor correction filter IEC 61000-3-2
• Output Coupling: Parallel and series
• Status LED: One green and red LED for output voltage; one green, red and orange LED for output current
• Depth: 145 mm (5.7 in)
• Height: 125 mm (4.9 in)
• Width: 86 mm (3.4 in)
• Net Weight: 1 kg (2.2 lb)

Protection and Safety

• Overload Protection: Manual or automatic reset
• Overvoltage Protection: 30 to 32 V, manual reset
• Short Circuit Protection: Manual or automatic reset
• Undervoltage Protection: Trips if U is below 21.6 V
• Thermal Protection: Automatic reset
• Dielectric Strength: 3500 V input to ground; 4000 V input to output; 500 V output to ground
• Supply: SELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41

Environment and Immunity

• Standards: UL 508, CSA C22.2 No 60950-1, EN/IEC 62368-1
• Certifications: CCSAus, EAC, KC, RCM, UL
• EMC: IEC 61000-6-1, IEC 61000-6-3, EN 55024, IEC 61000-6-4, EN/IEC 61204-3
• Safety: IEC 60950-1, EN/IEC 61204-3
• Operating Altitude: Up to 2000 m (6561.68 ft)
• IP Degree: IP20 conforming to IEC 60529
• Ambient Air Temperature for Operation: -25 to 50 degrees C without derating; 50 to 60 degrees C with derating factor

Installation Guide

• Mount on 35 x 7.5 mm or 35 x 15 mm symmetrical DIN rail.
• Use vertical operating position for best heat release.
• Connect input with screw terminals for 0.5 to 4 mm squared wire.
• Connect output with screw terminals for 0.5 to 4 mm squared wire.
• Use separate ground terminals for input and output.
• Keep enough space around the unit for airflow.
• Check LED status after power up.

Setup and Maintenance Convenience

• Removable screw terminal blocks speed up wiring.
• Diagnostic relay helps with quick fault finding.
• Manual or automatic reset reduces downtime.
• LED indicators show output voltage and current status.
• Adjustable output voltage supports fine tuning.
• Parallel and series output coupling add flexibility.

Compatibility Notes

• Works with Modicon PLC systems and many industrial controls.
• Supports sensors, relays, transmitters, and small drives.
• Fits standard DIN rail cabinets and machine panels.
• Parallel connection can increase output current.
• Series connection can raise output voltage.

Expert Review

The ABL8RPS24100 is a solid choice for factory automation. It offers wide AC input and stable 24 V DC output. The 10 A rating covers many PLC and sensor loads. The unit is compact and easy to mount. Protection features are strong. The LED indicators and diagnostic relay help service teams. The adjustable output is useful for voltage drop compensation. The wide temperature range supports demanding sites. This model is a reliable workhorse for control panels.

Manager’s Insight

This power supply fits projects that need a trusted brand and long service life. The Modicon series is well known in industrial circles. The ABL8RPS24100 balances power, size, and safety. It is a smart pick for system integrators and maintenance teams. Stock one or two spare units to cut downtime. The 12 month warranty and fast shipping make it easy to standardize across many machines.

Best Applications and Equipment

• PLC control cabinets
• Machine tool panels
• Process automation skids
• Building management systems
• Sensor and relay power rails
• Industrial communication gateways
• Test benches and lab racks
• Packaging and material handling lines

FAQ

Q: What is the output voltage of this unit?

A: It gives 24 V DC. You can adjust it from 24 to 28.8 V.

Q: How much current can it deliver?

A: It delivers 10 A. It also supports a short boost of 1.5 times the rated current for 4 seconds.

Q: Can I use it with a 120 V AC supply?

A: Yes. It accepts 100 to 120 V AC single phase. It also accepts 200 to 500 V AC phase to phase.

Q: Does it come with DIN rail mounting?

A: Yes. It mounts on 35 x 7.5 mm or 35 x 15 mm symmetrical DIN rail.

Q: What protection does it offer?

A: It protects against overload, overvoltage, short circuits, undervoltage, and heat.

Q: What is the operating temperature range?

A: It runs from -25 to 50 degrees C without derating. From 50 to 60 degrees C, derating applies.

Q: Is this unit suitable for parallel operation?

A: Yes. It supports parallel output coupling for higher current.

Q: How fast do you ship?

A: We ship in 12 to 24 hours. We use FedEx, UPS, and DHL.

Q: What is the warranty period?

A: We offer a 12 month warranty.

Q: Can I get help choosing the right power supply?

A: Yes. Contact our team at sales@powergearx.com or +86 18030005825. We will help you match load, voltage, and mounting needs.

Buying Guide

• Check total load current. Add a safety margin of 20 to 30 percent.
• Confirm input voltage available at your site.
• Check cabinet space and DIN rail type.
• Pick a unit with enough output adjustment for cable drops.
• Look for strong protection features for harsh areas.
• Choose a trusted brand for long term support.
• Order spare units to avoid line stops.
• Ask our team for a free selection check.

Packing List and Warranty

• One ABL8RPS24100 power supply module
• One quick start guide
• Protective packing
• 12 month warranty
• Shipping in 12 to 24 hours
• Courier options: FedEx, UPS, DHL
