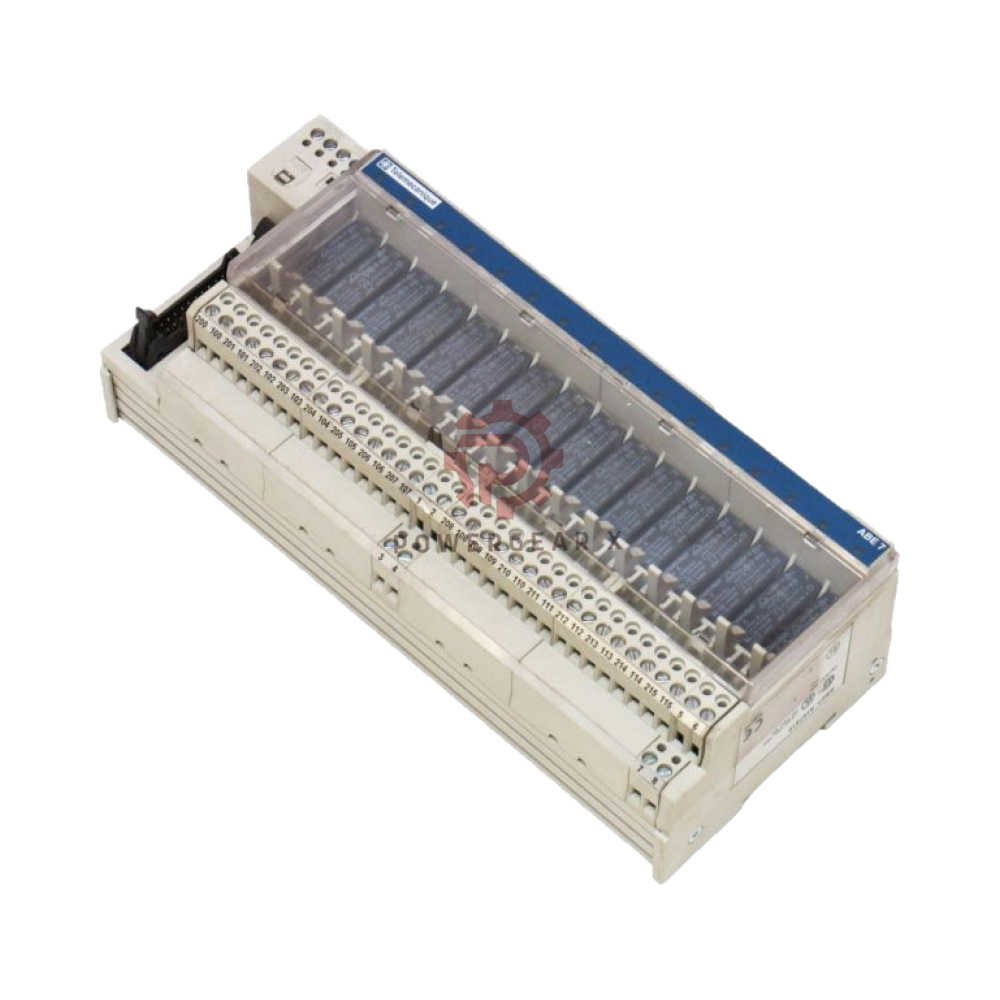

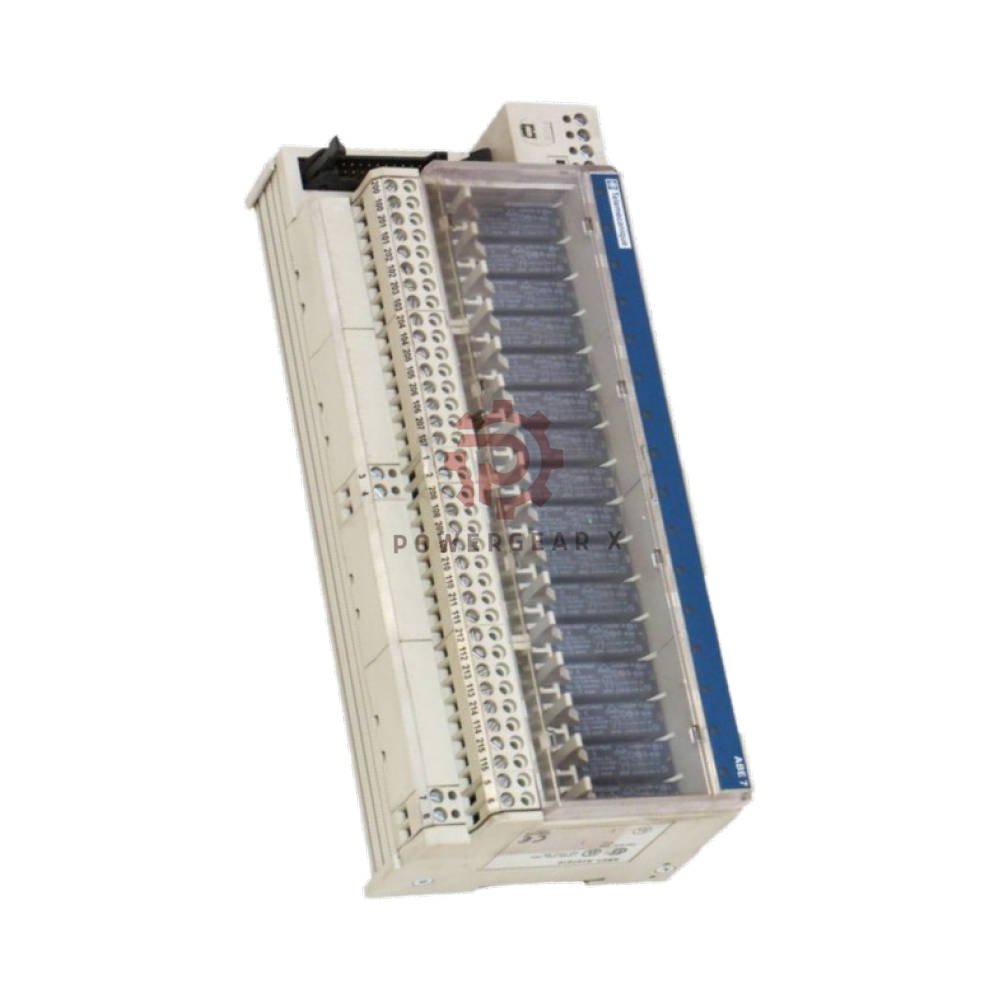

Schneider ABE7 ABE7R16T210 16-Channel Relay Board 24V DC Telefast Base

ABE7R16T210 – Schneider Electric Telefast 16-Channel Relay Sub-Base

Wire 16 devices in one compact block. The ABE7R16T210 from Schneider Electric saves panel space. It belongs to the ABE7 Telefast range. Each channel has a plug-in relay. The coil runs on 24 V DC. This unit fits fast and works hard.

Channel Layout

• Number of channels
  • 16
• Contact type
  • 1 CO (SPDT) per channel
• Contact rating
  • 5 A / 250 V AC
• Coil voltage
  • 24 V DC
• Protection
  • 1 A internal fuse per channel
  • LED status light on each path

Environment

• Operating temperature
  • -5 to 60 °C
• Protection rating
  • IP2X

Build & Mounting

• Mounting
  • 35 mm DIN rail
  • Screw mount option
• Dimensions (H×W×D)
  • 88 × 200 × 71 mm
• Weight
  • 0.735 kg
• Wire cross-section
  • 0.14–2.5 mm² solid
  • 0.09–1.5 mm² flexible

Relay Life

• Mechanical life
  • 10,000,000 cycles
• Electrical life
  • 100,000 cycles (AC-15)

Lifecycle

• Status
  • Active
  • In production, Telefast ABE7 range
  • Last verified: 2026-09

Expert Review

This sub-base is a time saver. You get 16 relays in one block. The plug-in design means fast swaps. The LED per channel helps you find faults quick. The fuse per channel adds safety. It is built for busy panels. For machine builders, this is a smart buy.

Manager’s Insight

Stock this unit if you build or fix control panels. It cuts wiring time. It fits standard DIN rails. The 24 V DC coil matches most PLC outputs. Order now, we ship in 12–24 hours.

Best For

• PLC output panels
• Machine control cabinets
• Process automation
• Building systems
• Test benches

FAQ

Q: Can I replace one relay without removing the base?

A: Yes. Each relay plugs in. Pull it out and push in a new one.

Q: What wire size fits best?

A: Use 0.5 to 1.5 mm² for most jobs. It is easy to work with.

Q: Does the LED show coil or contact status?

A: It shows coil status. That helps you check the signal fast.

Q: How do I know the fuse blew?

A: The channel stops working. Test the fuse with a meter. Then swap it.

Q: What is the warranty?

A: We give 12 months.

Q: How fast is delivery?

A: We send orders in 12–24 hours. We use FedEx, UPS, or DHL.

Buying Advice

• Count your output channels first.
• Check your PLC coil voltage is 24 V DC.
• Buy spare relays for long jobs.
• Ask us for volume pricing.
