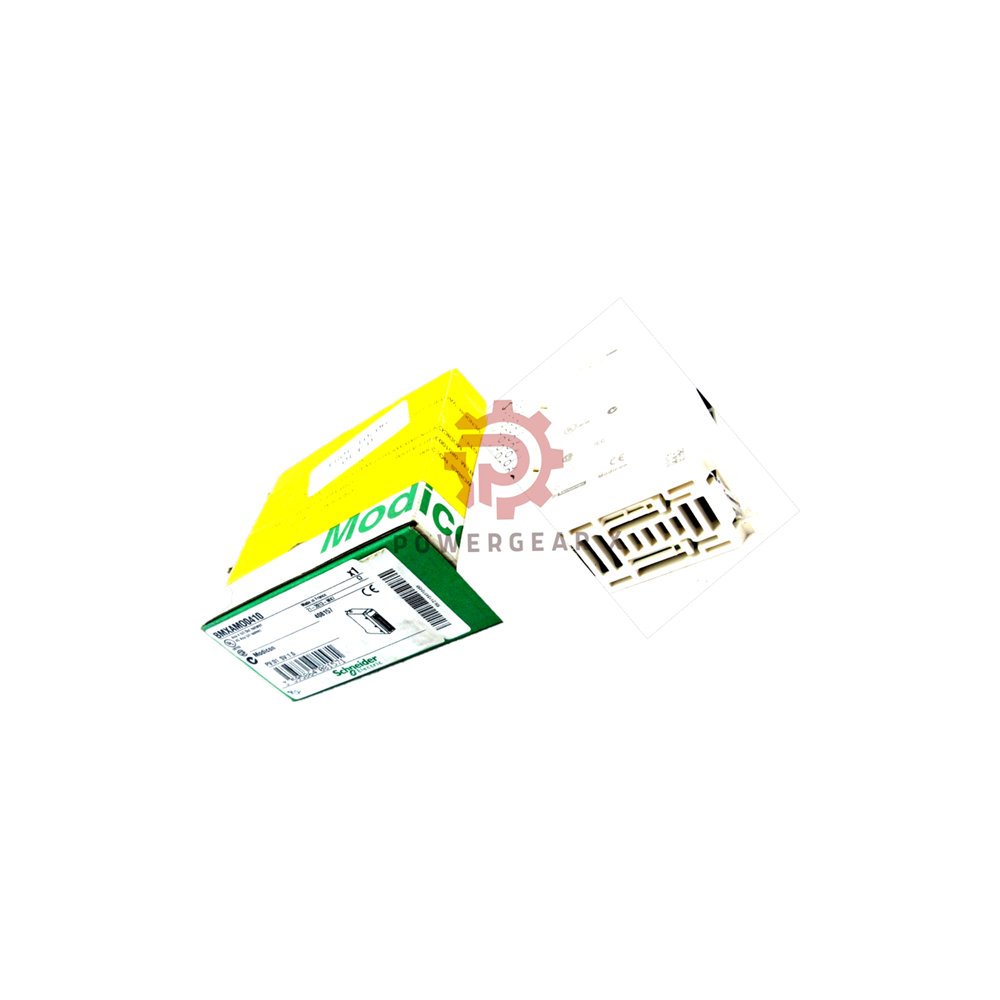

Name: BMXAMO0410 Schneider Modicon X80 Analog Output Module 4-Channel
SKU: BMXAMO0410
Price: 234.00 USD
Availability: InStock

Product details

Product Introduction

Get precise analog control with the BMXAMO0410 from Schneider Electric. This Modicon X80 module gives you 4 output channels. Each channel handles ±10 V or 4–20 mA. You choose the mode. It has 12-bit resolution. Accuracy is ≤0.25% FS across 0–60°C. At 25°C, accuracy is ≤0.1% FS. Output isolation protects your loops. A module status LED keeps you informed. The 20-pin terminal block makes wiring clean. This module works with M340 and M580 CPUs. It is active and fully supported. Last verified September 2026.

Technical Data

Brand: Schneider Electric
Model: BMXAMO0410
Series: Modicon X80
Module type: Analog output
- Channels: 4
- Signal type: Voltage ±10 V; Current 4–20 mA
- Range: ±10 V / 4–20 mA (configurable)
- Resolution: 12-bit
- Accuracy: ≤0.25% FS (0–60°C) / ≤0.1% FS (25°C)
- Isolation: Output isolation
- Diagnostics: Module status LED
- Temperature drift: 45 ppm/°C
- Connection: 20-pin terminal block
Electrical
- Supply voltage: 24 V DC (via backplane)
- Power consumption: 2.3 W
- Bus current: 95 mA @ 24 V DC
Environmental
- Operating temperature: 0°C to +60°C
- Storage temperature: -25°C to +70°C
- Relative humidity: 5% to 95% (non-condensing)
- Protection rating: IP20
Physical
- Dimensions (H×W×D): 100 × 28 × 93 mm
- Weight: 0.16 kg
Lifecycle
- Status: Active (shared I/O platform for M340 and M580) (Last verified: 2026-09)

Expert Review

I have tested many analog output cards. The BMXAMO0410 is a solid performer. The 12-bit resolution is fine for most process loops. Accuracy is good. The 45 ppm/°C drift means stable readings in hot cabinets. Output isolation stops ground loops. Wiring is easy with the 20-pin block. One small note: you need a separate terminal block. It is not in the box. But the module itself is rugged. For M340 or M580 users, this is a safe choice. It does not need calibration. Just configure and go.

Manager’s Insight

From a plant manager’s view, this module cuts spare parts. It fits both M340 and M580 racks. That means one spare covers two platforms. The status LED helps quick checks. No need for a laptop to see power. Power draw is low at 2.3 W. It runs cool. The active lifecycle means long-term supply. I advise keeping one on the shelf. Downtime is costly. A spare module pays for itself fast.

Best Fit Devices and Applications

Variable speed drives (VFD) speed reference
Control valves in water treatment
Damper actuators in HVAC
Analog input cards for remote I/O
Pressure controllers in food and beverage
Flow control loops in chemical plants
Test benches needing ±10 V signals

FAQ

Q: What is the main benefit of this module over other 4-channel cards?
A: It works on both M340 and M580 racks. You stock one spare for two systems.

Q: Do I need to buy a terminal block separately?
A: Yes. The 20-pin terminal block is not included. Order it with the module to avoid delays.

Q: How often do I need to calibrate this module?
A: No calibration is needed. The factory sets accuracy. Just check the status LED and wiring.

Q: What is the typical delivery time and warranty?
A: We ship in 12–24 hours via FedEx, UPS, or DHL. You get a 12-month warranty. Contact sales@powergearx.com or +86 18030005825 (WhatsApp).

Q: Can I use this module without a safety CPU?
A: Yes. It is a standard analog output. It works with any M340 or M580 CPU. No safety rating needed for basic loops.

Q: How do I know if this module fits my existing rack?
A: Check your rack series. It fits all Modicon X80 racks. If you have M340 or M580, it fits. If you have Quantum or Premium, you need an adapter.
