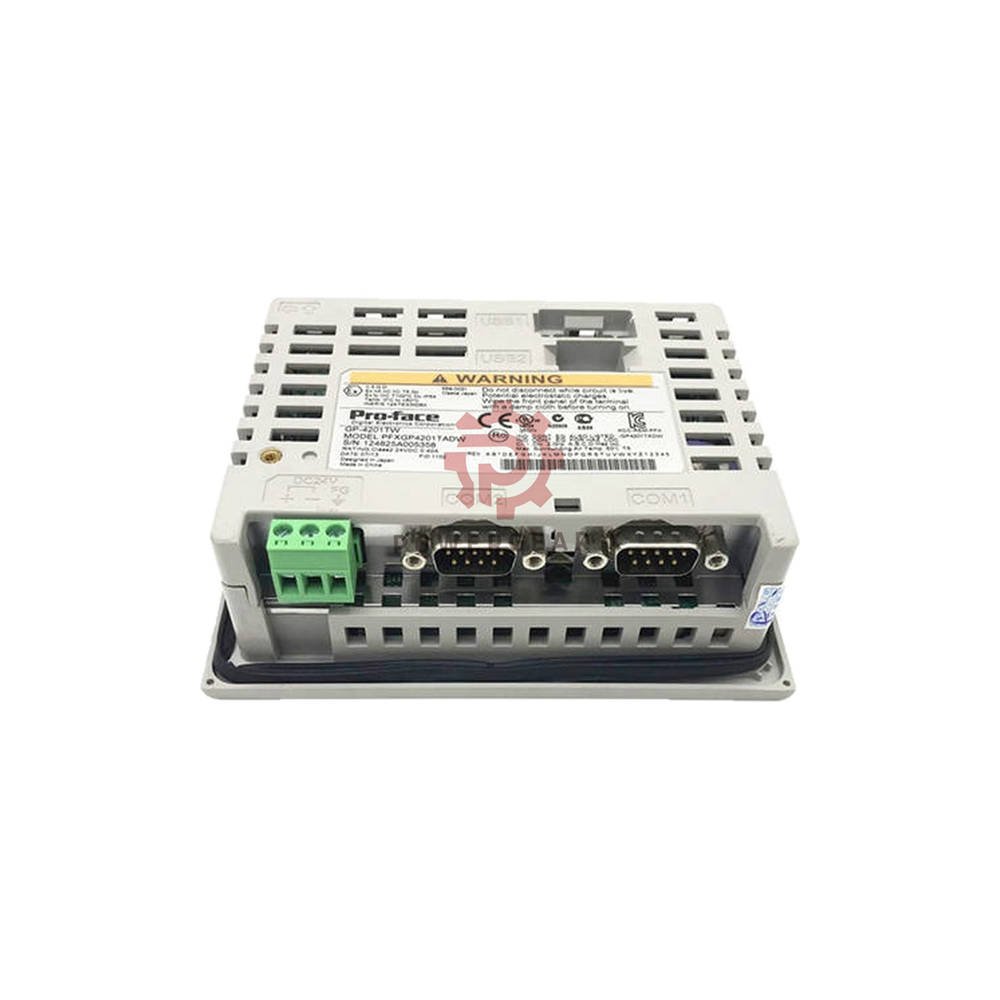

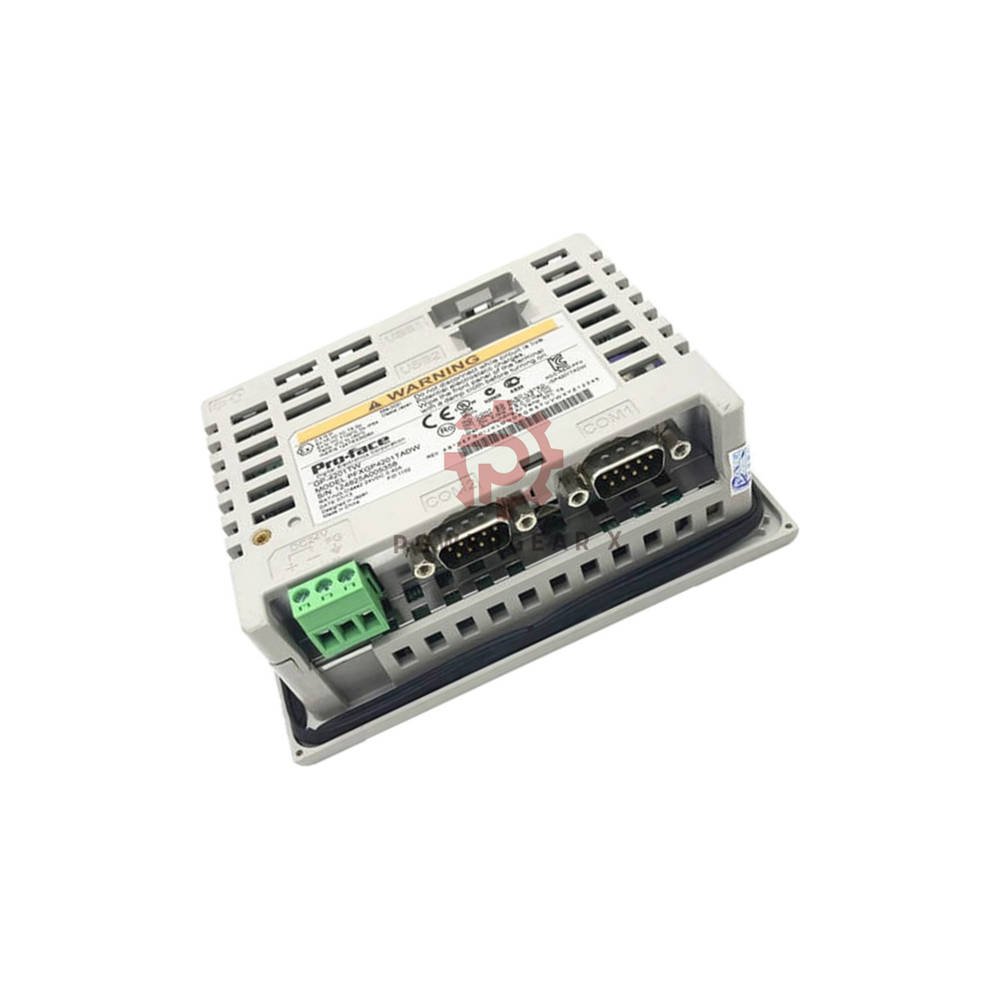

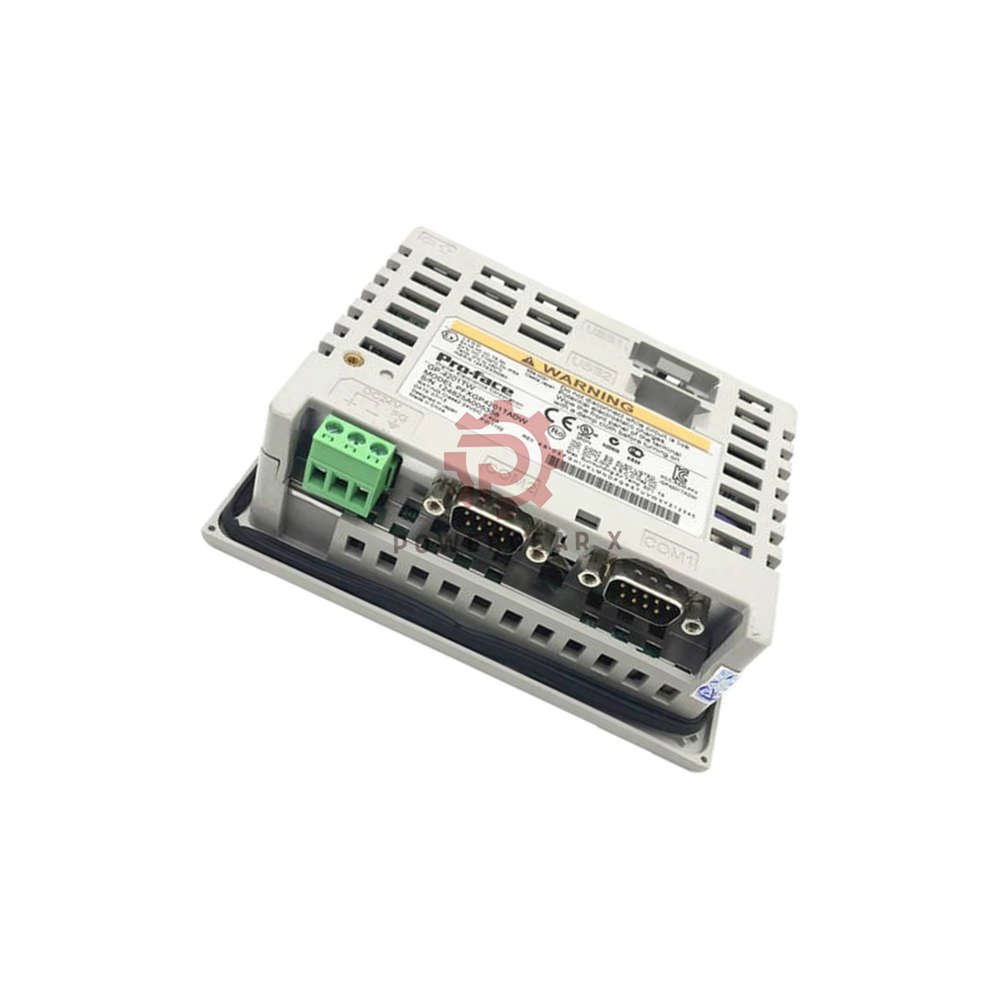

PFXGP4203TAD – 3.5″ TFT Color LCD HMI
PFXGP4203TAD from Powergear X Automation is a compact, isolated HMI for demanding industrial environments. It features a bright 3.5-inch TFT color display with 65,536 colors and a long-life white LED backlight (50,000 hrs). The resistive touch panel is rated for 1,000,000 actuations. This unit operates on 24 Vdc and withstands 1,000 Vac isolation. It supports multiple languages including Japanese, Korean, and Chinese. Designed for panel mounting, it fits tight spaces.
Technical Data
- Brand: Powergear X Automation
- Model: PFXGP4203TAD
- Series: GP4000 Series
- Display: 3.5″ TFT Color LCD (320×240 QVGA)
- Colors: 65,536 (no blink) / 16,384 (blink)
- Brightness Control: 16 levels (touch or software)
- Touch Panel: Resistive film, 1,024 x 1,024 resolution
- Touch Lifetime: 1,000,000 operations
- Fonts: Japanese, ANK, Korean, Chinese, Thai, Cyrillic
- Character Sizes: 8×8 to 32×32 pixels; stroke fonts 6-127 pt
- Rated Voltage: 24 Vdc (19.2 to 28.8 Vdc range)
- Power Consumption: ≤9.6 W
- In-rush Current: ≤30 A
- Noise Immunity: 1,000 Vp-p, 1 µs pulse
- Voltage Endurance: 1,000 Vac for 1 min
- Insulation Resistance: 500 Vdc, ≥10 MΩ
- Operating Temp: 0 to 50 °C
- Storage Temp: -20 to +60 °C
- Humidity: 10 to 90% RH (non-condensing)
- Dust: ≤0.1 mg/m³ (non-conductive)
- Pollution Degree: 2
- Corrosive Gases: Free
- Altitude: ≤2,000 m
- Vibration: IEC/EN 61131-2 (5-9 Hz: 3.5 mm, 9-150 Hz: 9.8 m/s²)
- Shock: 147 m/s², 3 times each axis
- ESD Immunity: 6 kV contact (Level 3)
Applications & Compatibility
- Ideal for: Small machinery, packaging, textile, and food processing.
- Compatible with: Most PLCs via serial or Ethernet (Proface, Mitsubishi, Siemens).
- Mounting: Panel cutout, easy clip installation.
- Debug & Maintenance: USB port for fast upload/download. Diagnostic LEDs.
- Certifications: CE, UL, RoHS compliant.
Expert Review / Manager’s Insight
Industrial HMI Specialist: The PFXGP4203TAD offers a perfect balance of size and performance. Its isolated power supply and robust ESD protection make it reliable in noisy factories. The 50,000-hour LED backlight reduces maintenance. For OEMs, the wide temperature range and vibration resistance ensure long life. A top pick for compact control panels.
Package & Warranty
- Package Includes: HMI unit, mounting gasket, installation screws, and quick-start guide.
- Warranty: 12 months against defects.
- Shipping: Ships in 12-24 hours via FedEx, UPS, or DHL.
Frequently Asked Questions (FAQ)
- Q: Can I use this HMI outdoors?
- A: No. It is rated for indoor use (0 to 50 °C).
- Q: Is the backlight user-replaceable?
- A: No. Contact your distributor for replacement.
- Q: Does it support multi-language?
- A: Yes. Japanese, English, Korean, Chinese, Thai, and Cyrillic.
- Q: What is the touch panel lifetime?
- A: Over 1,000,000 touches.
- Q: Which communication protocols are supported?
- A: It supports most major PLC protocols via optional adapters.
- Q: How do I adjust brightness?
- A: Via touch panel or software (16 levels).
Selection Guide
Choose PFXGP4203TAD if you need a 3.5″ HMI with galvanic isolation, high ESD protection, and a wide operating temperature. Ideal for applications with voltage fluctuations. For larger screens, consider GP4000 series 7″ or 10″ models.
