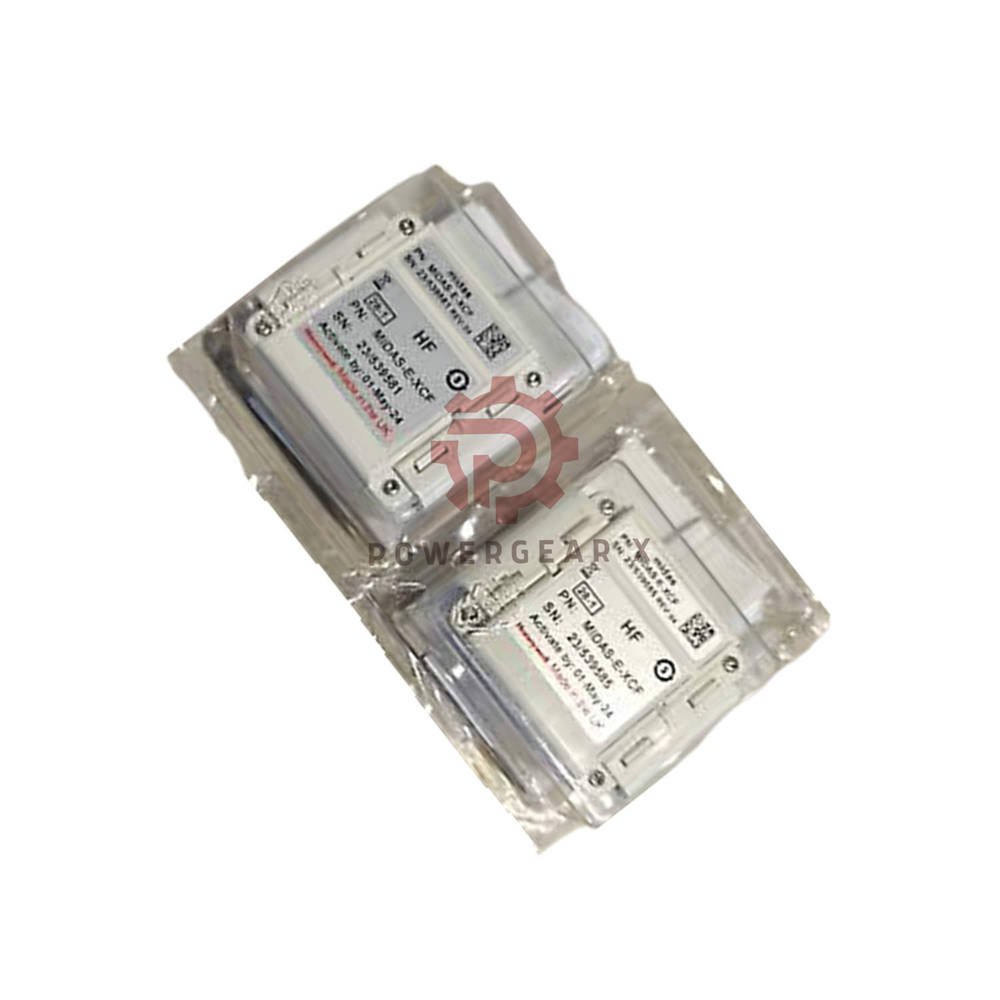

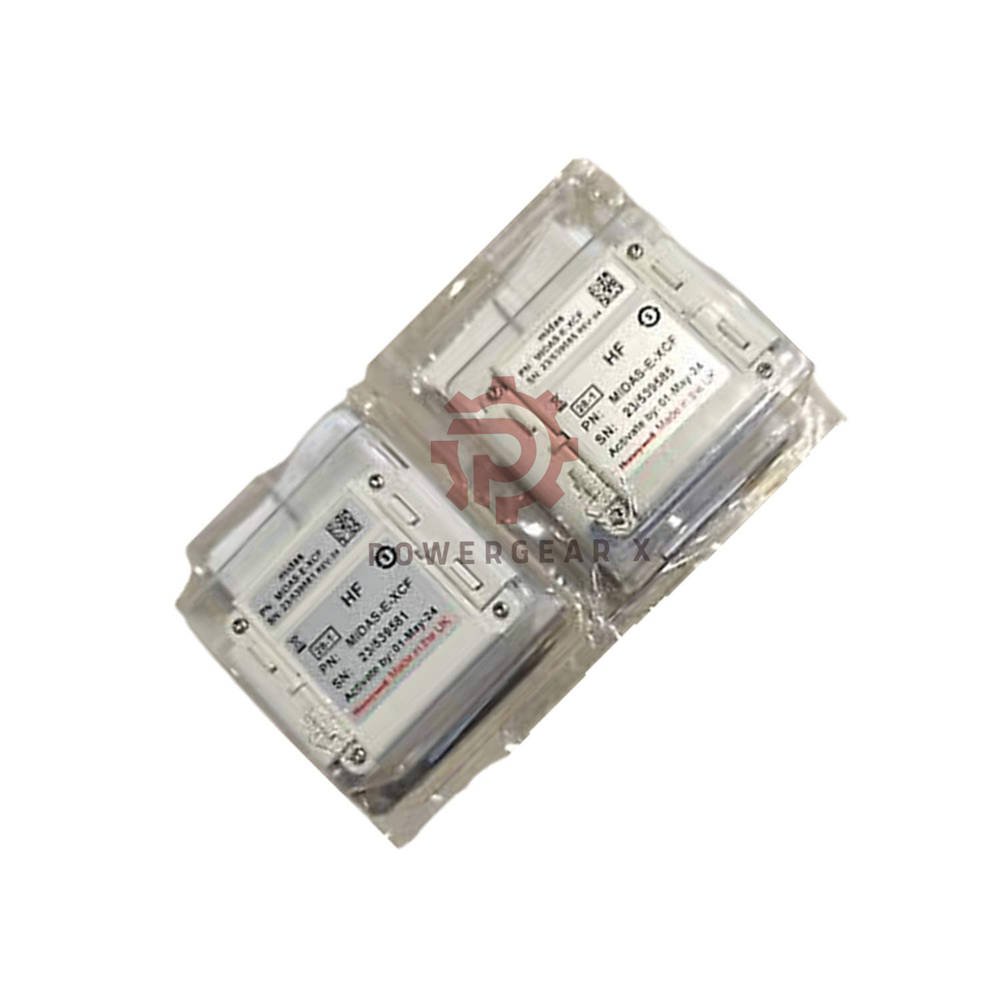

MIDAS-E-XCF Hexafluorobutadiene (C4F6) Gas Sensor Cartridge
MIDAS-E-XCF is an electrochemical gas sensor cartridge for hexafluorobutadiene detection. It delivers dependable ppm-level monitoring in industrial safety systems. The cartridge fits MIDAS gas detectors and supports continuous C4F6 leak detection in semiconductor and specialty gas sites.
This sensor uses a 3 electrode electrochemical cell. It measures C4F6 from 0 to 40ppm with a 1.7ppm lower detection limit. Response time reaches ≤ 45 seconds. Cartridge life expectancy is ≥ 12 months under typical conditions.
For stock and pricing: sales@powergearx.com or +86 18030005825.
Key Technical Data
- Brand: Powergear X
- Model: MIDAS-E-XCF
- Series: MIDAS
- Module Type: Electrochemical Sensor Cartridge
- Sensor Technology: 3 electrode electrochemical cell
- Measuring Range: C4F6 0 to 40ppm
- Minimum Alarm 1 Set Point: 4ppm
- Lower Detection Limit: 1.7ppm
- Resolution: 0.2ppm
- Linearity: <± 20% of measured value
- Repeatability: <± 10% of measured value
- Response Time t62.5: ≤ 45 seconds
- Sensor Cartridge Life Expectancy: ≥ 12 months under typical application conditions
- Warm Up Time: < 20 minutes
- Calibration Gas: Hydrogen Fluoride (HF)
- Bump Test Gas: Chlorine (Cl2)
Environmental Tolerance and Anti-Interference
- Operating Temperature: 0°C to +40°C (32°F to 104°F)
- Temperature Effect on Zero: <± 0.03ppm / °C
- Temperature Effect on Sensitivity: <± 0.4% of measured value / °C
- Operating Humidity: 10 to 90% RH
- Humidity Effect on Zero: <± 0.01ppm / % RH
- Humidity Effect on Sensitivity: <± 1% of measured value / % RH
- Operating Pressure: 90 to 110kPa
- Effect of Position: No effect in typical application
- Long Term Drift on Zero: No drift
- Long Term Drift on Sensitivity: < 15% of measured value / year
- Storage Temperature: +5°C to +25°C (+41°F to +77°F)
Installation Guide
- Power off the detector before you replace the cartridge.
- Align the cartridge with the sensor socket.
- Push gently until the connector seats fully.
- Never force the cartridge into the socket.
- Allow < 20 minutes warm up before calibration.
- Mount the detector where airflow stays stable.
- Keep the sensor away from heat and high humidity.
Commissioning and Maintenance Convenience
- Calibrate with hydrogen fluoride (HF) gas.
- Run a bump test with chlorine (Cl2) before field use.
- Check sensor response after long storage.
- Recalibrate after harsh exposure or alarm events.
- Replace the cartridge at ≥ 12 months or when drift exceeds limits.
- Store spare cartridges between +5°C and +25°C.
Compatibility Notes
- Built for MIDAS gas detection systems.
- Supports fixed C4F6 monitoring in continuous operation.
- Works with compatible MIDAS detector controllers.
- Shows no position effect in typical applications.
- Confirm detector firmware and alarm settings before use.
Certifications and Compliance
- Industrial electrochemical gas sensing design.
- Performance backed by linearity and repeatability data.
- Fits standard fixed gas detection installation practice.
- Email sales@powergearx.com for current certificate documents.
Packing List and Warranty
- 1 x MIDAS-E-XCF Hexafluorobutadiene Sensor Cartridge
- Protective packaging
- Quick reference note
- 12-month warranty
- 12 to 24 hours dispatch
- Shipping by FedEx, UPS, DHL
Expert Review
The MIDAS-E-XCF targets C4F6 leaks in the low ppm range. Its 1.7ppm detection limit and 0.2ppm resolution help catch small leaks early. The ≤ 45 second response suits continuous monitoring. Zero drift stays clean over time, while sensitivity drift remains under 15% per year. This makes annual service planning simple.
Manager’s Insight
Etch gas rooms and semiconductor fabs need steady C4F6 detection. This cartridge offers a practical mix of ppm range, stable zero, and simple replacement. Keep spares on hand to meet 12 to 24 hours dispatch and avoid monitoring gaps.
Best-Fit Equipment and Applications
- Fixed gas detection systems using MIDAS cartridges.
- Semiconductor etch and chamber cleaning areas.
- Specialty gas cabinets and gas panels.
- C4F6 cylinder storage and change stations.
- Research labs working with fluorinated gases.
- Industrial safety monitoring near C4F6 processes.
FAQ
Q: Which gas does the MIDAS-E-XCF measure?
A: It measures hexafluorobutadiene (C4F6) from 0 to 40ppm.
Q: What is the lowest detectable level?
A: The lower detection limit is 1.7ppm.
Q: How fast does it respond?
A: Response time t62.5 is ≤ 45 seconds.
Q: Which gas do I use for calibration?
A: Use hydrogen fluoride (HF). Use chlorine (Cl2) for bump tests.
Q: How long does the cartridge last?
A: Expect ≥ 12 months under typical conditions.
Q: What is the warm up time?
A: Warm up takes < 20 minutes.
Q: What is the operating temperature range?
A: The sensor works from 0°C to +40°C.
Q: How should I store spare cartridges?
A: Store them between +5°C and +25°C.
Q: Does this cartridge fit any detector?
A: No. It fits compatible MIDAS systems only.
Q: Why should I run a bump test?
A: A bump test proves the sensor still responds. It catches blockage or drift early.
Q: Will humidity change my zero reading?
A: Humidity shifts zero by less than 0.01ppm per % RH. Keep conditions stable for best results.
Q: How do I pick the correct spare?
A: Match your detector model and target gas. Check the part number MIDAS-E-XCF before ordering.
Q: When do I need a new cartridge?
A: Replace it after 12 months of use or when drift passes stated limits.
Q: How fast do orders ship?
A: Orders leave in 12 to 24 hours. We ship by FedEx, UPS, and DHL.
Buying Guide
- Confirm your detector accepts MIDAS cartridges.
- Check that your target gas is hexafluorobutadiene (C4F6).
- Compare your alarm set point with the 0 to 40ppm range.
- Order spares to avoid downtime.
- Ask for current lead time and shipping options.
- Keep storage temperature within +5°C to +25°C.
Inquiries: sales@powergearx.com or +86 18030005825.
