Extended Length Probe for Deep Mounting Applications

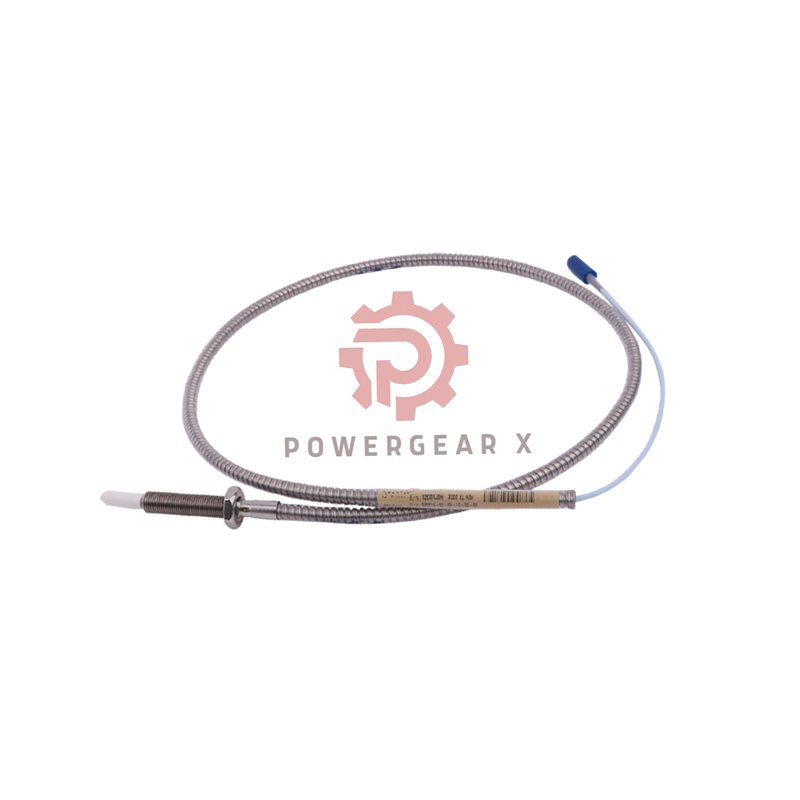

This is a new, original Bently Nevada 330910-14-19-10-02-00 proximity probe. It features an extended 190mm case with a long 140mm unthreaded section. This design is ideal for mounting through thick machine casings or insulation. The probe includes stainless steel armor for cable protection. It arrives in factory packing with a full 12-month manufacturer warranty.
For Immediate Assistance: Email sales@powergearx.com or message on WhatsApp: +86 18030005825.
Key Benefits & Unique Features
- Extra-Long Body: 190mm overall length clears thick mounting barriers easily.
- Long Unthreaded Section: 140mm smooth shaft for precise positioning in deep holes.
- Robust Armored Cable: Maximum durability in high-risk plant environments.
- Metric M10x1 Thread: Standard global fitting for industrial machinery.
- Proven Performance: Superior chemical and signal performance vs. older probes.
Comprehensive Product Specifications
- Product Family: Bently Nevada 3300 NSv Series
- Complete Part Code: 330910-14-19-10-02-00
- Thread Type: M10 x 1.0 mm Metric.
- Critical Dimensions: Unthreaded Length: 140mm. Overall Case: 190mm.
- Integrated Cable: 1.0 meter length with stainless steel armor protection.
- Electrical Sensitivity: 7.87 V/mm output (200 mV/mil).
- Useful Linear Range: 1.5 mm (0.025 to 1.75 mm from target).
- Standard Gap Setting: 1.0 mm (40 mils) for optimal operation.
- Wide Frequency Response: 0 to 10 kHz (±3 dB).
- Internal Resistance: Measures 4.2 Ω (±0.5 Ω).
- Extreme Temperatures: Operates from -52°C to +177°C.
- Build Materials: 304 SST case, PPS tip, Viton seal.
- Cable Bend Limit: Minimum 25.4 mm radius.
- Connector Detail: Standard ClickLoc miniature coaxial type.
Installation & Commissioning Tips
- Check Hole Depth: Ensure your mounting hole depth is less than 190mm to accommodate the full probe body.
- Use the Unthreaded Section: The 140mm smooth area allows for fine adjustment before the threads engage.
- Gap Setting is Critical: Always set the final probe tip to target distance to 1.0 mm after installation.
- Handle with Care: Support the armored cable during installation to avoid sharp bends at the connector.
What You Will Receive
- One genuine Bently Nevada 330910-14-19 extended armored probe.
- All original factory documentation and packaging.
- Full coverage under the standard 12-month product warranty.
- Choice of reliable courier: FedEx, DHL, or UPS express shipping.
- Professional technical sales support pre and post-order.
Specialist FAQ & Application Guide
Dimensions & Selection
Q: When should I choose this 190mm long case model?
A: Select this 330910-14-19 version when you need to mount through a deep housing, thermal insulation jacket, or a large adapter. The long unthreaded section provides stability.
Q: What is the difference between unthreaded length and overall case length?
A> Unthreaded length (140mm) is the smooth part for alignment. Overall case length (190mm) includes the threaded section. This is the total length that inserts into your machine.
Performance & Use
Q: Does the extended length affect the vibration measurement accuracy?
A> No. The sensing element is in the tip. The case length only affects mechanical mounting. Electrical performance and accuracy remain identical to standard-length probes.
Q: Can this probe handle high-pressure environments?
A> The probe has a Viton O-ring seal for differential pressure. For confirmed pressure ratings or testing for a specific high-pressure application, please contact our engineering team.
Ordering & Support
Q: What if I need a cable longer than 1 meter?
A> This model comes with a fixed 1.0m armored cable. For longer runs, you must use a compatible Bently Nevada extension cable between the probe and the monitor.
