Product details

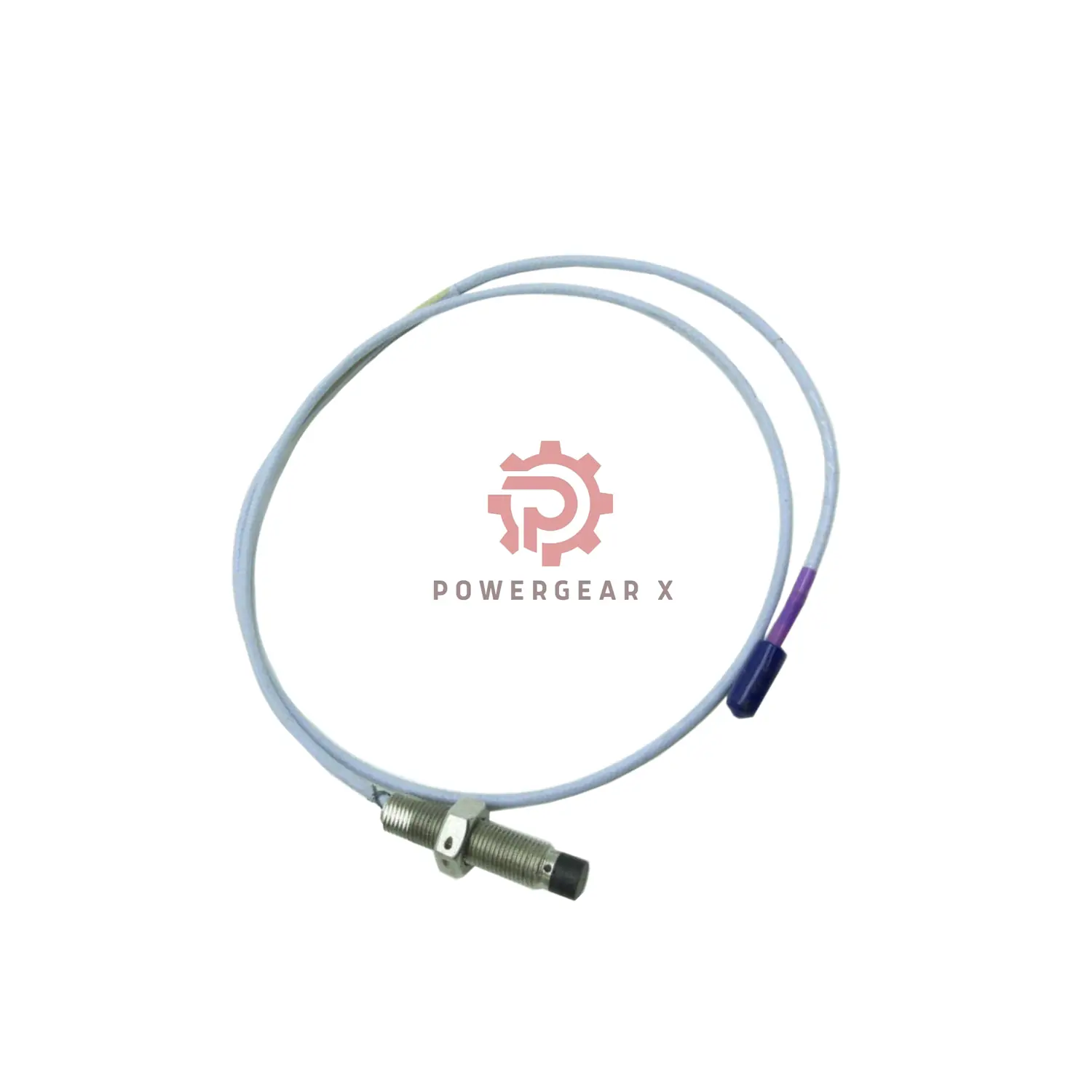

New Bently Nevada 330703-000-040-10-12-00 Proximity Probe
This is a brand new, genuine 3300 XL series proximity probe. It features a larger 11 mm probe tip and M14 x 1.5 metric thread. It is designed for high-performance vibration and position monitoring. The probe is factory sealed and comes with a full 12-month warranty.
Key Advantages at a Glance
- Large 11mm Tip: Provides a wider sensing field for stable measurements.
- Robust M14 Thread: M14 x 1.5 mm thread for secure mounting in heavy machinery.
- FluidLoc Cable: Special cable designed for improved performance in fluid environments.
- Excellent EMI Immunity: Very low sensitivity to magnetic interference for reliable data.
- Compact Case: 40 mm short case length for installations with limited space.
Detailed Technical Specifications
Core Product Information
- Brand: Bently Nevada
- Part Number: 330703-000-040-10-12-00
- Series & Type: 3300 XL 11 mm Proximity Probe
- Condition: New & Original
Physical Dimensions & Construction
- Probe Diameter: 11 mm
- Thread Size: M14 x 1.5 mm
- Unthreaded Length: 0 mm
- Overall Case Length: 40.0 mm
- Cable Length: 1.0 meter (3.3 feet)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Max Thread Engagement: 21 mm
Electrical & Performance Data
- Probe DC Resistance: 5.9 ± 0.5 Ohms
- Cable Type: 75-ohm Triaxial FluidLoc cable (FEP insulated)
- Connector: Miniature Coaxial ClickLoc
- Magnetic Field Immunity: Excellent (e.g., 0.001 mil pp/gauss at 0.5 mm gap, 60 Hz).
Mechanical & Environmental Ratings
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C
- Mounting Torque (Recommended): 21.1 N•m (187 in-lb)
- Mounting Torque (Maximum): 63.3 N•m (560 in-lb)
- Pressure Seal Note: Avoid prolonged exposure below -34°C (-29°F) to protect seal integrity.
Package & Guarantee
- One (1) Bently Nevada 330703-000-040-10-12-00 proximity probe.
- Original factory packaging and documentation.
- 12-Month Manufacturer Warranty against defects.
- Worldwide shipping via FedEx, UPS, or DHL with tracking.
Application & Selection Guidance
This 3300 XL 11mm probe is ideal for applications requiring a larger sensor size. It is often used in turbomachinery, large compressors, and generators. The FluidLoc cable offers enhanced protection. Choose this model when you need the M14 thread and superior immunity to electromagnetic interference.
Expert FAQs
Q: What is the main benefit of an 11mm probe tip versus a standard 8mm tip?
A: The larger 11 mm tip provides a larger sensing area. This often results in a more stable output signal. It is less sensitive to small target surface imperfections. It is preferred for larger machinery and specific applications requiring a wider measurement field.
Q: What makes the “FluidLoc” cable special?
A: The FluidLoc cable is a triaxial design with a special insulation system. It is engineered to maintain stable electrical characteristics. This is important in environments with potential fluid exposure or where cable integrity is critical for long-term reliability.
Q: Can I use this M14x1.5 probe in a mounting hole meant for an M10x1 or 3/8-24 thread?
A: No. The M14 x 1.5 thread is significantly larger. You must have the correct matching threaded hole or bushing in your machinery. Do not force an incorrect thread.
Q: The specs mention caution below -34°C. Can I use this in very cold environments?
A> The probe operates down to -52°C. The note cautions that prolonged exposure below -34°C may affect the pressure seal’s long-term lifespan. For continuous use in extreme cold, consult Bently Nevada for application-specific advice.
Q: How do I order and what are the shipping details for this item?
A> You can order directly through our store. For bulk orders or specific shipping requests (like DHL Express), please contact us first. We provide fast processing and clear tracking information for all shipments.
Need a different cable length or have technical questions? Our specialists can help you find the exact match for your system.
