Product details

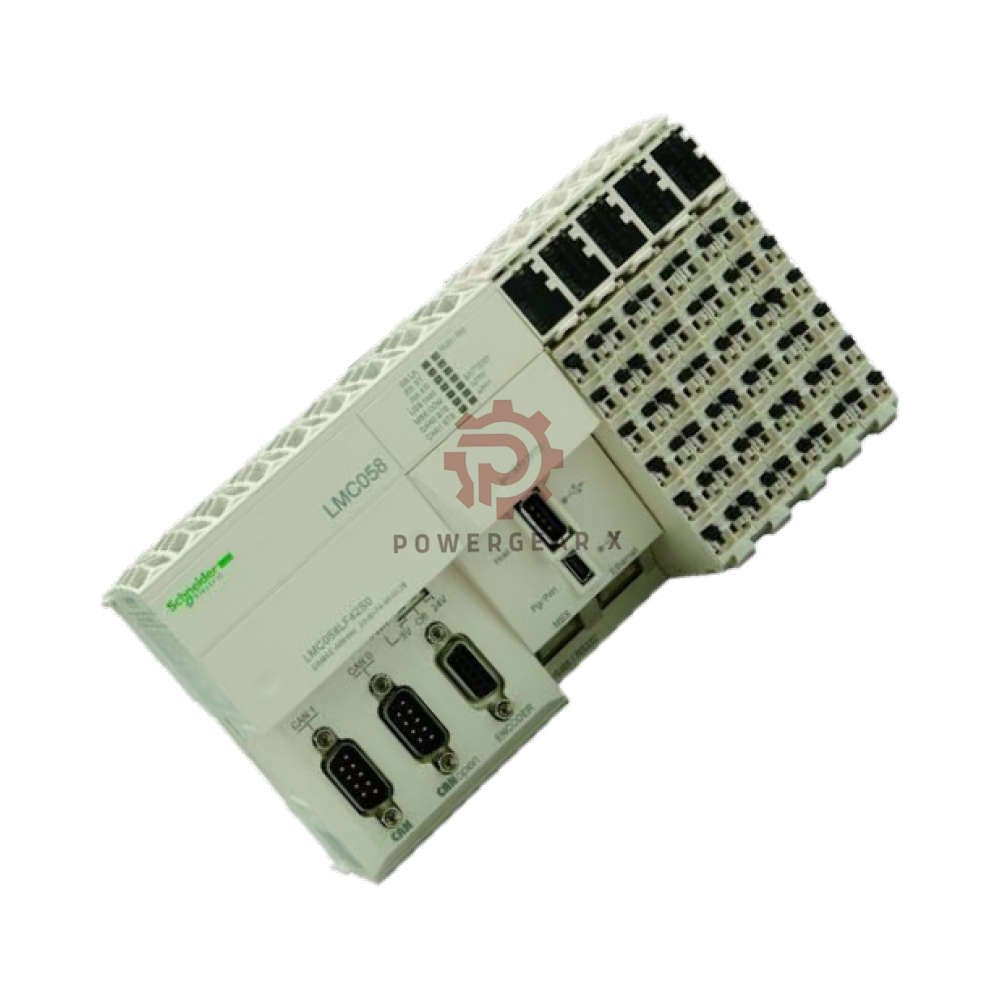

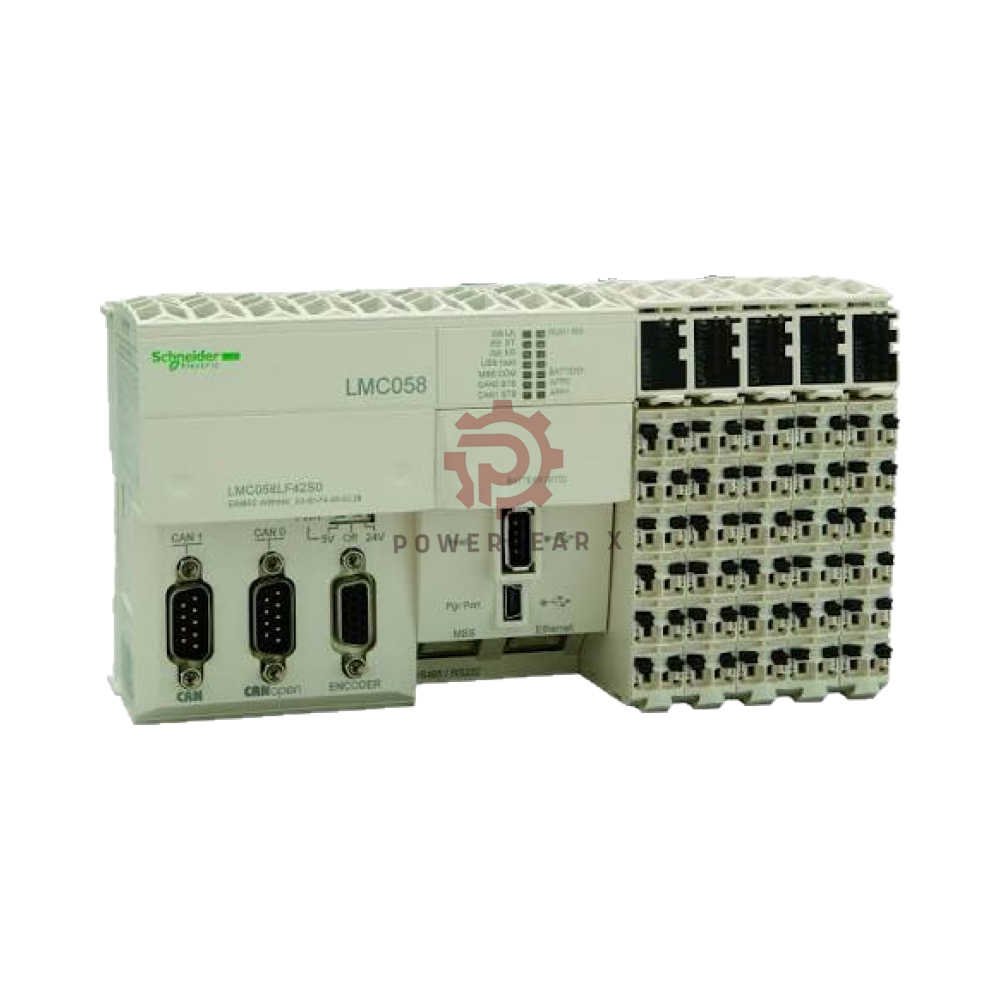

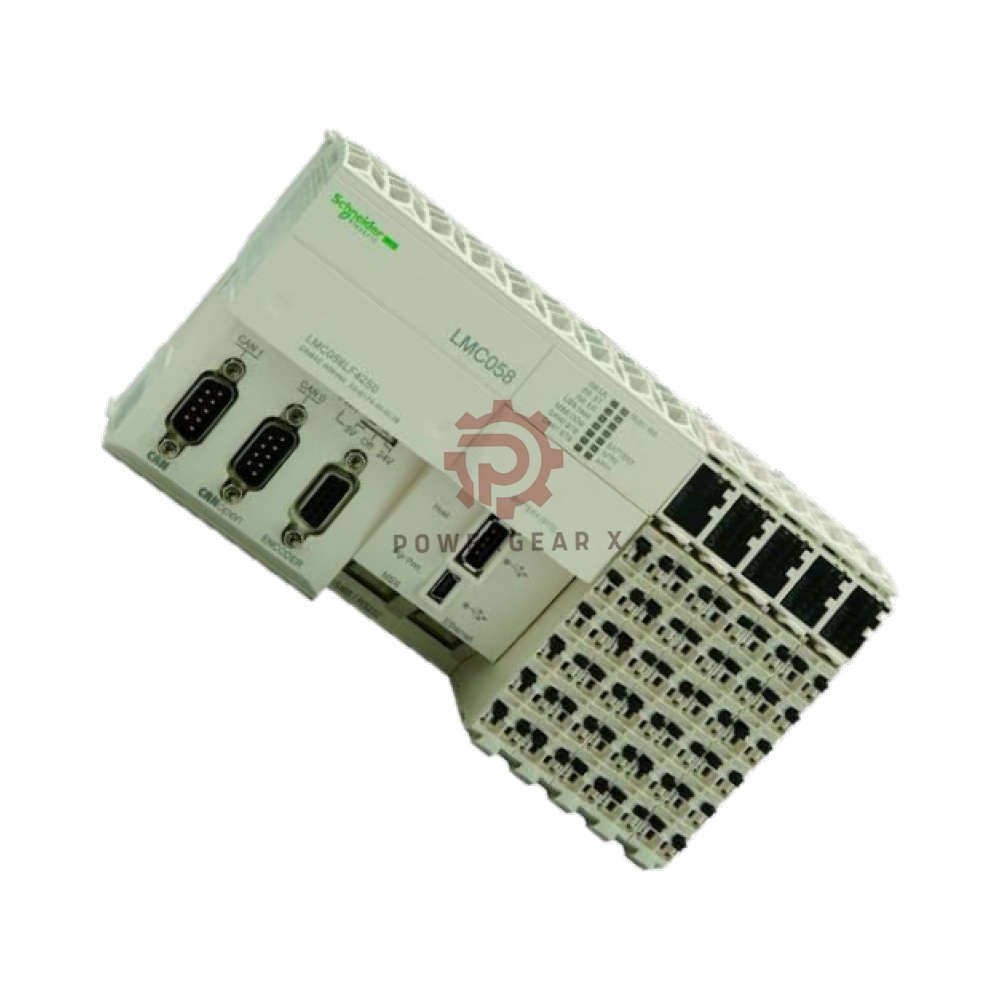

LMC058LF424 Schneider Electric Modicon LMC058 Motion Controller, 42 I/O, 4 Axes
LMC058LF424 is a motion controller from Schneider Electric. It belongs to the Modicon LMC058 series. This model offers 42 I/O and 4 synchronized axes. It runs on the M258 platform. The unit fits machines that need logic control plus coordinated motion over CANmotion.
The controller is discontinued. End of sale was 2026-06-30. Service ends on 2031-06-30. For new projects, check the Modicon M262 or LMCever as replacement paths.
- Core identity: Schneider Electric LMC058LF424, Modicon LMC058 series, 4-axis motion variant.
- Best fit: Machines that need 4 synchronized axes, CANmotion, CANopen, Ethernet, and encoder feedback.
- Key edge: Combines fast logic, rich ports, and 4-axis motion in one compact DIN rail unit.
- Lifecycle note: Discontinued. Secure spare units before service ends.
Technical Data
- Brand: Schneider Electric
- Model: LMC058LF424
- Series: Modicon LMC058
- Product type: Motion controller
- Processor: Dual-core ARM Cortex-A8, M258 platform
- Clock speed: Not available
- Program memory: 128 MB Flash
- Data memory: 64 MB RAM
- Scan speed: 22 ns per Boolean instruction
- Software: SoMachine / EcoStruxure Machine Expert
I/O Capacity
- Digital inputs: 26 total
- Fast digital inputs: 10
- Regular digital inputs: 12
- Configurable digital inputs: 4
- Digital outputs: 16 total
- Regular digital outputs: 12
- Fast digital outputs: 4
- Analog inputs: None
- Analog outputs: None
- High-speed counters: Integrated via fast inputs
- Pulse outputs: 4 fast outputs
- Expansion: Up to 7 TM5 expansion modules
Communication
- Ethernet: 1 x RJ45, 10/100BASE-TX
- Serial: 1 x RS-232/RS-485
- CAN: 2 x CAN, SUB-D9
- Encoder input: 1 x SUB-D15
- Programming port: 1 x USB-B mini
- Memory stick port: 1 x USB-A
- Protocols: Modbus TCP/IP, Modbus RTU/ASCII, CANopen master, CANmotion master
- Expansion options: EtherNet/IP, CANopen, SERCOS III, RS-232/RS-485, optional PCI modules
Motion And Encoder
- Axes: 4 synchronized axes
- Motion link: CANmotion over CAN
- Motion protocol: CANopen master plus CANmotion master
- Encoder interface: 1 x incremental encoder input, SUB-D15, 5 V differential RS-422
- Use case: Coordinated motion for compact machines and cells
Electrical Data
- Supply voltage: 24 V DC, range 20.4 to 28.8 V
- Power consumption: Not available
- Bus current: 0.28 A at 24 V DC, rated main supply current
- Embedded expert modules: 0.04 A
- Battery: 3 V CR2477M lithium, for real-time clock and data retention
Environmental Tolerance
- Operating temperature: 0 to +55 °C
- Storage temperature: -25 to +70 °C
- Relative humidity: 10 to 95%, non-condensing
- Protection rating: IP20
- Noise immunity: Built for industrial cabinets and factory floors
Physical Data
- Dimensions: 175 x 99 x 85 mm, H x W x D
- Weight: 0.77 kg
- Mounting: Symmetrical DIN rail
- Body style: Compact unit for control panels
Installation Guide
- Mount the unit on a symmetrical DIN rail inside a clean cabinet.
- Leave room above and below for airflow and cable bends.
- Use a stable 24 V DC supply within 20.4 to 28.8 V.
- Connect Ethernet, serial, CAN, encoder, and USB cables first.
- Respect IP20 limits. Keep dust and water away.
- Follow Schneider Electric rules for fast inputs and outputs.
- Use the SUB-D15 port for encoder signals.
- Fit the CR2477M battery if clock retention is needed.
Commissioning And Maintenance
- Program the unit with SoMachine or EcoStruxure Machine Expert.
- Use the USB-B mini port for fast laptop access.
- Use the USB-A port for memory stick backup and restore.
- Check axes and CANmotion links during first power-up.
- Monitor diagnostics through Ethernet or serial links.
- Replace the CR2477M battery during planned service stops.
- Check terminal torque and cable seating after long runs.
- Keep spare TM5 modules for critical lines.
- Record firmware and program versions for faster support.
Compatibility Notes
- Works with SoMachine and EcoStruxure Machine Expert.
- Accepts up to 7 TM5 expansion modules.
- Supports Modbus TCP/IP, Modbus RTU/ASCII, CANopen master, and CANmotion master.
- Built-in support for EtherNet/IP, SERCOS III, and serial links.
- Optional PCI communication modules can extend network options.
- Replacement path: Modicon M262 or LMCever.
Certifications And Compliance
- Schneider Electric industrial product standards apply.
- Designed for IP20 control cabinet use.
- CE and related industrial compliance may apply by configuration.
- Confirm final certification needs with your local Schneider Electric source.
- Check site rules for EMC, grounding, and panel layout.
Packing List
- 1 x LMC058LF424 controller
- 1 x CR2477M lithium battery, if included by seller
- 1 x quick start or documentation set, if supplied
- 1 x protective packaging
- Note: cable sets and expansion modules usually ship separately.
Warranty And Shipping
- Warranty: 12 months
- Dispatch: 12 to 24 hours after order confirmation
- Couriers: FedEx, UPS, DHL
- Tracking: Shared after shipment
- Packaging: Industrial-grade protection for safe transit
- Support: Contact sales@powergearx.com or +86 18030005825
Expert Review
The LMC058LF424 stands out for 4 synchronized axes in a compact logic controller body. It keeps the fast scan speed and rich ports of the Modicon LMC058 line. CANmotion makes it useful for small multi-axis machines. The main limit is lifecycle status. New builds should compare it with the Modicon M262. For existing lines, it remains a strong spare part.
Manager’s Insight
This model sells best to maintenance teams and integrators who run LMC058 machines with 4 axes. It is discontinued, so stock should focus on service demand. Bundle it with TM5 modules, CANopen drives, and Modbus TCP devices. Clear lifecycle notes and fast dispatch reduce purchase risk. A 12-month warranty helps buyers bridge the upgrade gap.
Best Applications
- Packaging machines with 4 synchronized axes
- Assembly cells using CANmotion drives
- Material handling units with encoder feedback
- Special-purpose machines with Modbus TCP or serial links
- Retrofit projects for existing Modicon LMC058 systems
- Spare part programs for discontinued Schneider Electric controls
FAQ
Q: How many axes does this controller support?
A: It supports 4 synchronized axes through CANmotion.
Q: What is the difference from LMC058LF42S0?
A: This model has 4 axes and CANmotion. The LF42S0 is logic-only with 0 axes.
Q: How many I/O points does it have?
A: It has 26 digital inputs and 16 digital outputs. There are no analog channels.
Q: Can I expand the I/O?
A: Yes. You can add up to 7 TM5 expansion modules.
Q: What software should I use?
A: Use SoMachine or EcoStruxure Machine Expert.
Q: Is the product still available?
A: It is discontinued. End of sale was 2026-06-30. Service ends on 2031-06-30.
Q: What is the replacement option?
A: Schneider Electric points to Modicon M262 or LMCever. Check your axis needs before switching.
Q: What battery does it use?
A: It uses a 3 V CR2477M lithium battery for real-time clock and data retention.
Q: What shipping methods do you offer?
A: We ship by FedEx, UPS, and DHL. Orders usually dispatch in 12 to 24 hours.
Q: What is the warranty?
A: The warranty is 12 months.
Q: How do I contact sales?
A: Email sales@powergearx.com or message +86 18030005825 on WhatsApp.
Buying Guide
- Confirm your machine needs 4 synchronized axes, not just logic control.
- Check your I/O count, including fast inputs and fast outputs.
- List your network needs: Ethernet, serial, CANopen, CANmotion, or SERCOS III.
- Check encoder type before using the SUB-D15 input.
- Plan for TM5 expansion if your I/O needs may grow.
- Ask for lifecycle status and replacement advice before large orders.
- Keep one spare unit for critical lines, because the model is discontinued.
- Share your application details with us for a faster compatibility check.
For inquiries, contact sales@powergearx.com or +86 18030005825.
