ABE7R16T230 Schneider ABE7 16-Channel Relay Module 5A SPDT Fused

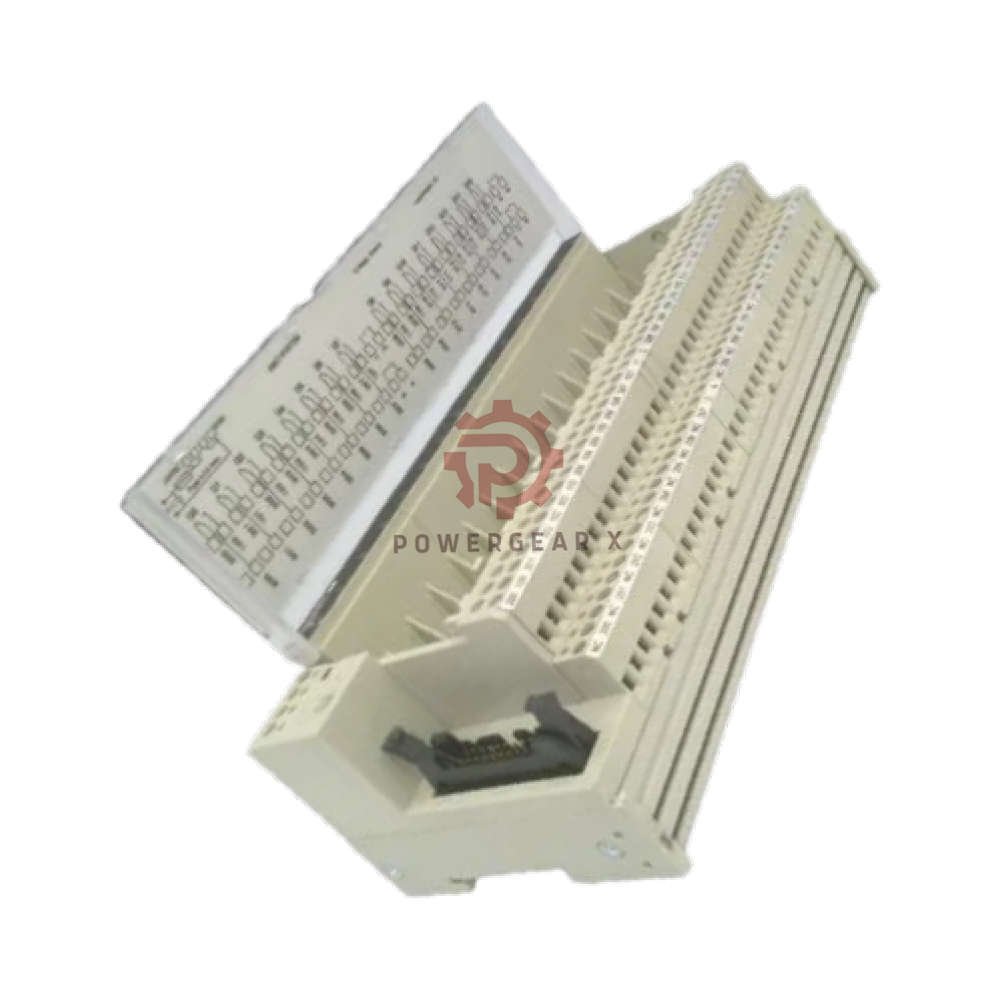

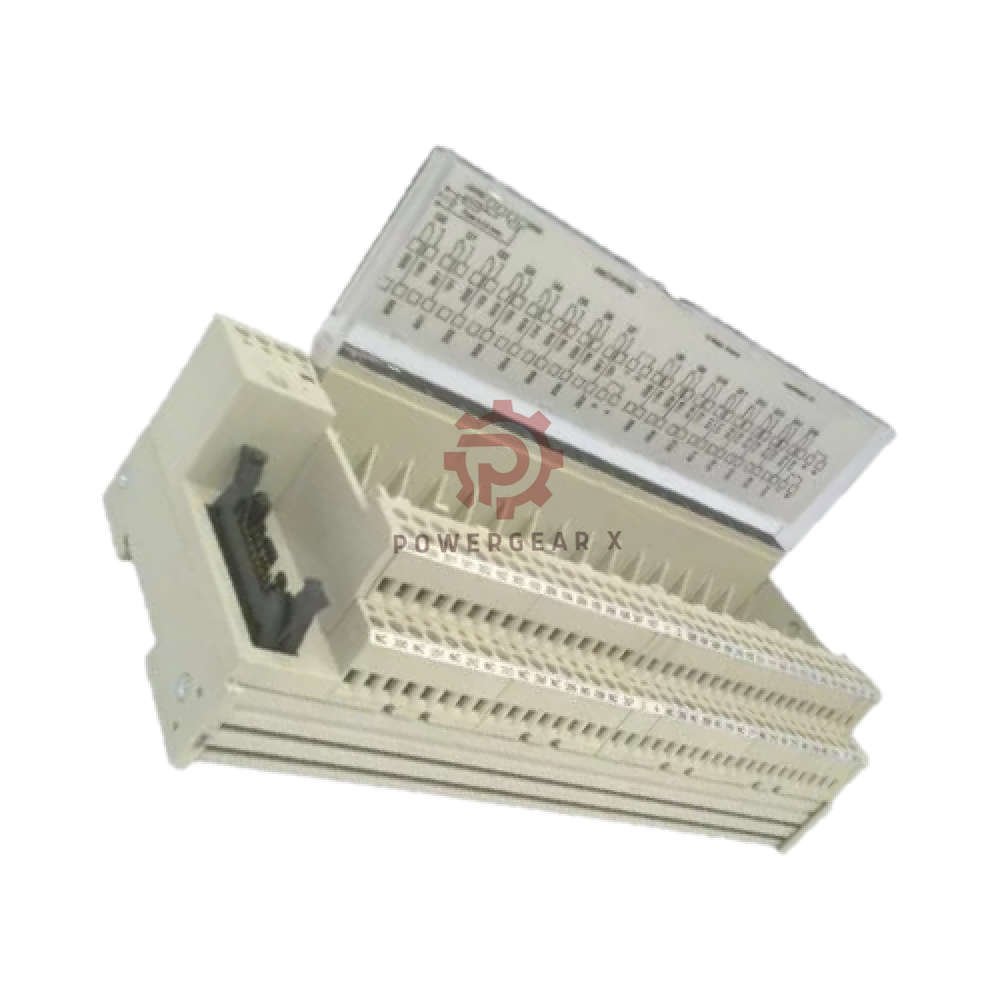

ABE7R16T230 – Schneider Electric 16-Channel Relay Sub-Base

Model ABE7R16T230 from Schneider Electric is a high-density sub-base for plug-in electromechanical relays. It handles 16 channels with 230V AC coil and 1 CO (SPDT) contacts per channel. Each channel delivers 5 A / 250V AC switching. Built-in 1 A fuse and LED status simplify diagnostics. This module belongs to the proven Telefast ABE7 series. It is active and in production.

Technical Specifications

• Brand: Schneider Electric
• Model: ABE7R16T230
• Series: ABE7
• Module Type: Sub-base with plug-in electromechanical relay
• Number of Channels: 16
• Contact Type: 1 CO (SPDT) per channel
• Contact Rating: 5 A / 250V AC
• Coil Voltage: 230V AC
• Protection: 1 A internal fuse per channel, LED status indication
• Operating Temperature: -5 to 60 °C
• Protection Rating: IP2X
• Mounting: 35 mm DIN rail / screw mounting
• Dimensions (H×W×D): 88 × 200 × 71 mm
• Weight: 0.735 kg
• Mechanical Life (plug-in relay): 10,000,000 cycles
• Electrical Life (plug-in relay): 100,000 cycles (AC-15)
• Wire Cross-Section: 0.14–2.5 mm² solid, 0.09–1.5 mm² flexible
• Lifecycle: Active (in production, Telefast ABE7 range) – Last verified: 2026-09

Expert Review

The ABE7R16T230 packs 16 isolated relay channels into a slim DIN-rail footprint. Its 230V AC coil suits direct control from standard industrial logic. The 1 A fuse per channel protects wiring without external breakers. LED status speeds up fault finding. The 5 A contact rating handles most pilot duty loads. This module shines in high-channel-count panels where space and serviceability matter. The plug-in relay design cuts downtime—swap a relay, not a whole card. Mechanical life of 10 million cycles is excellent for a plug-in part. Electrical life of 100,000 cycles at AC-15 fits light inductive loads. For heavy inductive switching, add external suppression. The IP2X rating protects against finger contact, not dust or water. Keep it inside a clean cabinet. Overall, a reliable workhorse for machine builders and system integrators.

Manager’s Insight

This sub-base reduces wiring time by up to 60% versus discrete relays. The 16-channel density saves panel space. Pre-wired plug-in relays mean faster commissioning. Stock one spare relay type—not 16 separate units. The 230V AC coil eliminates separate control transformers in many lines. Fused outputs lower fire risk and simplify NEC compliance. For OEMs, this module standardizes I/O across machines. For end users, it simplifies spares. The Telefast ABE7 range has long-term availability. That protects your design investment. Order this module when you need fast, fused, high-density relay outputs with clear status feedback.

Best Fit Applications

• Industrial control panels with many relay outputs
• Machine tool signal switching
• Packaging and labeling lines
• Material handling and conveyor controls
• Building automation for fan, pump, and valve control
• Process skids with 230V AC logic
• Test benches needing fast channel changes

Installation Guide

• Mount on 35 mm DIN rail or screw directly to a panel.
• Keep 50 mm clearance above and below for airflow.
• Use 0.14–2.5 mm² solid or 0.09–1.5 mm² flexible wire.
• Tighten terminals to 0.5 N·m.
• Connect 230V AC coil to the designated terminals.
• Wire each channel’s 1 CO contact per your load.
• Check LED status after power-up.
• Replace a blown 1 A fuse with the same rating.

Commissioning and Maintenance

• Test each channel with a known load before full run.
• Verify coil voltage stays within 230V AC ±10%.
• Monitor LED indicators for open or shorted channels.
• Replace plug-in relays without removing wiring.
• Check fuse continuity during scheduled maintenance.
• Clean with dry compressed air only.
• Do not exceed 60 °C ambient.

Compatibility Notes

• Works with standard Telefast ABE7 plug-in relays.
• Fits 35 mm DIN rail per EN 60715.
• Accepts solid and flexible wire sizes listed above.
• Compatible with Schneider Electric ABE7 accessories.
• Use 230V AC control signals for coil drive.
• Not for DC coil or low-level signal switching.

Certifications and Compliance

• CE marked for European Economic Area.
• UL recognized (check latest file).
• RoHS compliant.
• IP2X protection per IEC 60529.
• Designed for industrial control panels.

Packing List

• 1 × ABE7R16T230 sub-base
• 16 × plug-in electromechanical relays (pre-installed)
• 16 × 1 A fuses (pre-installed)
• 1 × quick start guide

Warranty and Shipping

• 12-month warranty against manufacturing defects.
• 12–24 hour dispatch for in-stock orders.
• Shipping via FedEx, UPS, or DHL.
• Tracking number provided after dispatch.
• Contact sales@powergearx.com or +86 18030005825 for urgent needs.

Frequently Asked Questions

Q: Can I use this module with a 24V DC coil?
A: No. The ABE7R16T230 uses a 230V AC coil. For 24V DC, choose a different ABE7 model.

Q: How do I know which channel has a blown fuse?
A: The LED status turns off for that channel. The fuse sits next to each relay.

Q: What is the maximum switching load per channel?
A: Each contact handles 5 A at 250V AC. Do not exceed this rating.

Q: Can I replace a single relay without removing the sub-base?
A: Yes. The plug-in relay pulls straight out. No rewiring needed.

Q: Does this module work in a 60 °C panel?
A: Yes. The operating range is -5 to 60 °C. Keep airflow around the module.

Q: What wire size should I use for the coil and contacts?
A: Use 0.14–2.5 mm² solid or 0.09–1.5 mm² flexible. Tighten firmly.

Q: Is this module still in production?
A: Yes. The Telefast ABE7 range is active. Last verified: 2026-09.

Q: Can I buy spare relays and fuses separately?
A: Yes. Contact sales@powergearx.com for spare part numbers.

Q: How fast can you ship to my plant?
A: We dispatch in 12–24 hours via FedEx, UPS, or DHL.

Q: What is the mechanical life of the plug-in relay?
A: 10,000,000 cycles. Electrical life is 100,000 cycles at AC-15.

Q: Do I need external fuses for each channel?
A: No. Each channel has a 1 A internal fuse. That saves panel space.

Q: Can I mount this module vertically?
A: Yes. Use 35 mm DIN rail or screw mount. Keep LEDs visible.

Buying Guide

• Count your 230V AC relay outputs. If you need 16 or fewer, this module fits.
• Check your load current. Stay below 5 A per channel.
• Confirm your panel has 35 mm DIN rail or screw space.
• Choose this model for fused, LED-monitored outputs.
• For DC coils or lower channel counts, look at other ABE7 variants.
• Order spare 1 A fuses and plug-in relays at the same time.
• Ask about volume pricing for 10+ units.
