Product details

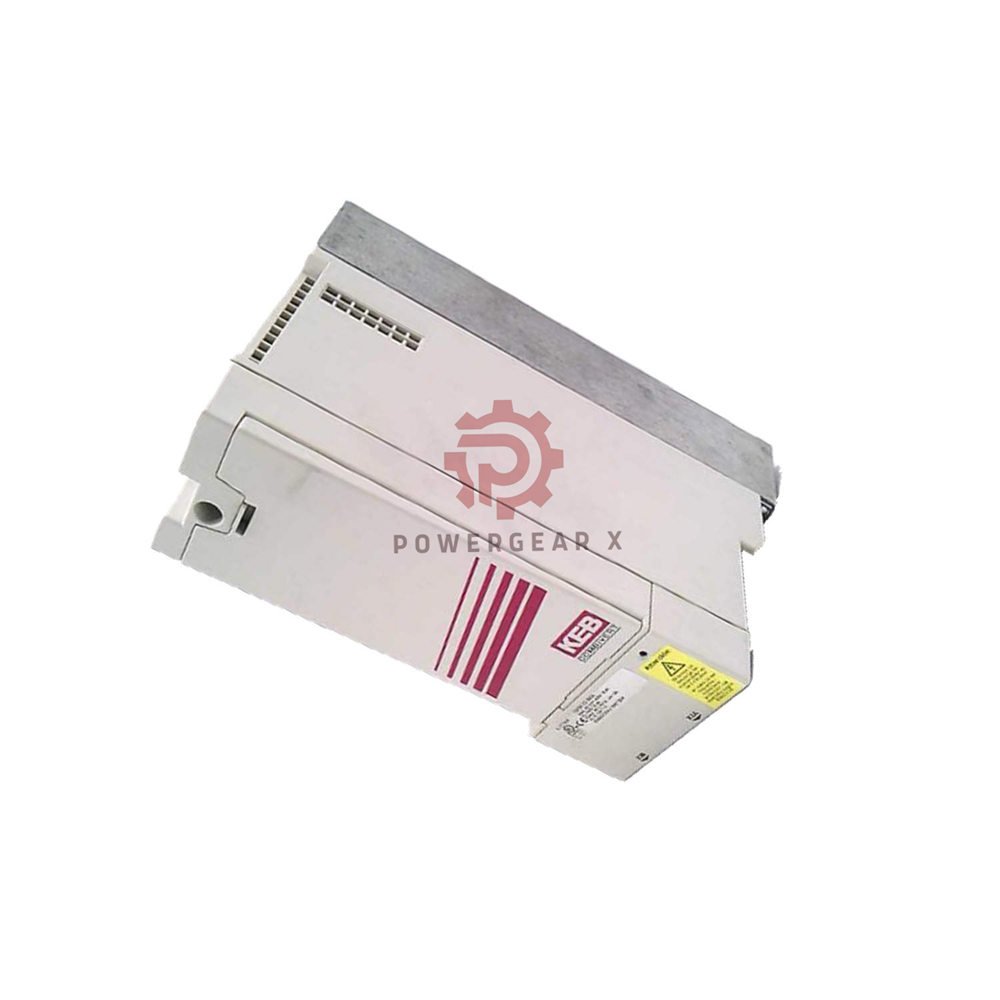

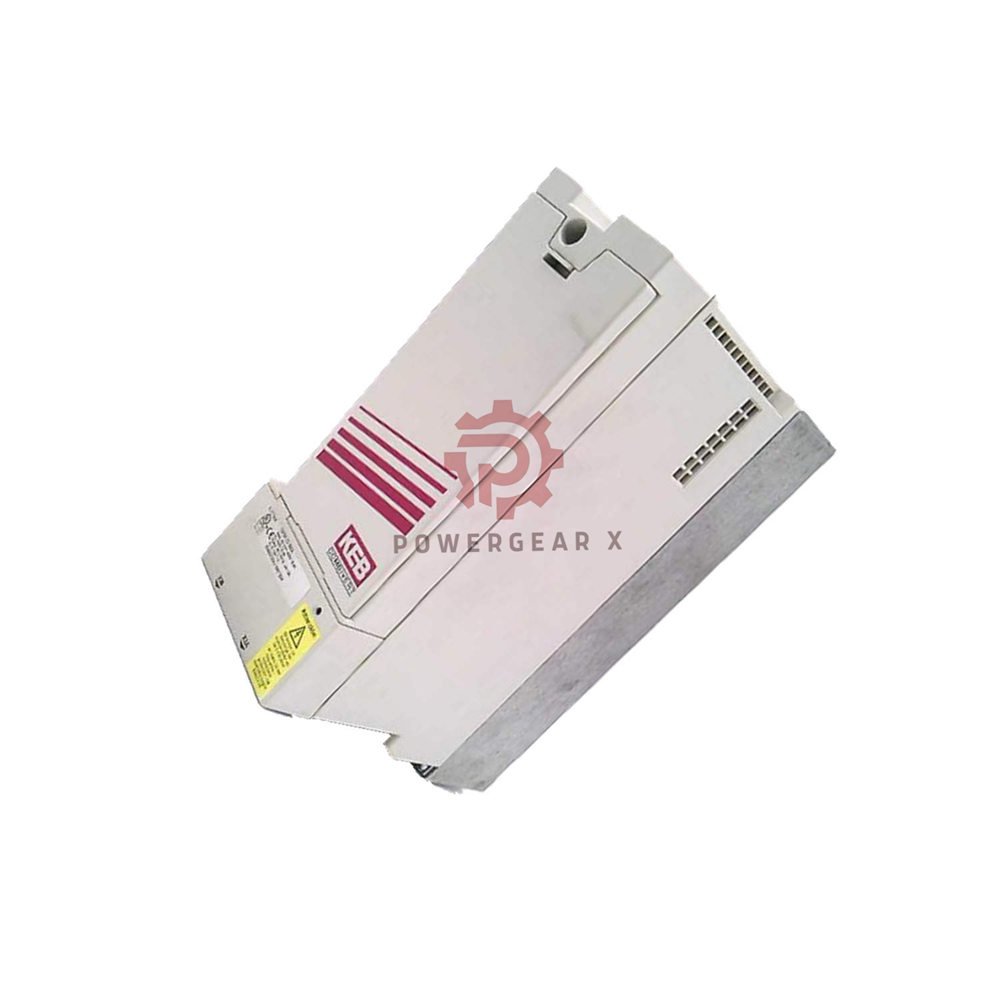

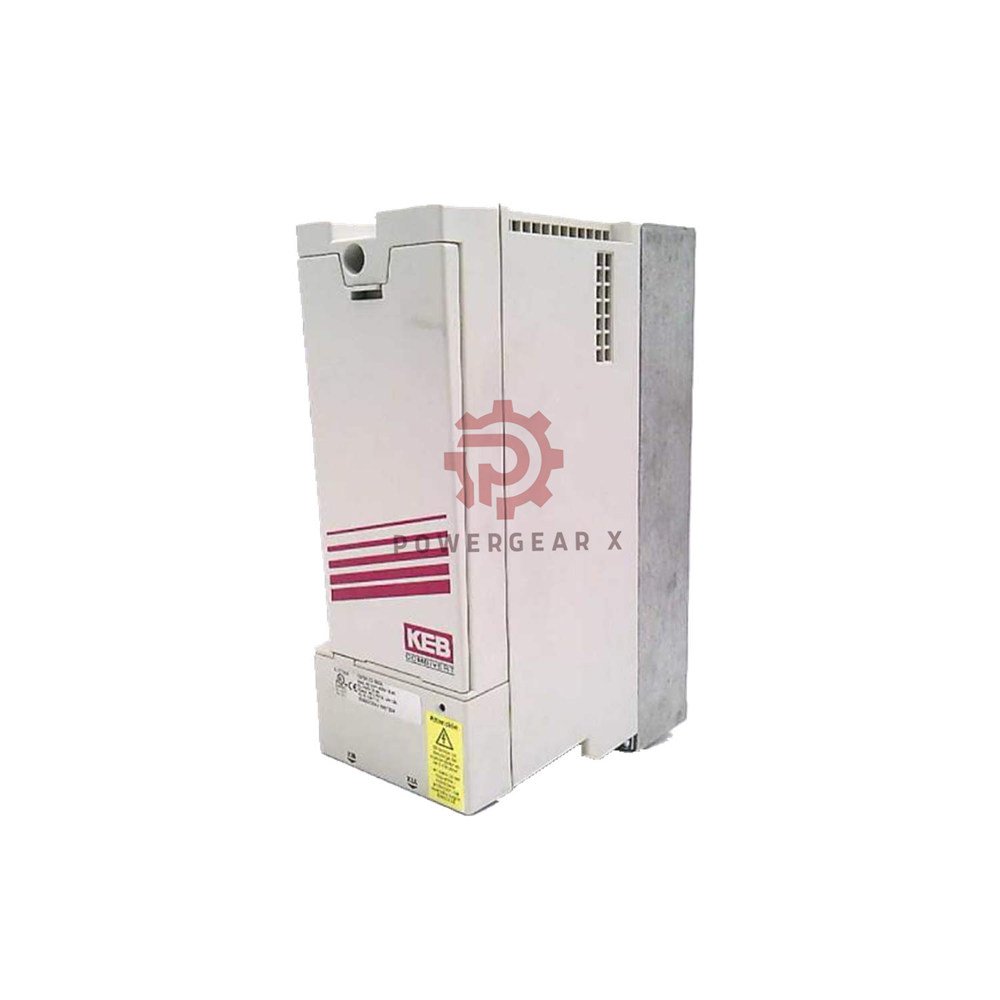

KEB Combivert F5 Frequency Inverter
- Model: 13F5A1D-390A
- Type: Controlled frequency inverter
- Power: 8.3 kVA / 5.5 kW
- Input: 305…528V AC, 3-phase
- Output: 0…Uin, 12A (21.6A peak)
- Max frequency: 599 Hz
- Switching freq: 4 kHz
- Cooling: Air cooler (heat sink GTR7)
- Protection: IP20
- Dimensions: 90 x 250 x 181 mm
Technical Data
- Power rating: 8.3 kVA
- Motor power: 5.5 kW (2/4P, 50/60Hz)
- Input voltage: 305-528V AC, 3PH
- Output voltage: 0 to input voltage
- Rated current: 12A
- Max short-term current: 21.6A
- Max output frequency: 599 Hz
- Switching frequency: 4 kHz
- Protection class: IP20
- Weight & size: 90 x 250 x 181 mm (WxHxD)
Equipment & Features
- Brake transistor: GTR7
- Heat sink type: Air cooler
- Built-in EMC filter (optional)
- Easy parameter access
Applications
- Conveyor belts – speed control
- Pumps & fans – energy saving
- Mixers & extruders – torque regulation
- Cranes & hoists – smooth start/stop
- Textile machinery – precise speed
Expert Review
- Manager’s Insight: This drive offers solid performance for 5.5kW motors. The 599Hz output suits high-speed spindles. Built-in brake transistor saves external cost. Very reliable for daily industrial use.
- Service Engineer Note: Easy to install and set up. The air cooler handles heavy loads well. We use it in dusty environments – IP20 is fine for indoor panels.
Selection Guide
- Step 1: Check motor power – up to 5.5kW.
- Step 2: Verify input voltage – 3-phase 400V.
- Step 3: Consider peak current – 21.6A for short loads.
- Step 4: For high starting torque, use sensorless vector control.
- Tip: Order a spare unit for quick replacement.
Warranty & Shipping
- 12-month warranty covers defects.
- 24-hour dispatch on working days.
- Shipping via FedEx, UPS, or DHL.
- Track your order online.
Frequently Asked Questions
- Can this drive run a 7.5kW motor?
- No, it is rated for 5.5kW max. Choose a larger model for 7.5kW.
- Does it support 50Hz and 60Hz motors?
- Yes, the output frequency range covers both.
- What is the brake transistor used for?
- It dissipates regenerative energy from fast deceleration.
- Can I mount this in a wet area?
- IP20 is for dry indoor use. Use an enclosure for wet locations.
- How do I get a parameter file?
- Contact support – we can send a template.
Compare with Similar Models
- KEB 13F5A1E-390A – 11kW version
- KEB 13F5A1C-390A – 3kW compact
- KEB F5 Basic – no brake transistor
- KEB F5 Standard – same specs with filter
